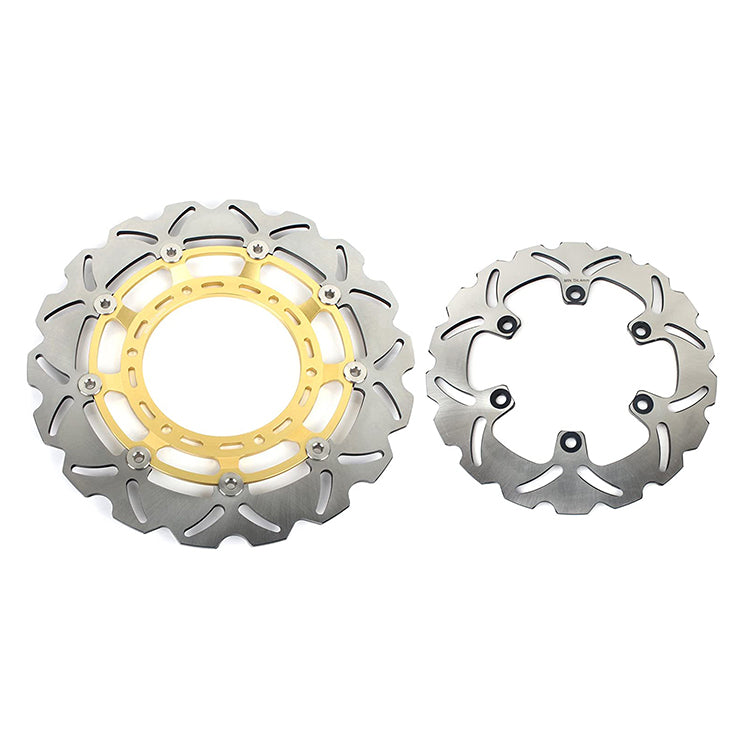

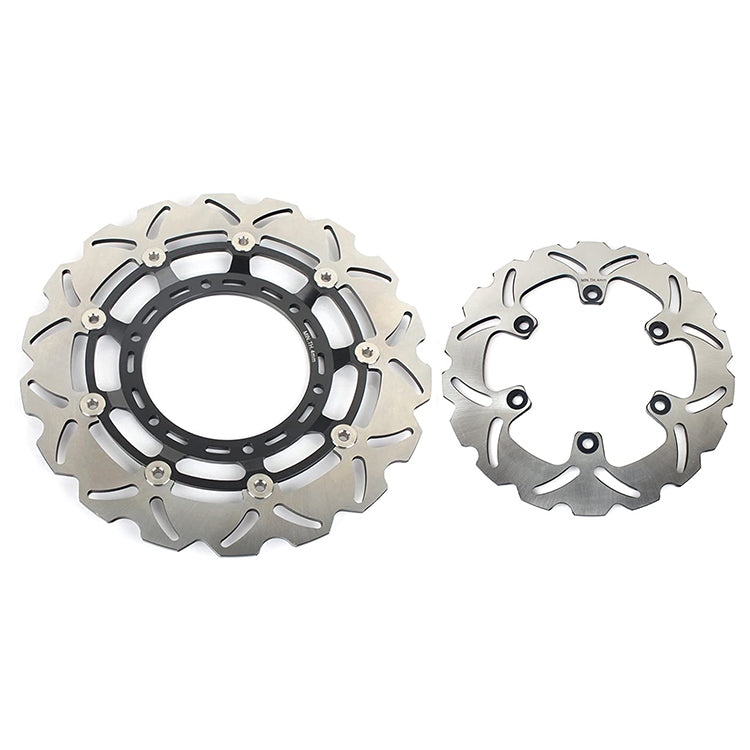

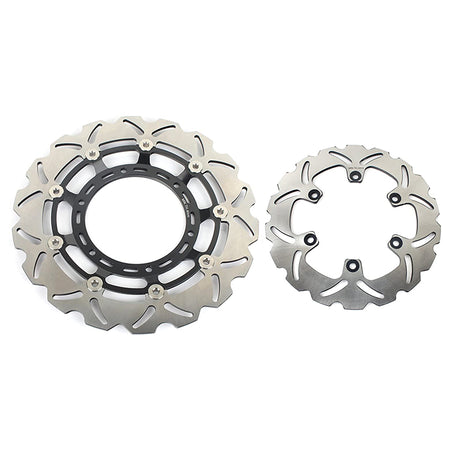

Fit for Yamaha XT 660 X Supermoto 2004-and up

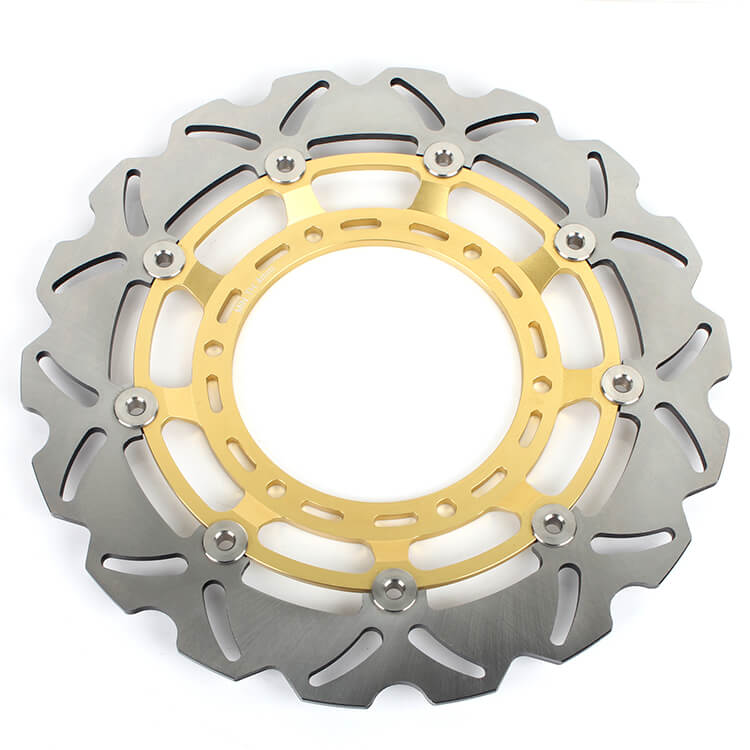

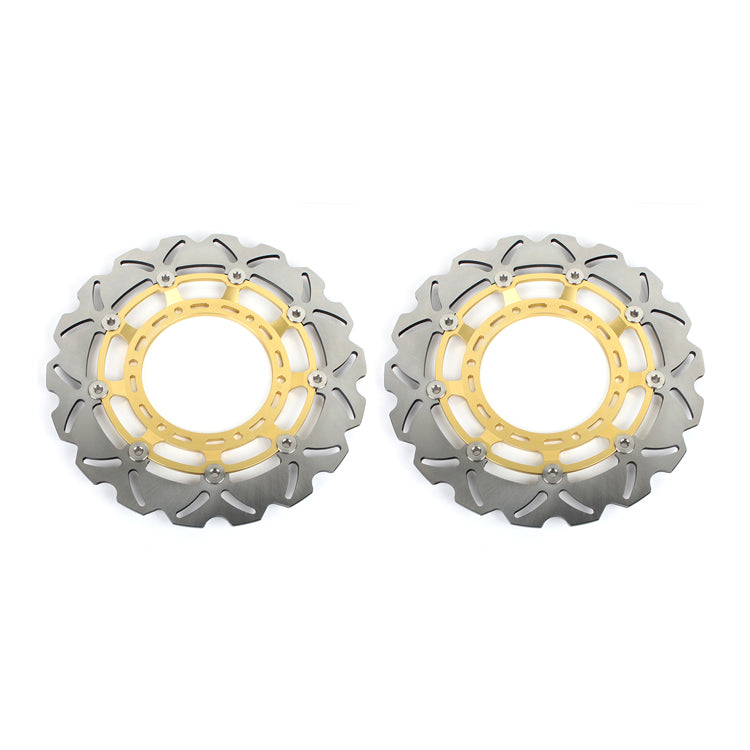

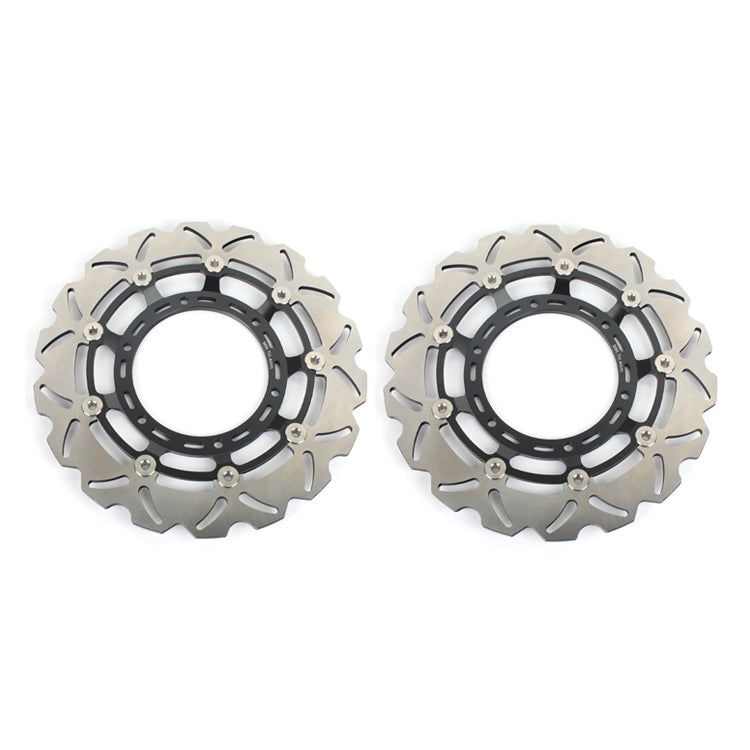

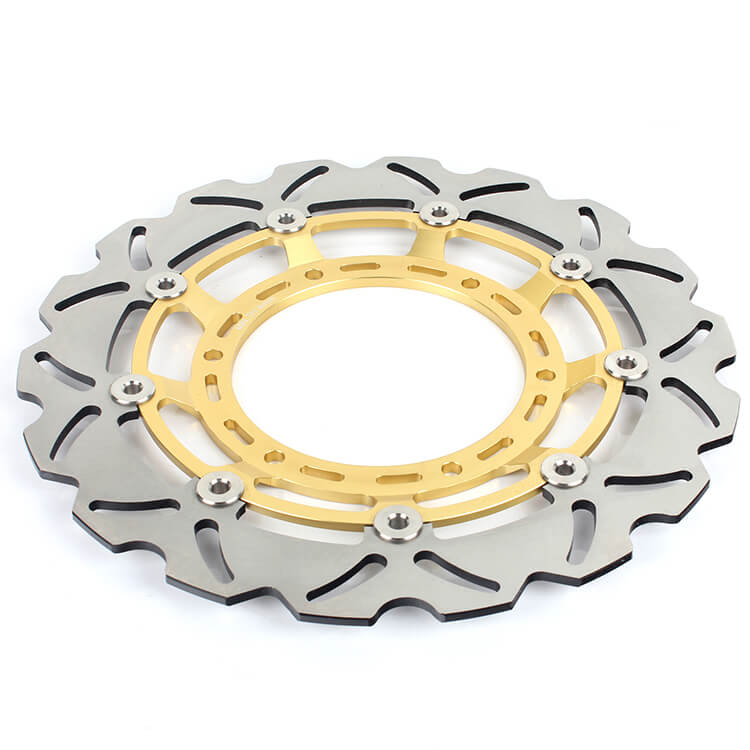

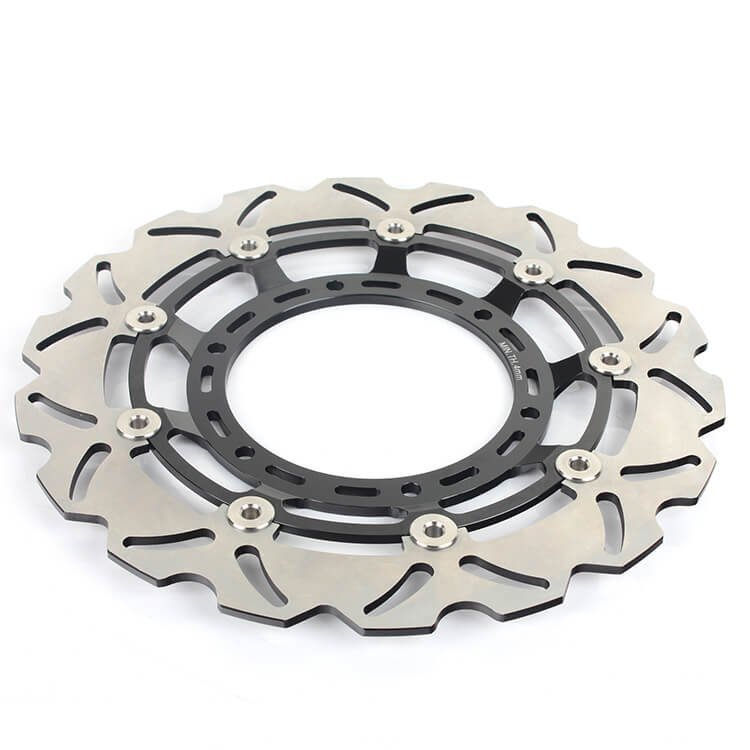

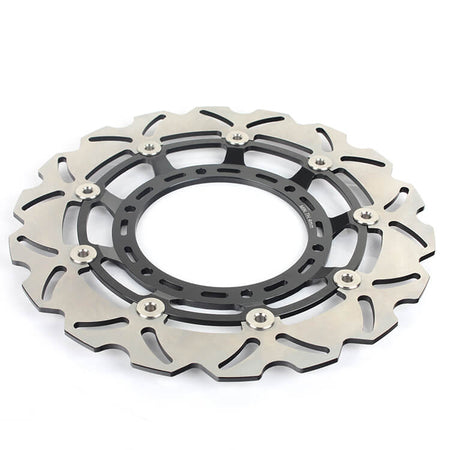

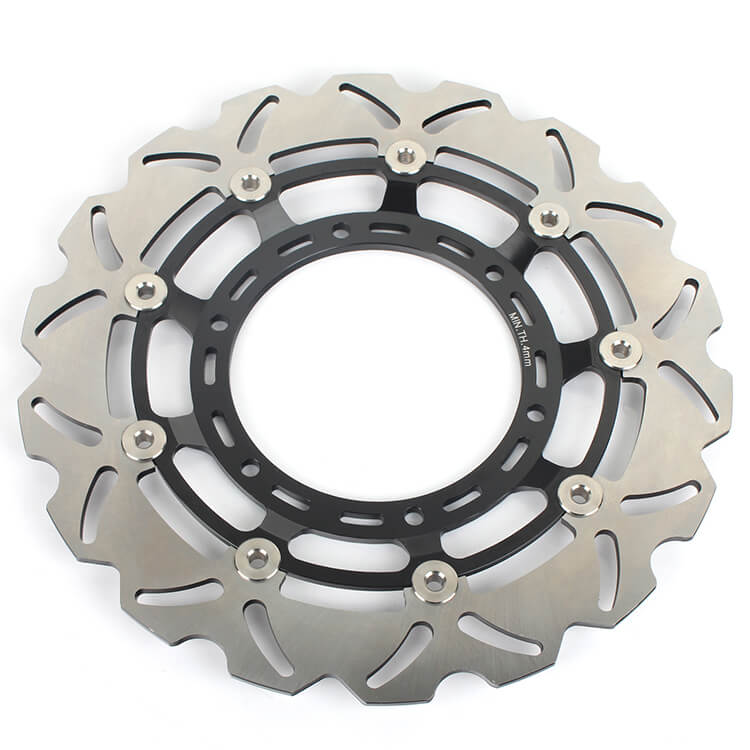

Front floating disc
- This brake disc rotor is constructed from 420 stainless steel & anodized 6061-T6 aluminum.
- Wave shape brake disc for weight saving and increased clean effect. The slotted rotor ensures water and dirt are dispersed quickly when braking.
- The grooves on the disc surface create a self ventilating system to make brake system cool down and also prevent mud and dirt from interfering with braking performance.
- 20% light weigth than OEM.
- Surface is electro-statically coated to ensure a long term appearance.
- Replaces original disc with no modification required.
Outer diameter 320mm
Inner diameter 132mm
Thickness 5mm
Hole quantity 6
Hole size 8.5mm
Hole spacing 150mm
Offset height 14.25mm

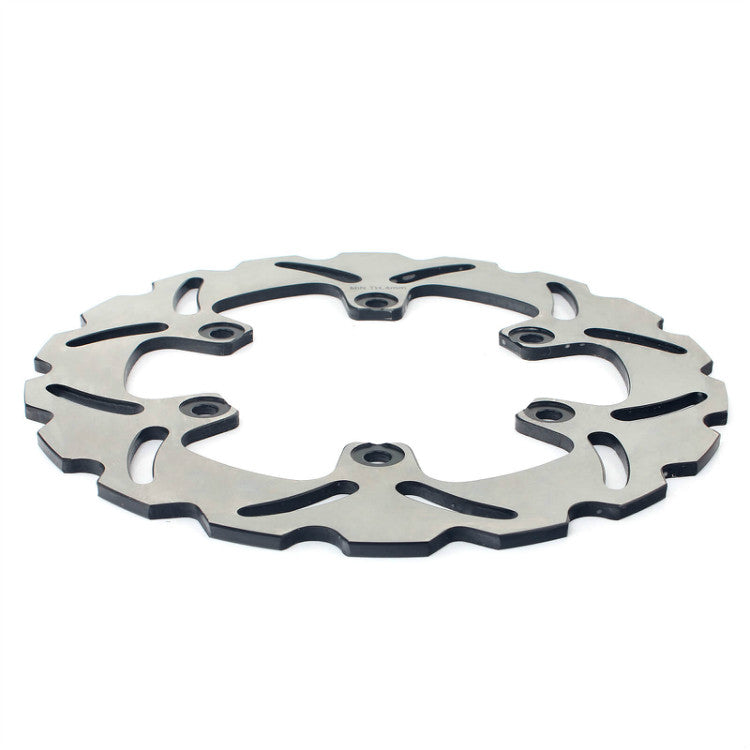

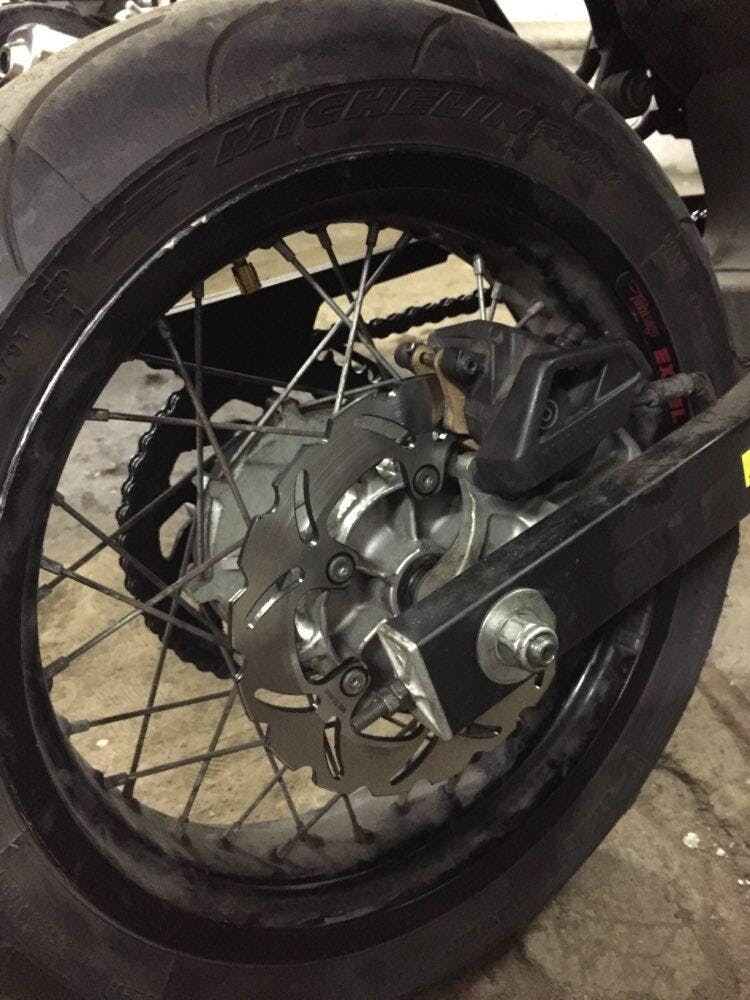

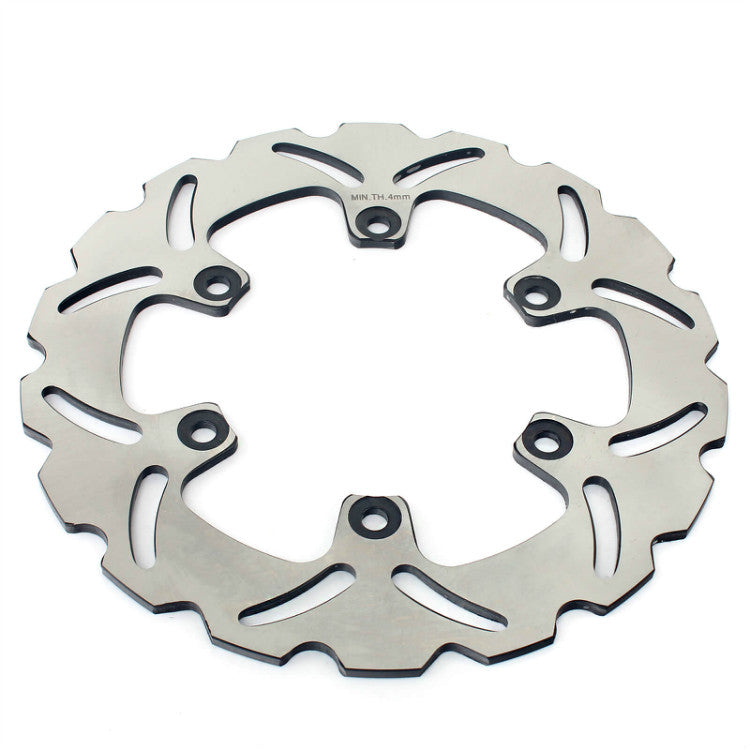

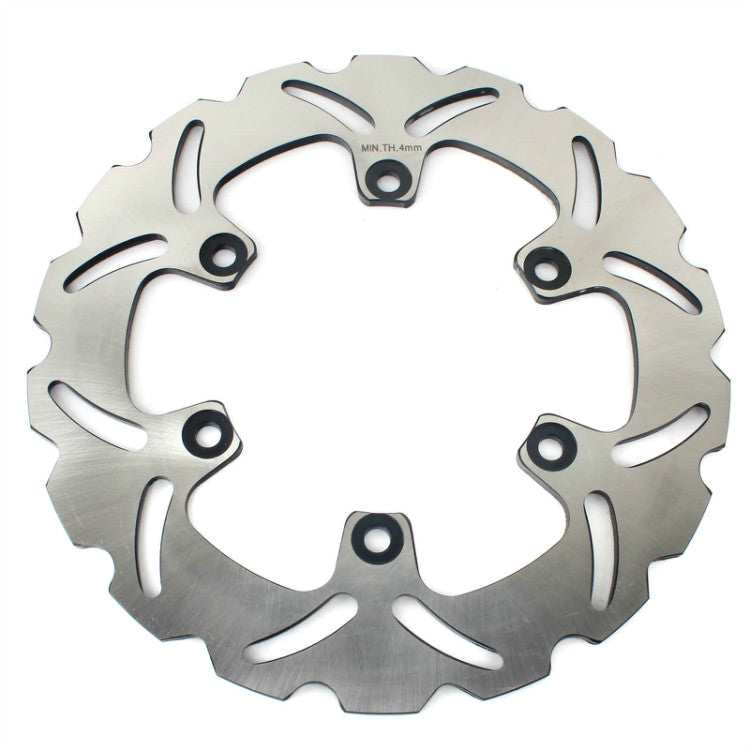

Rear brake disc
- 420 2Cr13 stainless steel ensures strong braking power.
- Heat treatment for super hardness and toughness.
- Light weight wave shape disc, 30% light wieght than OEM.
- Slot system to keep your brake system clean and run cooler.
- Venting holes for superior heat dissipation.
Outer diameter 245mm
Inner diameter 115mm
Thickness 5mm
Hole quantity 6
Hole size 8.4mm
Hole spacing 133mm

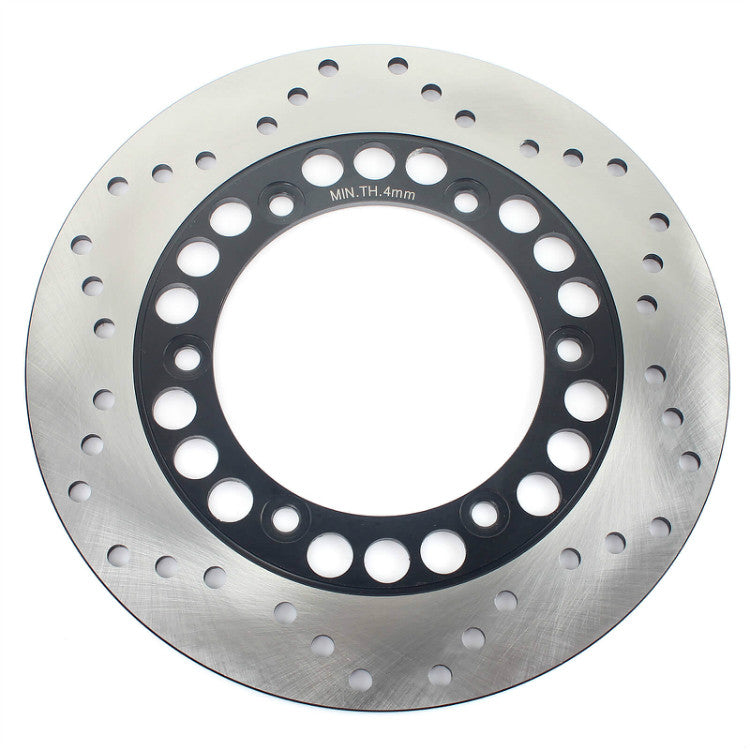

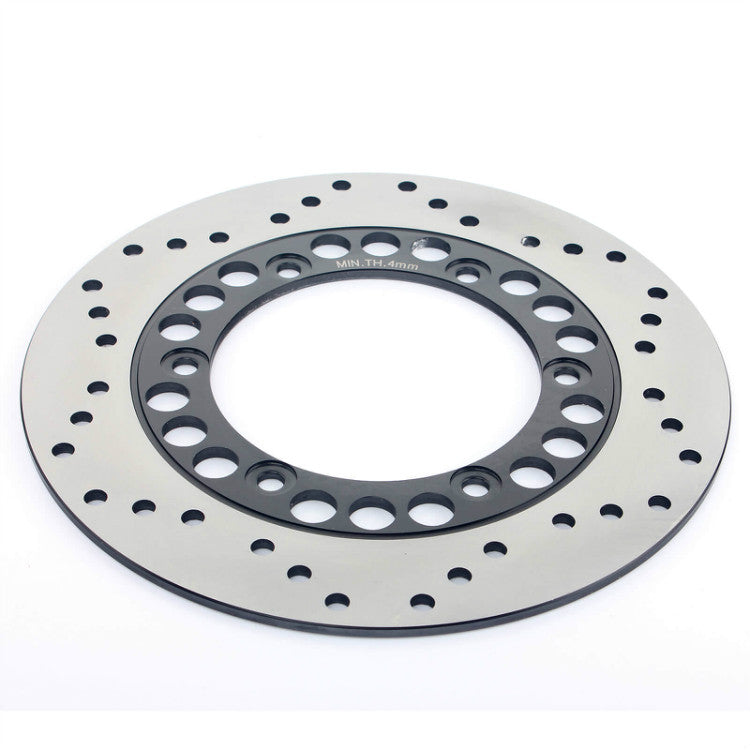

All discs carry the required minimum thickness markings essential for road registration. Please replace your brake disc when it reaches the Minimum Thickness marked on the disc surface to ensure your safety
