Fit for Suzuki GSX-R1000 ABS/GSX-R1000R ABS 2017-2021

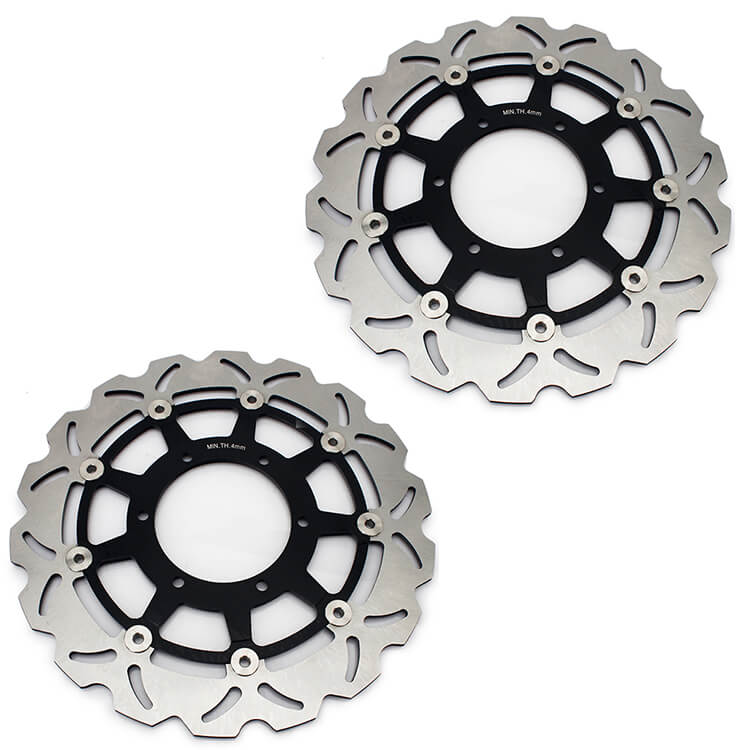

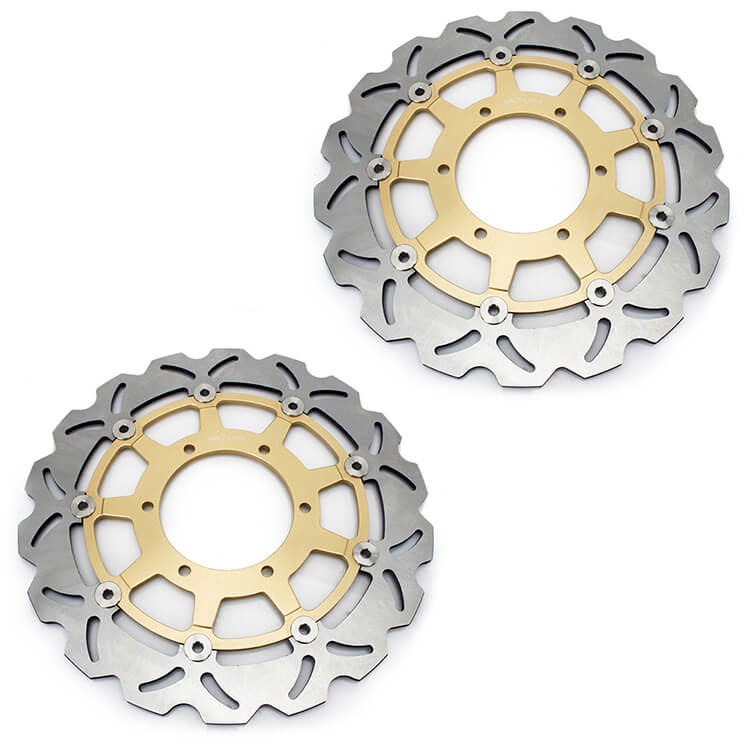

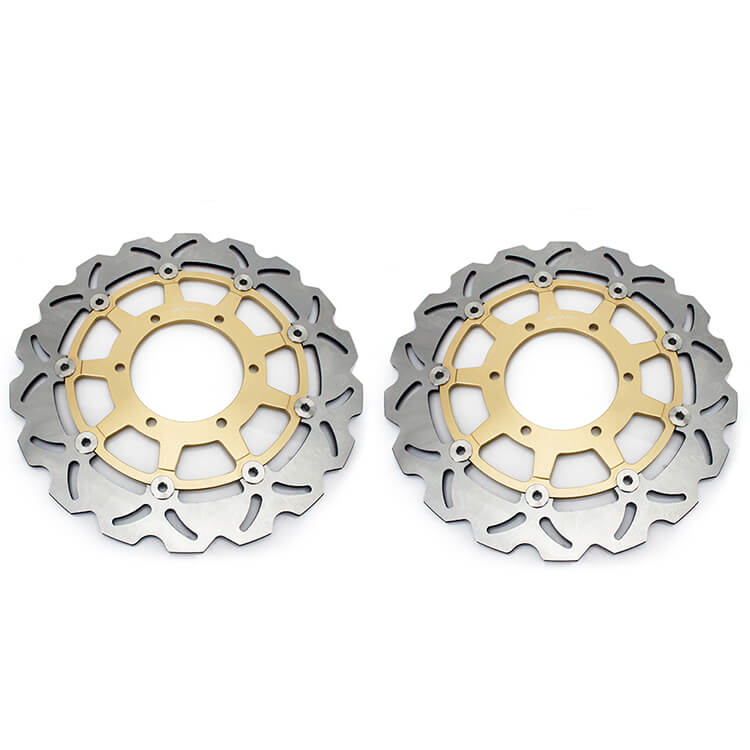

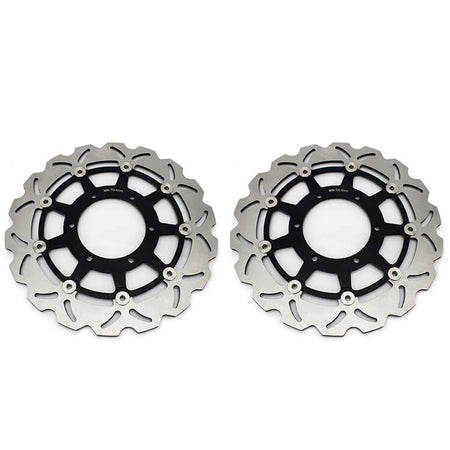

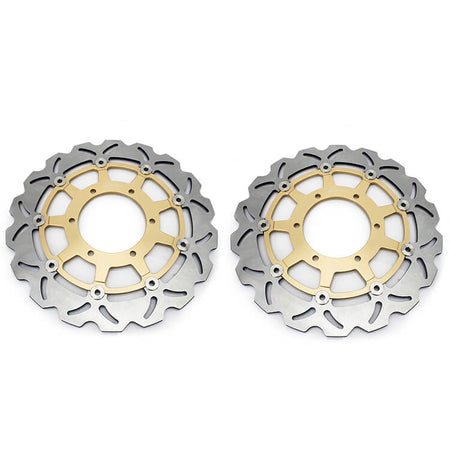

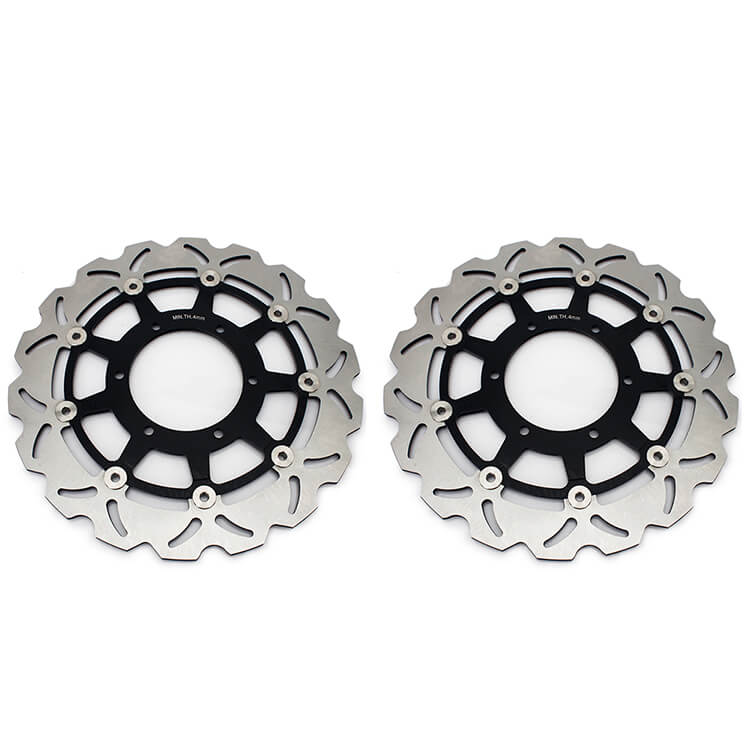

Front floating disc
- Wave shape brake disc rotor 20% light weight than OEM.
- Floating mounting for no distortion, no brake judder.
- Stainless steel 420 (2Cr13) brake surface & aluminum 6061 T6 center hub provide strong & reliable braking power with excellent corrosion resistance.
- Heat treatment harness HRC 36+-2 ensure brake area not warped.
- The venting slots are designed to speed up air circulation to improve heat dissipation, make the dirt & water dispersed quickly and weight saving.
- Surface is electrostatically coated to ensure the long-term appearance.
- Replaces original disc with no modification required.
- Including: 2pcs front brake disc.
Outer diameter: 320mm
Inner diameter: 102.2mm
Hole quantity: 6
Hole size: 8.5mm
Hole spacing: 120mm

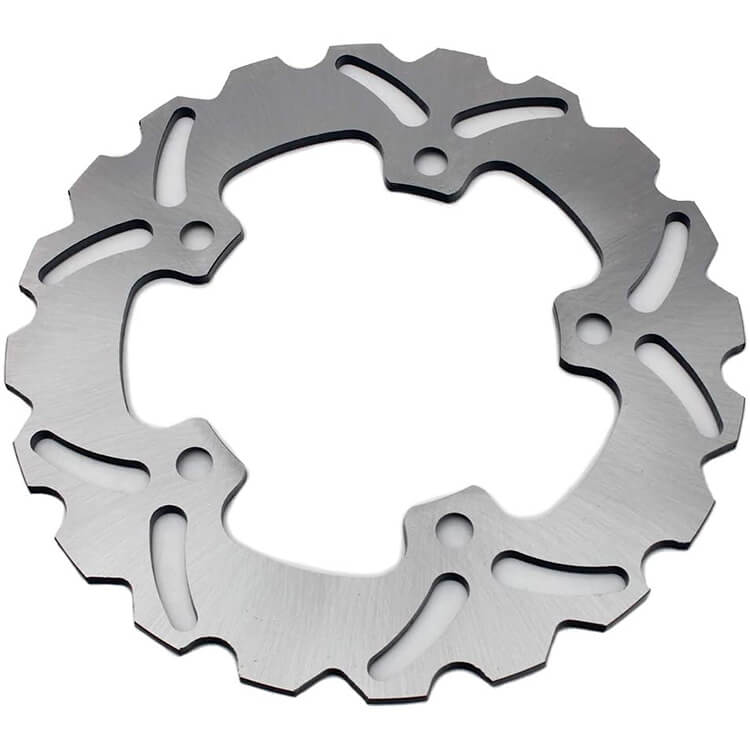

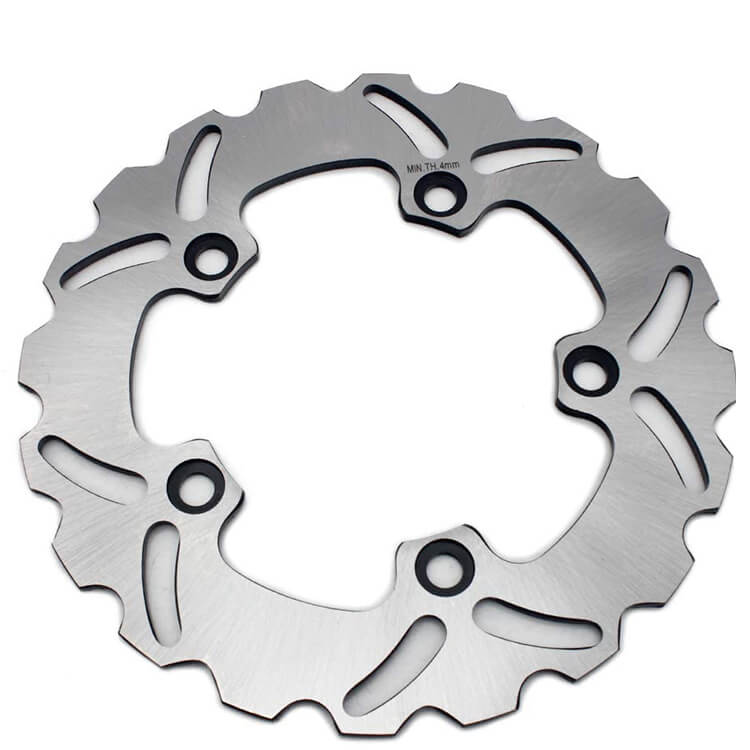

Rear brake disc
- Anti-corrosion 420(2Cr13) stainless steel with heat treated for strong braking power & warp resistance.
- Wave shape brake disc rotor 30% light wieght than OEM.
- Slotted rotor ensures water & dirt are dispersed quickly to prevent mud and dirt from interfering with braking performance.
- The grooves on the disc surface create a self ventilating system for better heat dissipation.
- Incuding: 1pc rear brake disc.
Outer diameter: 220mm
Inner diameter: 110mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 131mm
Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
