Front Rear Brake Disc for Suzuki GSF250 Bandit 1990-2000 GSF500 2004-2011 GSF400 1991-1993 GS500E 1988-2003 GS400 1989

Fit for

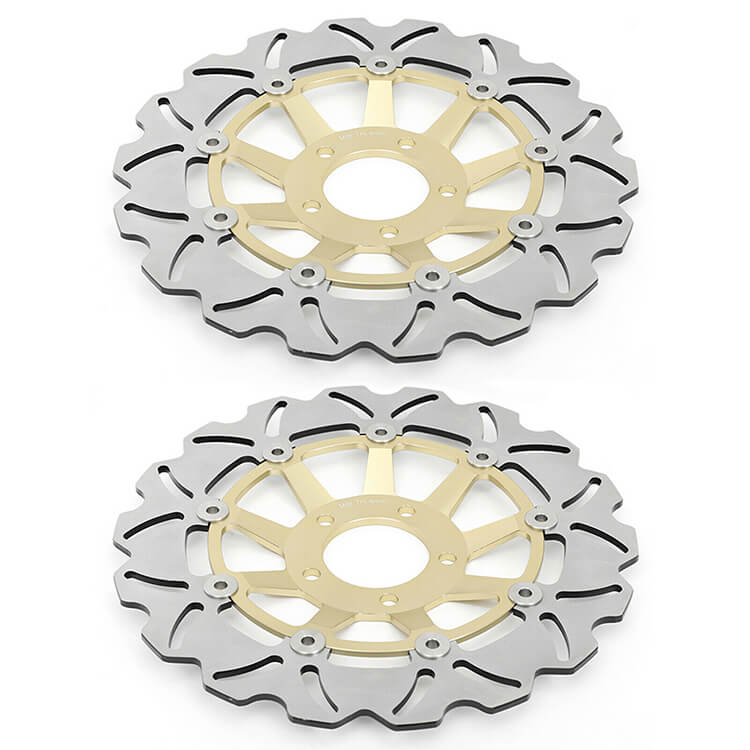

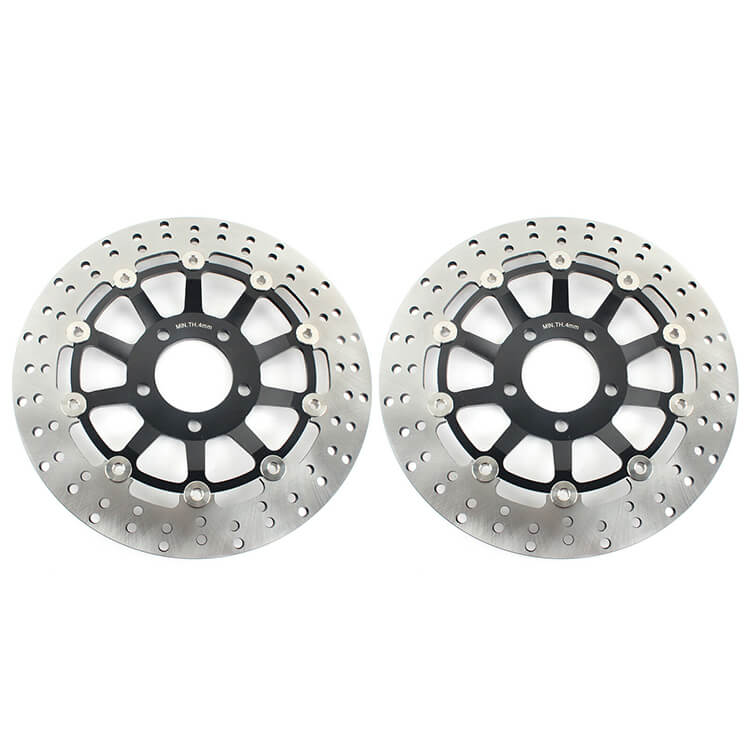

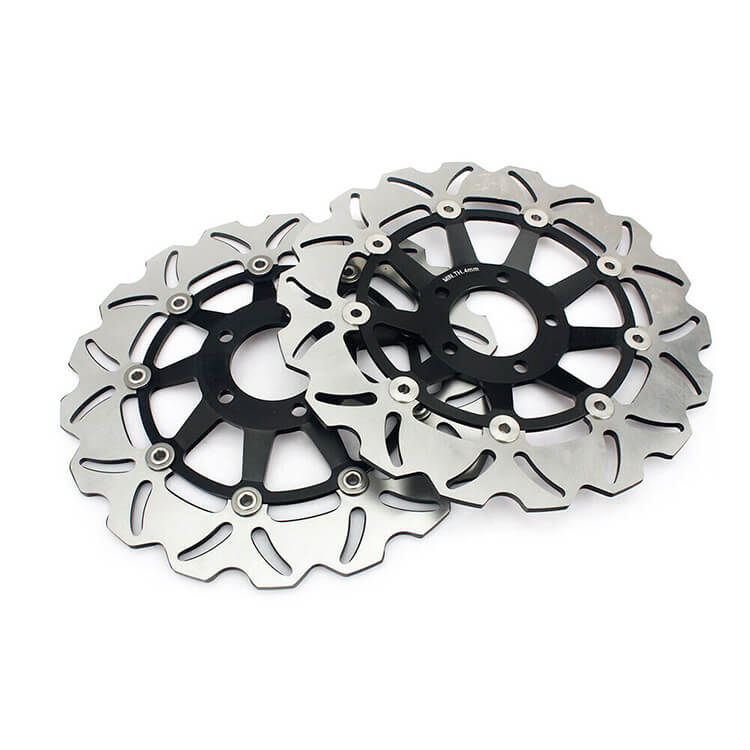

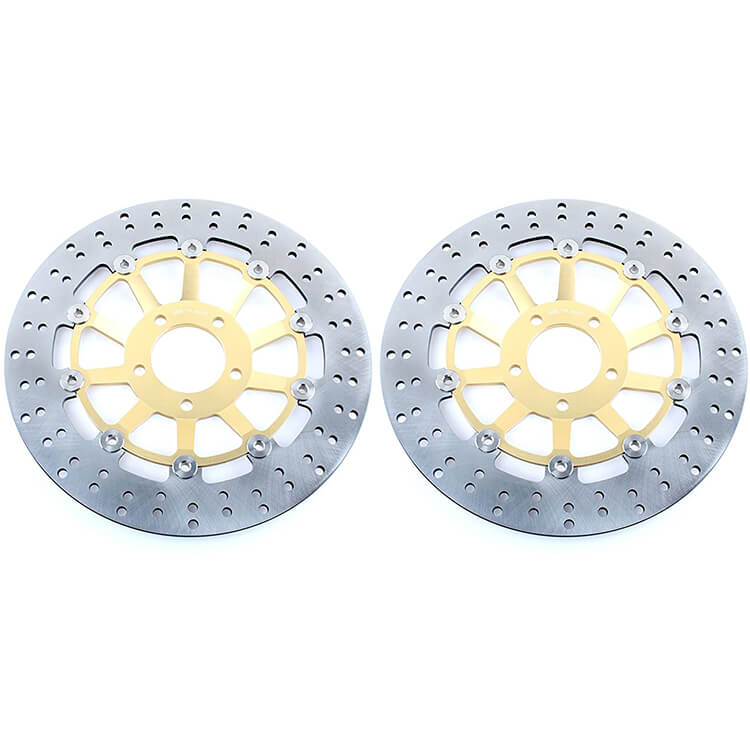

Front brake disc

• 420 (2Cr13) stainless steel & 6061-T6 aluminum disc offers excellent stopping power, corrosion resistance and superb looks.
• Heat-treated to ensure warp resistance. Laser cut for perfection and accuracy.
• The vented slots & holes speed up air circulation to ensure good heat dissipation.
• The slots make water and dirt are dispersed quickly when braking. A great combination of improved performance and appeal.
• Surfaces are electro-statically coated to ensure a long term appearance.
• Directly replace your old brake rotors.

Specifications
Outer diameter: 310mm
Inner diameter: 64mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing: 86mm
Offset height: 19.5mm

Rear brake disc

• Anti-corrosion 420(2Cr13) stainless steel with heat treated for strong braking power & warp resistance.
• Wave shape brake disc rotor 30% light wieght than OEM, the wave shape fits the fashion sense of young people.
• Slots & holes ensures water & dirt are dispersed quickly and makes brake system keep cool.

Specifications
Outer diameter: 250mm
Inner diameter: 84mm
Thickness: 4mm
Hole quantity: 4
Hole size: 8.4mm
Hole spacing: 100mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
