Motorcycle Front Rear Brake Disc for Triumph Daytona 1200 1993-2006 / Trophy 1200 1993-2004

Fit for
Triumph Daytona 750 (330BEW/-) 1991-1993
Triumph Daytona 900 (3 Cyl.) 1991-1996
Triumph Daytona 900 Super III (3 Cyl.) 1994-1997
Triumph Daytona Sprint 900 (from VIN9083) 1994-1998
Triumph Speed Triple 900 T309 (Carb.Models T300B/G6770) 1994-1997
Triumph Daytona Sprint 900 (from VIN9083) 1994-1998
Triumph Trophy 900 (3 cyl. from VIn 9083 - T300 G610) 1996-2001
Triumph Daytona 1000 1992-1993
Triumph Daytona 1200 (4 cyl.) 1993-2006
Triumph Trophy 1200 (from VIN4902) 1993-2004

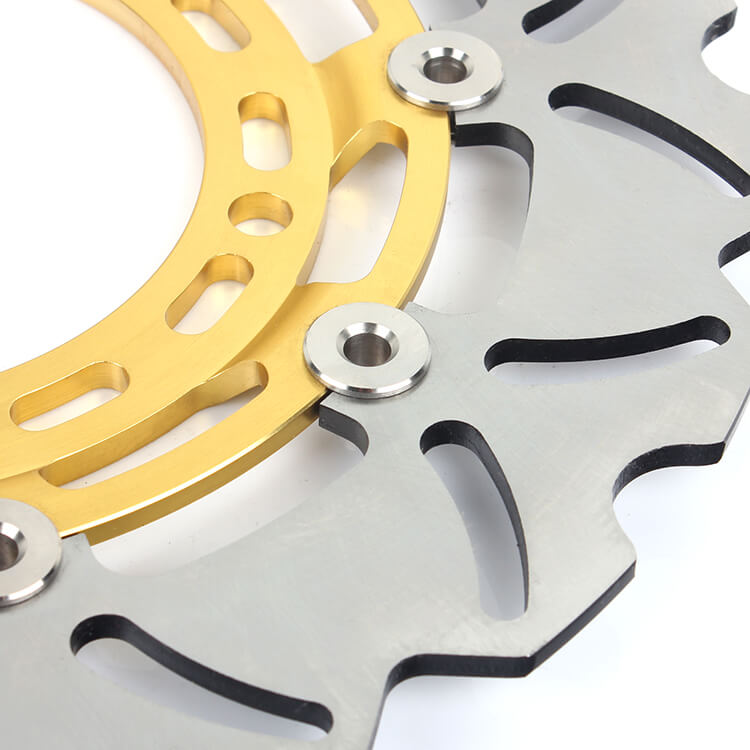

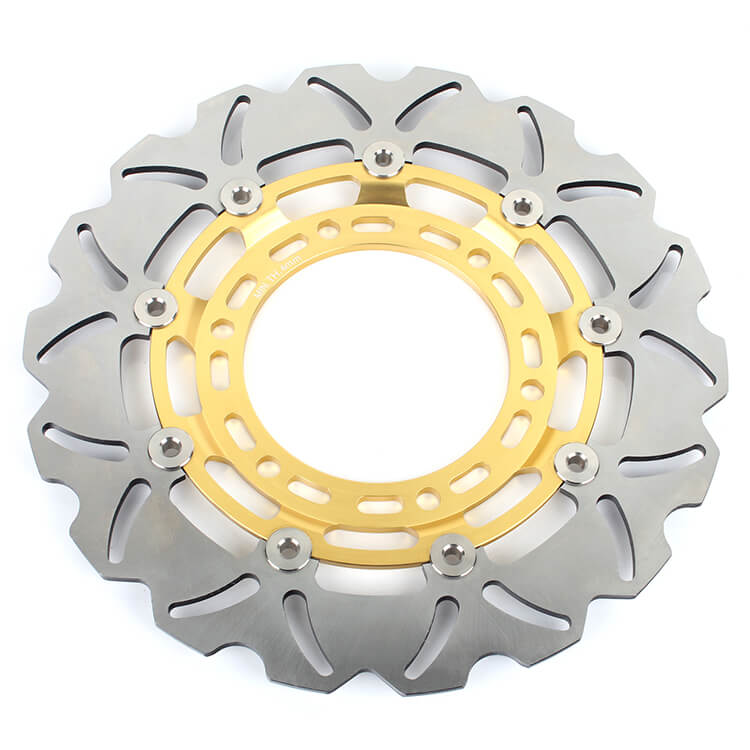

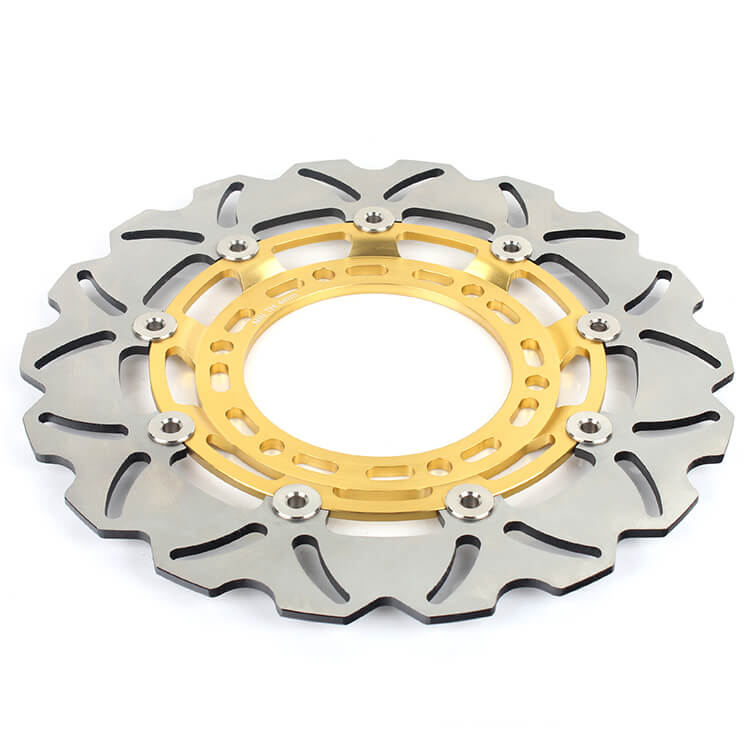

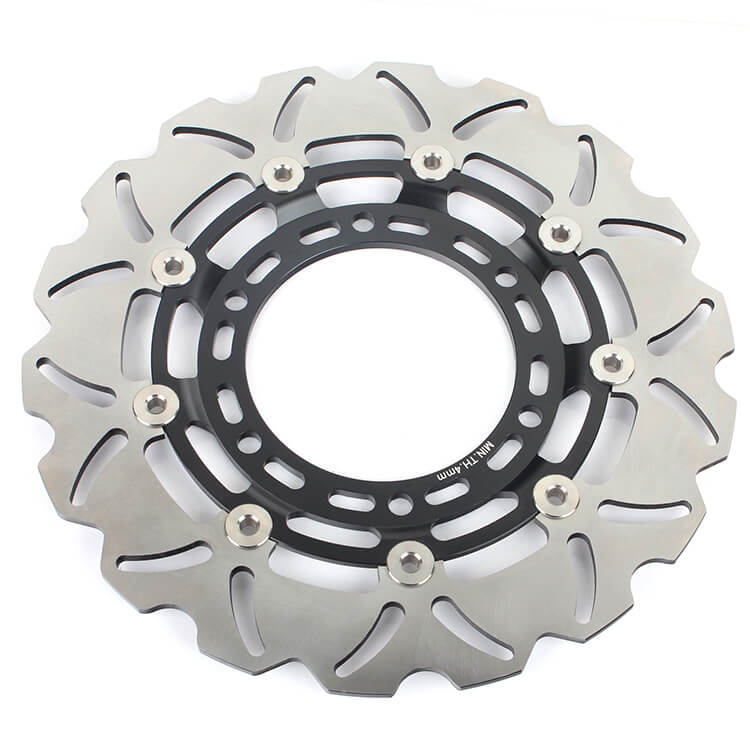

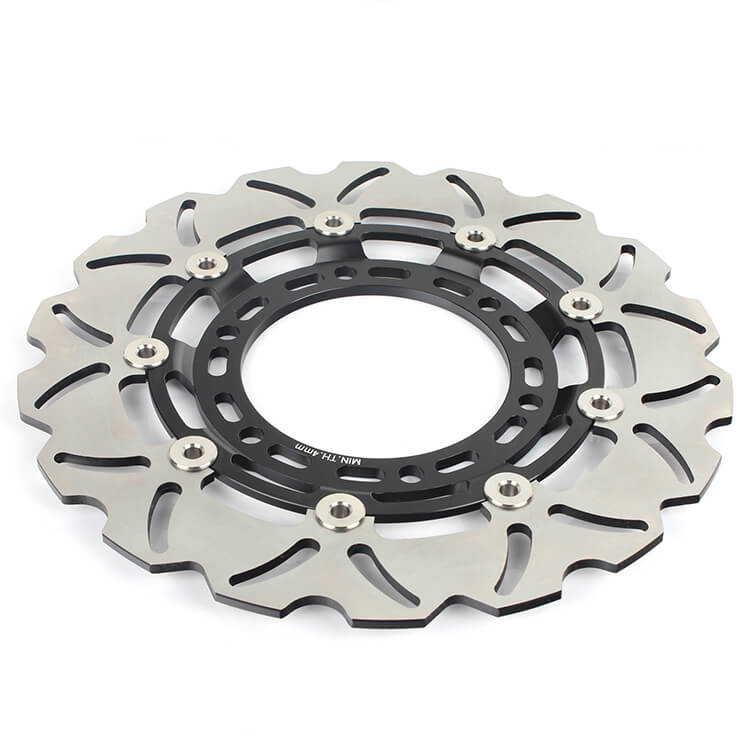

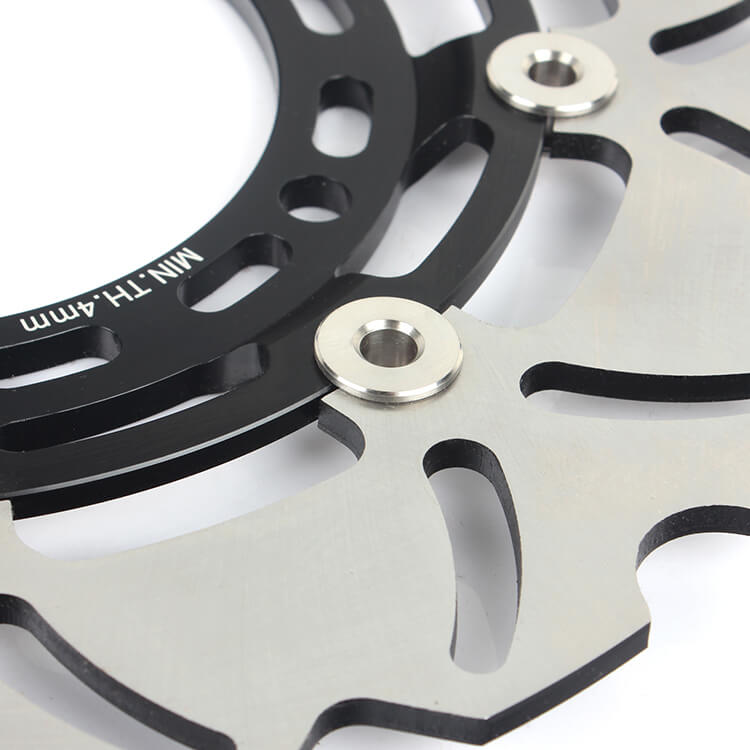

Front floating disc

• Stainless steel 420 (2Cr13) brake surface & aluminum 6061 T6 center hub provide strong braking power & good look with excellent corrosion resistance.

• Heat treatment harness HRC 36+-2 ensure brake area not warped.
• The venting slots are designed to speed up air circulation to improve heat dissipation, make the dirt & water dispersed quickly and weight saving.
• Wave shape brake disc rotor 20% light weight than OEM.
• Floating mounting for no distortion, no brake judder.
• Surface is electrostatically coated to ensure the long-term appearance.
• Replaces original disc with no modification required.

Outer diameter: 310mm
Inner diameter: 118mm
Thickness: 5mm
Hole quantity: 6
Hole size: 10.5mm
Hole spacing: 138mm
Offset height: 13mm

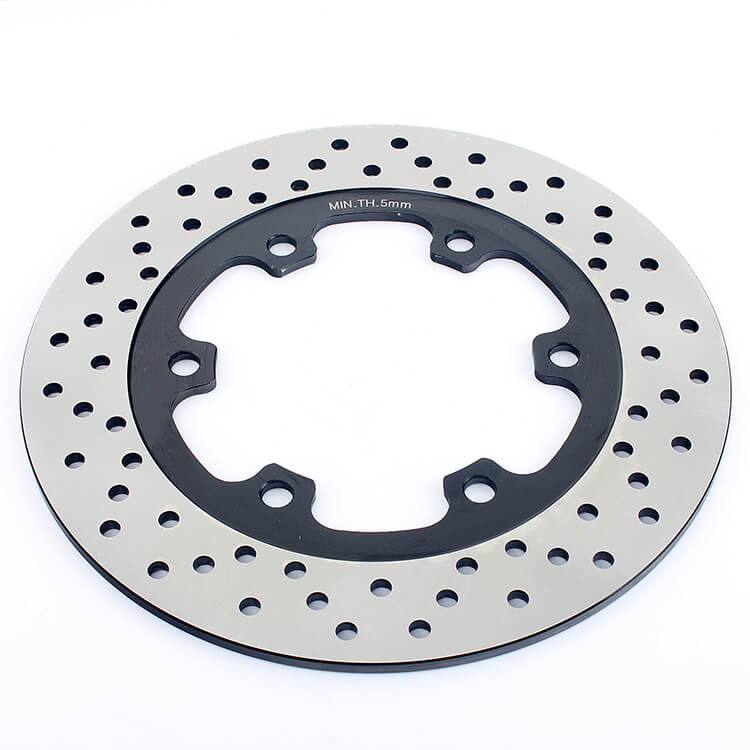

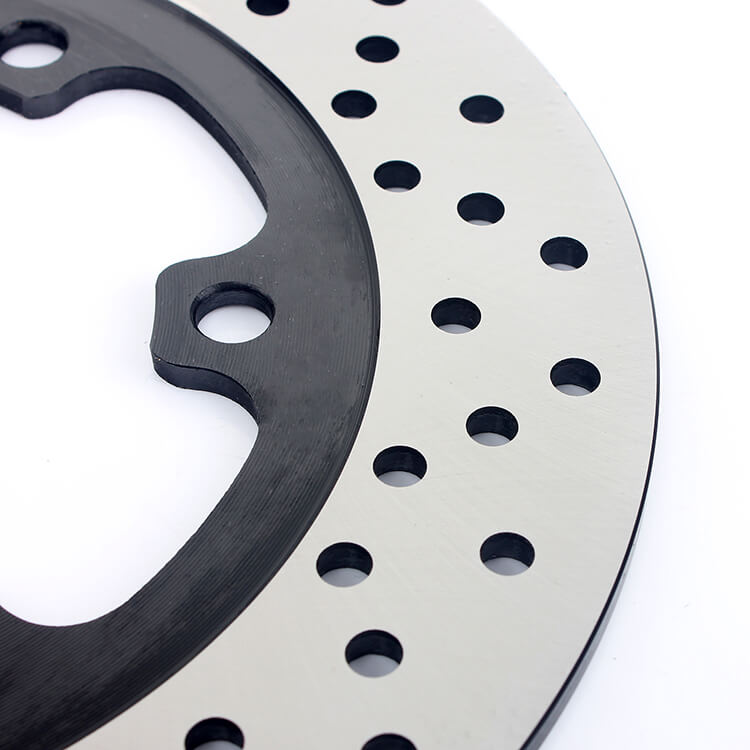

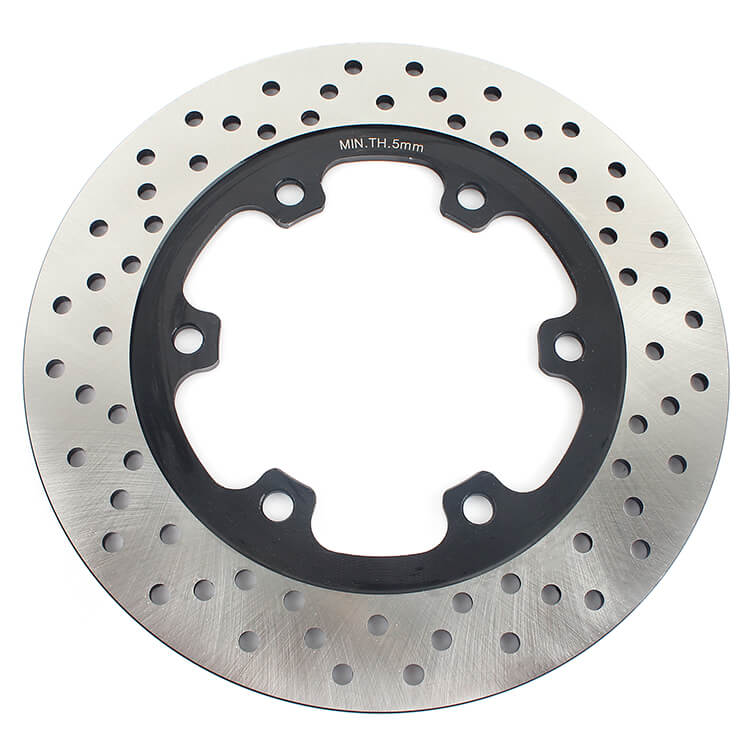

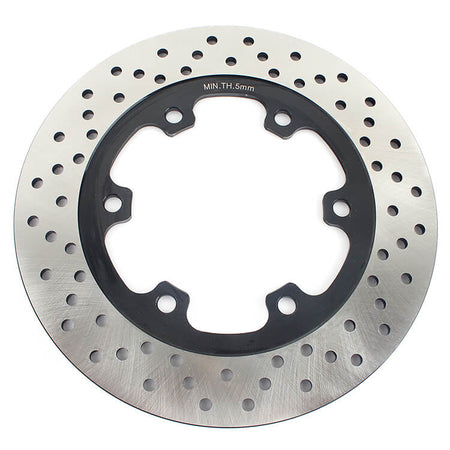

Rear brake disc

• Anti-corrosion 420(2Cr13) stainless steel with heat treated for strong braking power & warp resistance.
• Venting holes increase air circulation for better heat dissipation.
• The construction ensures water & dirt are dispersed quickly.
• All discs carry the required minimum thickness markings essential for road registration.

Outer diameter: 255mm
Inner diameter: 115mm
Thickness: 6mm
Hole quantity: 6
Hole size: 10.4mm
Hole spacing: 137mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
