Fit for
YAMAHA | XT R 660 2004-2014 |
YAMAHA | XJ N (RJ01/H810) 600 1998-2003 |
YAMAHA | YZF R THUNDERCAT (4TV/H441) 600 1996-2007 |
YAMAHA | YZF R THUNDERACE (4VD/H443) 1000 1996-2001 |
YAMAHA | TDM (RN08/e13/0053) 900 2002-2014 |
YAMAHA | YZF R1 (RN01/H917) 1000 1998-2001 |

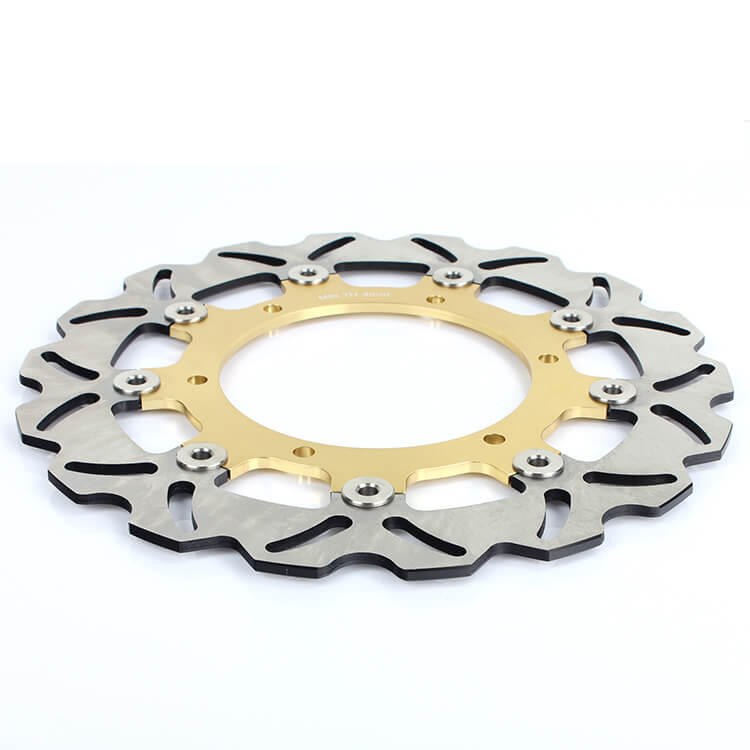

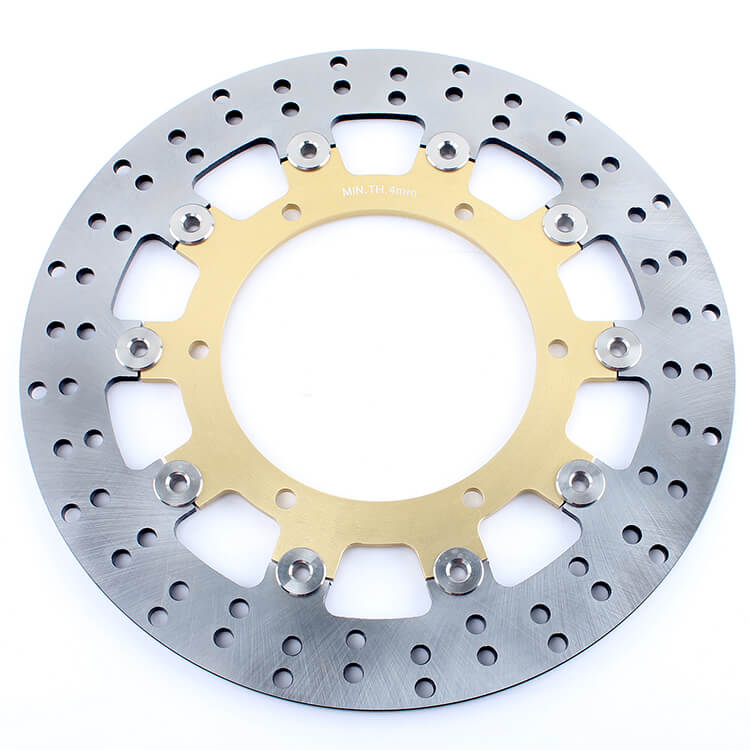

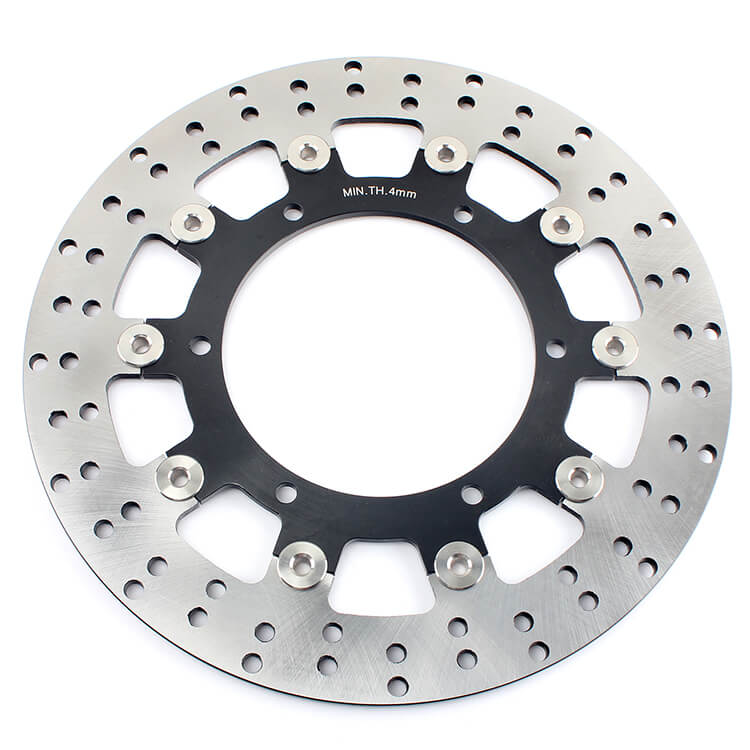

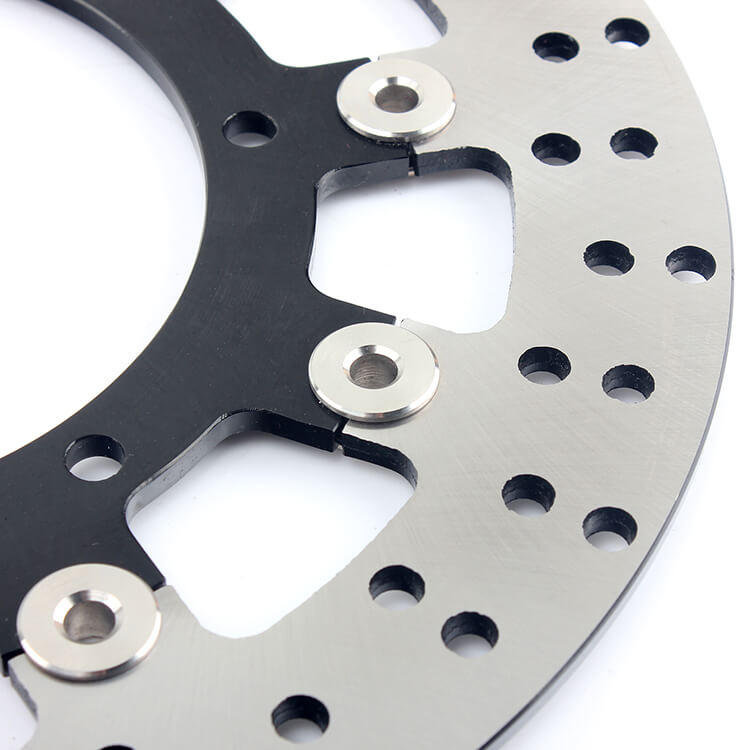

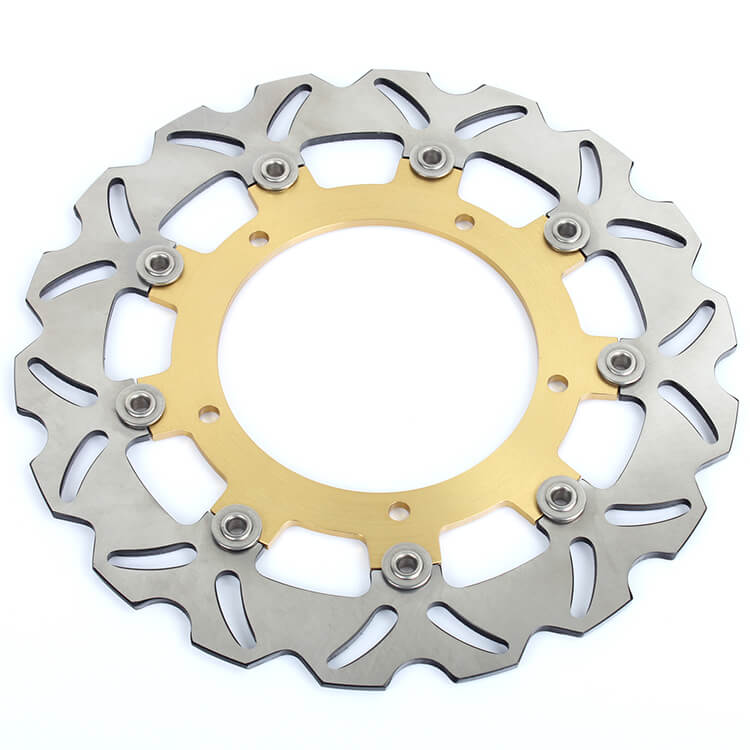

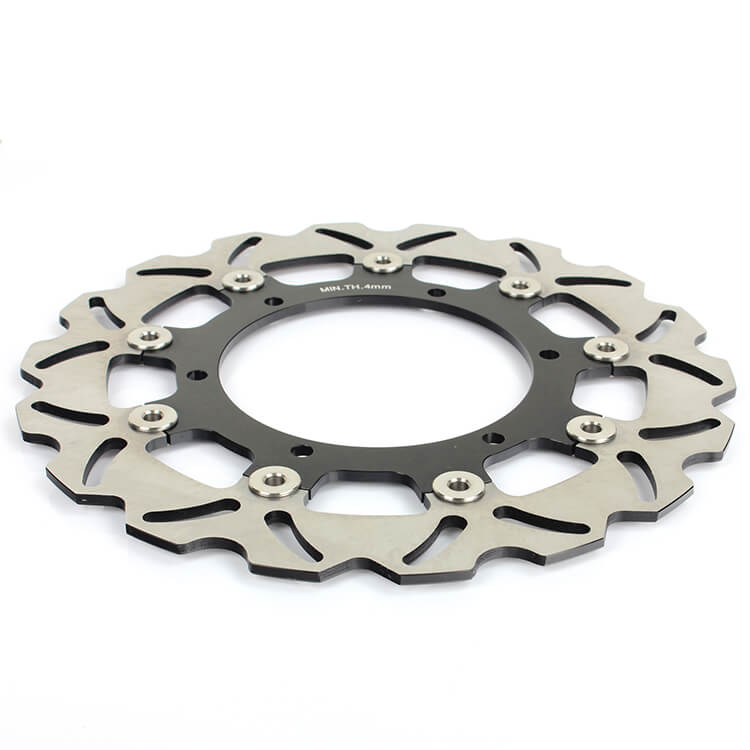

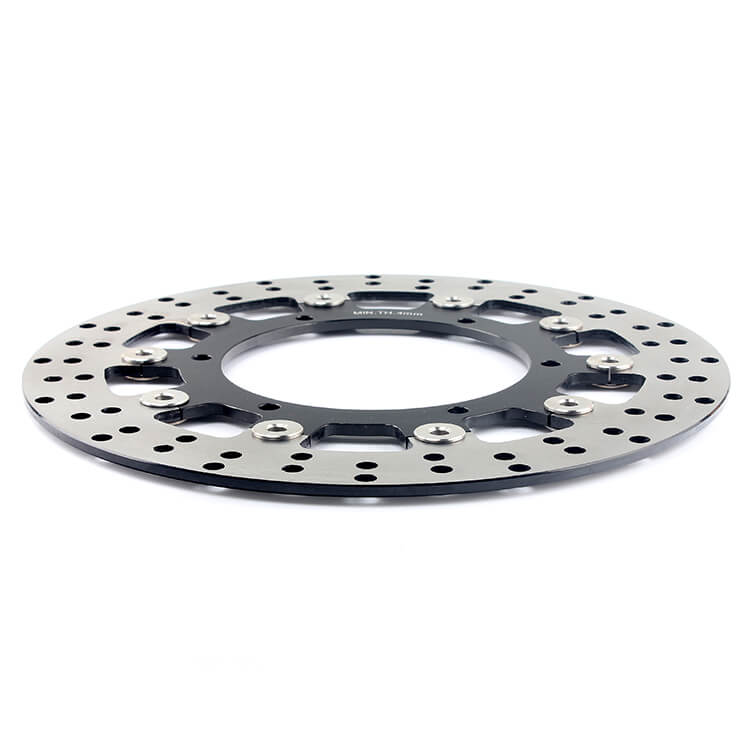

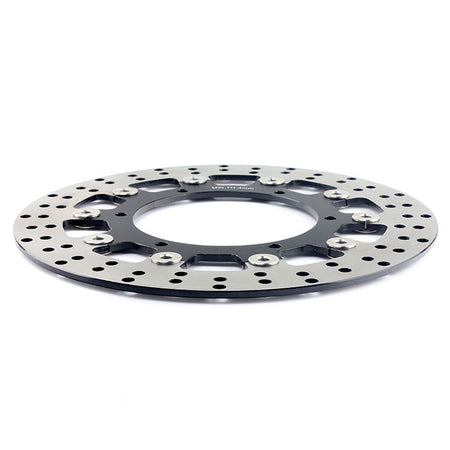

Front brake disc

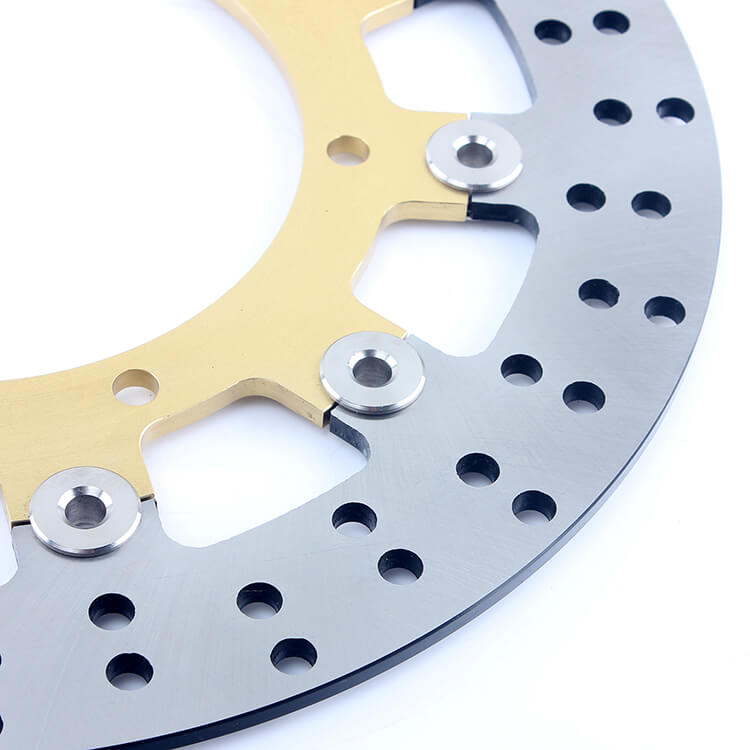

- The floating disc rotor is constructed from 420 2Cr13 stainless steel, with a 6061 T6 aluminum alloy center, and 20% light weight compare to the original disc.
- The shape of the disc ensures good heat dissipation during heavy braking sessions, allows air to circulate through disc for cooling to maintain maximum heat dissipation. ensures rapid dispersion of water and dirt when braking.
- New scraper slot system to keep your brake system clean and run cooler.
- Drilled for better heat dissipation and faster braking in the wet weather.
- Surface is electrostatically coated to ensure the long-term appearance.
- Directly replace your original brake rotors.
Outer diameter 300mm
Inner diameter 132mm
Thickness 5mm
Hole quantity 6
Hole size 8.4mm
Hole spacing 150mm

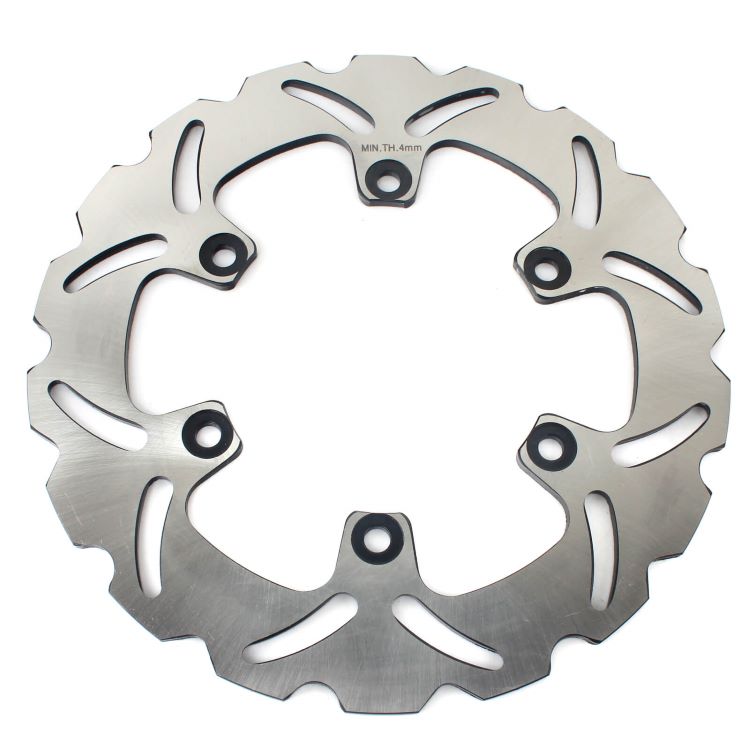

Rear brake disc
- Durable 420 stainless steel for strong braking power and long lasting.
- Heat Treatment Harness HRC 36+-2 ensure brake area not warped.
- Slot system makes water and dirt are dispersed quickly.
- Wave shape brake disc rotor light weight than OEM.
Outer diameter 245mm
Inner diameter 115mm
Thickness 5mm
Hole quantity 6
Hole size 8.4mm
Hole spacing 133mm

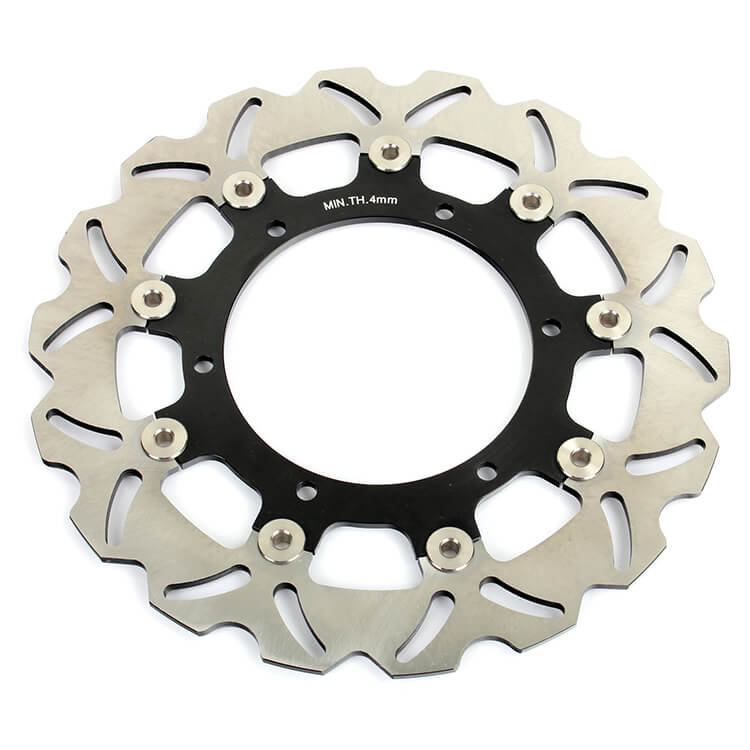

Please replace your rotor when it reaches the Minimum Thickness we marked on the disc surface to ensure your safety
