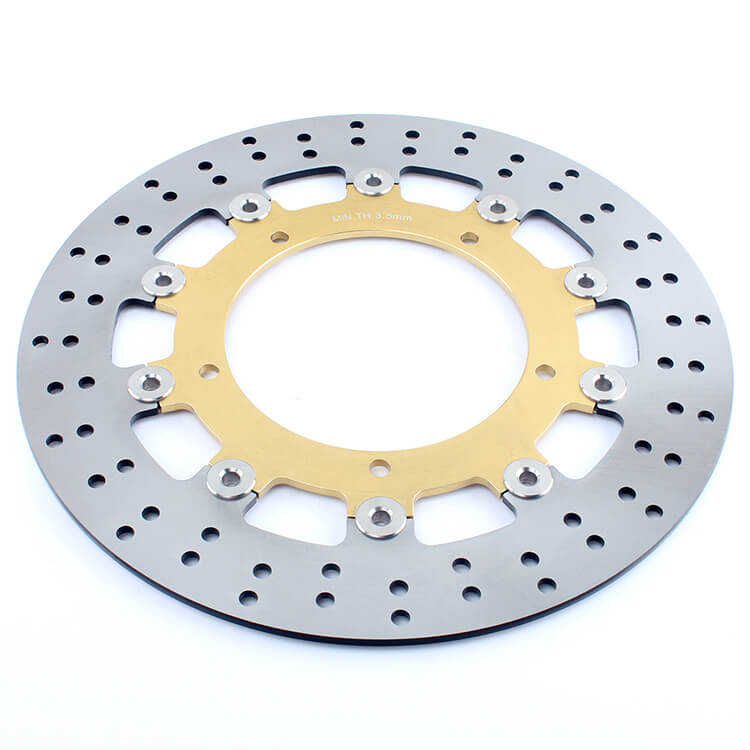

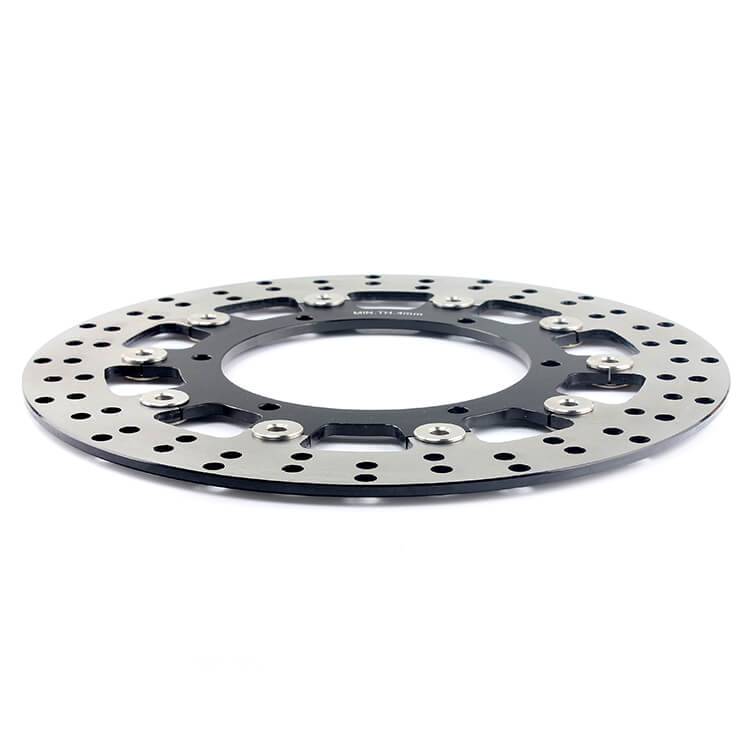

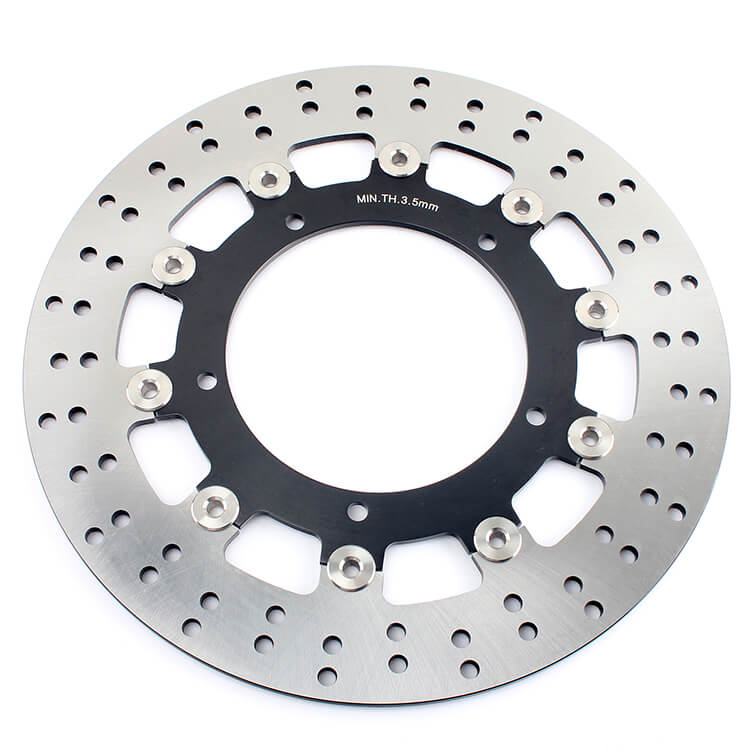

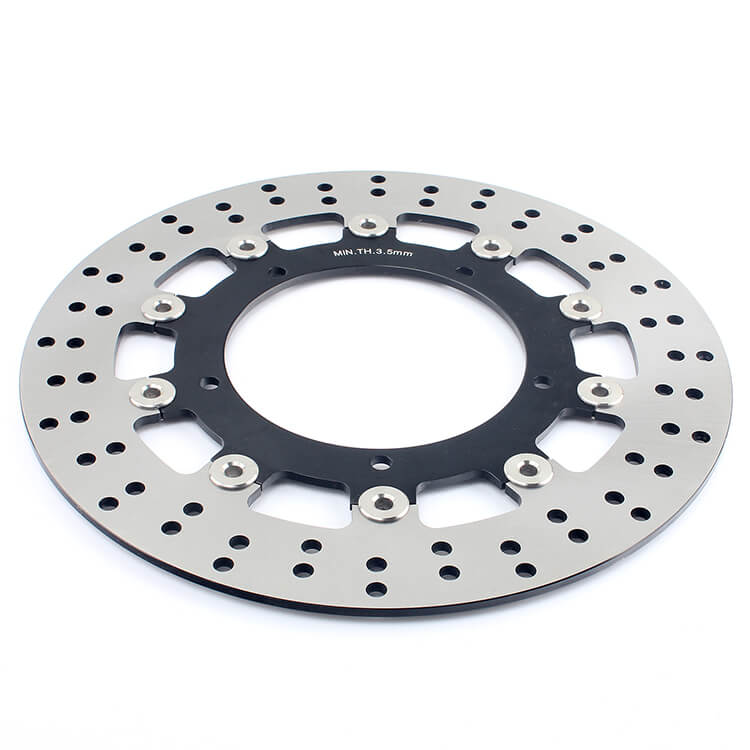

Front Rear Brake Disc for Yamaha Super Tenere XT1200Z 2010-2018

Fit for

• Aluminum center and sturdy riveted construction. Stainless steel 420 (2Cr13) & aluminum 6061-T6, alloy center for less weight and bright look.
• Laser cut for perfection and accuracy, heat treated for warp resistance.
• The vented slots ensure water and dirt are dispersed quickly when braking with good heat dissipation. A great combination of improved performance and appeal.
• Drilled holes for superior heat dissipation, it speeds up air circulation to improve heat dissipation.
• Surfaces are electro-statically coated to ensure a long term appearance
  Directly replace your old brake rotors.

Outer diameter 310mm
Inner diameter 132mm
Thickness 4.5mm
Hole quantity 5
Hole size 8.4mm
Hole spacing 150mm

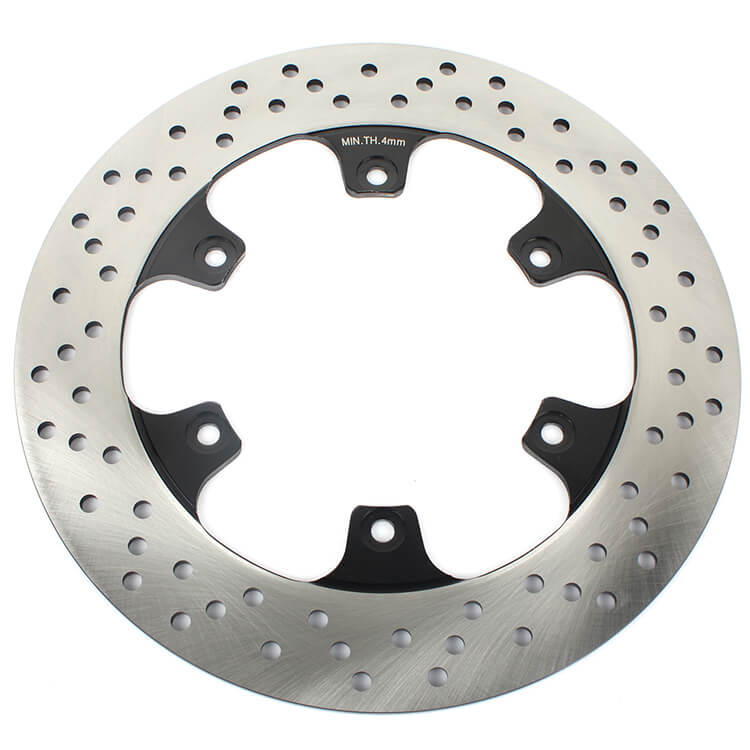

Rear brake disc

• Heat treated 420(2Cr13) stainless steel delivers maximum stopping power and greatly enhances braking performance.
• The slots on the disc surface create a self ventilating system allowing the rotor to cool down when not in use and also prevent mud and dirt from interfering with braking performance.
• Drilled holes for better heat dissipation and faster braking in the wet weather.

Outer diameter 282mm
Inner diameter 132mm
Thickness 5mm
Hole quantity 6
Hole size 8.4mm
Hole spacing 150mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
