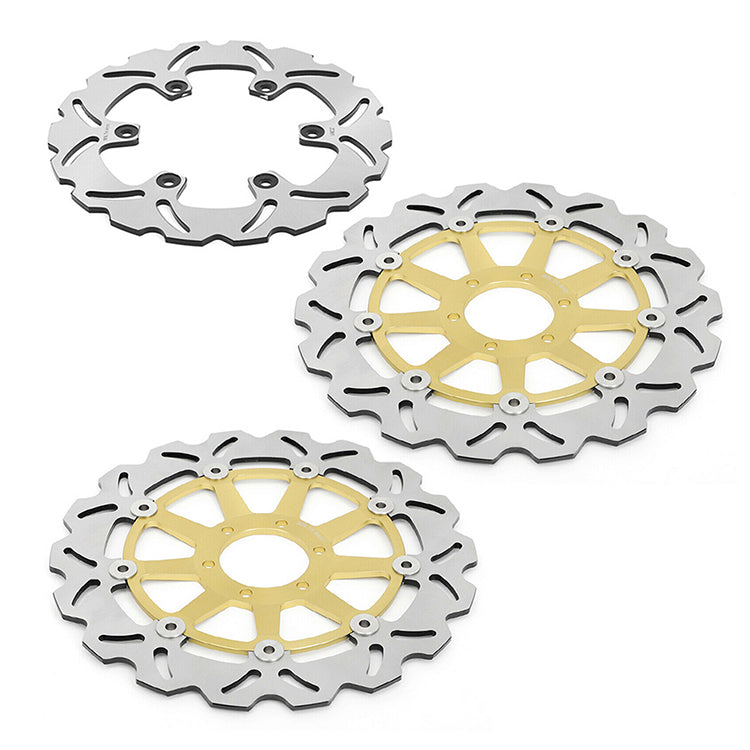

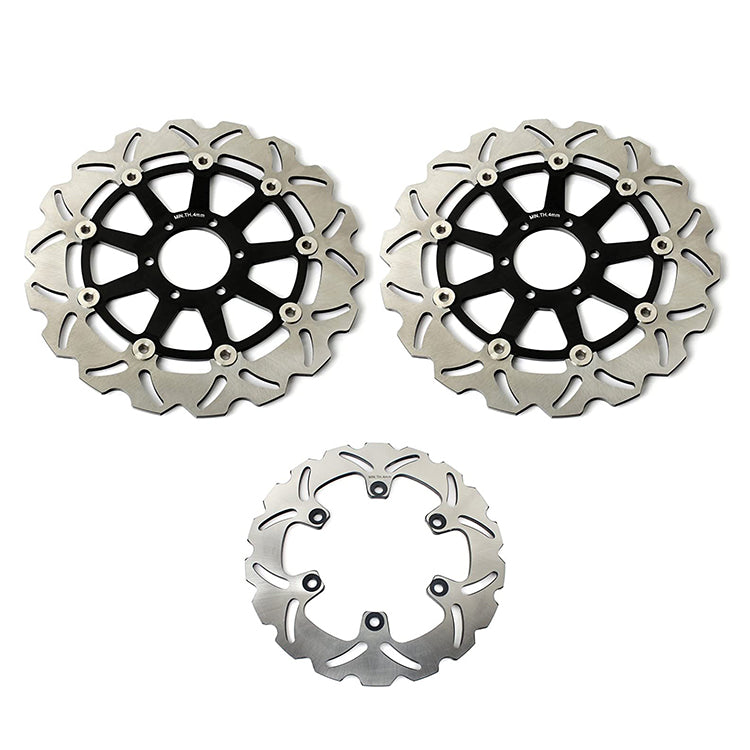

Front Rear Brake Disc for Yamaha FZS600 Fazer 1998-2003 / TDM850 1991-2001 / TRX850 1995-2000

Fit for:
Yamaha XJR(4HM/EBE) 400CC model year 1995-2000;
Yamaha FZR (3RG,3RH/F152/153) 600CC model year 1989;
Yamaha FZR R (3HE/F103) 600CC model year 1990-1991;
Yamaha FZR R (4JH/4MH/G653/663) 600CC model year 1992-1995;
Yamaha FZS FAZER (RJ02/H988) 600CC model year 1998-2003;
Yamaha TDM (3VD/F699) 850CC model year 1991-1995;
Yamaha TDM (4TX/H442) 850CC model year 1996-2001;
Yamaha TRX (Italy) (4UN/H283) 850CC model year 1995-2000.

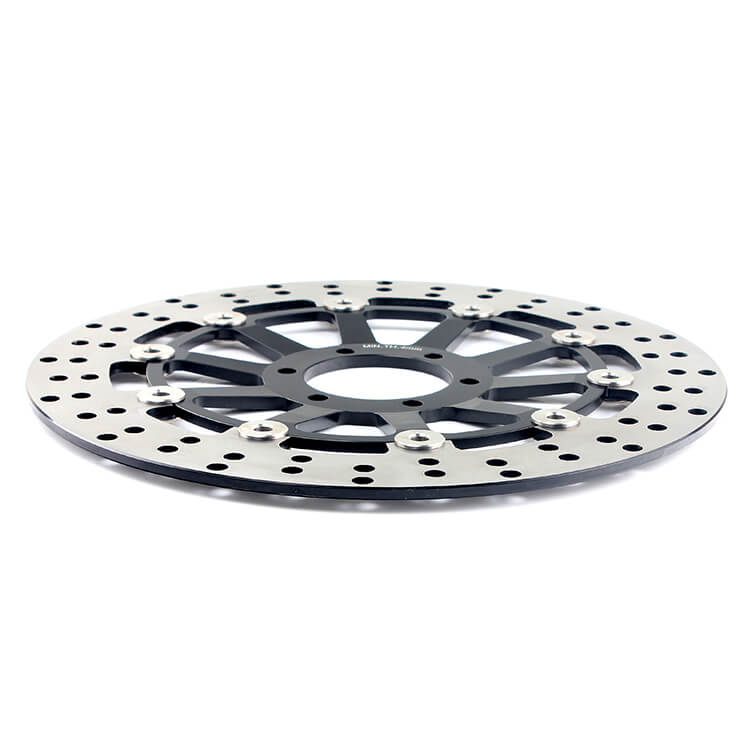

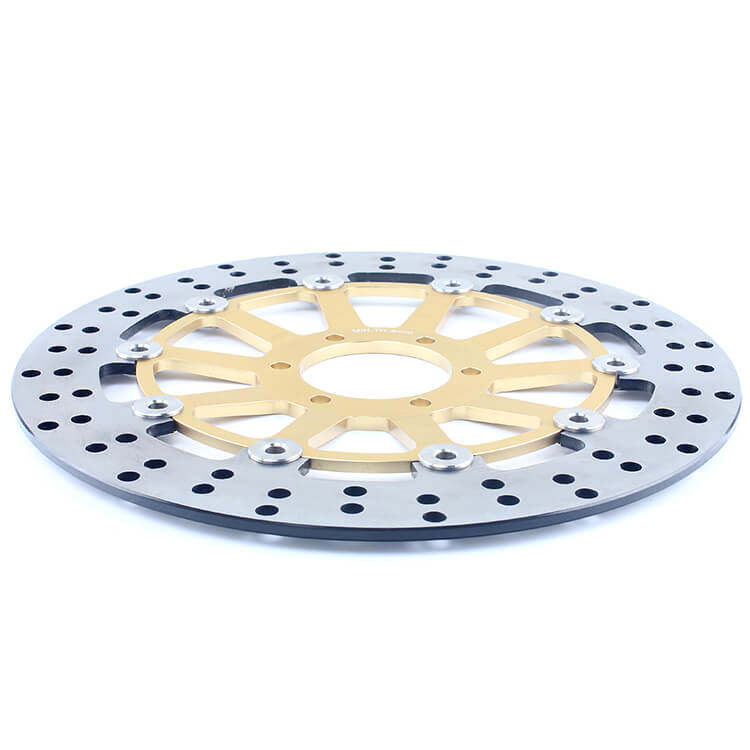

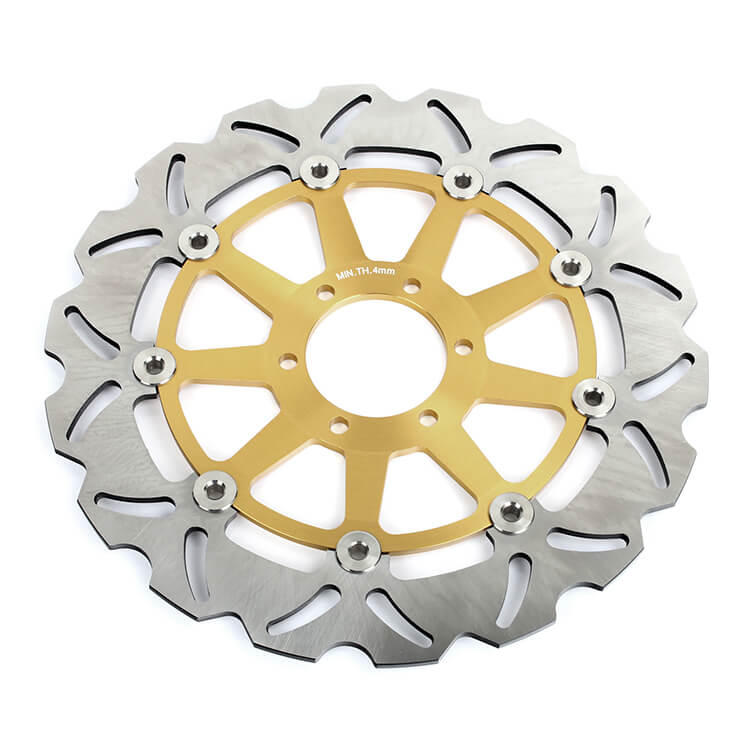

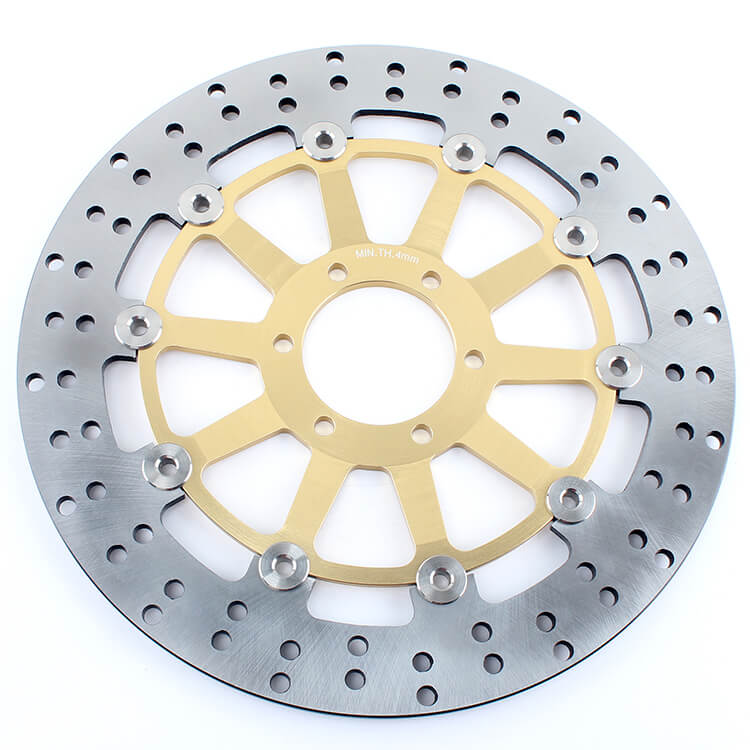

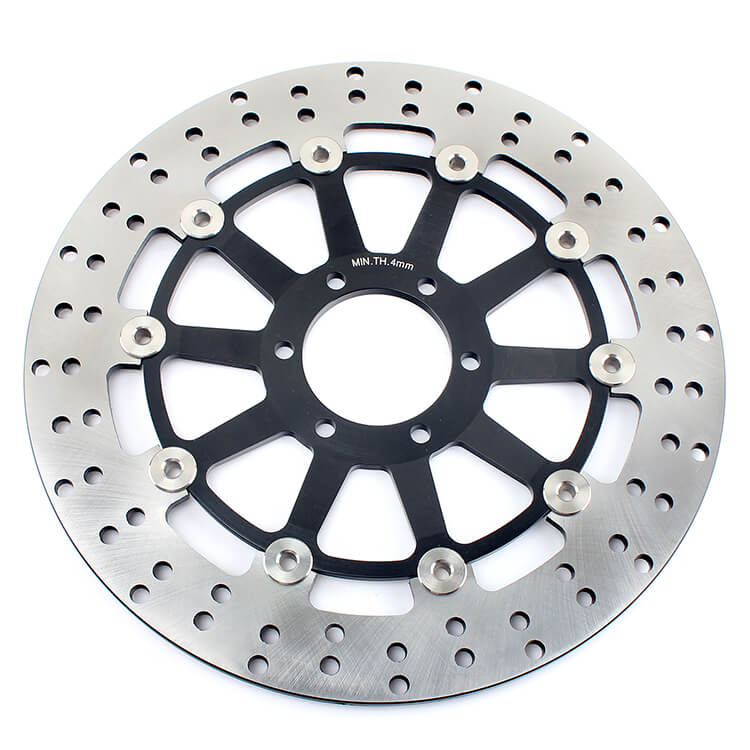

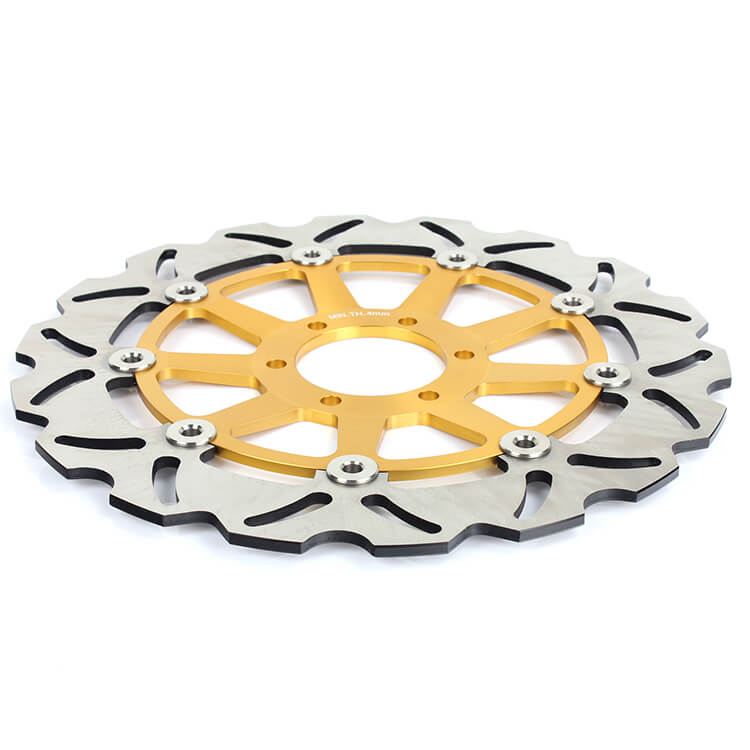

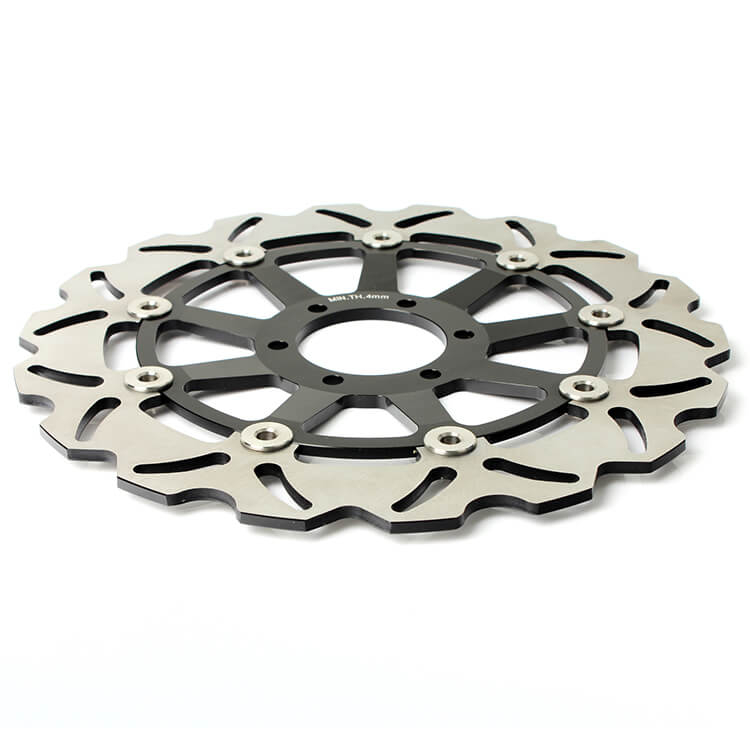

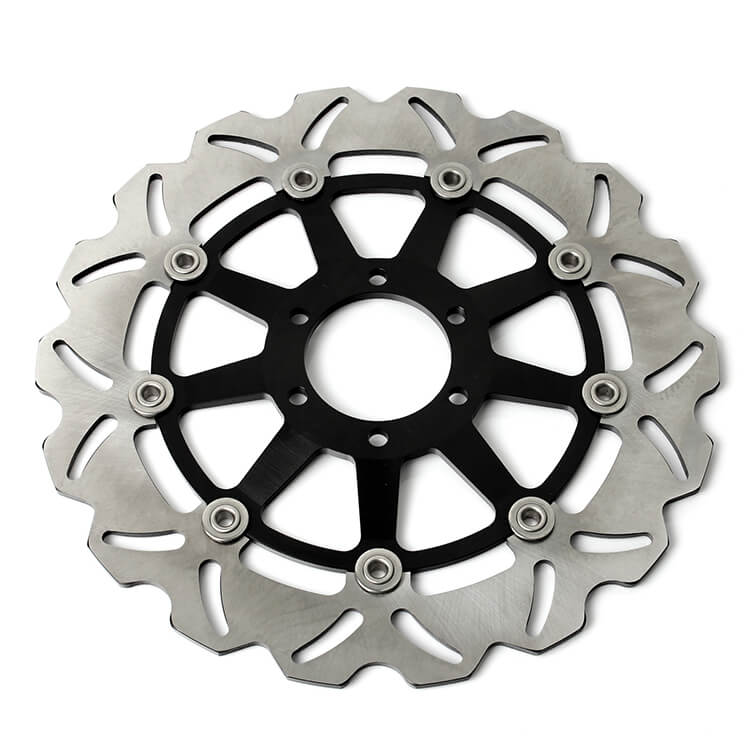

Front brake disc

• The floating disc rotor is constructed from 420 2Cr13 stainless steel, with a 6061 T6 aluminum alloy center, and 20% light weight compare to the original disc.
• The shape of the disc ensures good heat dissipation during heavy braking sessions, ensures rapid dispersion of water and dirt when braking, minimizes warping and ensures the longevity of the rotor.
• New scraper slot system to keep your brake system clean and run cooler.
• Drilled for better heat dissipation and faster braking in the wet weather.
• Surface is electrostatically coated to ensure the long-term appearance.

Outer diameter: 300mm
Inner diameter: 64mm
Thickness: 5mm
Hole quantity: 6
Hole size: 8.4mm
Hole spacing: 80mm
Offset height: 10.5mm

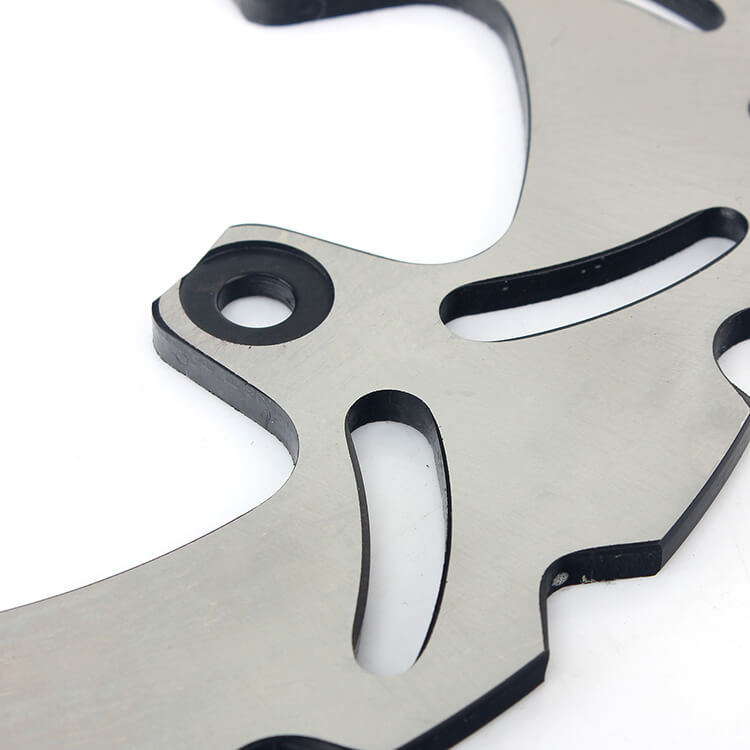

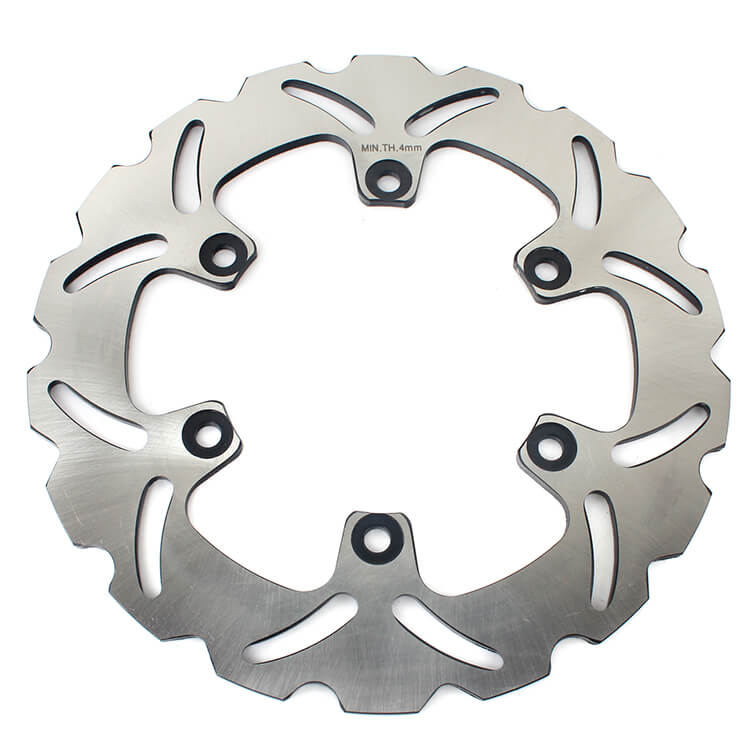

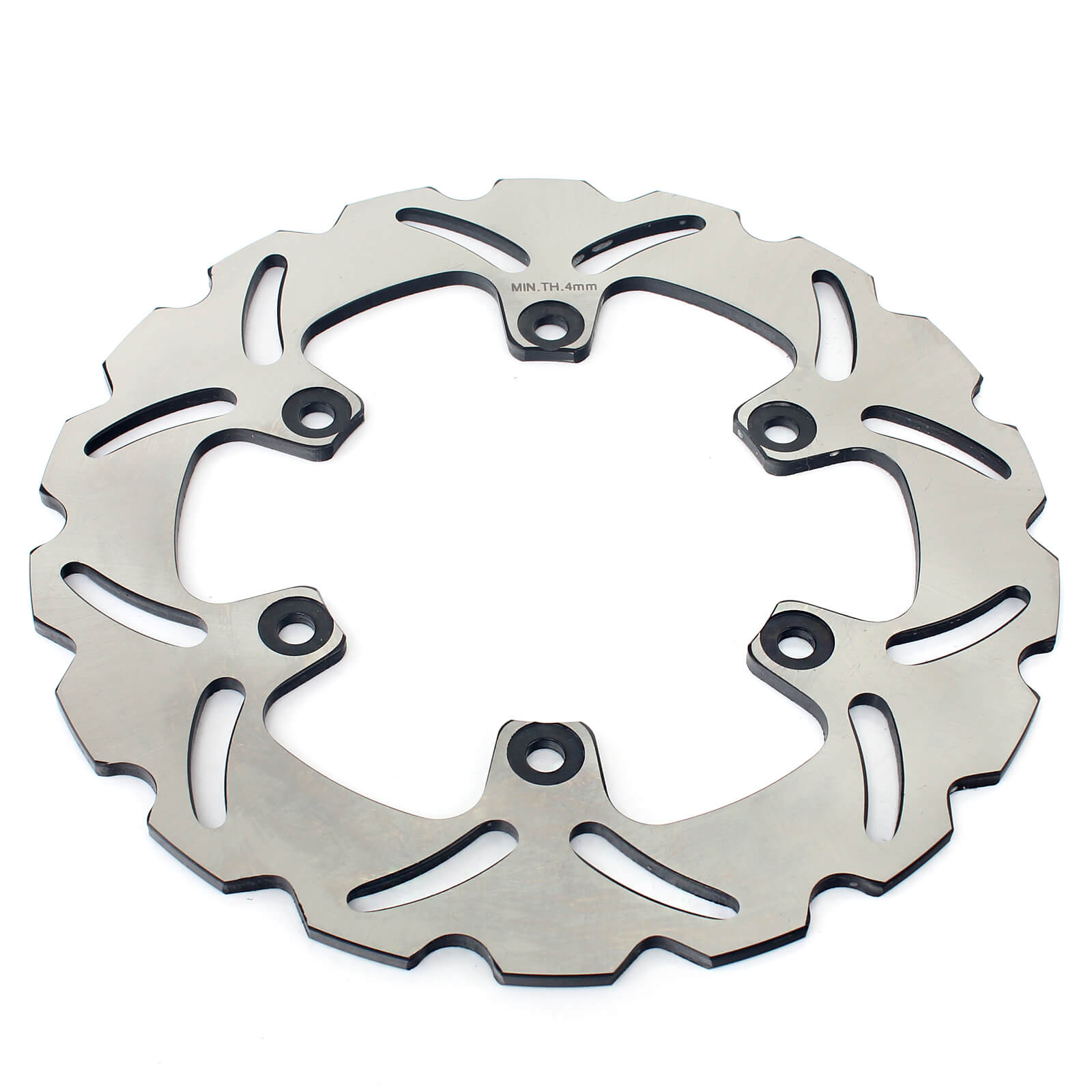

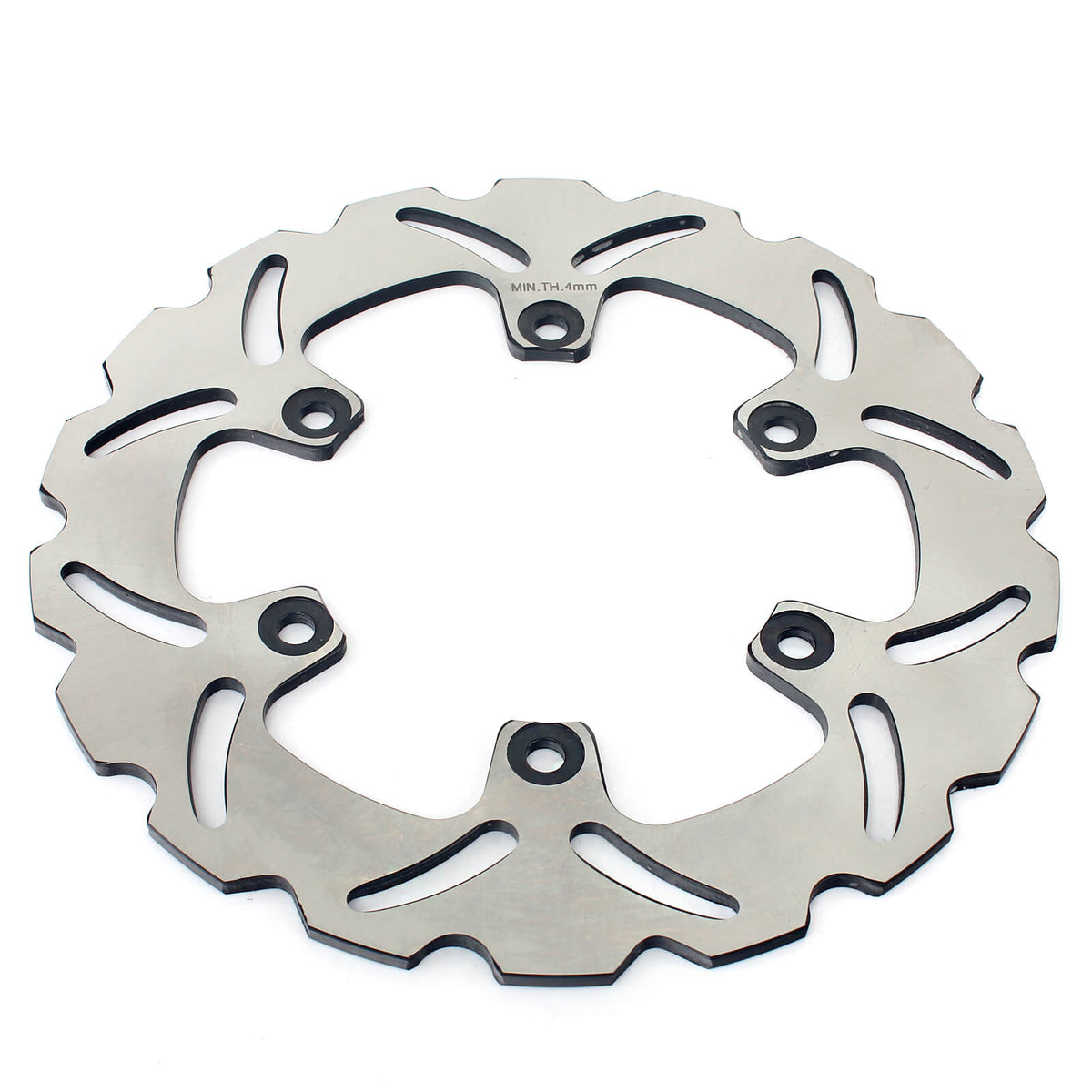

Rear brake disc

• Durable 420 stainless steel for strong braking power and long lasting.
• Heat Treatment Harness HRC 36+-2 ensure brake area not warped.
• Slot system makes water and dirt are dispersed quickly.
• Wave shape brake disc rotor light weight than OEM.

Outer diameter: 245mm
Inner diameter: 115mm
Thickness: 5mm
Hole quantity: 6
Hole size: 8.4mm
Hole spacing: 133mm
