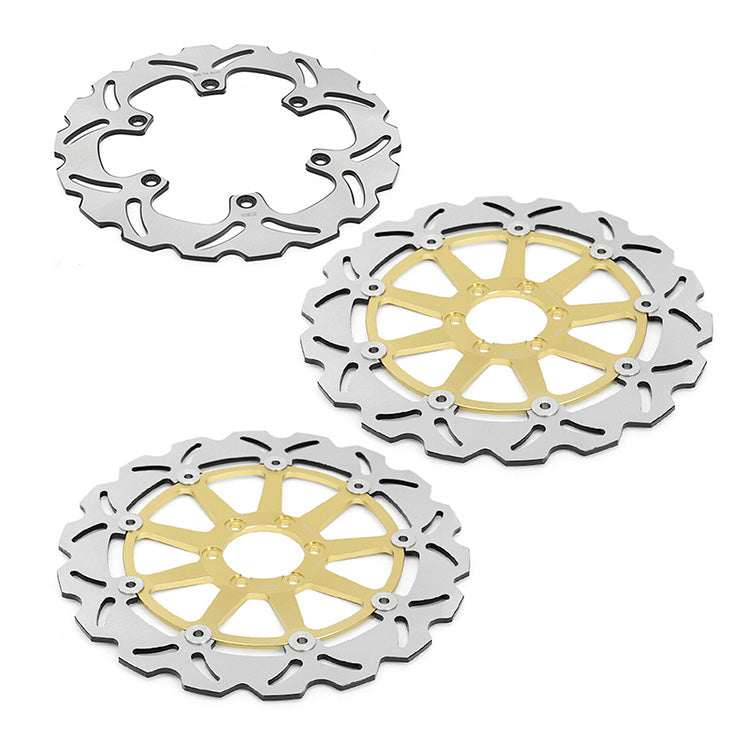

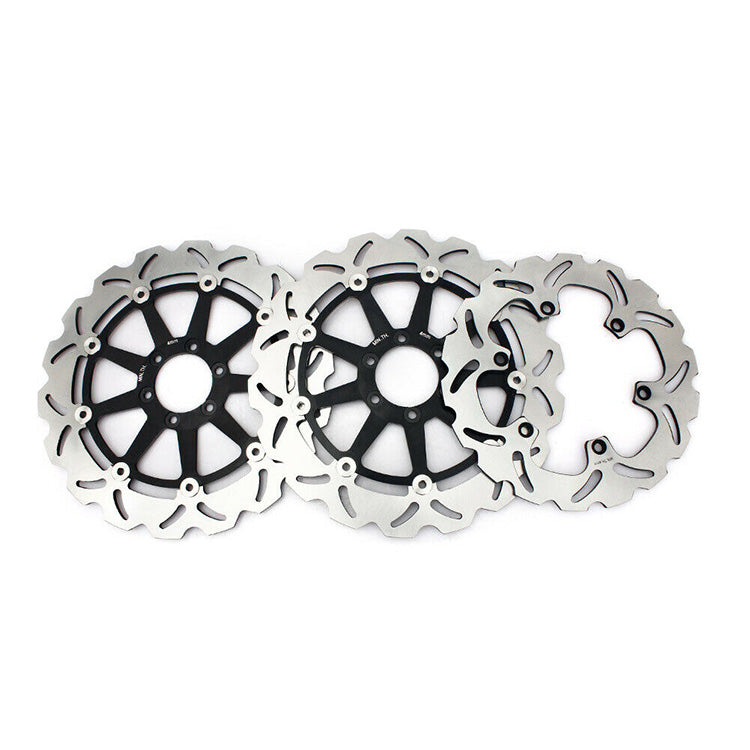

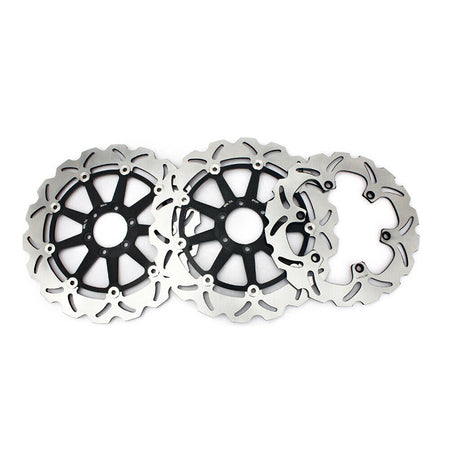

Front Rear Brake Disc for Yamaha FZR1000 1987-1995 / XJR1200 1995-1997 / XJR1300 1998 / TDR125 1989-2001

Fit for
Yamaha TDR (Italian model) 125CC model year 1989-2001
YAMAHA FZR GENESIS (2LA/E558) 1000CC model year 1987-1989
YAMAHA FZR EXUP (3LE/F128) 1000CC model year 1990-1993
YAMAHA FZR EXUP (3LE/F128) 1000CC model year 1994-1995
YAMAHA XJR 1200CC model year 1995-1996
YAMAHA XJR 1200CC model year 1997
YAMAHA XJR 1300CC model year 1998

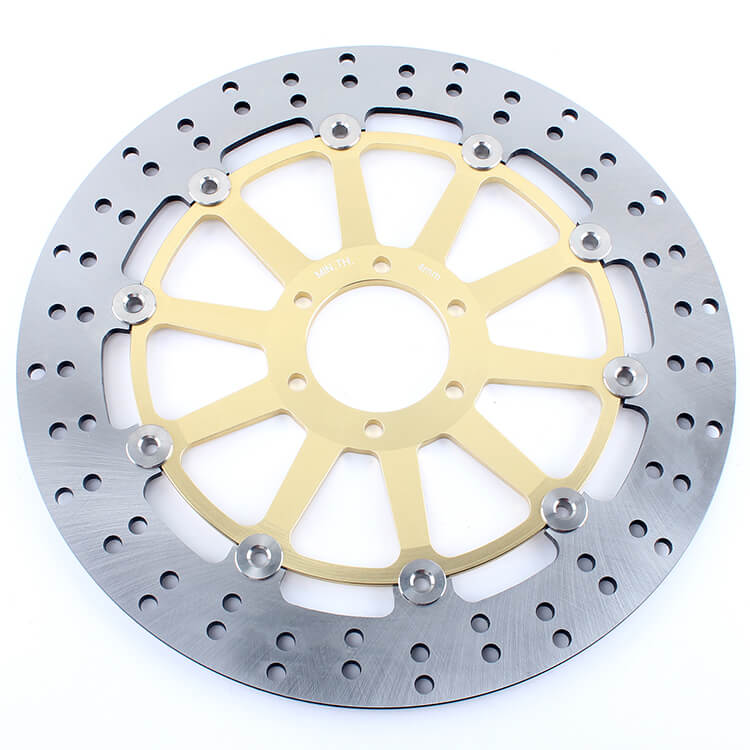

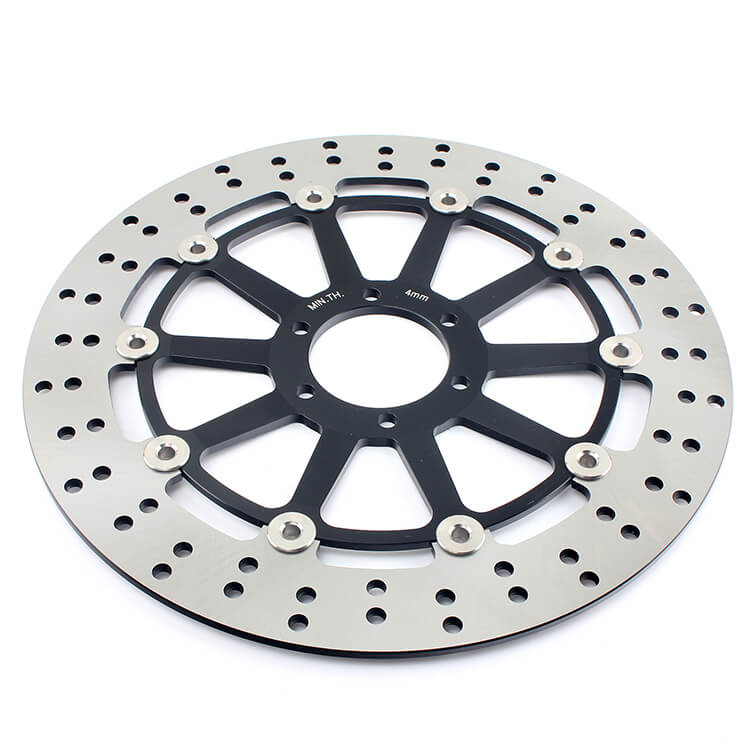

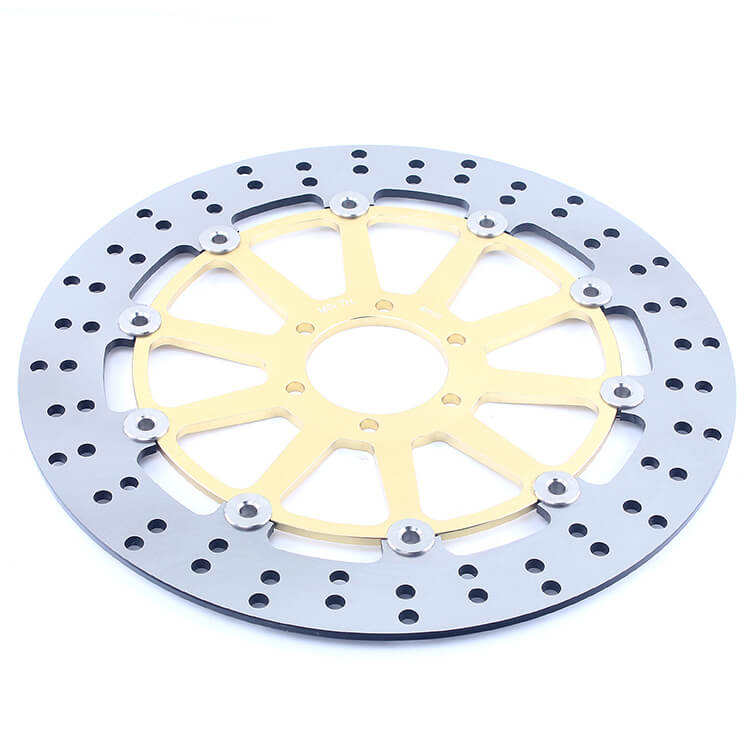

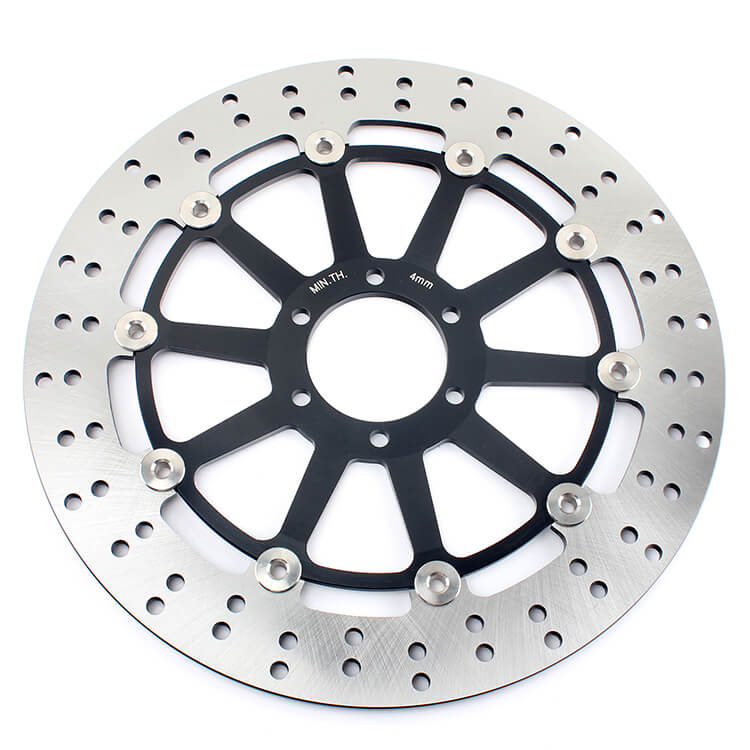

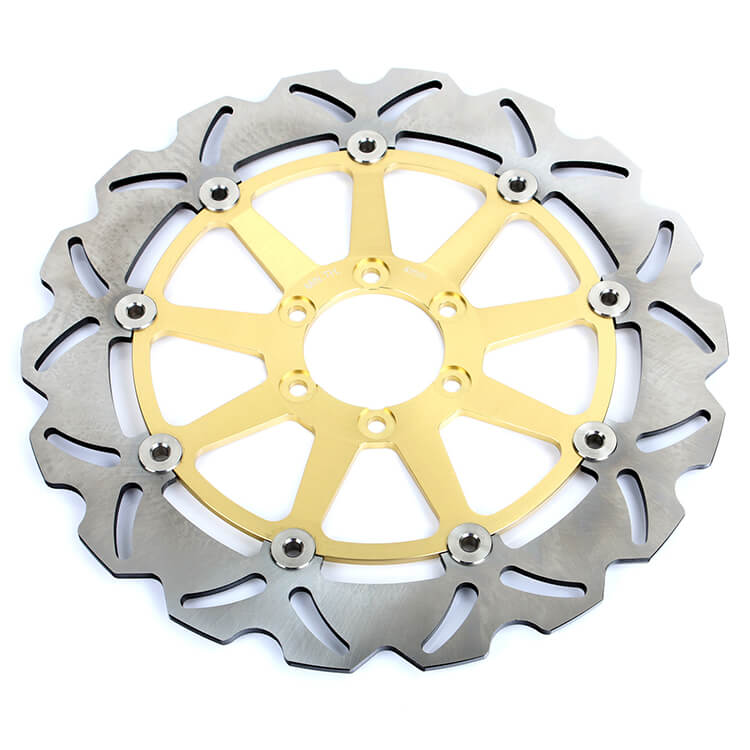

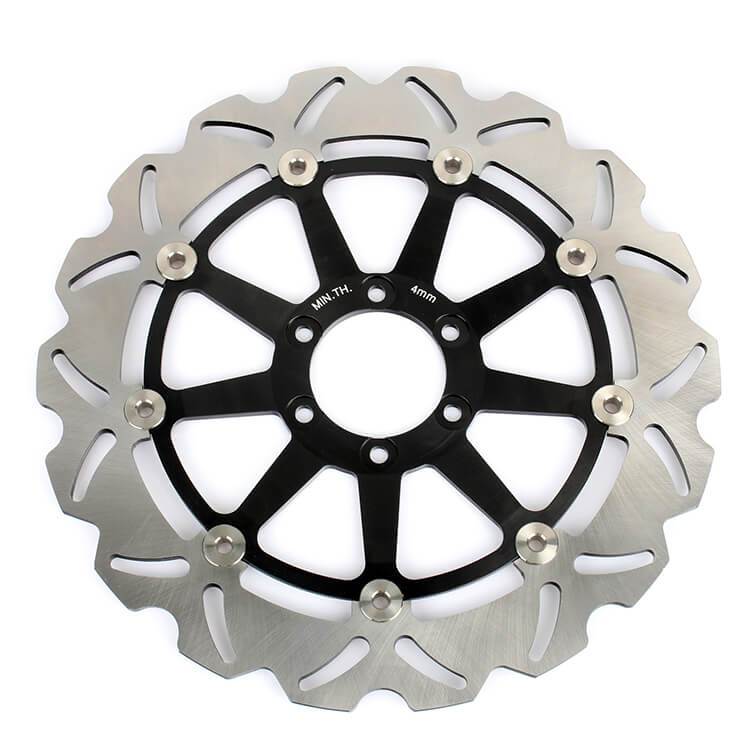

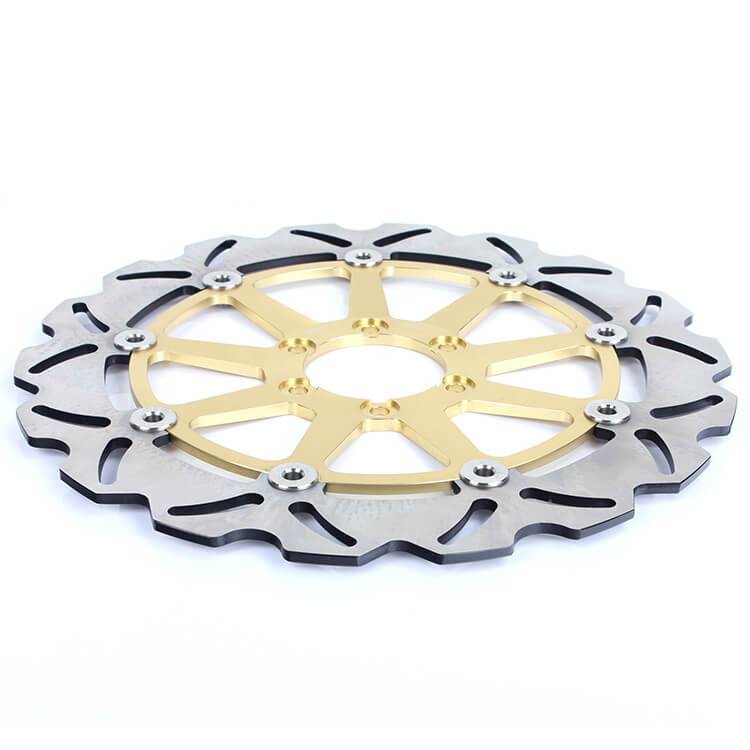

Front brake disc

• The floating disc rotor is made of 420 2Cr13 stainless steel & 6061 T6 aluminum alloy center, 20% lighter than original disc. Ultra lightweight but strong disc provides superb looks and quality performance.
• The shape of the disc allows air to circulate through disc for cooling to maintain maximum heat dissipation. ensures rapid dispersion of water and dirt when braking.
• New scraper slot system to keep your brake system clean and run cooler.

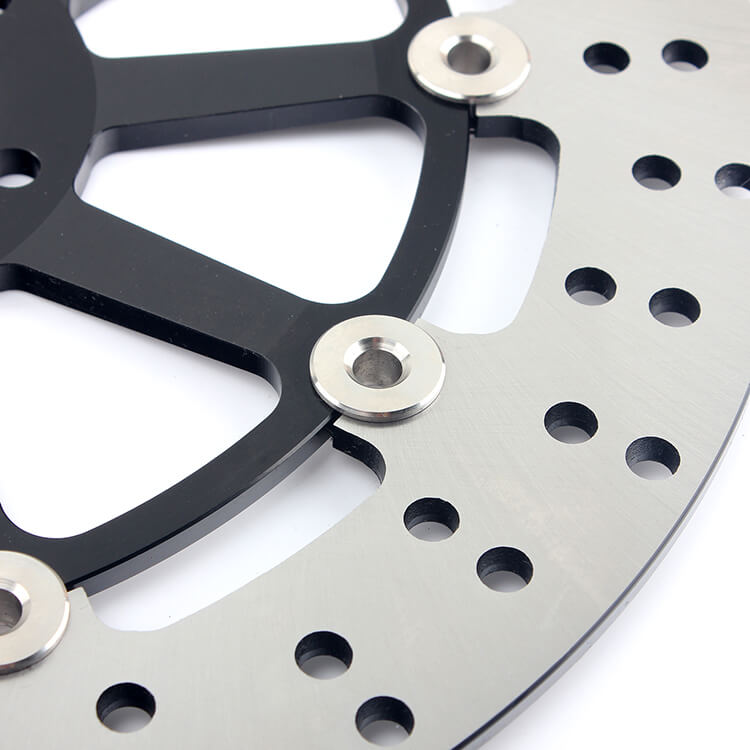

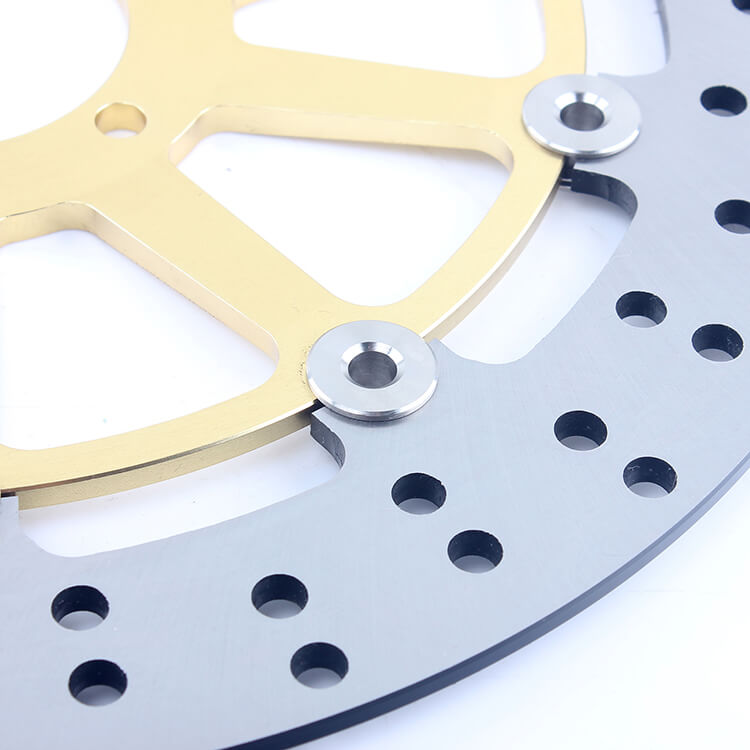

• Drilled for better heat dissipation and faster braking in the wet weather.
• Surface is electrostatically coated to ensure the long-term appearance.
• Original standard, direct replacement for old or broken one.

Specifications
Outer diameter: 320mm
Inner diameter: 64mm
Thickness: 5mm
Hole quantity: 6
Hole size: 8.4mm
Hole spacing: 80mm
Offset height: 10mm

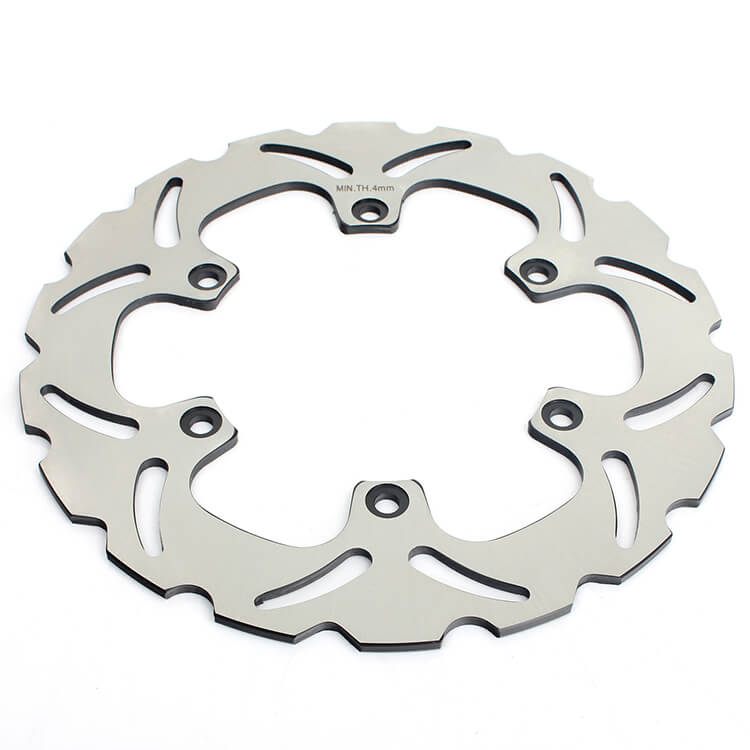

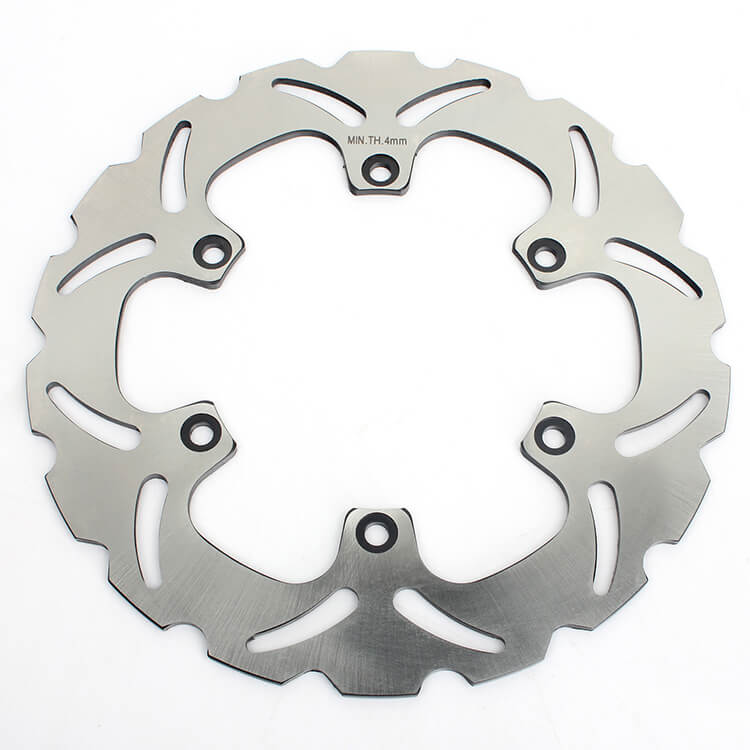

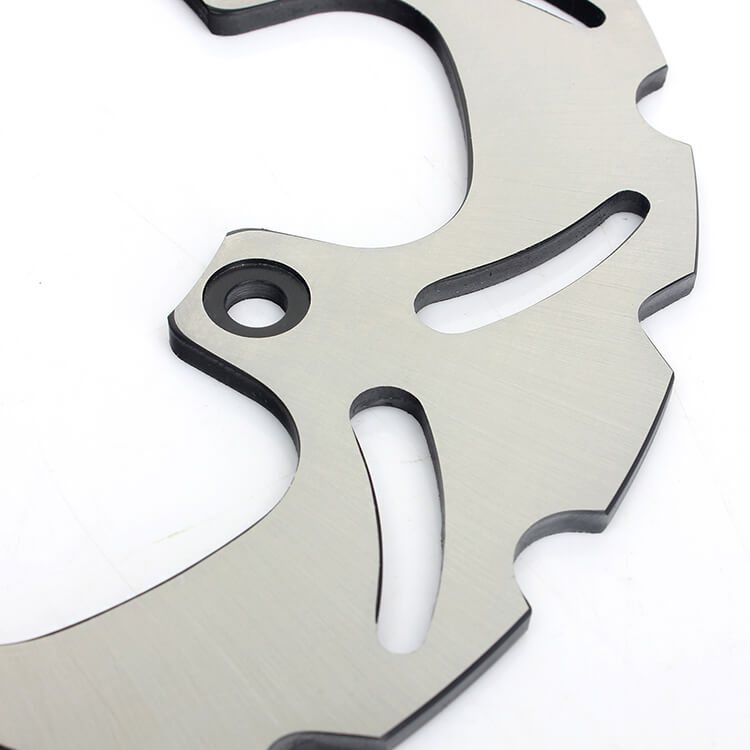

Rear brake disc

• Durable 420 stainless steel for strong braking power and long lasting.
• Heat Treatment Harness HRC 36+-2 ensure brake area not warped.
• Slot system makes water and dirt are dispersed quickly.
• Wave shape brake disc rotor light weight than OEM.

Specifications
Outer diameter: 267mm
Inner diameter: 132mm
Thickness: 5mm
Hole quantity: 6
Hole size: 8.4mm
Hole spacing: 150mm

Please replace your rotor when it reaches the Minimum Thickness we marked on the disc surface to ensure your safety
