Fit for
YAMAHA FZ1 1000CC model year 2006-2014
YAMAHA FZ1 ABS A / V-Z,A,B RP16 e13*0040 2006-2014
YAMAHA FZ1 FAZER 1000CC model year 2006-2012
YAMAHA FZ1 FAZER ABS 1000CC model year 2007-2012
YAMAHA FZ1 ABS A / V-Z,A,B RP16 e13*0040 2006-2014
YAMAHA FZ1 FAZER 1000CC model year 2006-2012
YAMAHA FZ1 FAZER ABS 1000CC model year 2007-2012
YAMAHA FZ1 N N / V-Z,A,B RN16 e13*0040 2006-2012
YAMAHA FZ1 N ABS NA / V-Z,A,B RN16 e13*0040 2006 - 2012
YAMAHA FZ1 S F/Disc 320 OD S / V-Z,A,B RN16 e13*0040 2006 - 2012
YAMAHA FZ1 N ABS NA / V-Z,A,B RN16 e13*0040 2006 - 2012
YAMAHA FZ1 S F/Disc 320 OD S / V-Z,A,B RN16 e13*0040 2006 - 2012

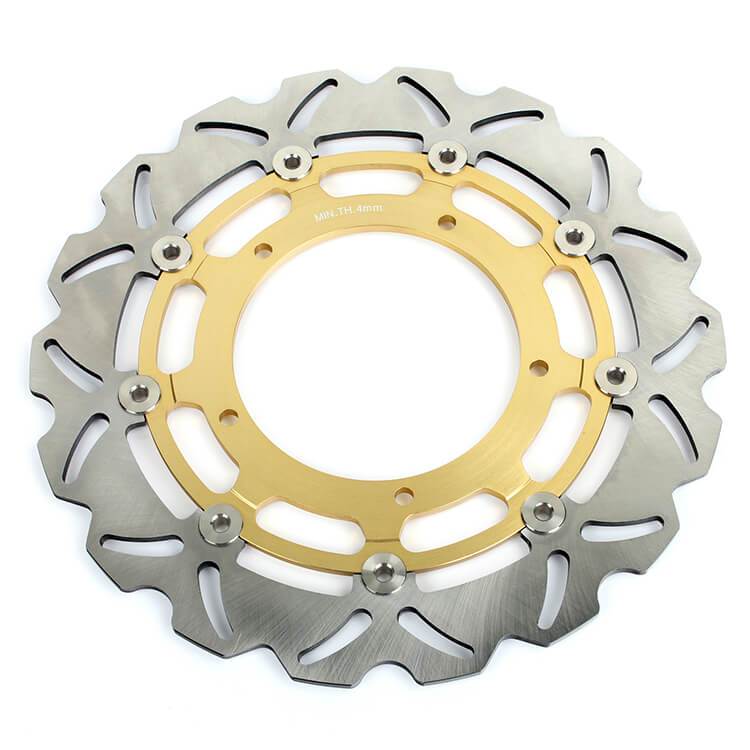

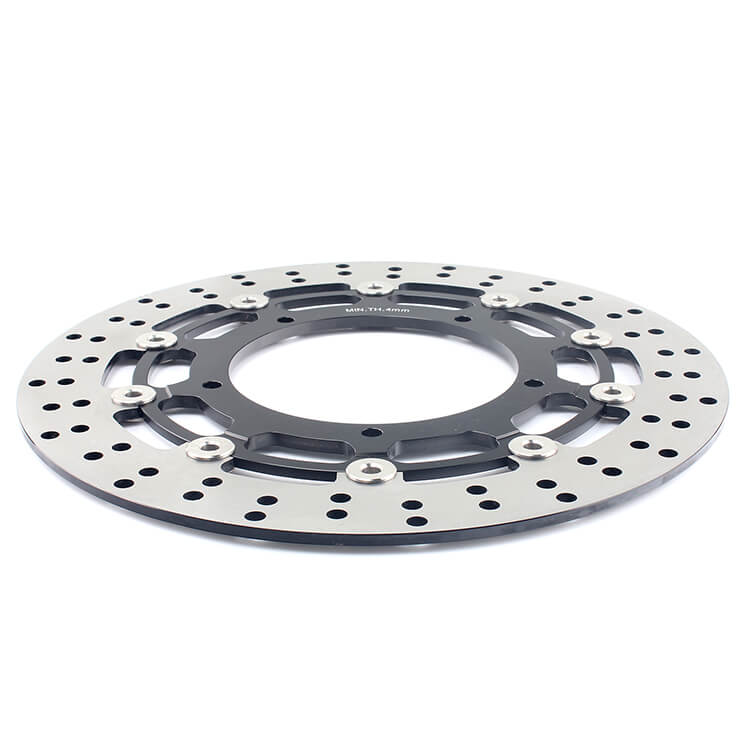

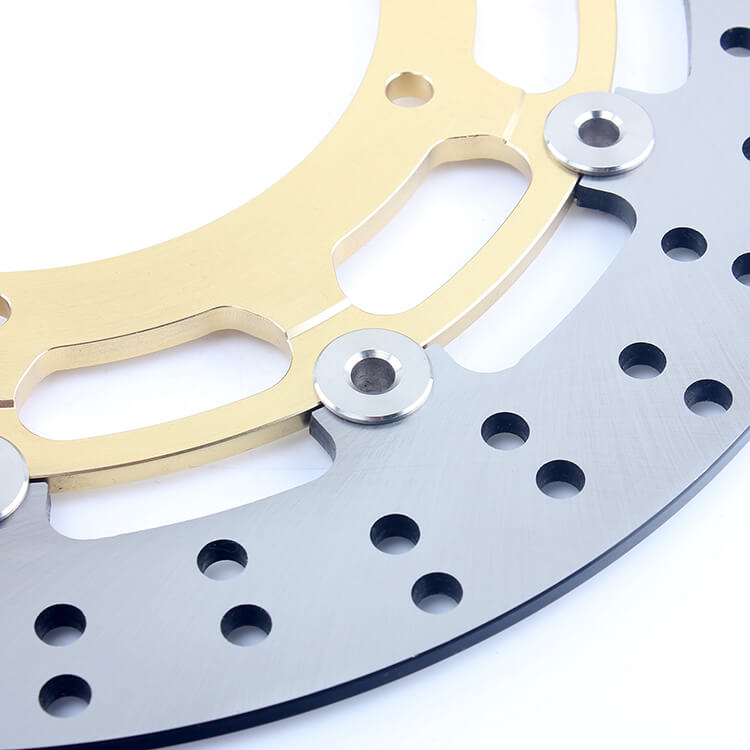

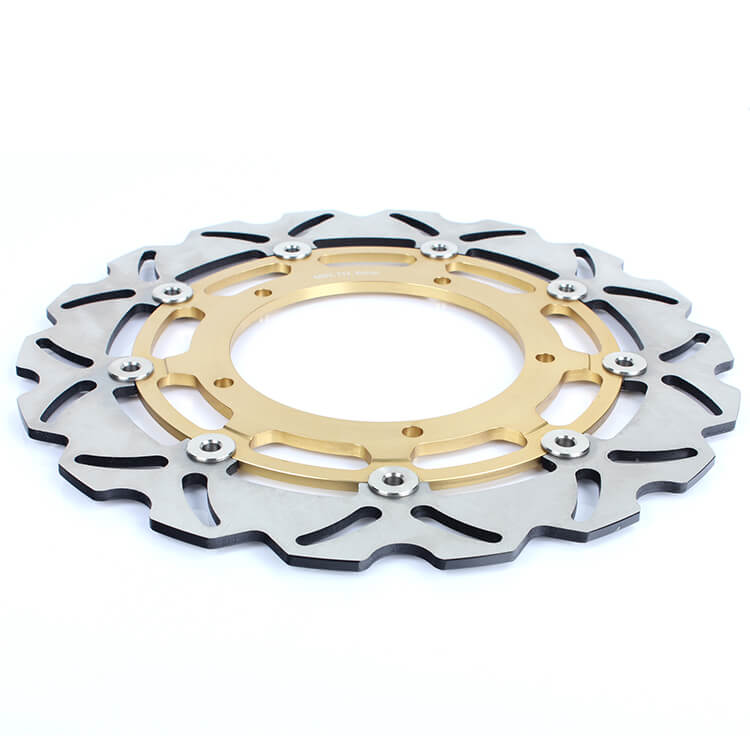

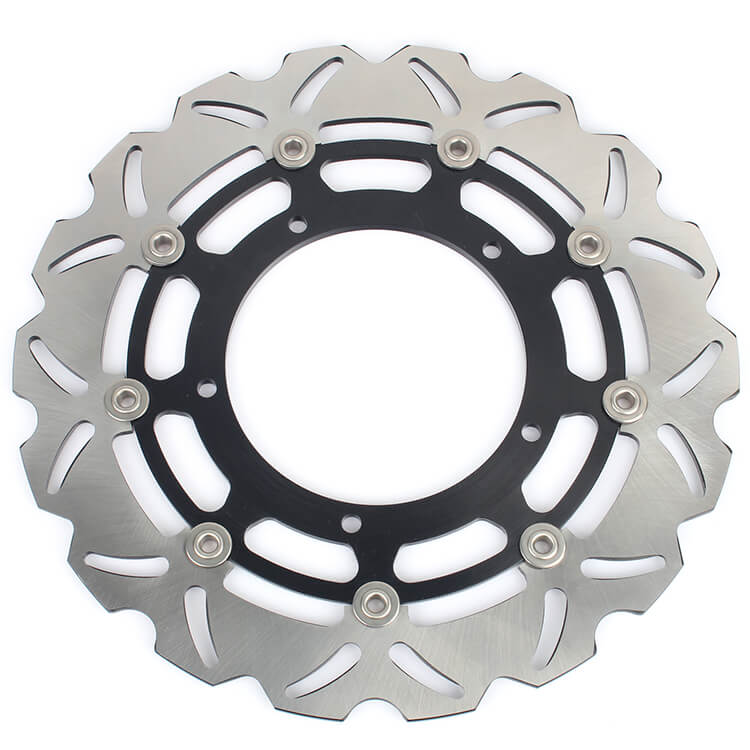

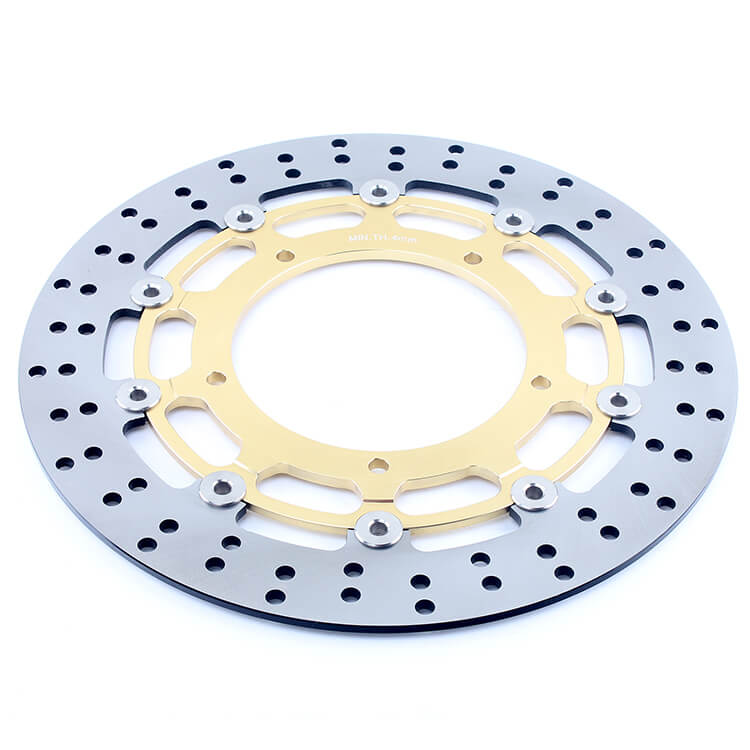

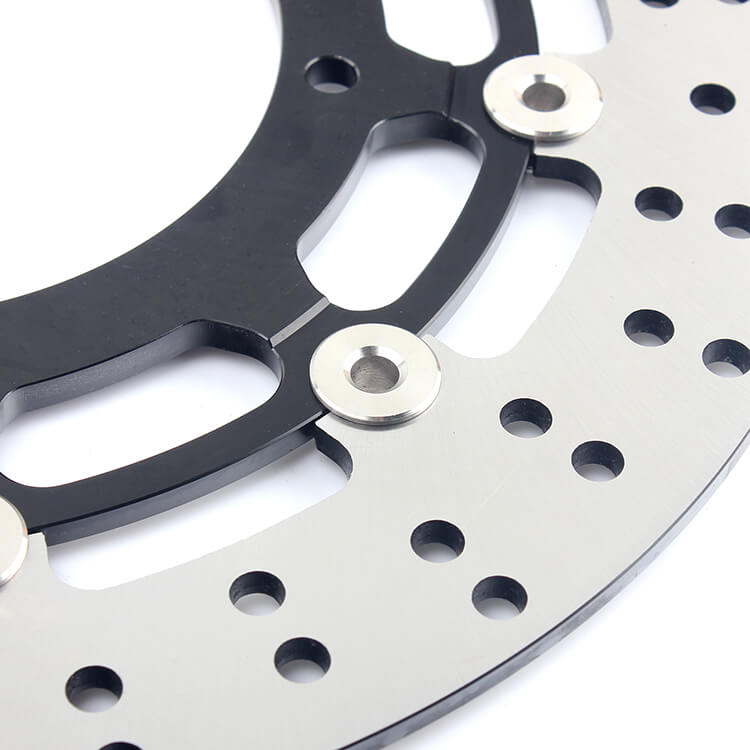

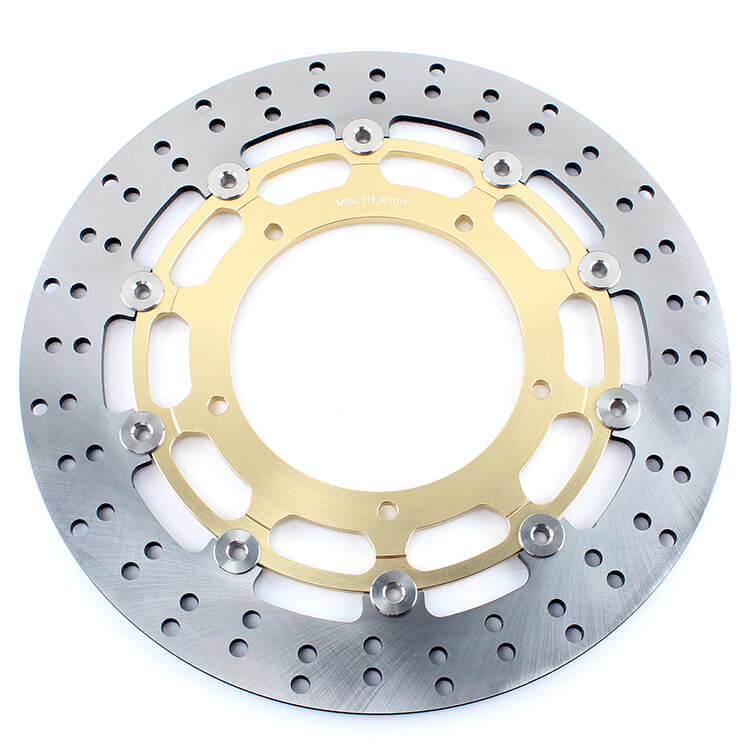

Front brake disc
- Floating and constructed of high quality stainless steel 420 ( 2Cr13) & aluminum 6061-T6, capable of expanding and contracting under hot temperatures without warping, excellent brake performance and stopping power under all conditions.
- The shape of the disc ensures good heat dissipation under heavy braking sessions. The construction increases air circulation to improve cooling.
- The slotted rotor ensures water and dirt are dispersed quickly when braking, optimum shaped lightening holes provide weight savings, keep your brake system clean & run cooler.
- Brake disc design reduces weight and increases brake effect.
Outer diameter: 320mm
Inner diameter: 132mm
Thickness: 5mm
Hole quantity: 5
Hole size: 8.4mm
Hole spacing: 150mm

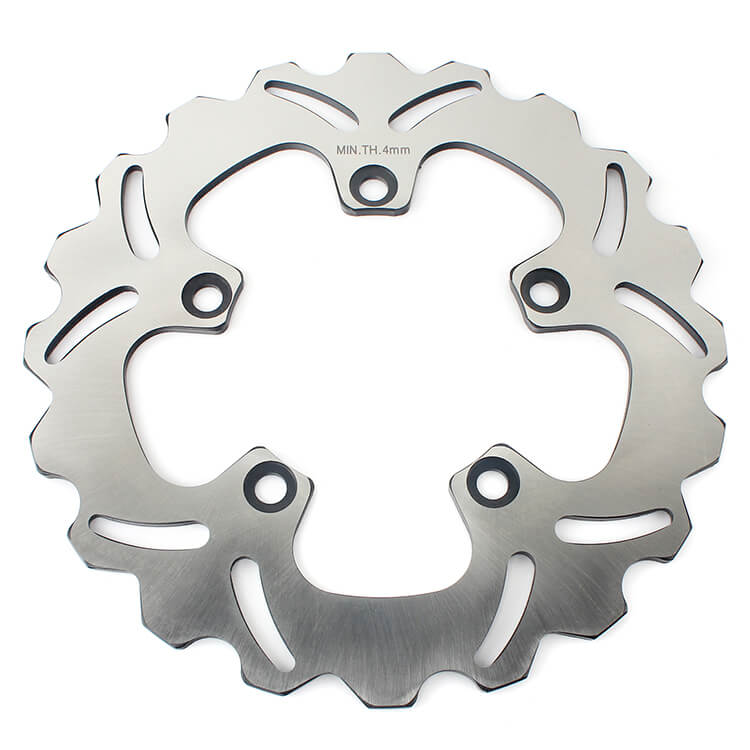

Rear brake disc
- Corrosion resistant 420 stainless steel. Heat treatment harness HRC 36+-2 ensure brake area not warped.
- Weight saving ventilation slots keep your brake system clean and run cooler.
- 20% light wieght than OEM.
Outer diameter: 245mm
Inner diameter: 105mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 125mm

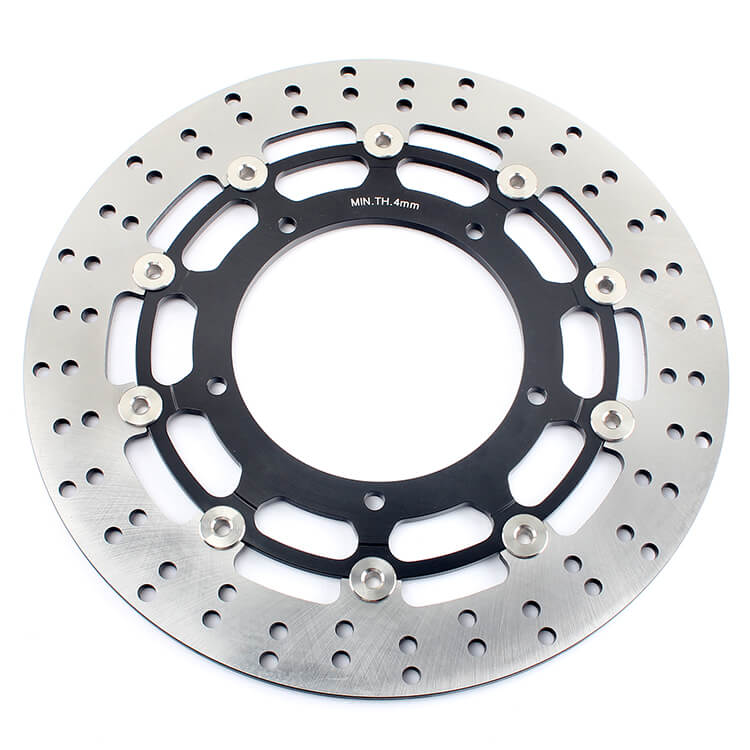

We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding
