Front Rear Brake Disc for Yamaha Diversion XJ6 FA ABS 2009-2015

Fit for

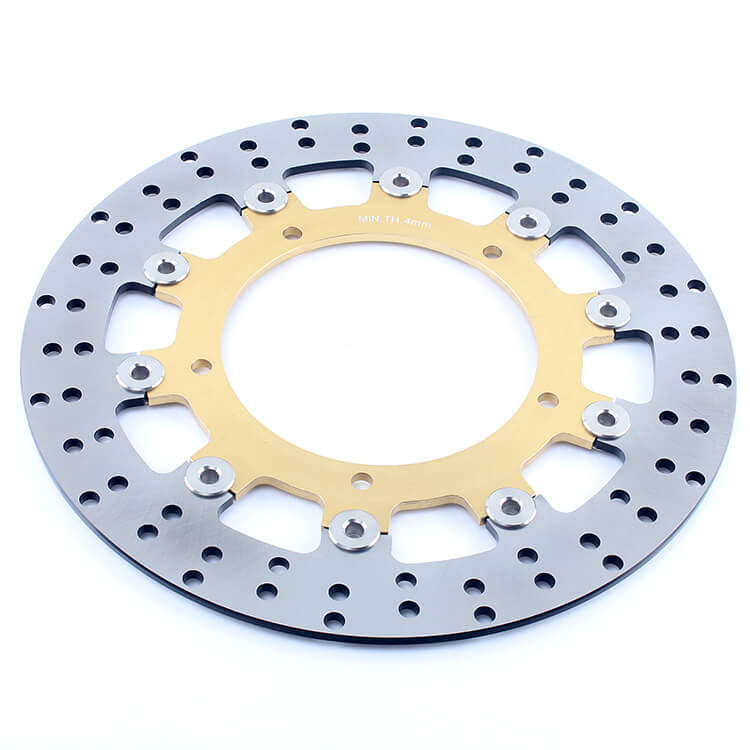

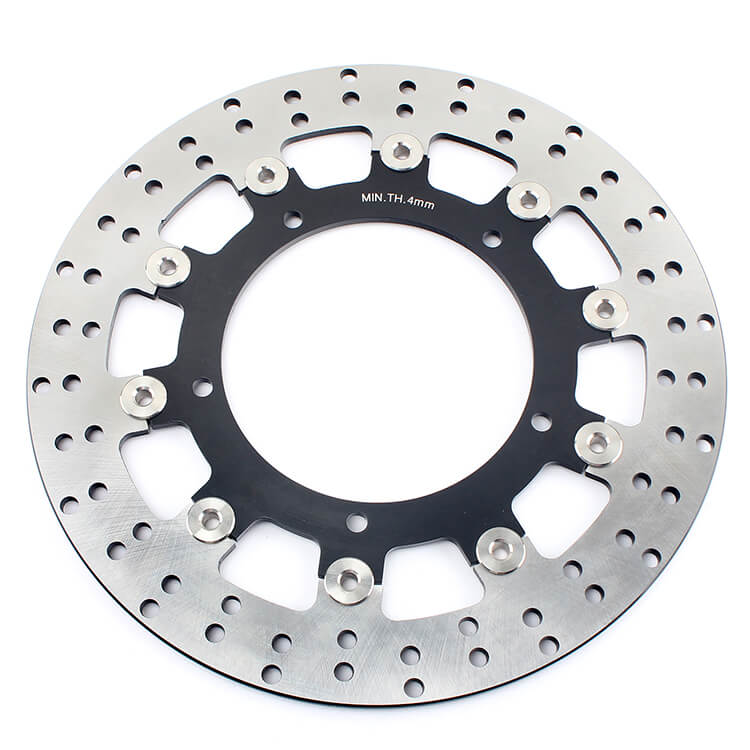

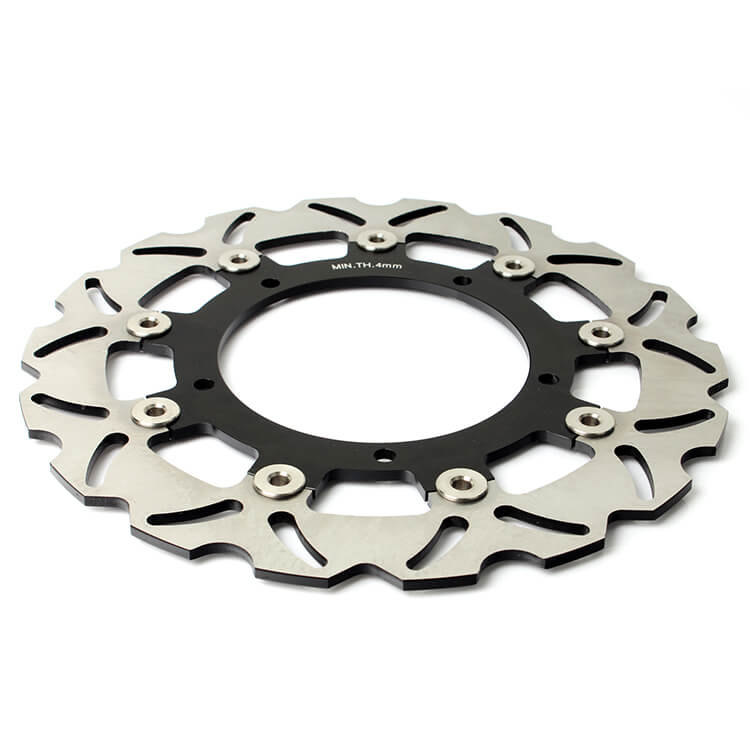

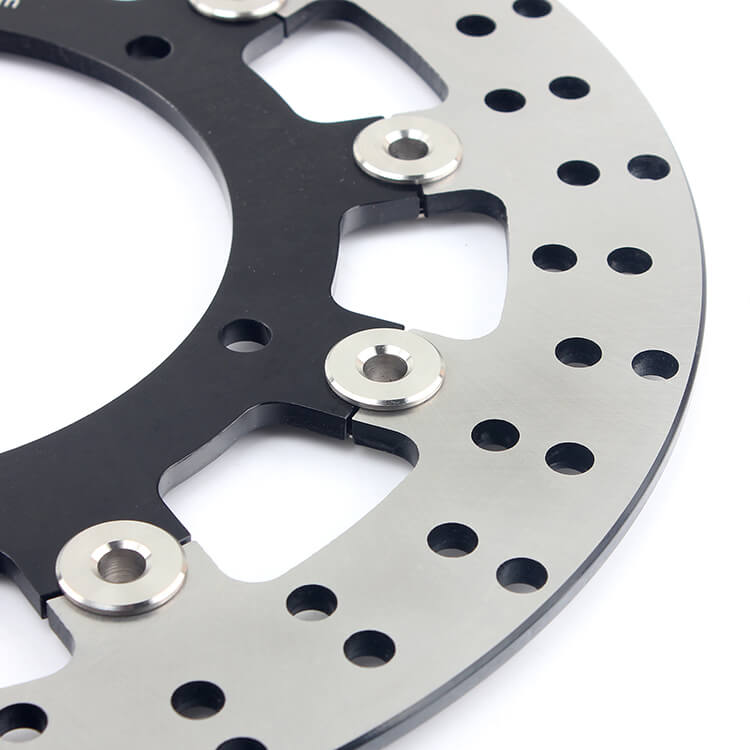

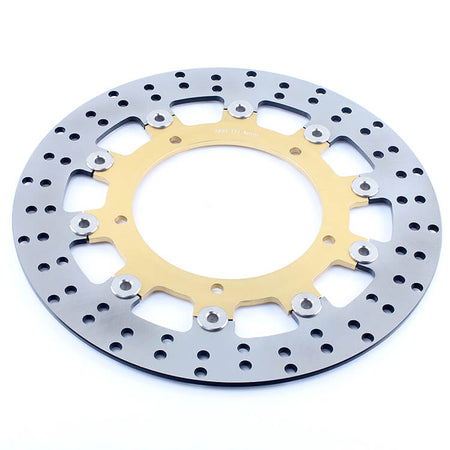

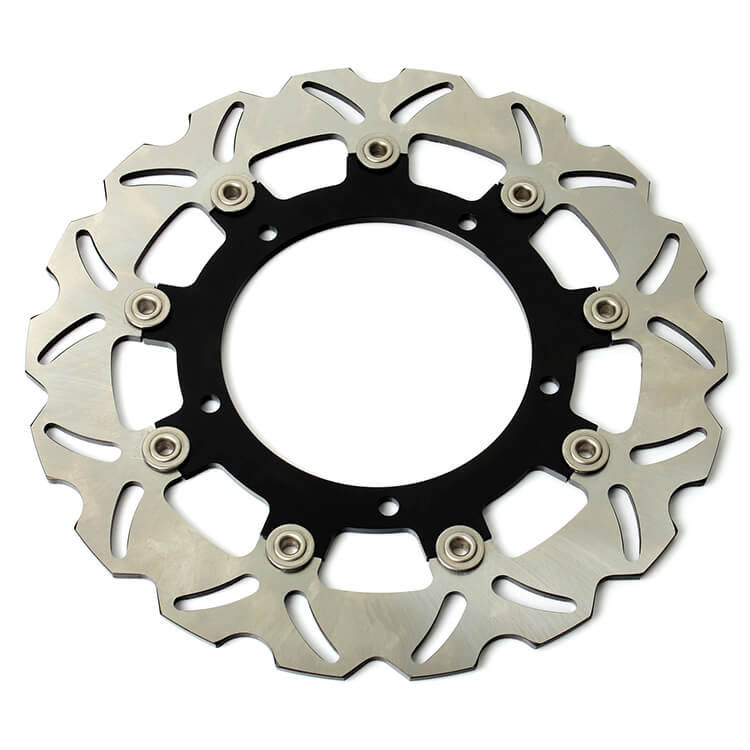

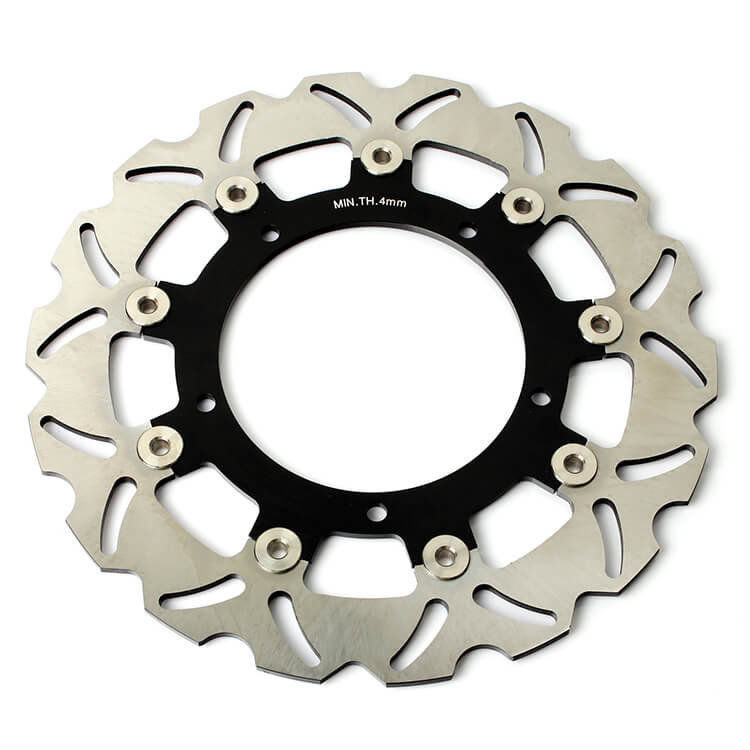

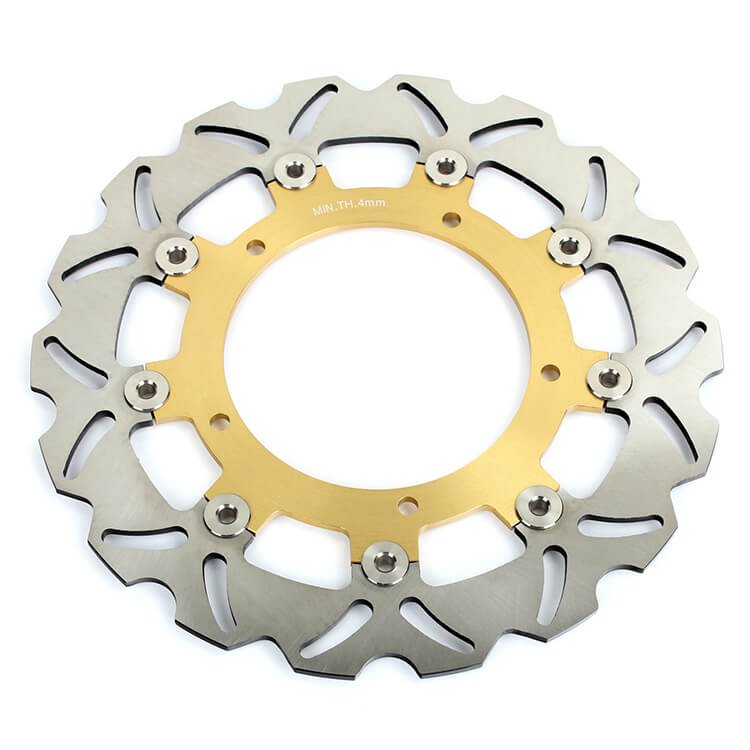

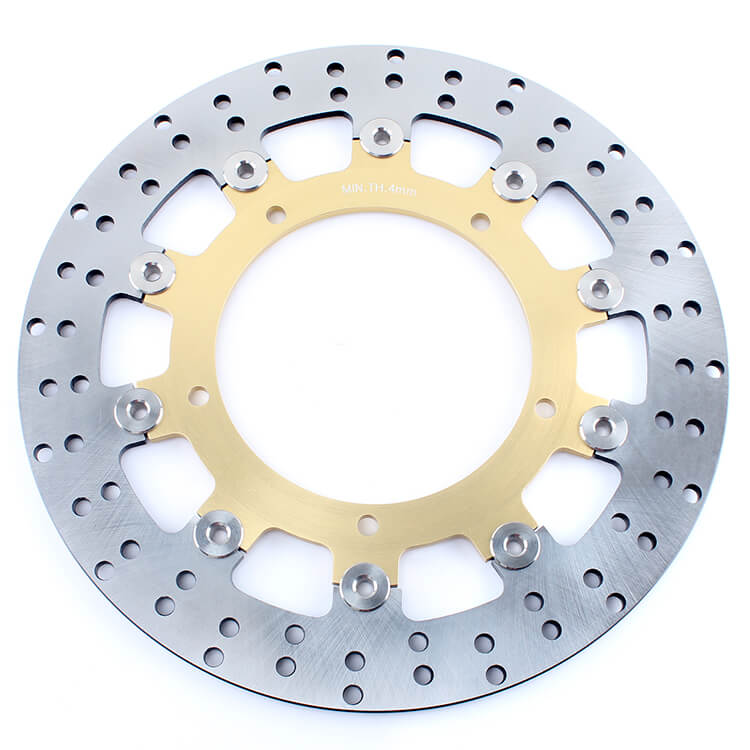

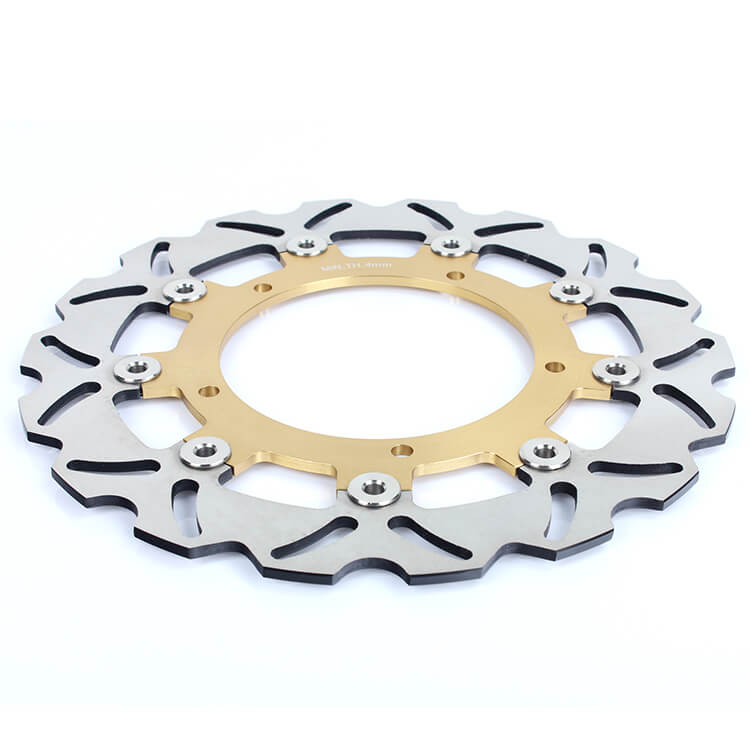

Front brake disc

• Constructed from 420 2Cr13 stainless steel & anodized 6061-T6 aluminum ensure strong braking power & good look. Provide excellent brake performance and stopping power under all conditions.
• Weight saving slotted rotor shape not only adds the rotor's appearance, but also aids in quick cooling, which speed up the overall heat dissipation to improve rotor cooling and keeps water and dirt are dispersed quickly.
• Optimum shaped lightening hole, to provide weight savings, combined wih improved uniform disc cooling and brake pad cleaning effect.
• Surfaces are electro-statically coated to ensure a long term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors

Outer diameter 300mm
Inner diameter 132mm
Thickness 5mm
Hole quantity 5
Hole size 8.4mm
Hole spacing 150mm

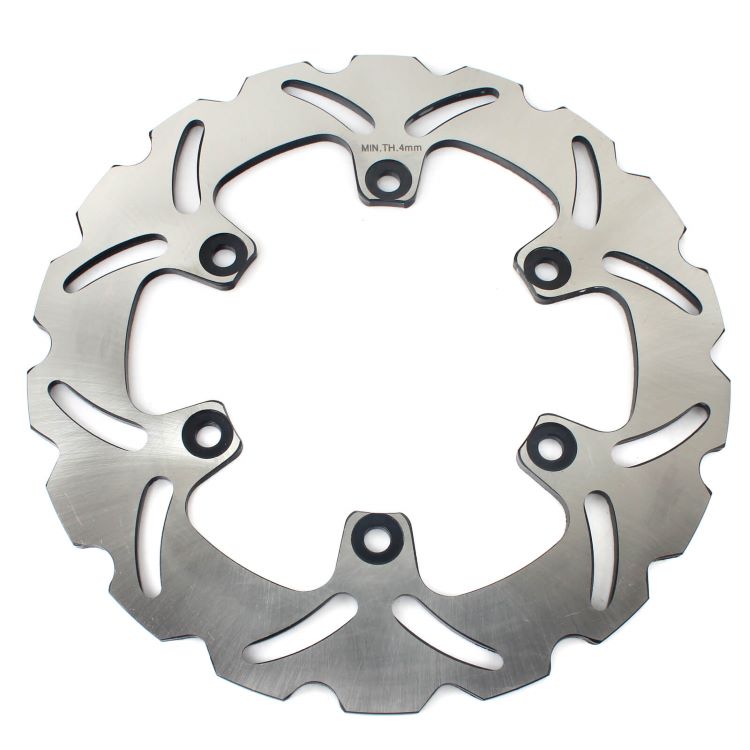

Rear brake disc

• Heat treated 420 2Cr13 stainless steel with higher friction, delivers maximum stopping power and ensures warp resistance.
• The vented slots can remove water and dirt from the rotor in wet riding conditions quickly with good heat dissipation. A great combination of improved performance and apperance.
• Light weight design, 30% light wieght than OEM.

Outer diameter 245mm
Inner diameter 115mm
Thickness 5mm
Hole quantity 6
Hole size 8.4mm
Hole spacing 150mm

We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding
