Fit for Suzuki SV 650 2003-2010; Suzuki SV 650 S 2003-2012

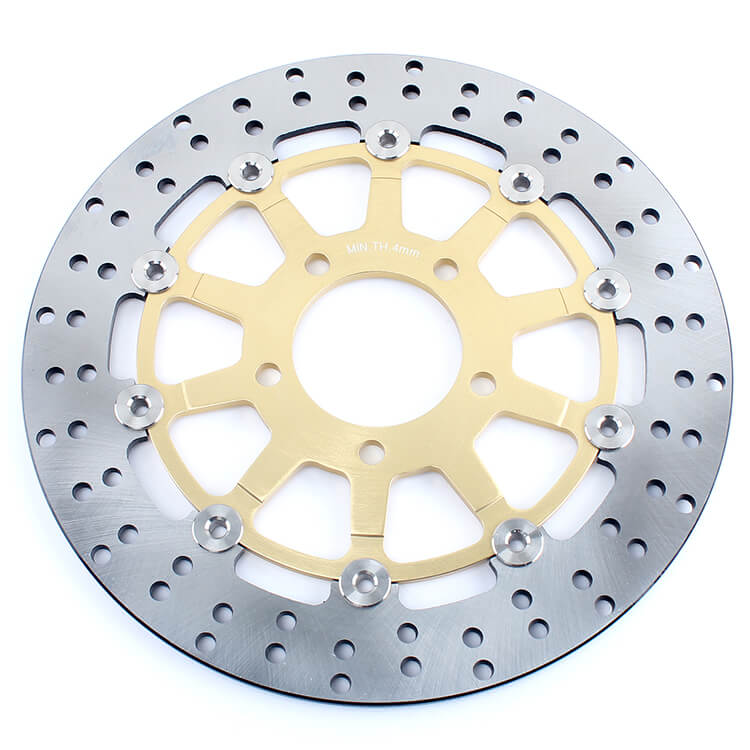

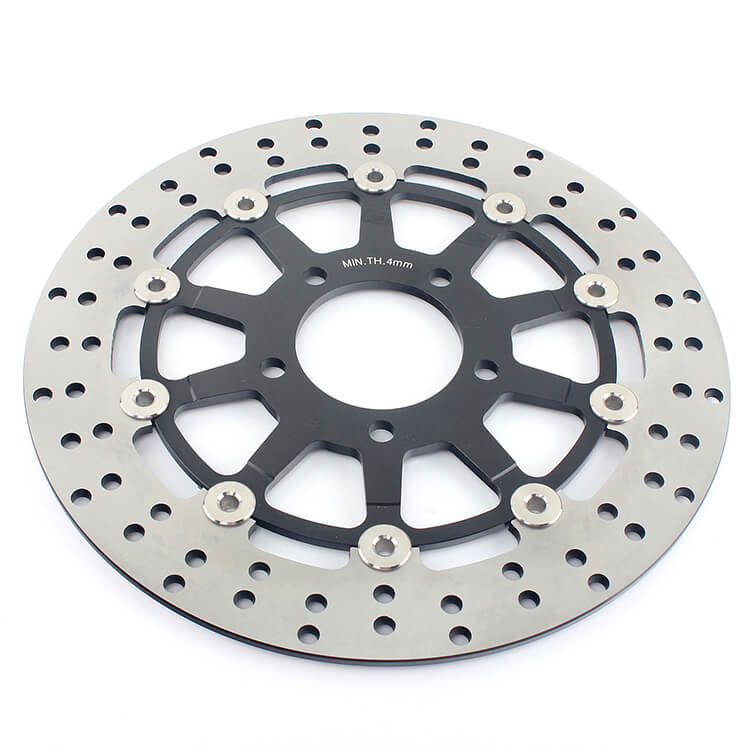

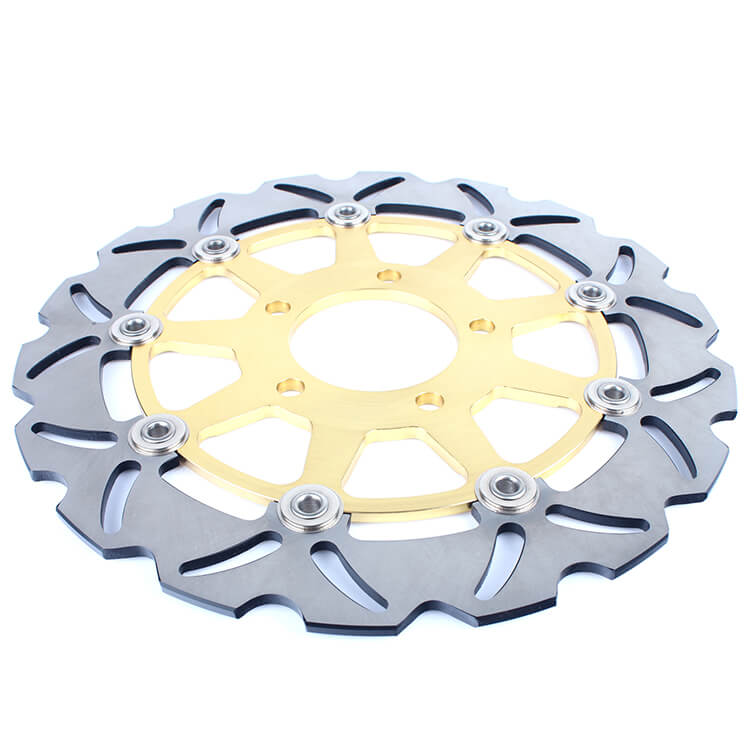

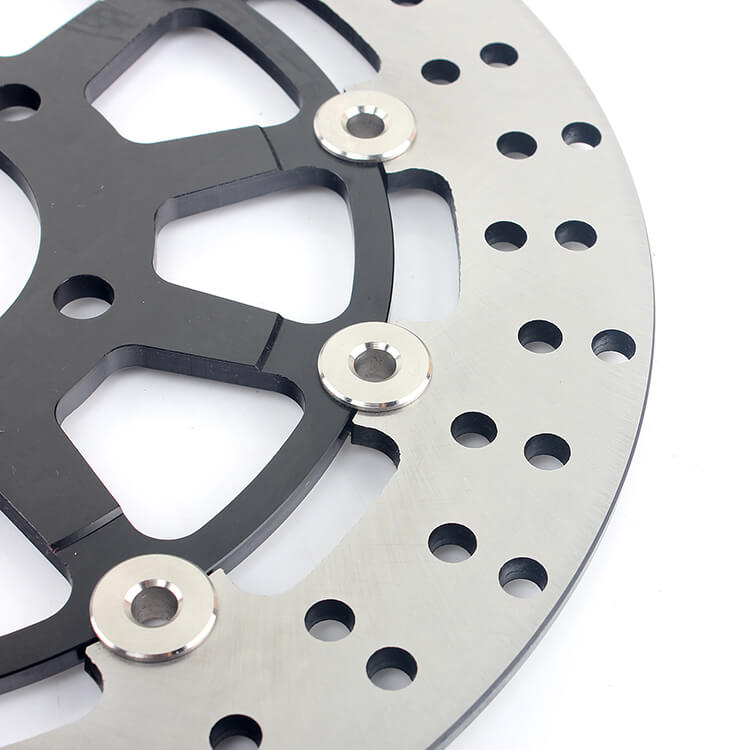

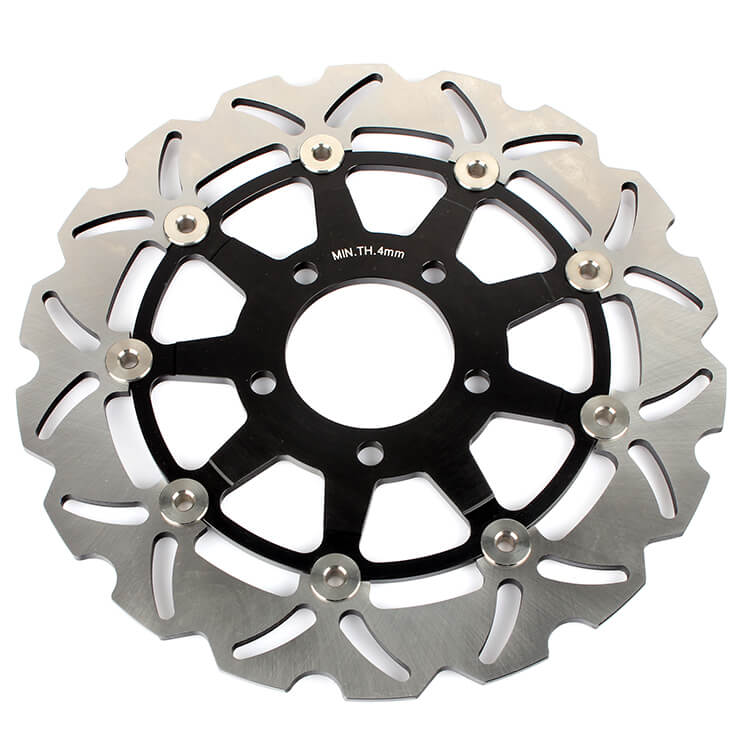

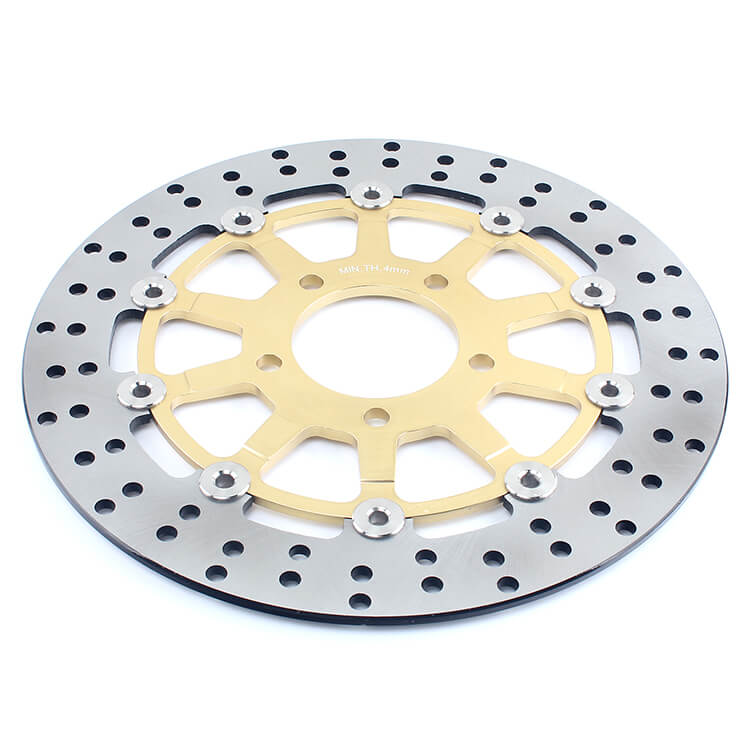

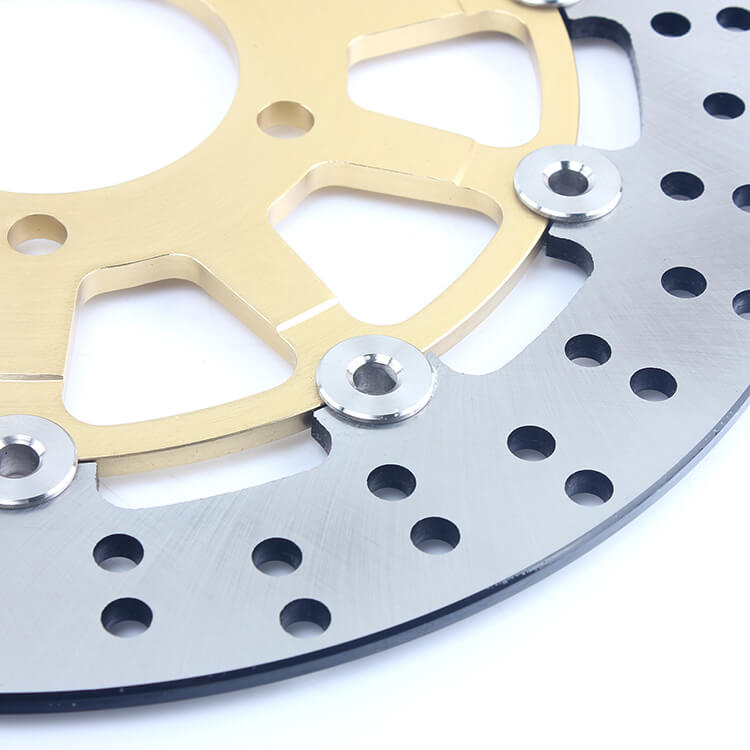

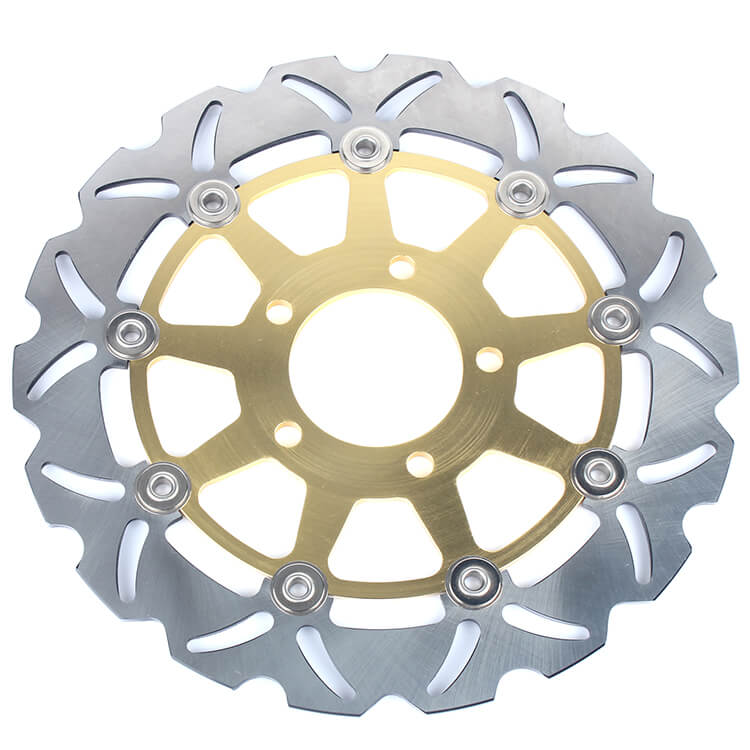

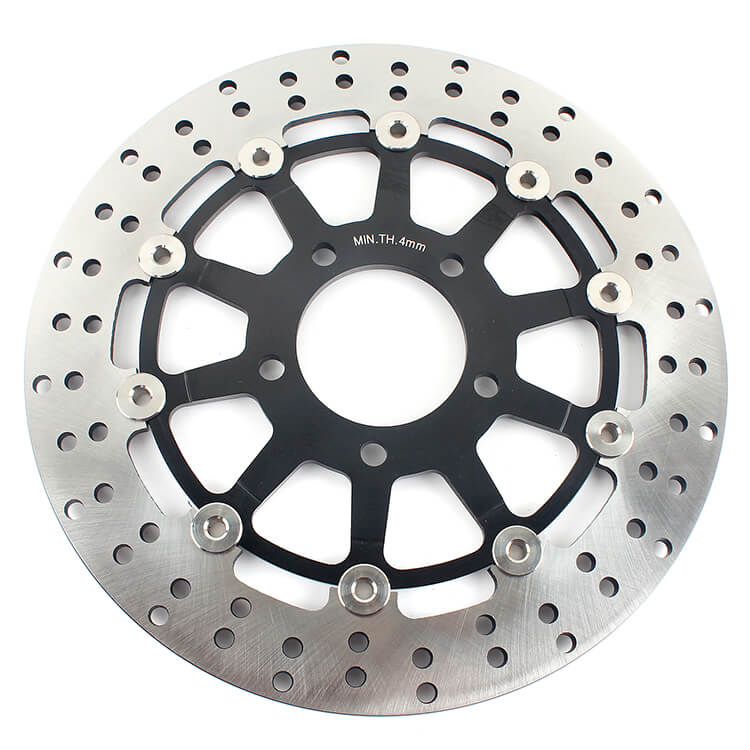

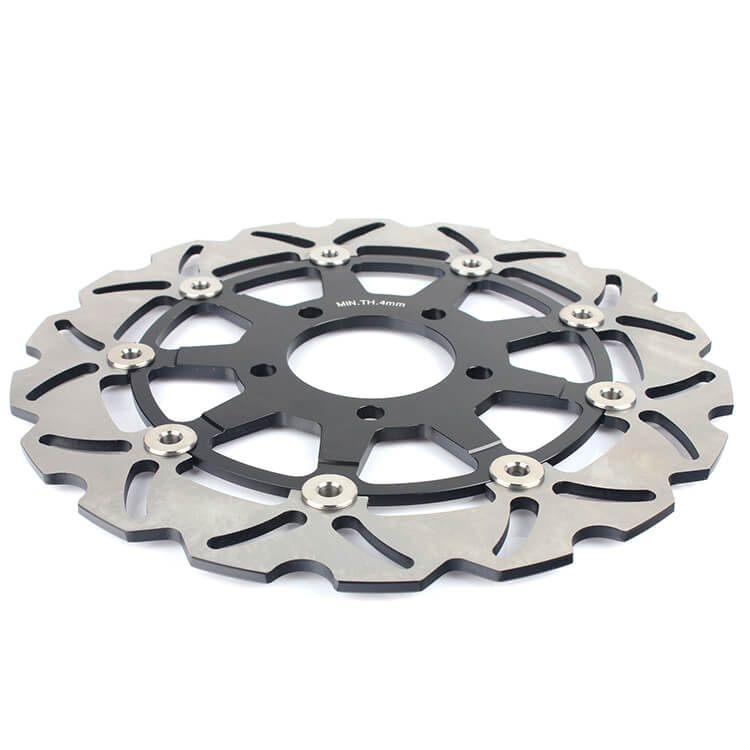

Front brake disc
- Heat treated 420 (2Cr13) stainless steel & CNC machined & anodized 6061-T6 aluminum offers maximum stopping power & good look.
- Heat treated to ensure warp resistance.
- Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly.
- Surfaces are electro-statically coated to ensure a long term appearance.
- Replaces original disc with no modification required.
Outer diameter 290mm
Inner diameter 69mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 91mm

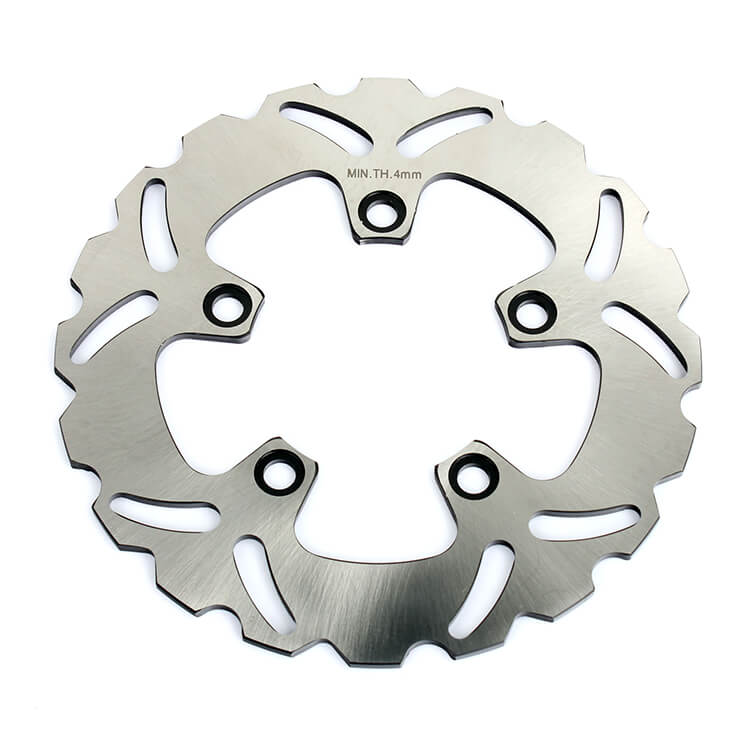

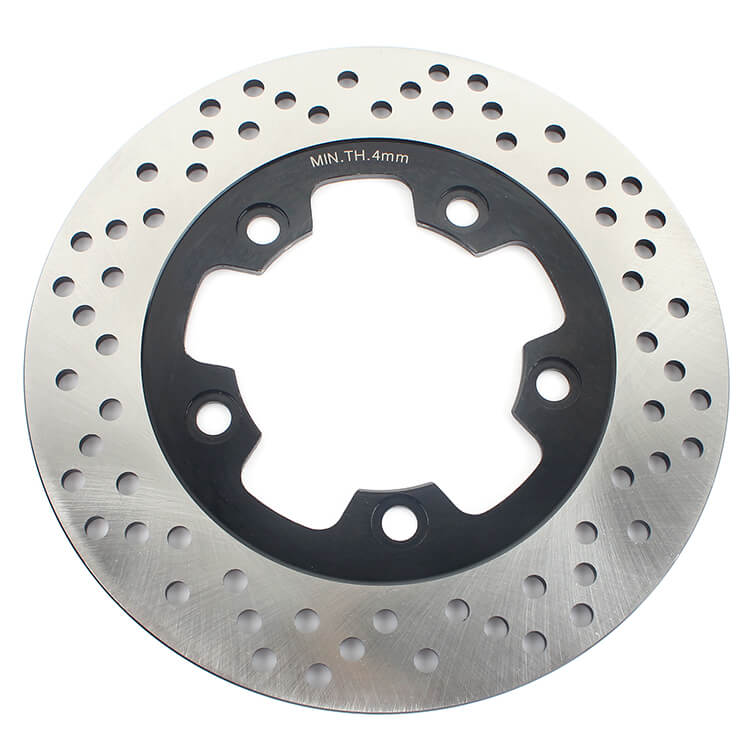

Rear brake disc
- 420 2Cr13 stainless steel ensures strong braking power.
- 2 designs available. Light weight design.
- Slotted construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
- Drilled rotor for superior heat dissipation and better stopping power.
Outer diameter 220mm
Inner diameter 89mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 110mm
Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
