Front Rear Brake Disc For Suzuki SV 1000 Classic 2003-2007

Fit for Suzuki SV 1000 Classic 2003-2007

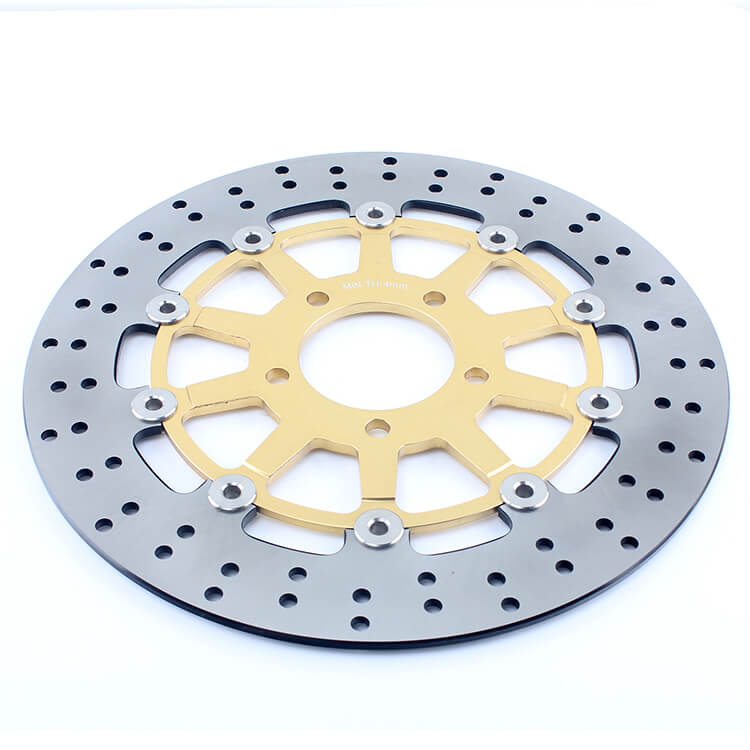

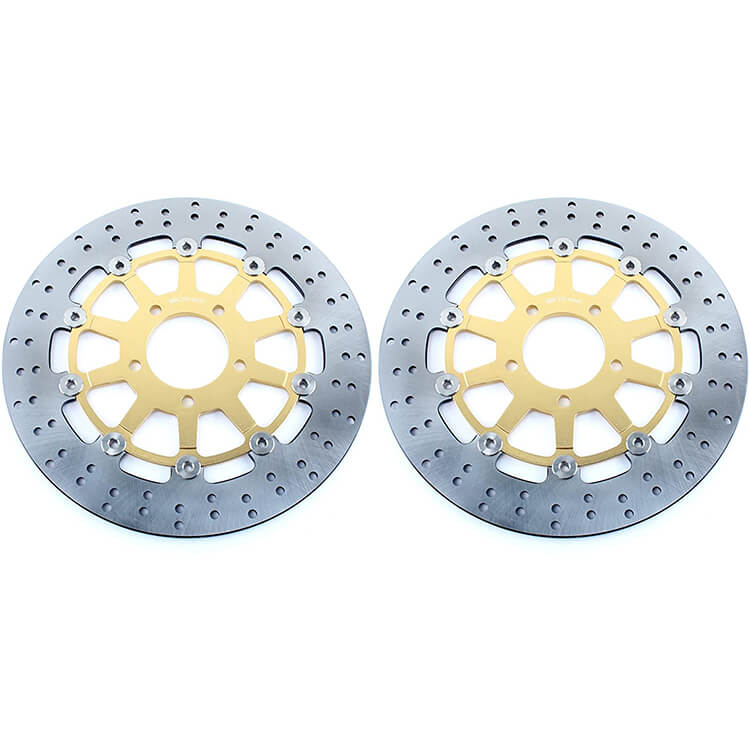

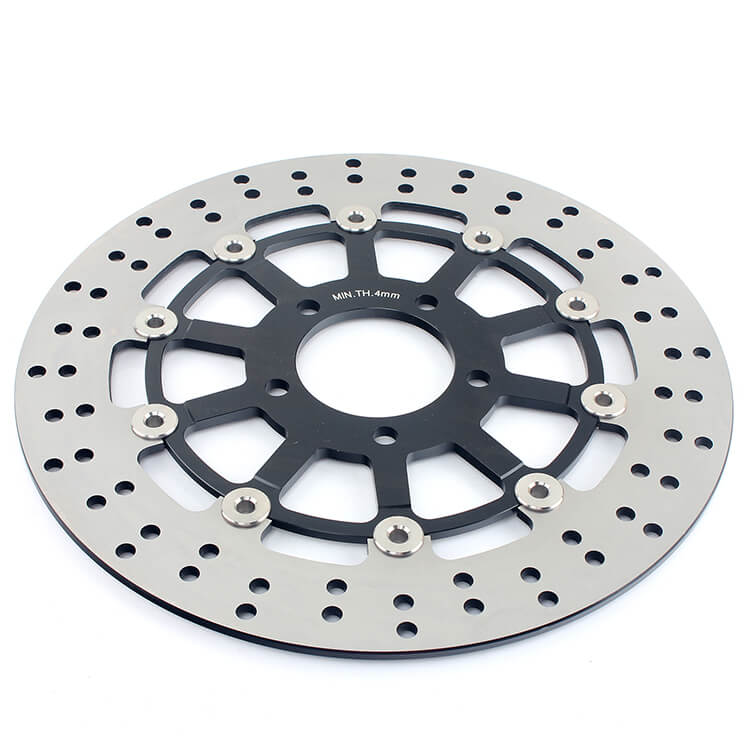

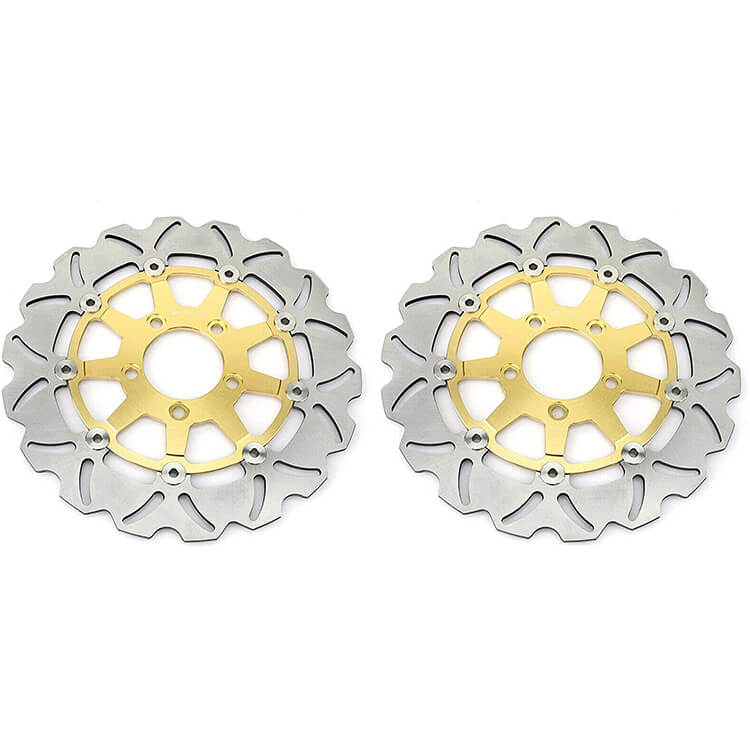

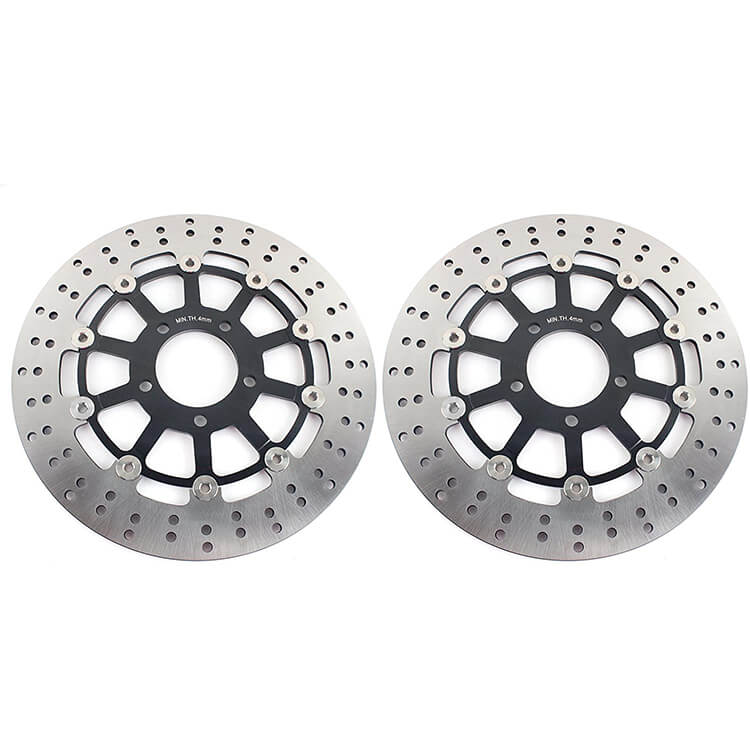

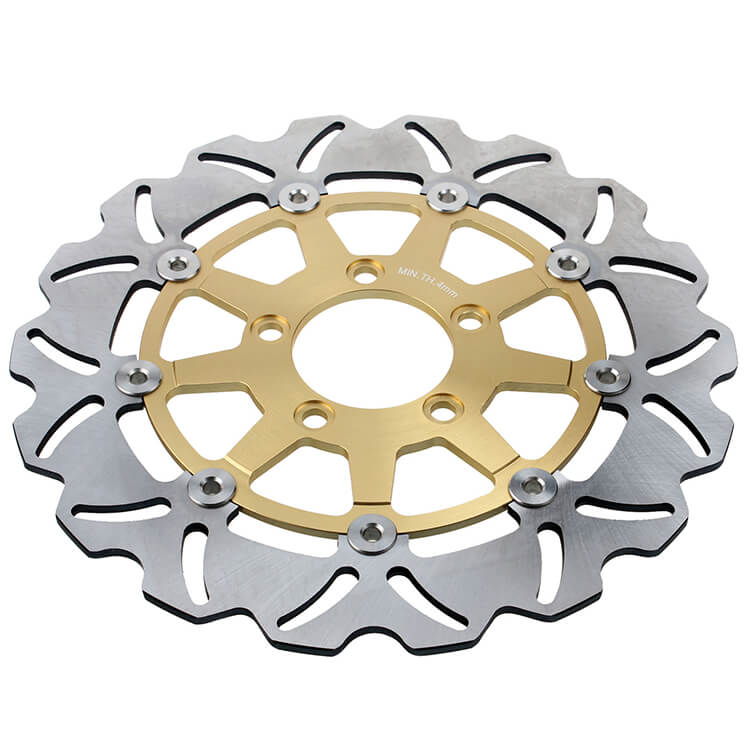

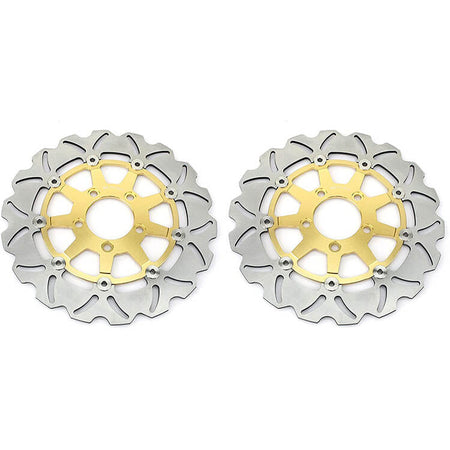

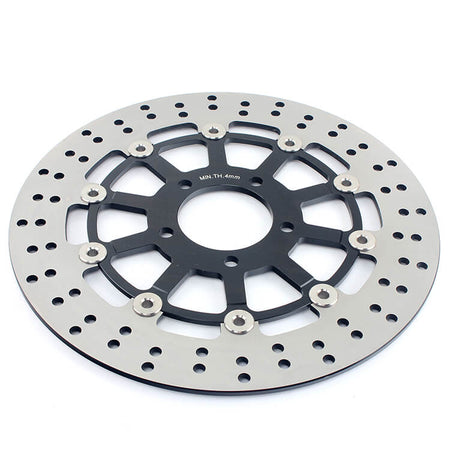

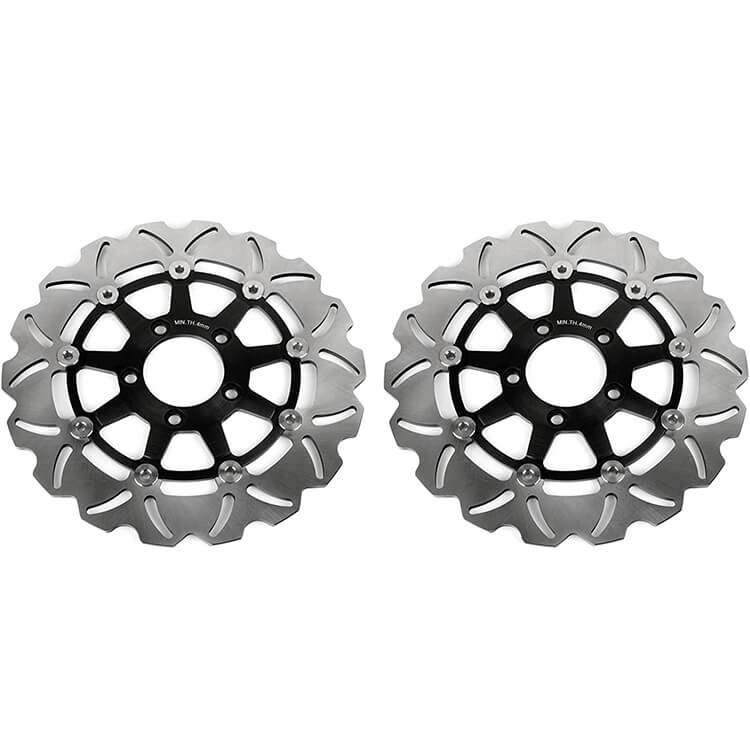

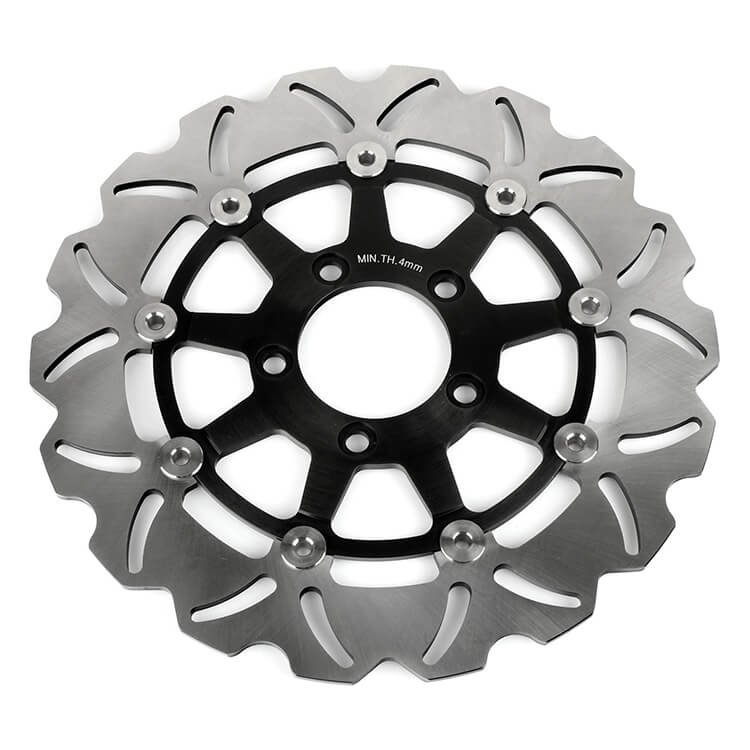

Front brake disc

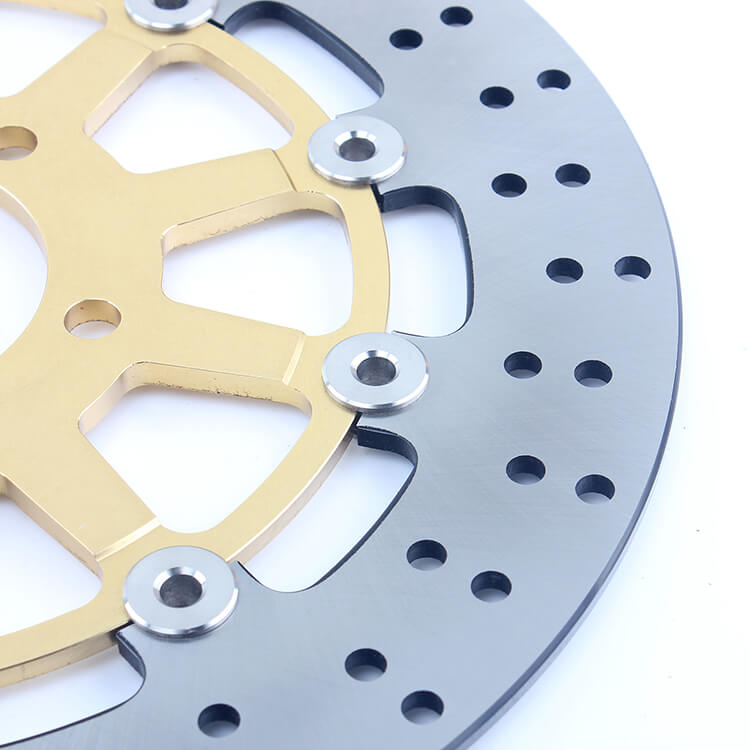

• Stainless steel 420 (2Cr13) and aluminum alloy 6061, CNC milled and anodized in black or gold color.
  Laser cut, heat treated and parallel double disc ground to assure perfect flatness. Laser cut for perfection and accuracy.
  Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly. A great combination of improved performance and appeal.
  Surfaces are electro-statically coated to ensure a long term appearance.
  No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter 310mm
Inner diameter 69mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 91mm

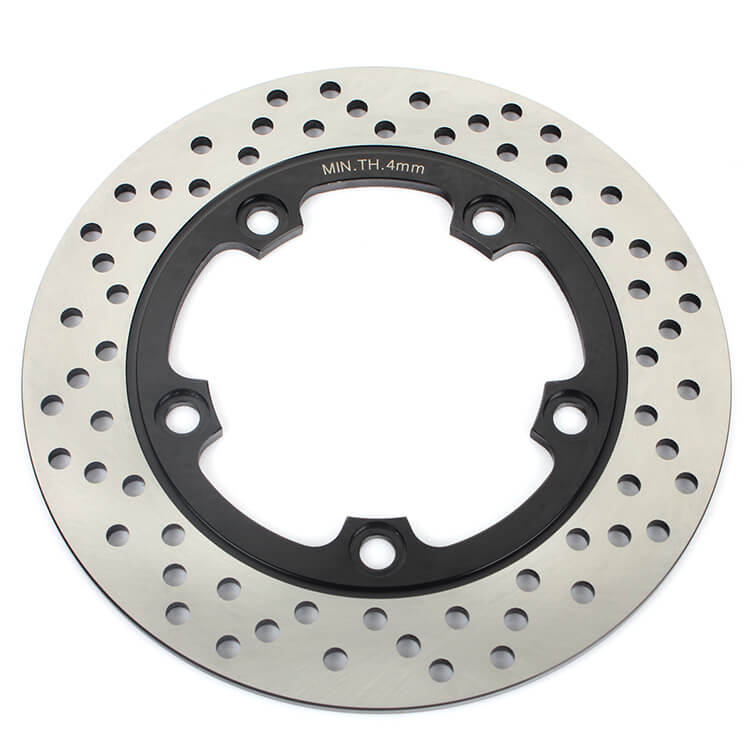

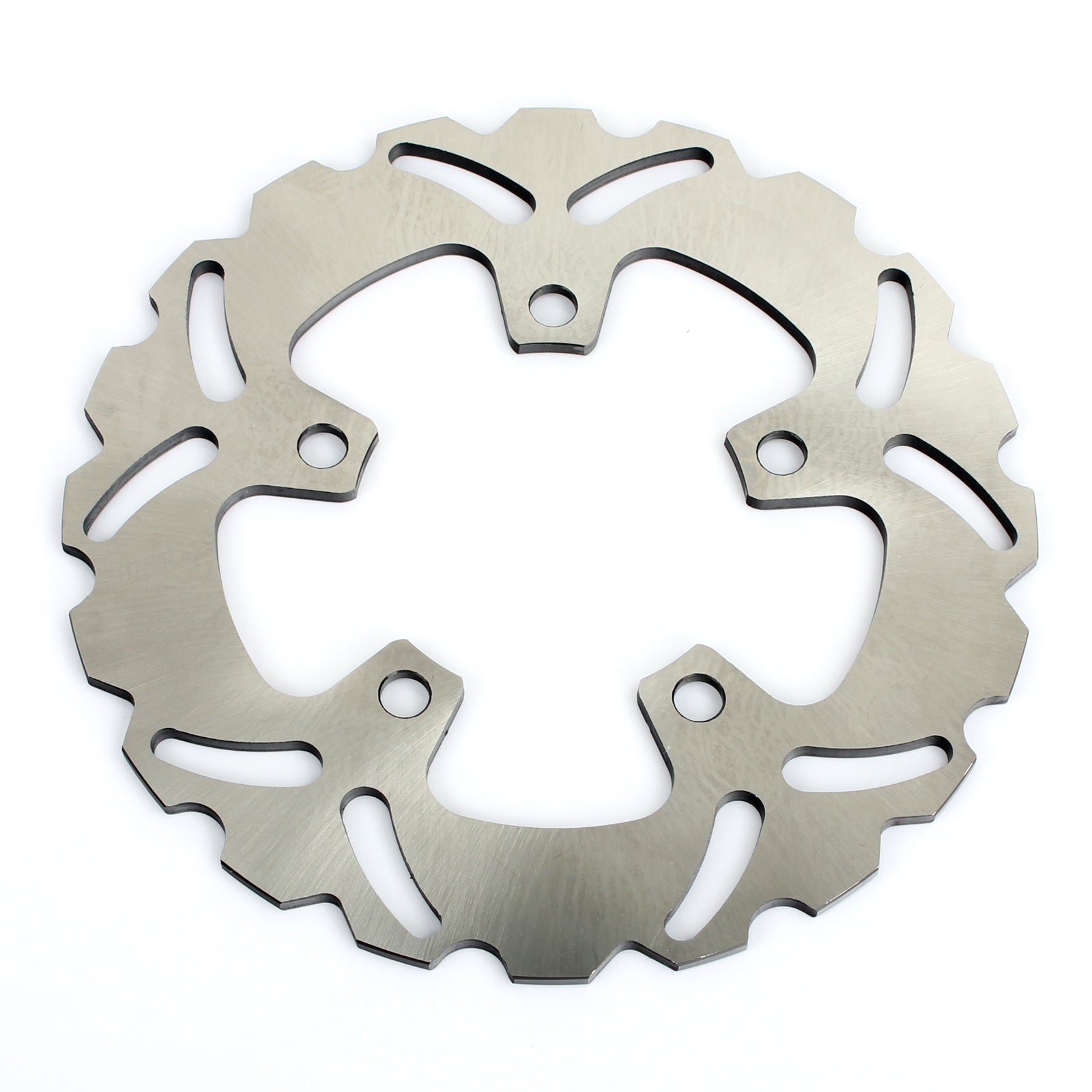

Rear brake disc

• 420 2Cr13 stainless steel ensures strong braking power, Heat treated ensures warp resistance.
• 2 designs available.
• The construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
• Lightweight than OEM disc.

Outer diameter 220mm
Inner diameter 89mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 110mm

The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
