Fit for
SUZUKI GSX R 600CC model year 2008-2017
SUZUKI GSX R 750CC model year 2008-2017
SUZUKI GSX R 1000CC model year 2009-2015
SUZUKI GSX R ABS 1000CC model year 2015-2016

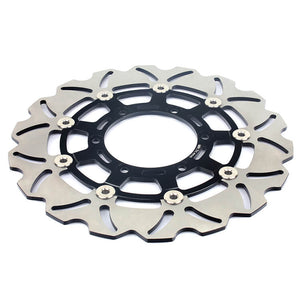

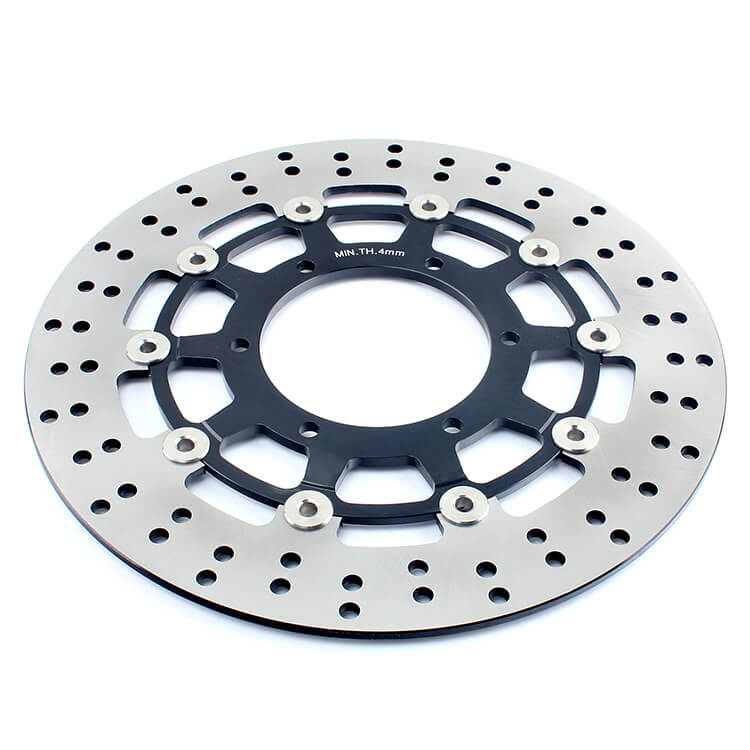

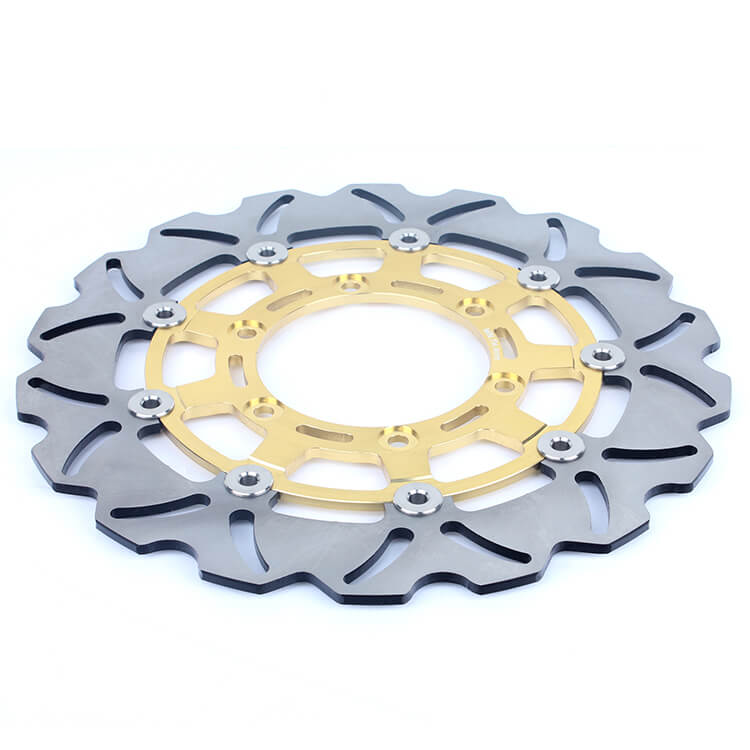

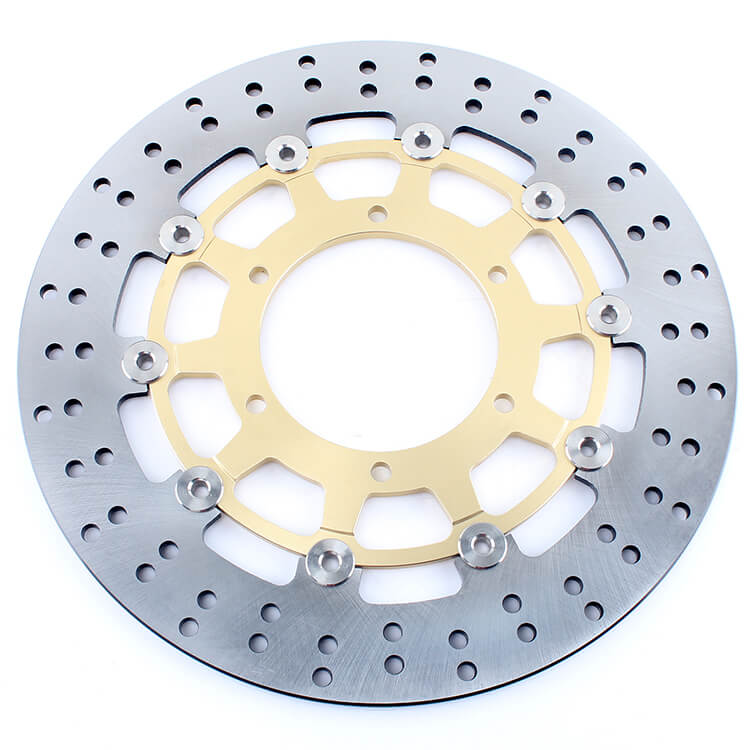

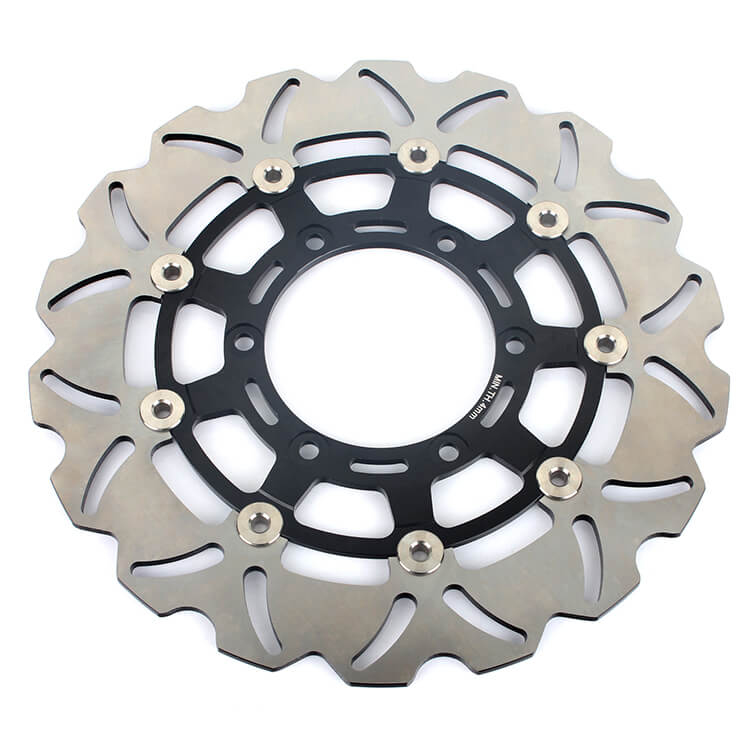

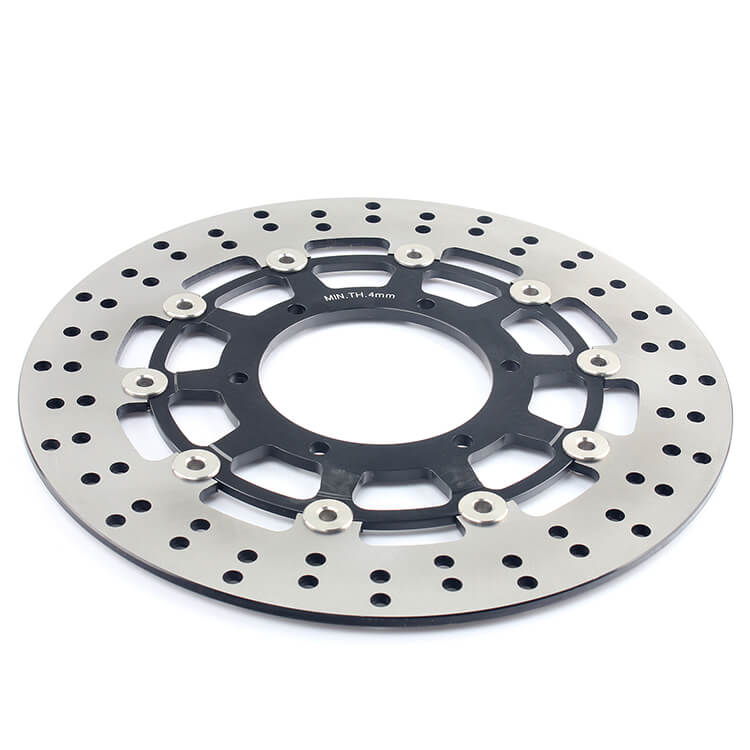

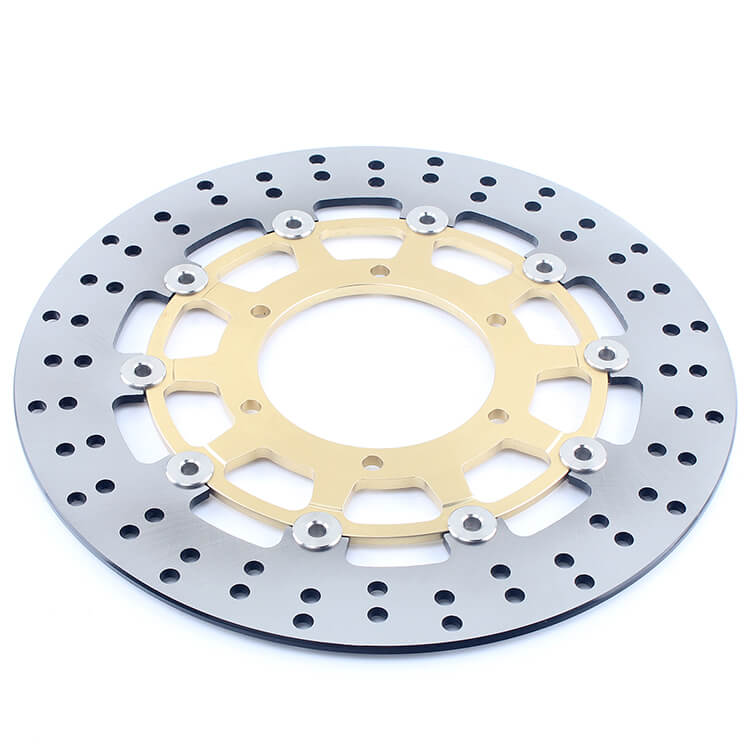

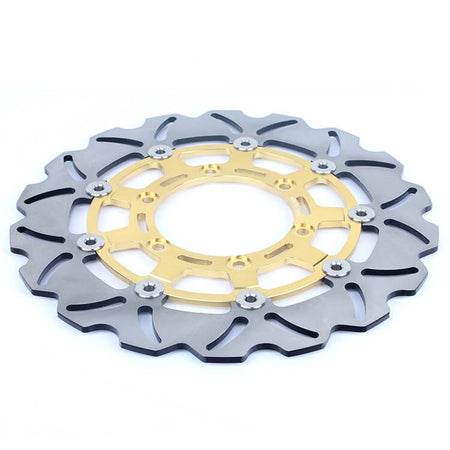

Front brake disc
- Heat treated 420 (2Cr13) stainless steel & CNC machined & anodized 6061-T6 aluminum offers maximum stopping power & good look.
- Heat treated to ensure warp resistance. Laser cut for perfection and accuracy.
- Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly.
- Surfaces are electro-statically coated to ensure a long term appearance.
- Replaces original disc with no modification required.
Outer diameter 310mm
Inner diameter 102mm
Thickness 5mm
Hole quantity?6
Hole size 8.4mm
Hole spacing 120mm

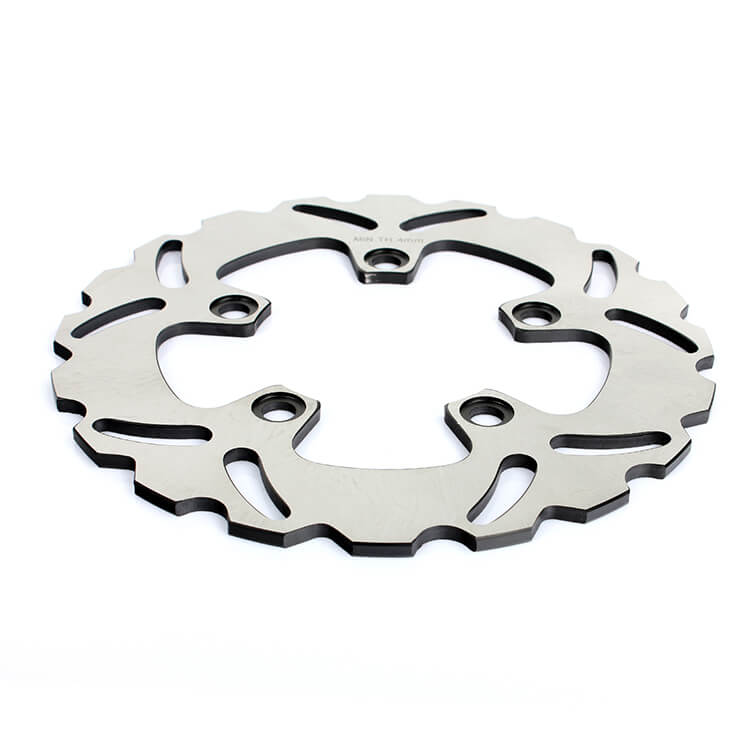

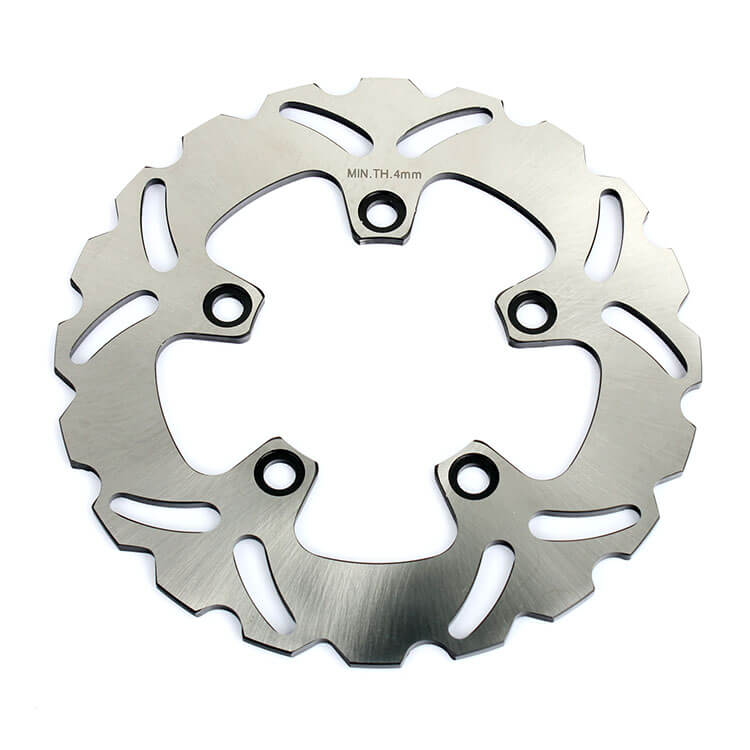

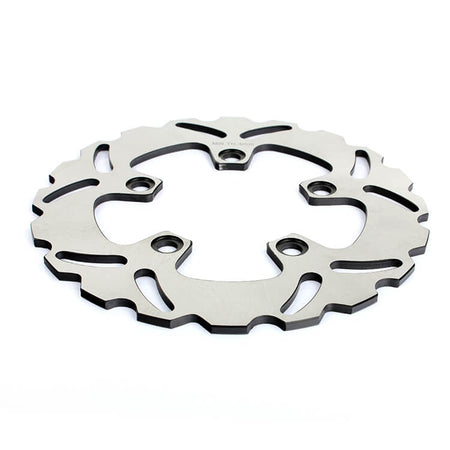

Rear brake disc
- 420 2Cr13 stainless steel ensures strong braking power.
- Weight saving wave shape?design, 20% lightweight than OEM.
- Slotted construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
Outer diameter 220mm
Inner diameter 89mm
Thickness 5mm
Hole quantity?5
Hole size 10.4mm
Hole spacing 110mm
Please replace your rotor when it reaches the?minimum thickness we marked on the surface to ensure your safety
