Front Rear Brake Disc for Suzuki GSX-R 600 1992-1993 / GSX-R 750 1988-1995 / GSX-R 1100 1989-2000

Fit for
Suzuki GSX-R 600 WN/WP 1992-1993
Suzuki GSX R 750CC model year 1988-1995
Suzuki GSXR 750 F Slingshot K,L,M GR77B E776 1989-1991
Suzuki GSXR 750 W WN,WP GR7BB F971 1991-1993
Suzuki GSXR 750 W WR,WS GR7BB F971 1994 - 1995
Suzuki GSX R K-N (GV73C/F024) 1100CC model year 1989-1992
Suzuki GSX R W WP,WR,WS,WT,WV (GU75C/G253) 1100CC model year 1993-2000

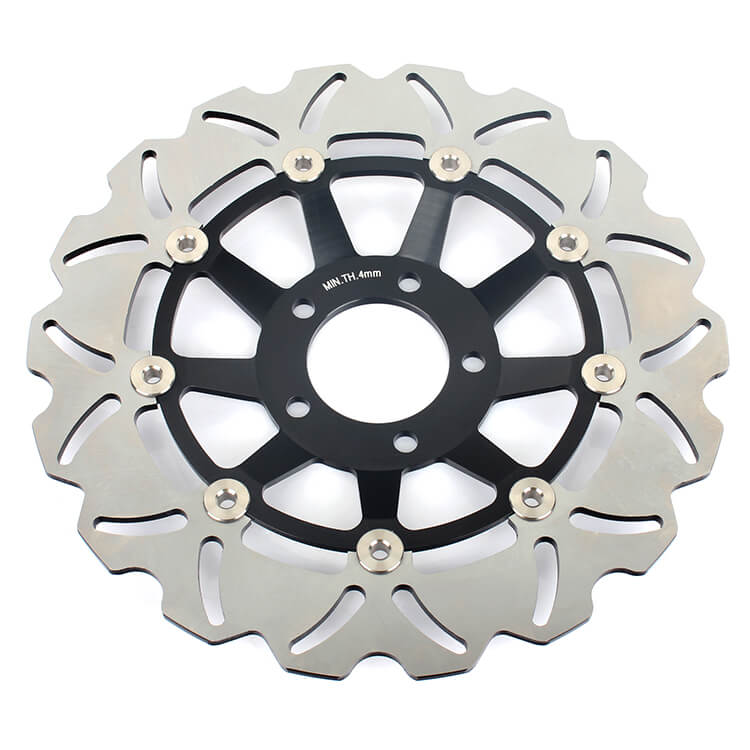

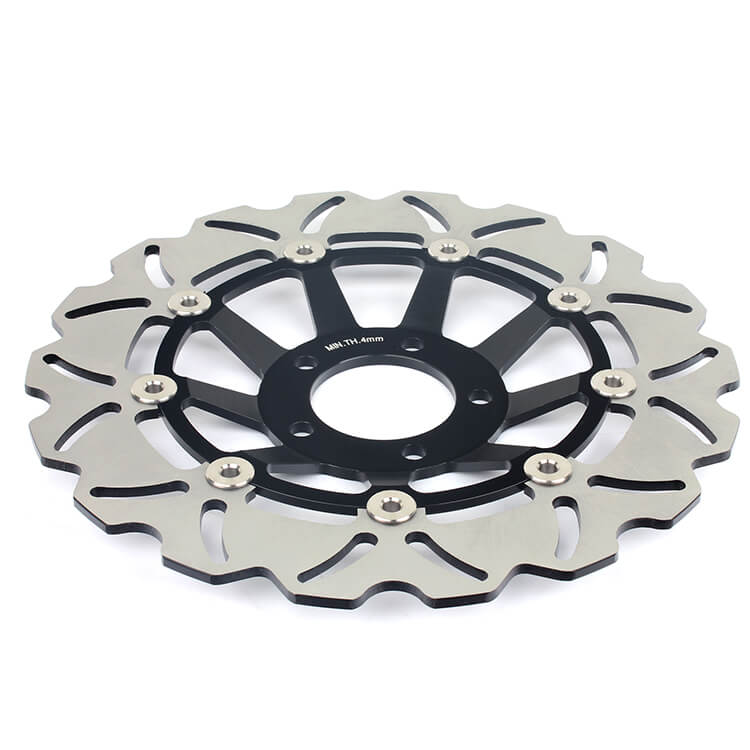

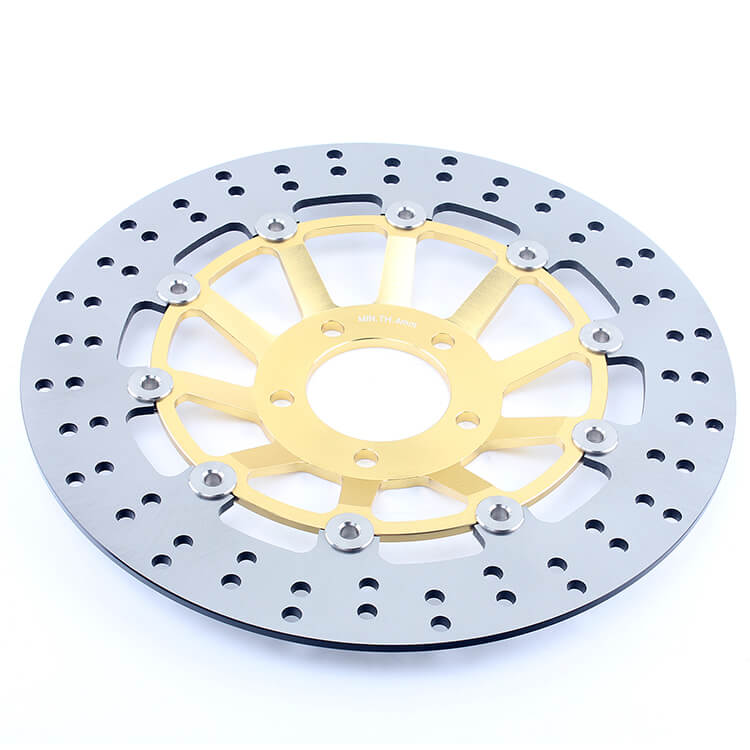

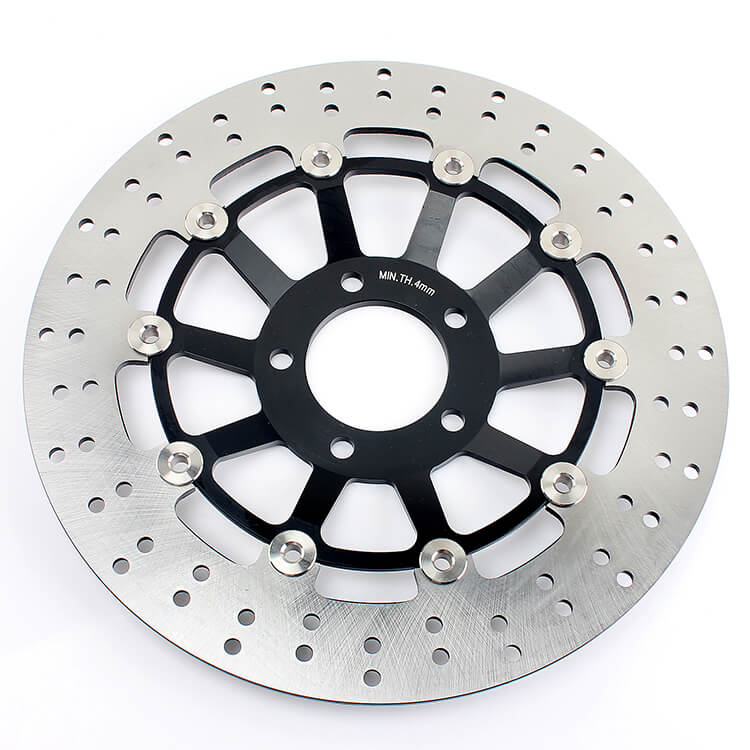

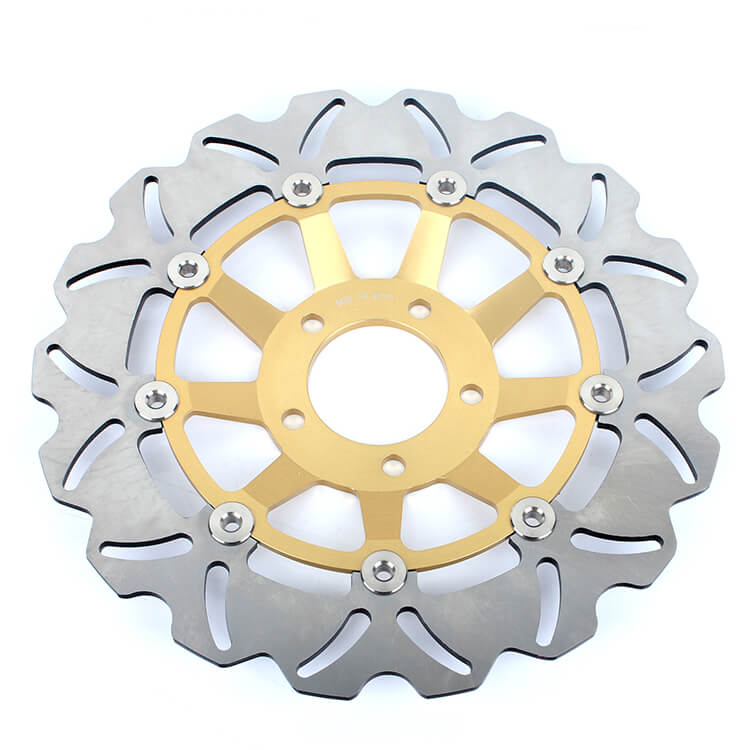

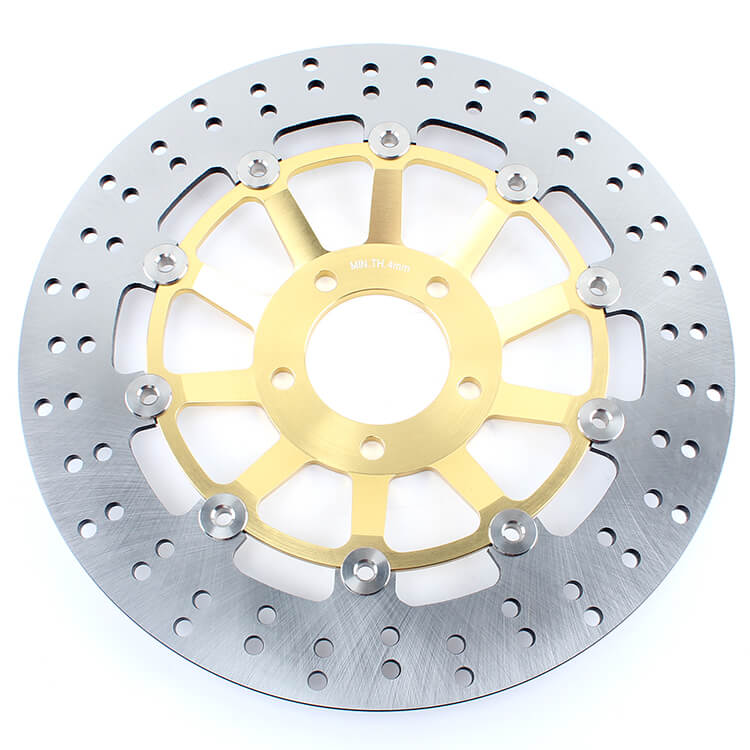

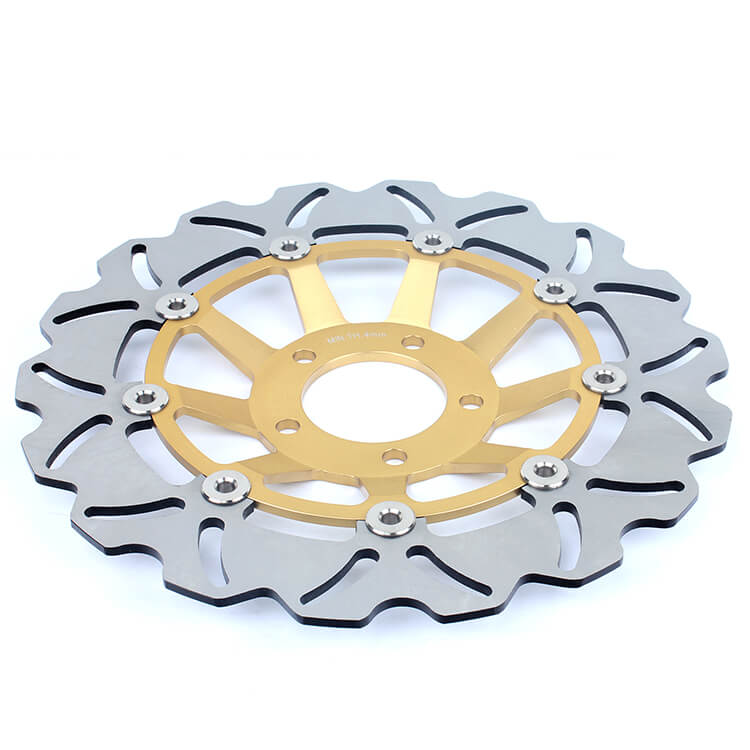

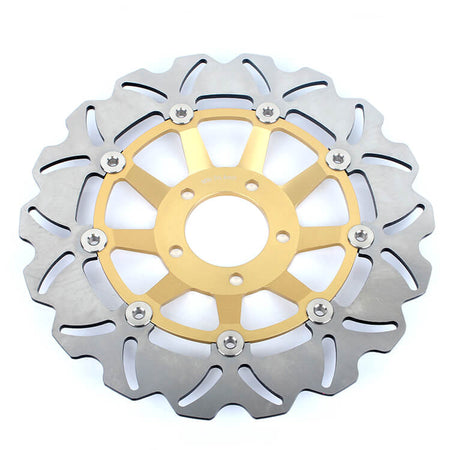

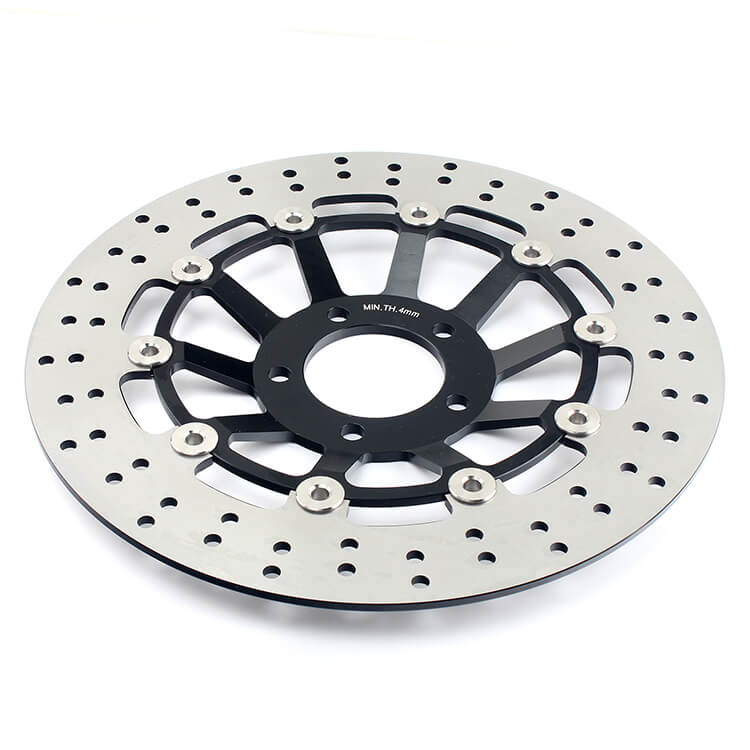

Front brake disc

• 420 (2Cr13) stainless steel & anodized 6061-T6 aluminum. Aluminum center and sturdy riveted construction offers maximum stopping power & good look.
• CNC milled and anodized in black or gold color.
• Heat treated to ensure warp resistance.
• Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly.
• Surfaces are electro-statically coated to ensure a long term appearance.
• Replaces original disc with no modification required.

Specifications
Outer diameter 310mm
Inner diameter 64mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 86mm
Offset height: 22.5mm

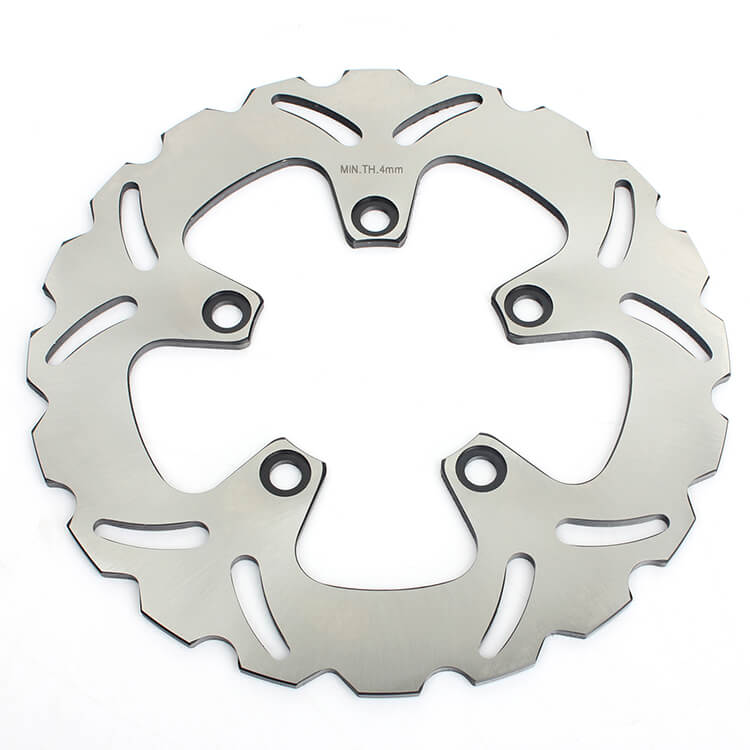

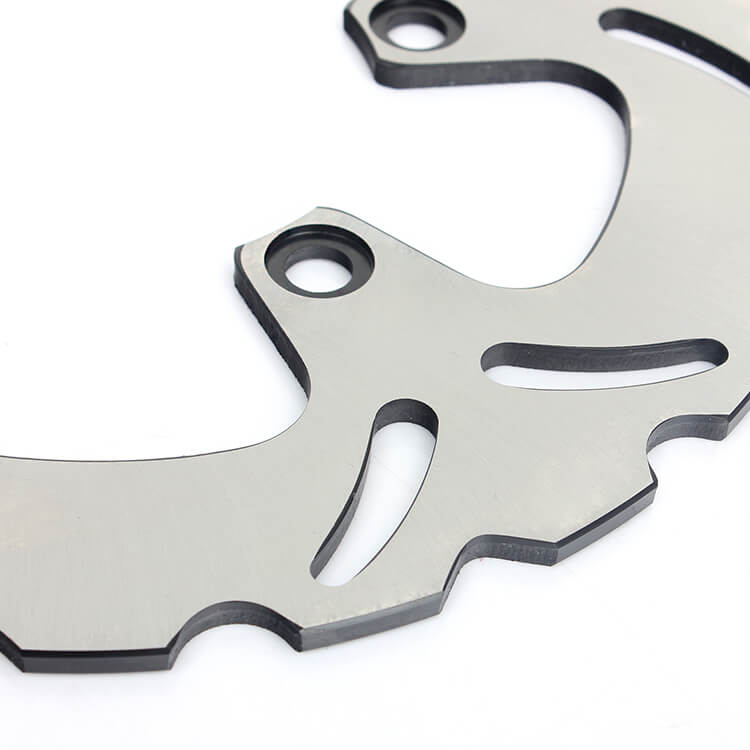

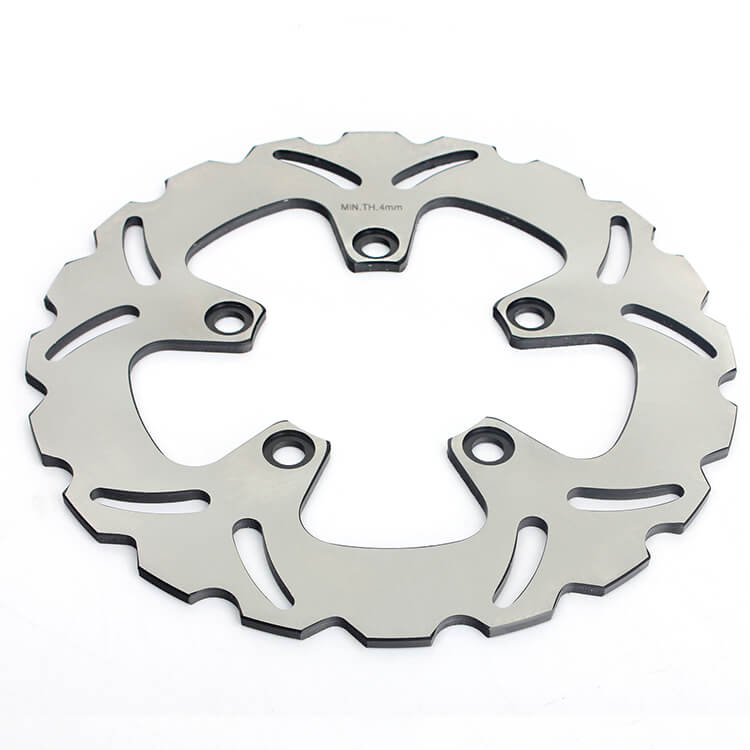

• 420 2Cr13 stainless steel ensures strong braking power.
• Wave shape design, 20% light weight than OEM.
• Slotted construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.

Specifications
Outer diameter 240mm
Inner diameter 89mm
Thickness 5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 110mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
