Fit for
| SUZUKI | GSR 400 2006-2008 |
| SUZUKI | GSR 600 K6-K9 WVB9 2006-2010 |
| SUZUKI | GSR ABS 600 AK7-AK9, AL0 WVB9 2007-2010 |
| SUZUKI | GSF Bandit 650 2007-2012 |
| SUZUKI | GSF Bandit 650 ABS 2011-2014 |
| SUZUKI | GSF Bandit 650 ABS AK7-AK9 WVCJ 650 2007-2009 |
| SUZUKI | GSF Bandit 650 S SK7-SK9 2007-2012 |
| SUZUKI | GSF Bandit 650 S ABS SAK7-SAK9,SAL0 2007-2011 |
| SUZUKI | GSX F 650 2008-2013 |
| SUZUKI | GSX FA ABS 650 2008-2014 |
| SUZUKI | GSR 750 L1 2011- |
| SUZUKI | GSR ABS 750 2011-2016 |
| SUZUKI | GSF Bandit 1200 A-K6 ABS 2006 |
| SUZUKI | GSF Bandit 1200 K6 06 |
| SUZUKI | GSF Bandit 1200 S SK6 WVCB 2006 |
| SUZUKI | GSF Bandit 1200 ABS AK6 WVCB 2006 |
| SUZUKI | GSF Bandit 1200 S ABS SAK6 WVCB 2005-2006 |
| SUZUKI | GSF Bandit 1250 2007-2011 |
| SUZUKI | GSF Bandit S 1250 2007-2011 |
| SUZUKI | GSX FA 1250 2010-UP |
| SUZUKI | GSX FA 1250 ABS 2010-UP |
| SUZUKI | GSX 1250 ST Traveller FAL0ST,FAL1ST WVCH 2009-2014 |
| SUZUKI | GSX 650F F WVCJ e4*1342 2008-2013 |
| SUZUKI | GSX 650F FA ABS WVCJ e4*1342 2008-up |

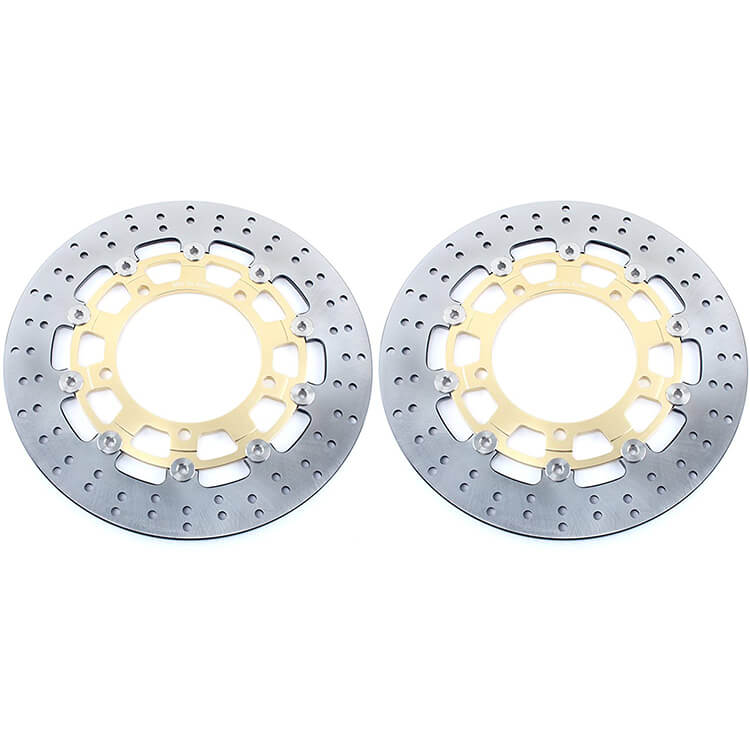

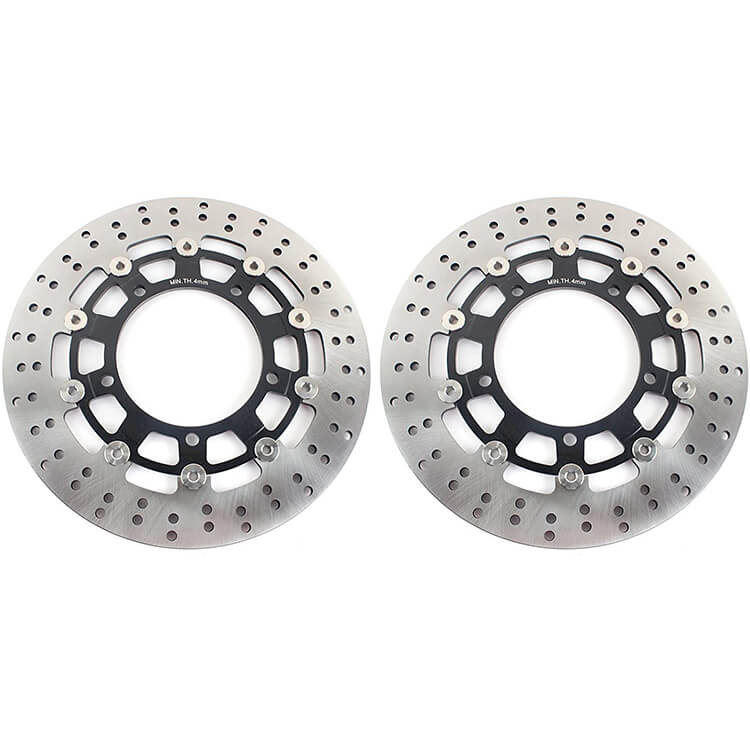

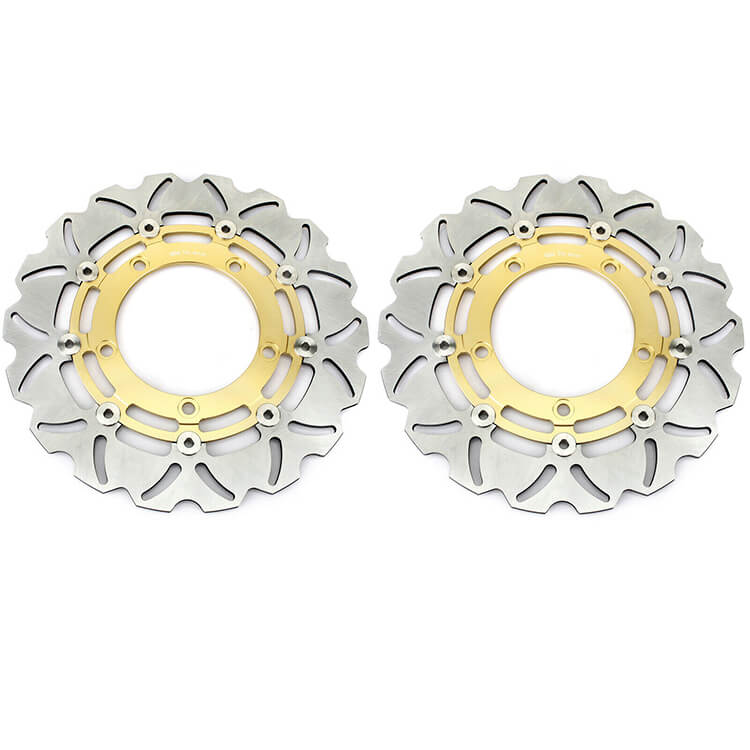

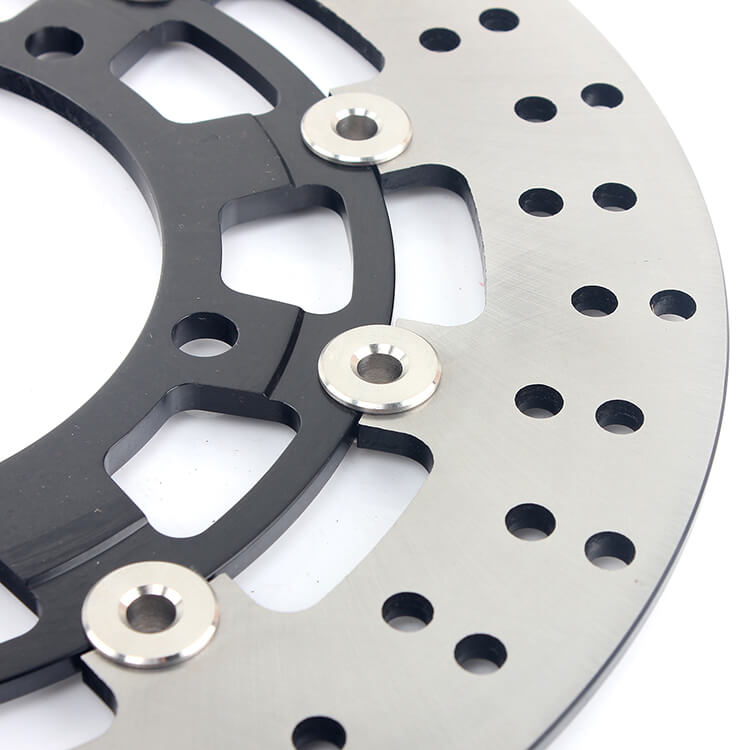

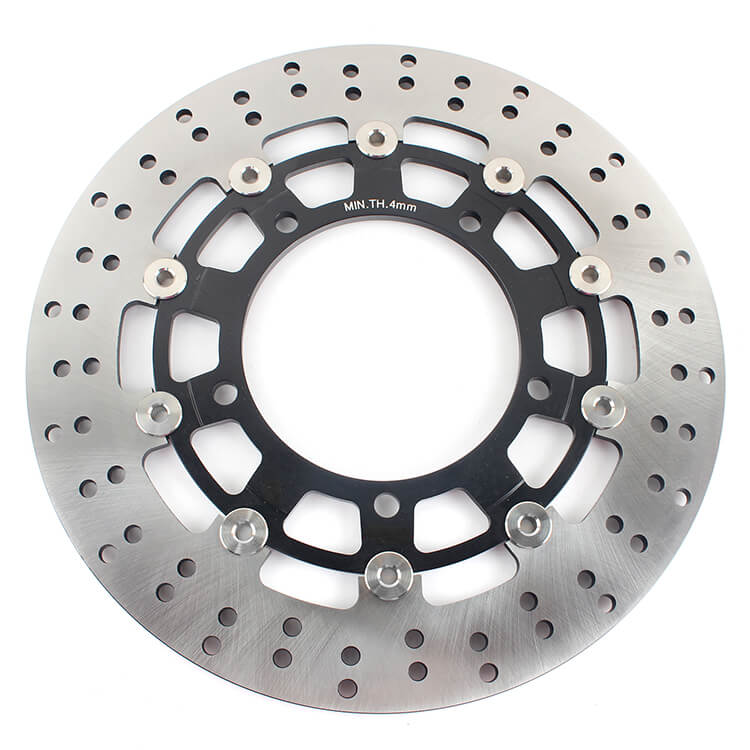

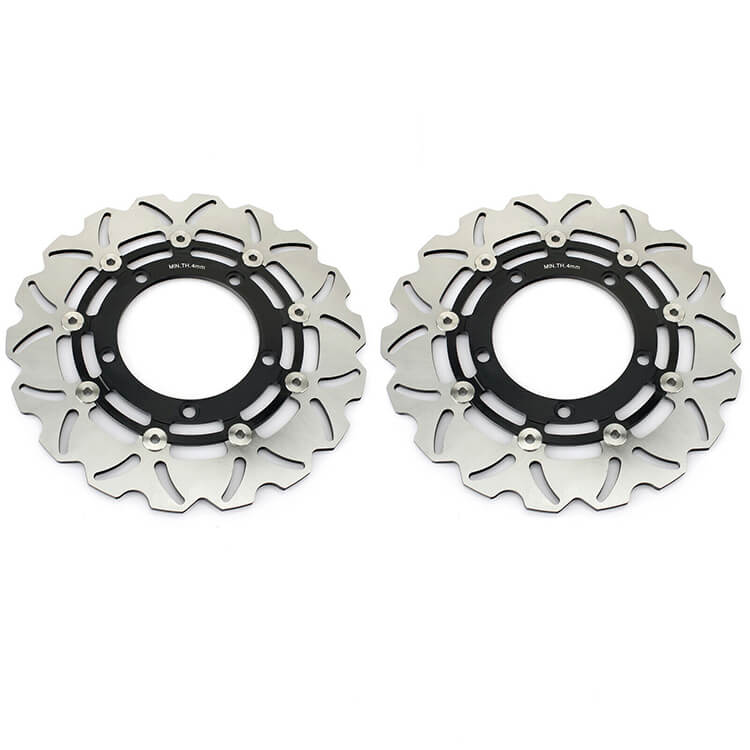

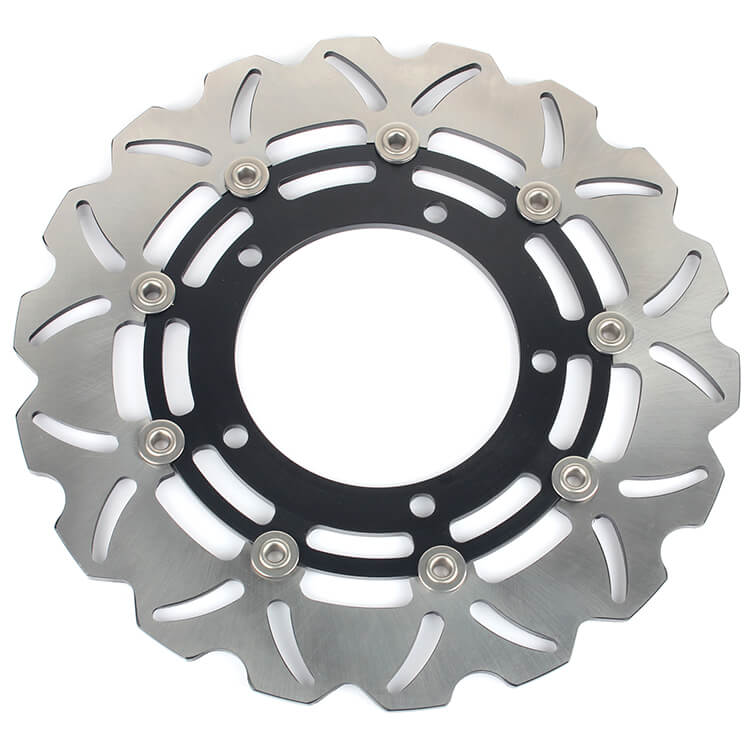

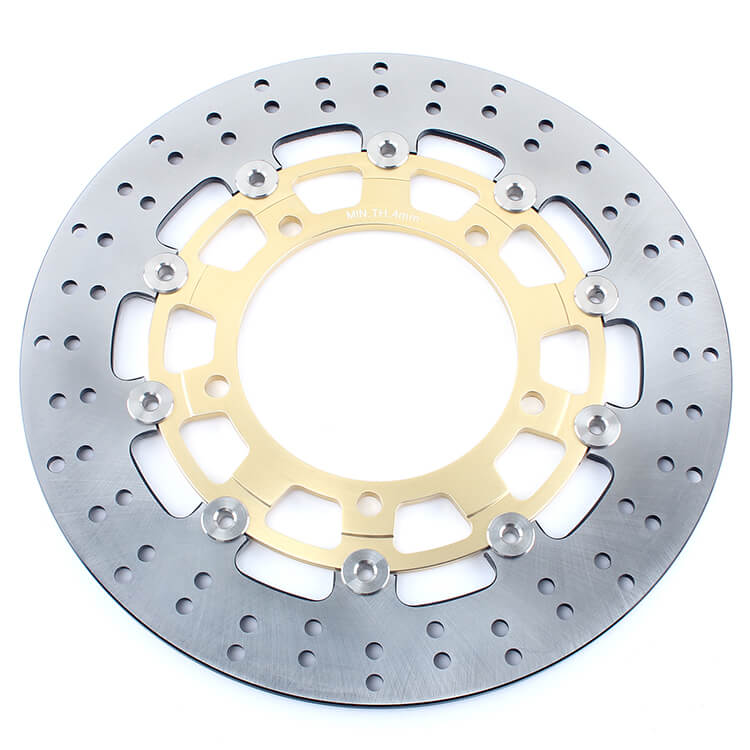

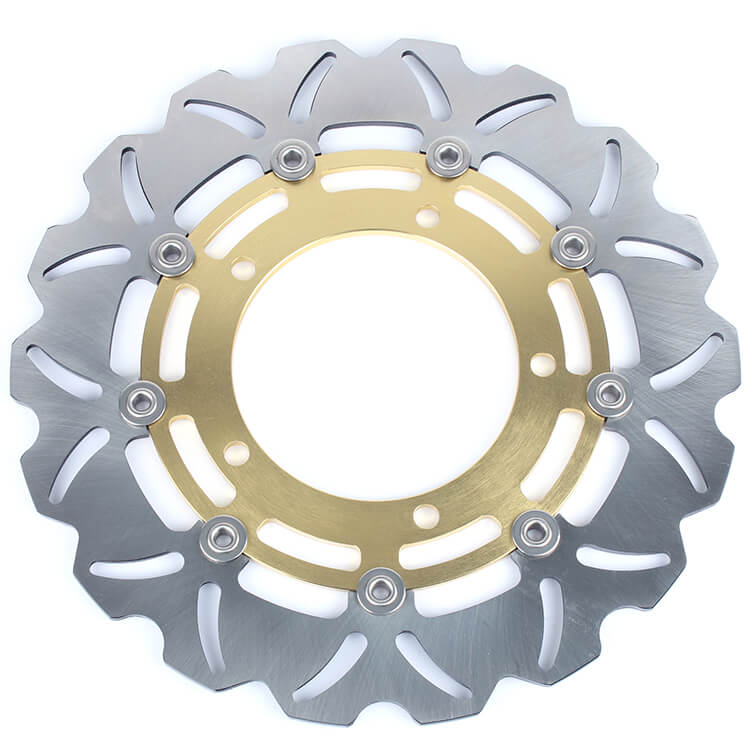

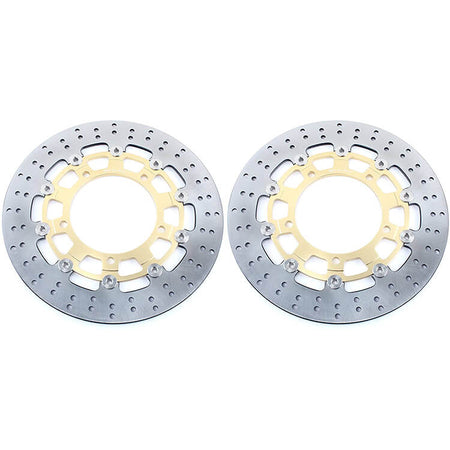

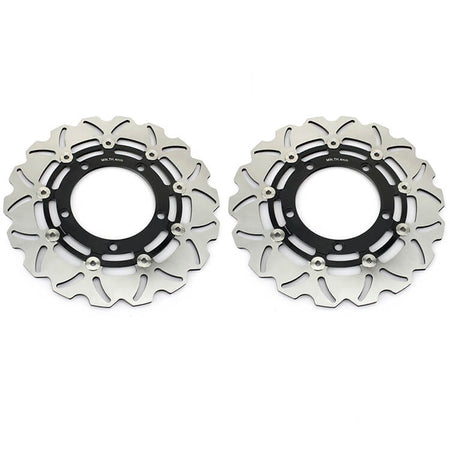

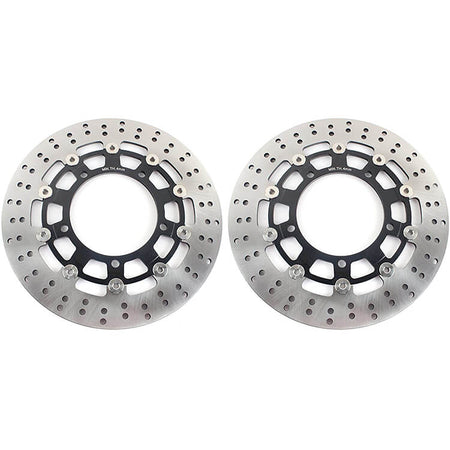

Front brake disc
- Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly. A great combination of improved performance and appeal.
- Stainless steel 420 (2Cr13) and aluminum alloy 6061, CNC milled and anodized in black or gold color.
- Laser cut, heat treated and parallel double disc ground to assure perfect flatness. Laser cut for perfection and accuracy.
- Surfaces are electro-statically coated to ensure a long term appearance.
- No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.
Specifications
Outer diameter: 310mm
Inner diameter: 121.5mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing:142mm

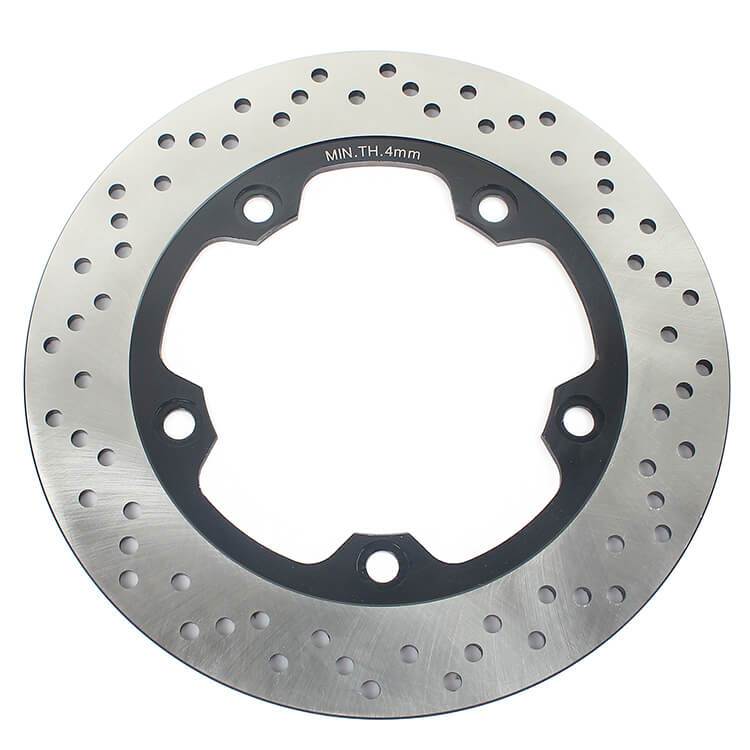

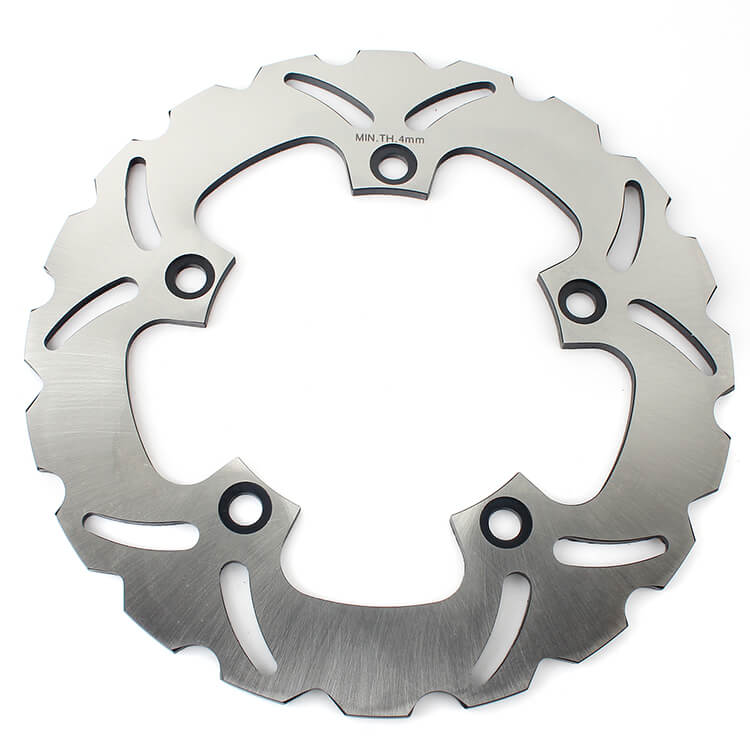

Rear brake disc
- The construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
- 2 designs available. Weight saving design.
- 420 2Cr13 stainless steel ensures strong braking power, Heat treated ensures warp resistance.
Specifications
Outer diameter: 240mm
Inner diameter: 120.5mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing:141mm
The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
