Front Rear Brake Disc for Suzuki GSX 1400 2001-2008

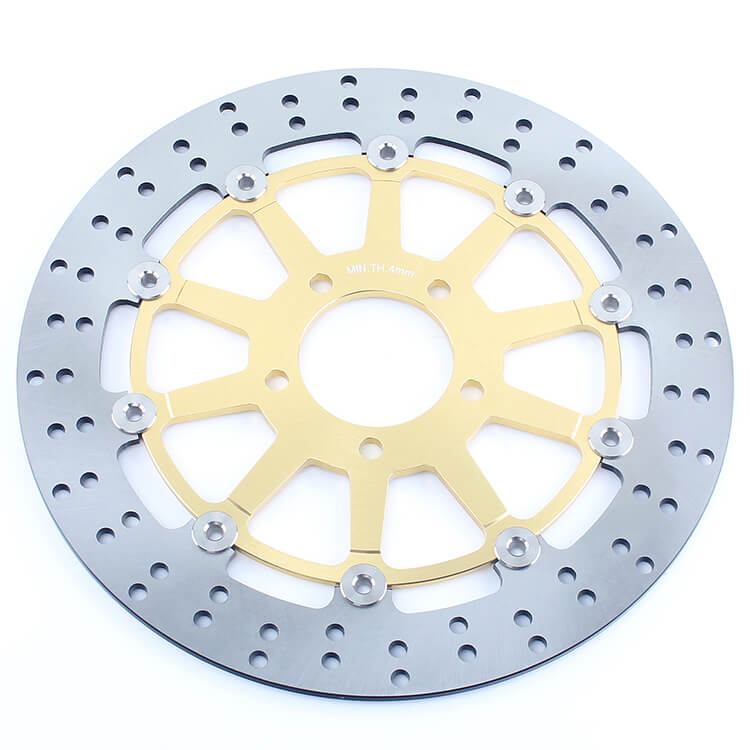

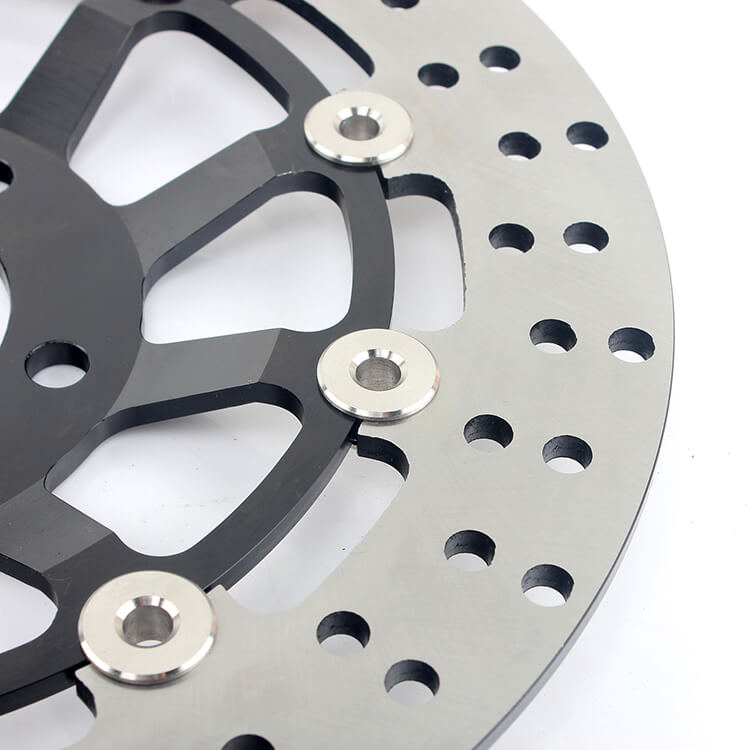

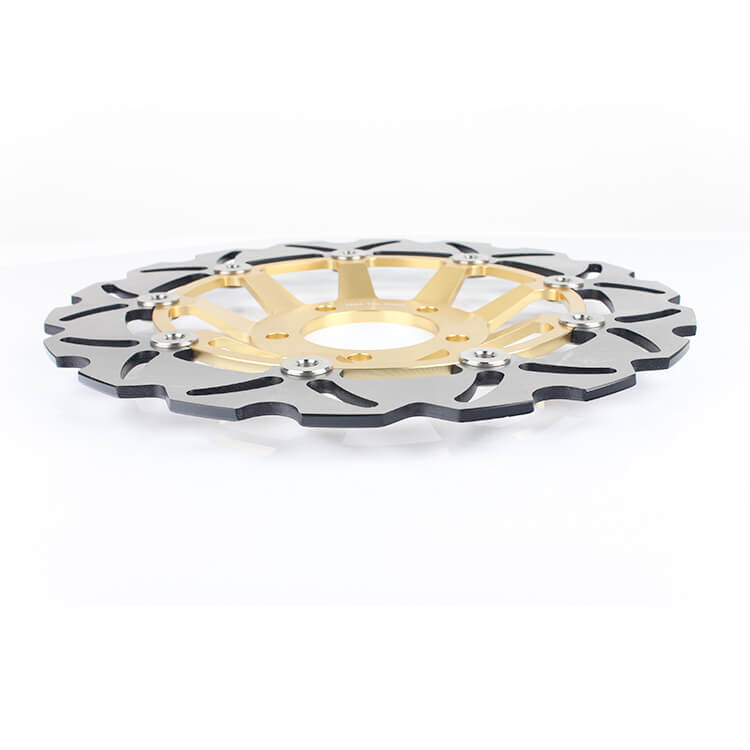

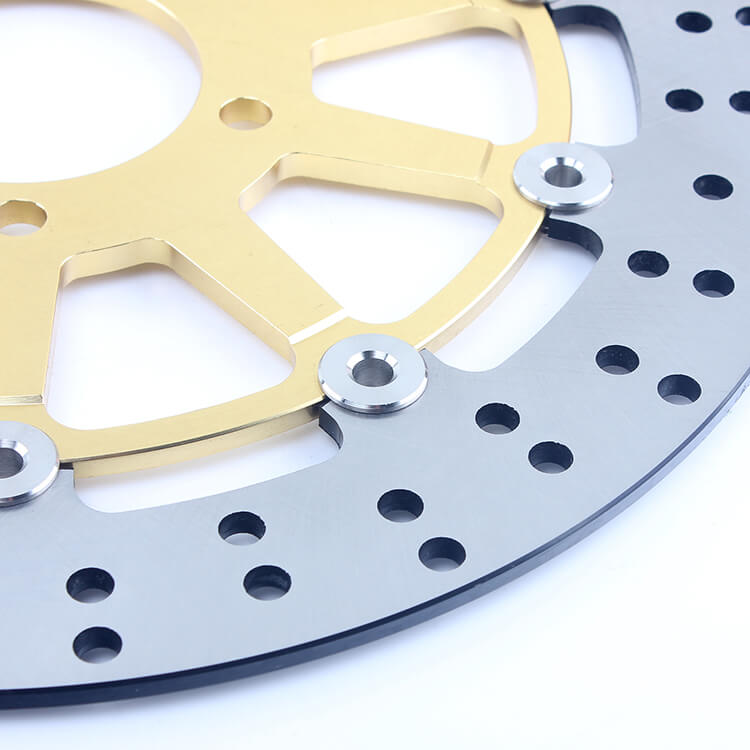

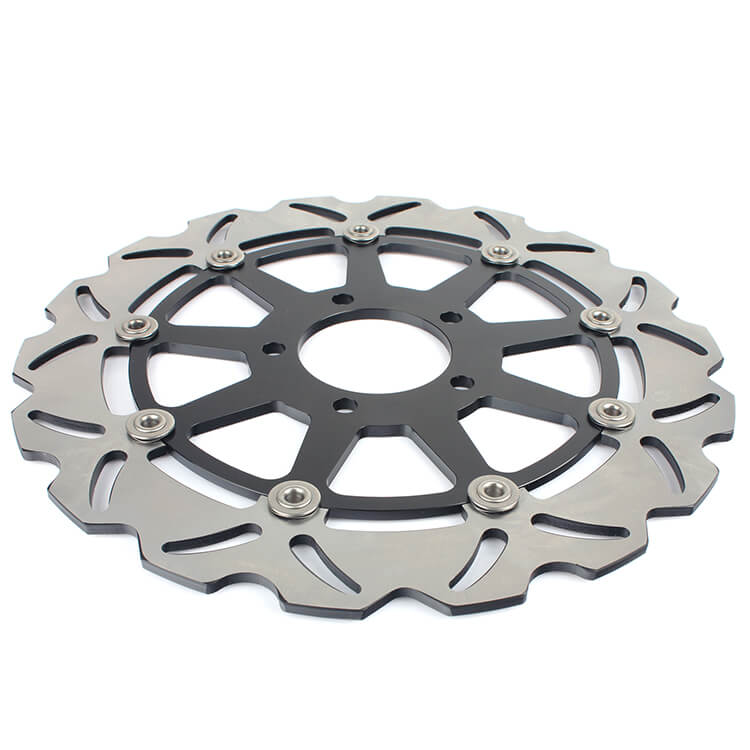

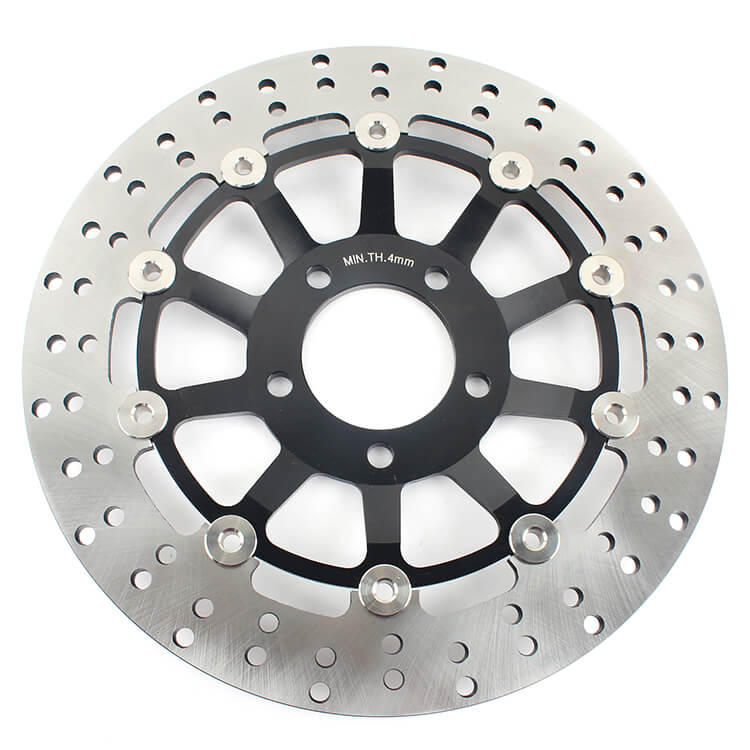

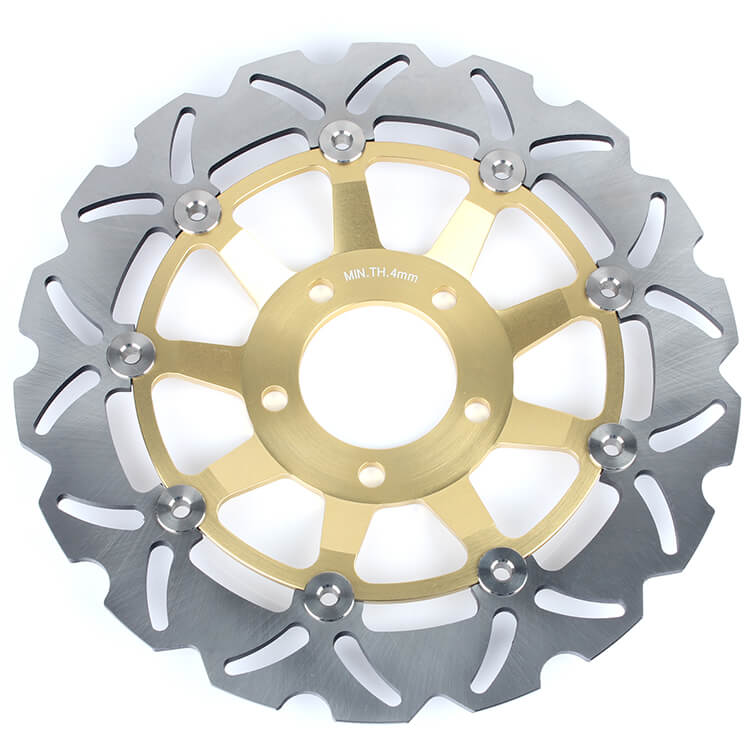

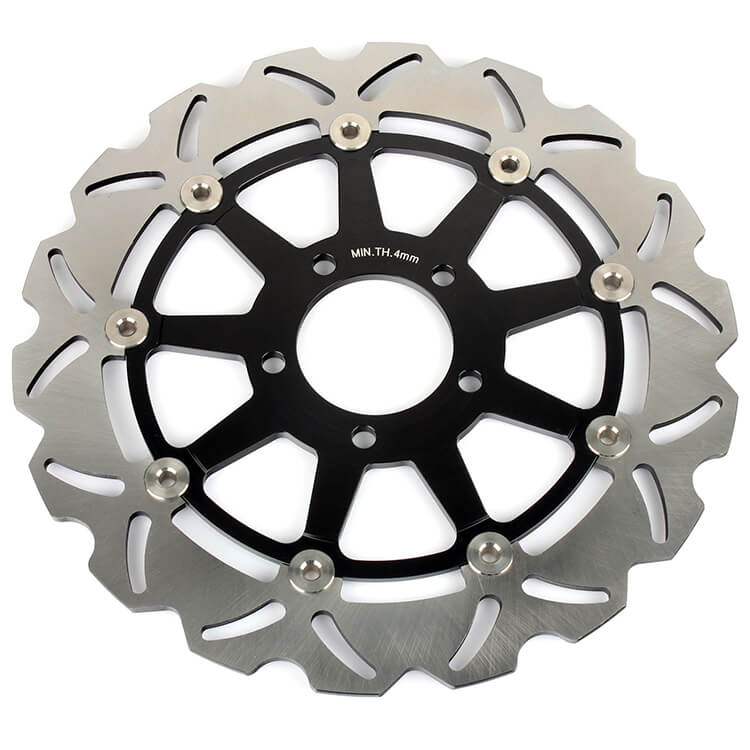

Front brake disc

• 420 (2Cr13) stainless steel outside rotor, wear-resistant with good heat dissipation, 6061 aluminum inside rotor, light weight with bright oxidation color. CNC milled and anodized in black or gold color.
• Heat treated to prevent warping.
• The vented slots ensure water and dirt are dispersed quickly when braking with good heat dissipation.
• Drilled rotor speeds up air circulation for superior heat dissipation and better stopping power.
• Surfaces are electro-statically coated to ensure a long term appearance.
• Directly replace your old brake rotors.

Outer diameter: 320mm
Inner diameter: 69mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing: 91mm

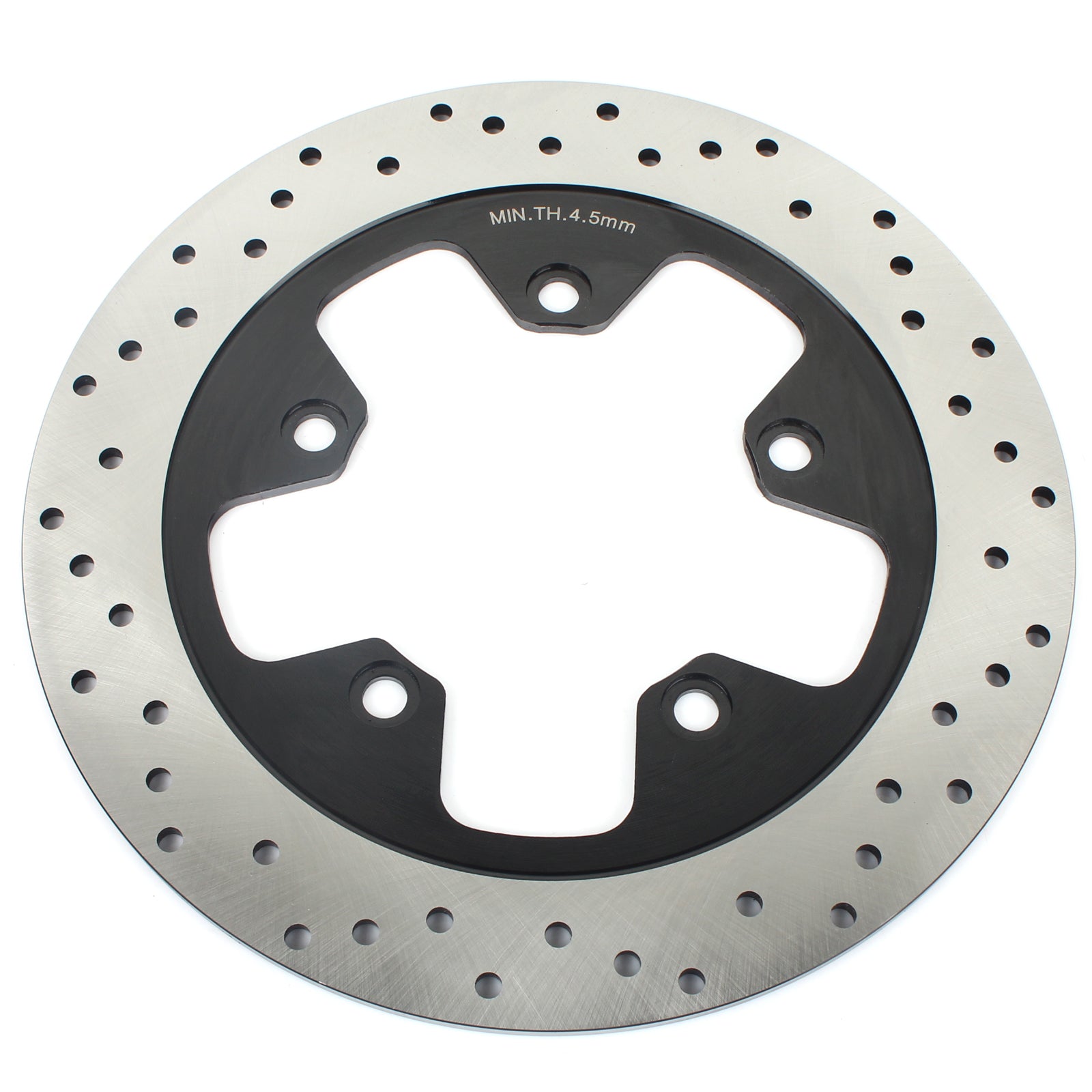

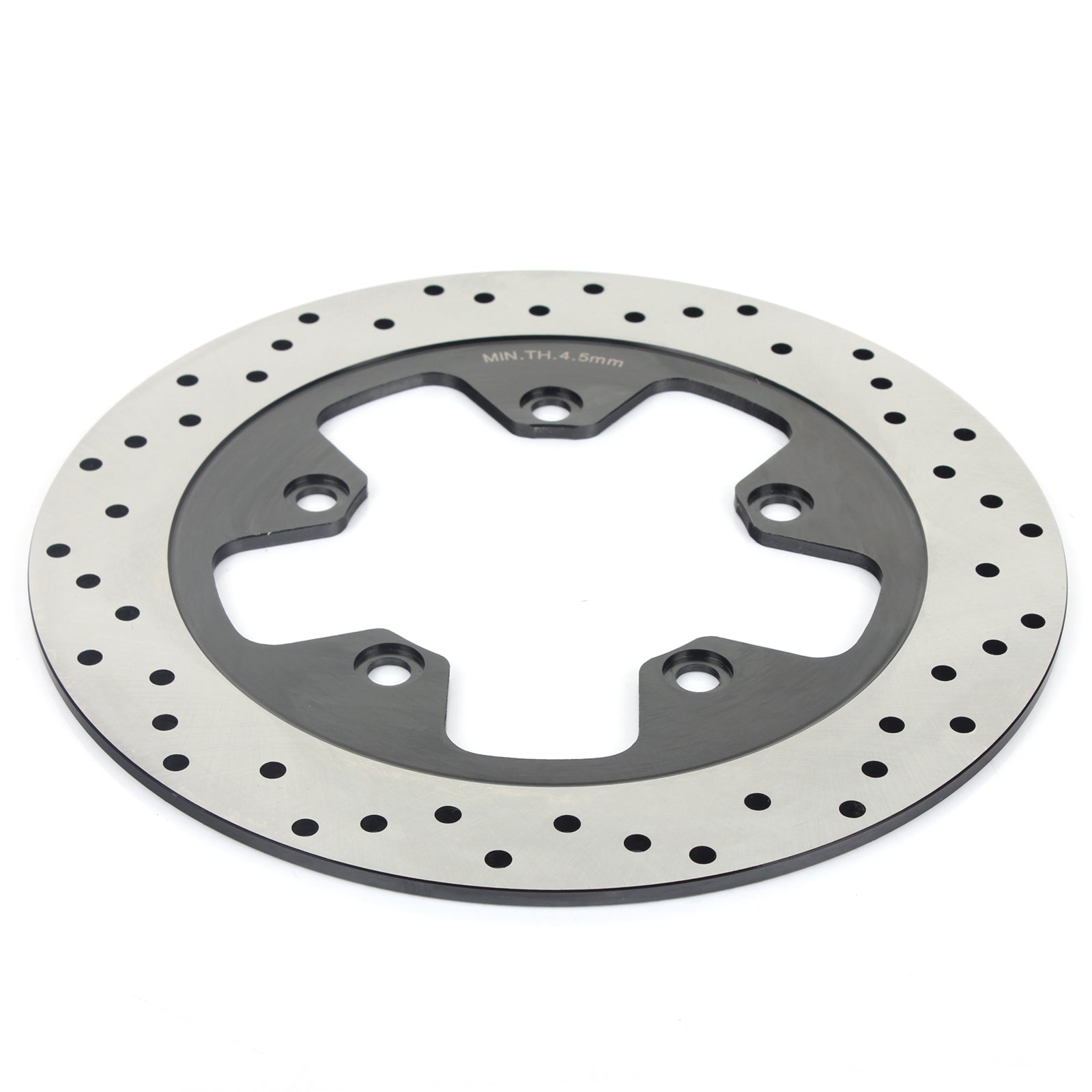

Rear Brake disc

• 420 2Cr13 stainless steel ensures strong braking power.
• Heat treated ensures warp resistance.
• Excellent corrosion resistance properties and high temperature (Heat-cycle) durability.
• Drilled design for weight savings, better heat dissipation and cleaning effect, it prevents mud and dirt from interfering with braking performance.

Outer diameter: 260mm
Inner diameter: 105mm
Thickness: 5.5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 126mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety.
