Front Rear Brake Disc for Suzuki DRZ 400 SM 2005-2017

Fit for Suzuki DRZ 400SM SuperMotard SMK5-SMK9,SML0 2005-2017

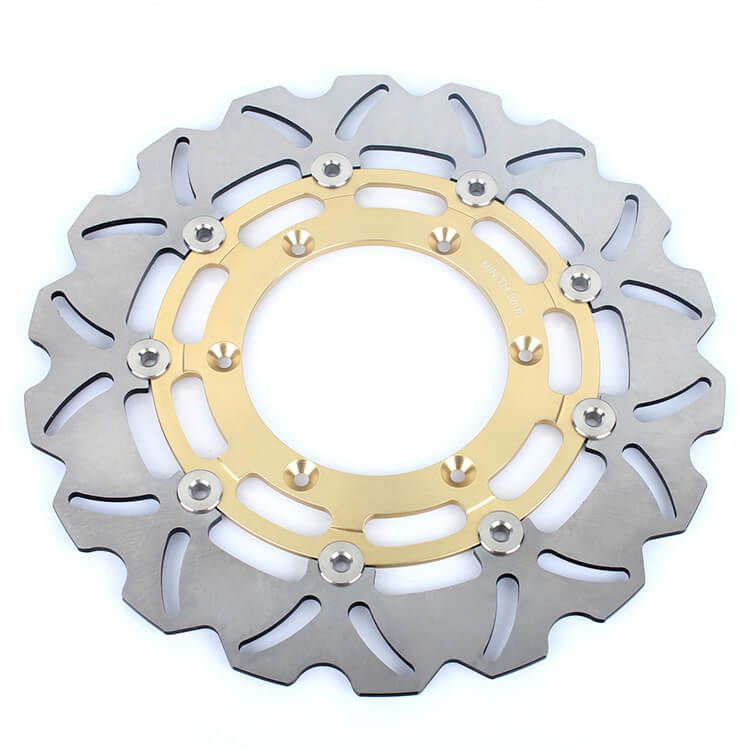

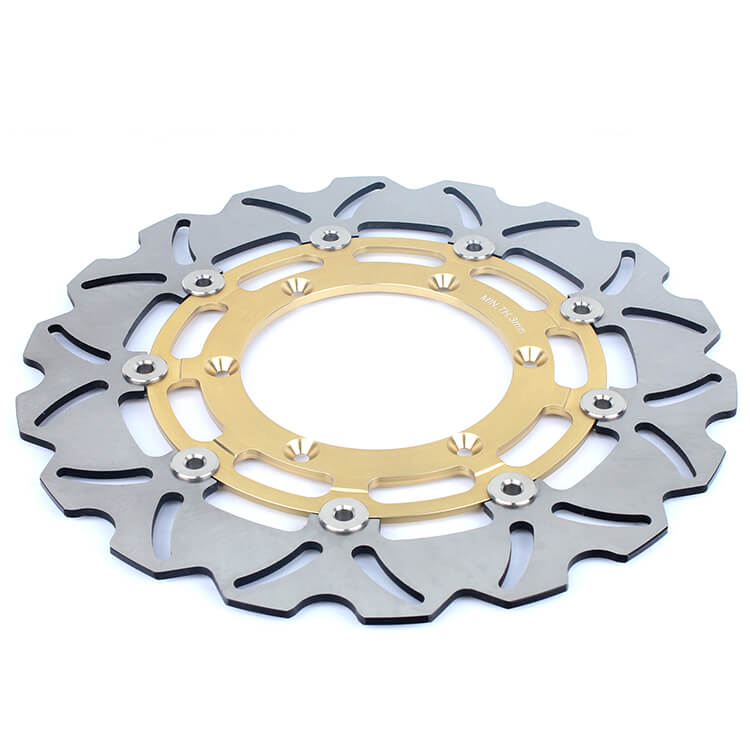

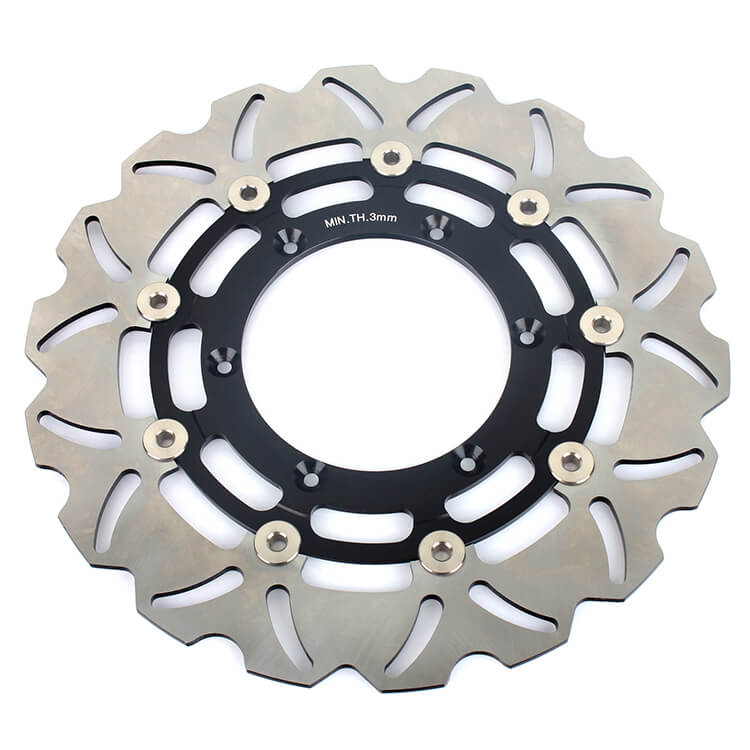

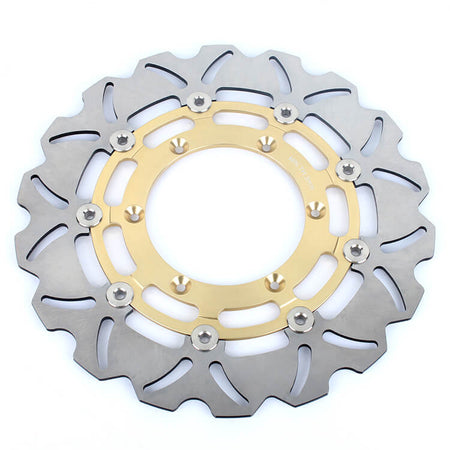

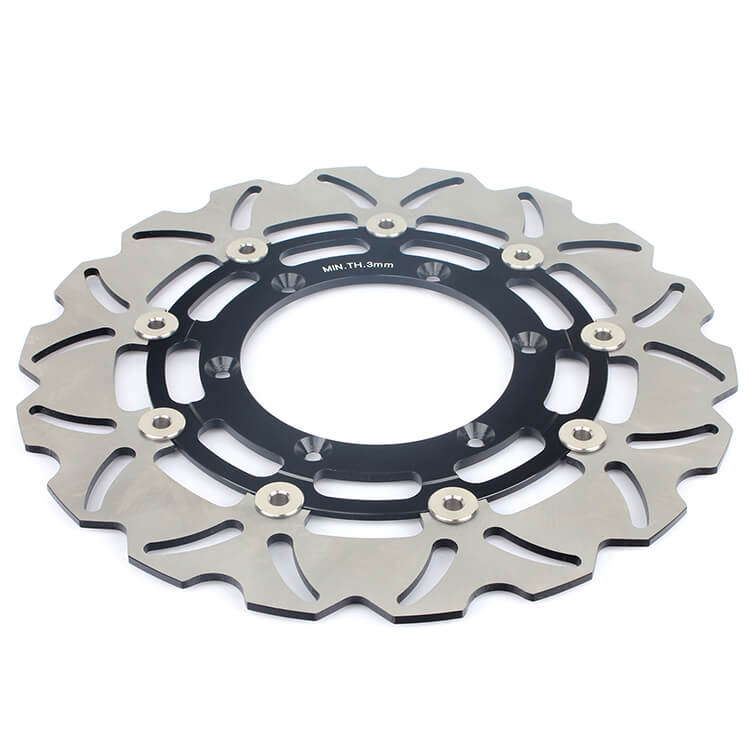

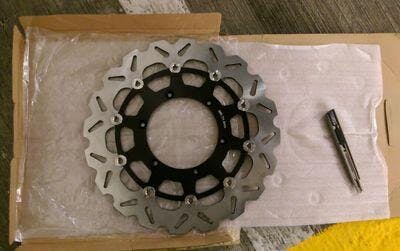

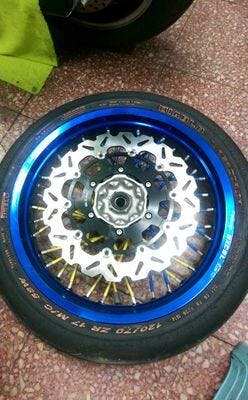

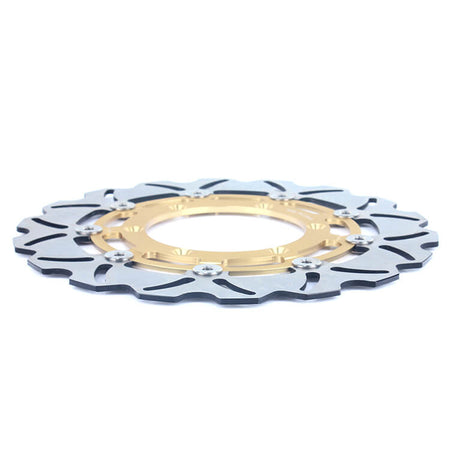

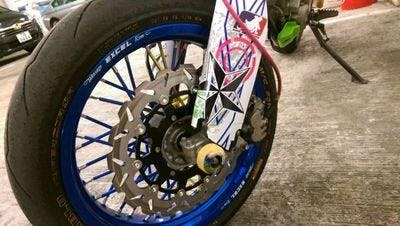

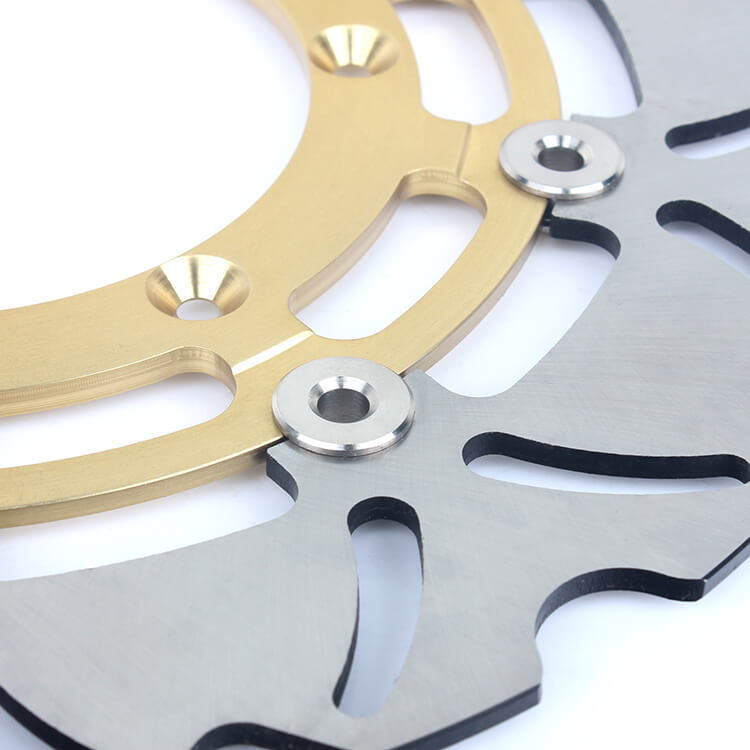

Front brake disc

• Ultra lightweight but strong 420 (2Cr13) stainless steel & 6061-T6 aluminum disc providing quality, superb looks and performance.
• Laser cut, heat treated and parallel double disc ground to assure perfect flatness. Laser cut for perfection and accuracy.
• The vented slots ensure water and dirt are dispersed quickly when braking with good heat dissipation. A great combination of improved performance and appeal.
• Surfaces are electro-statically coated to ensure a long term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 310mm
Inner diameter: 118mm
Thickness: 4mm
Hole quantity: 6
Hole size: 6.2mm
Hole spacing: 134mm

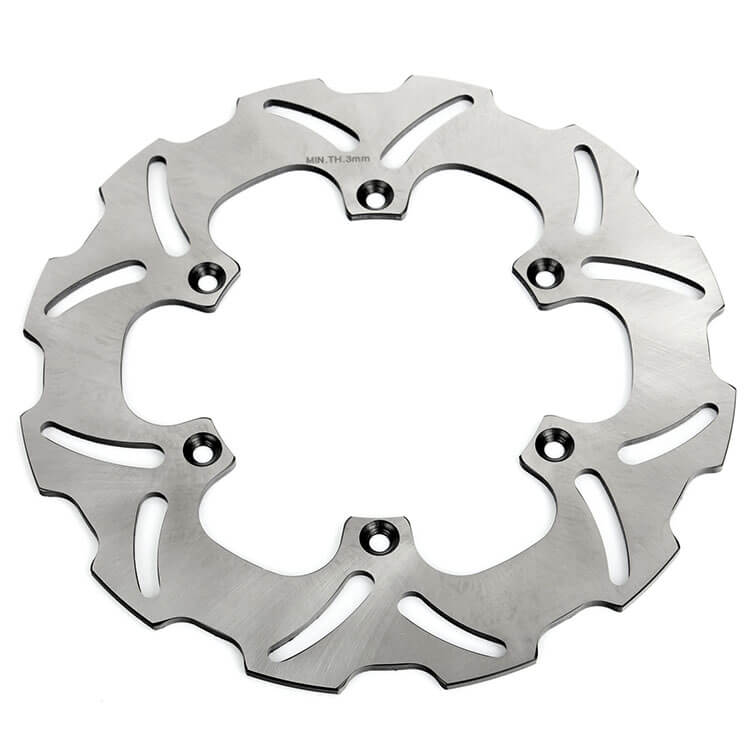

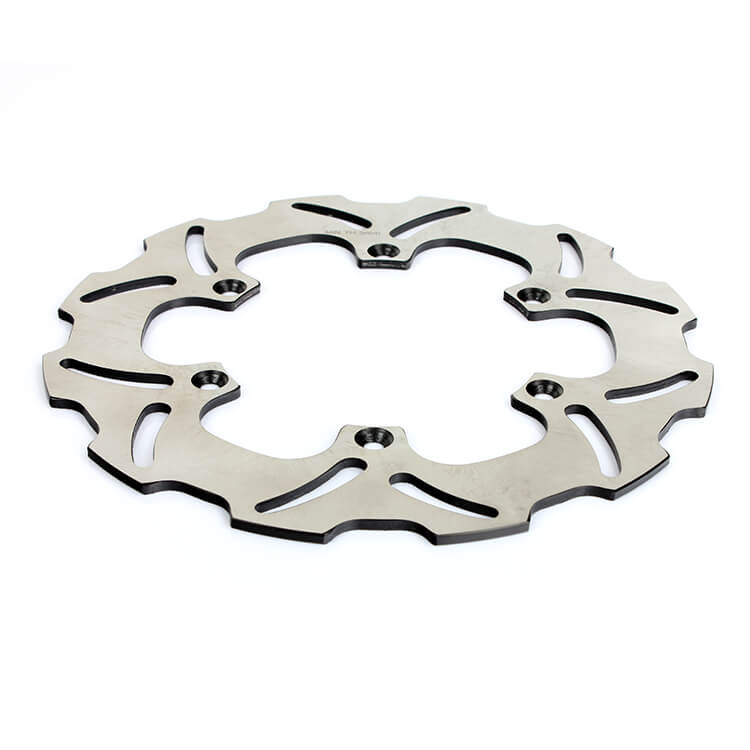

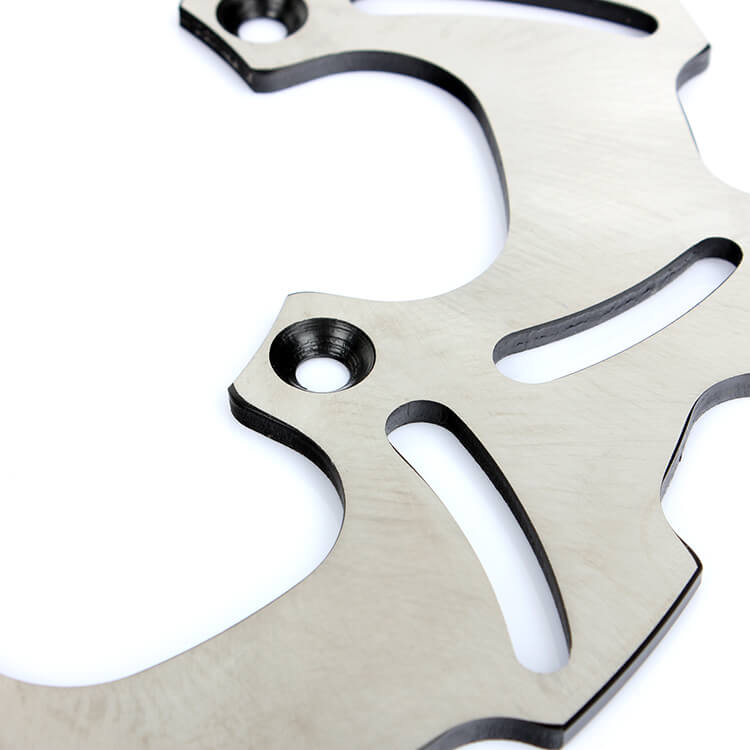

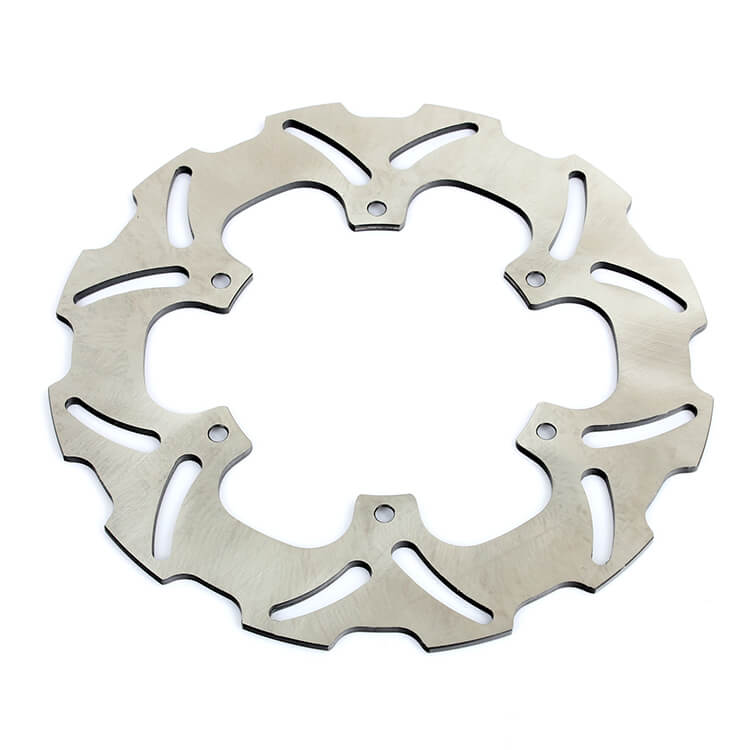

Rear brake disc

• Anti-corrosion 420(2Cr13) stainless steel with heat treated for strong & reliable braking power & warp resistance.
• Wave shape brake disc rotor 30% light wieght than OEM.
• Perfectly true running, less vibration and improved adaptation of the pads.

Outer diameter: 240mm
Inner diameter: 118mm
Thickness: 4mm
Hole quantity: 6
Hole size: 6.4mm
Hole spacing: 134mm

Please replace your rotor when it reaches the minimum thickness we marked on the surface to ensure your safety
