Front Rear Brake Disc for Suzuki DL 650 V-Strom 2007-2012

Fit for

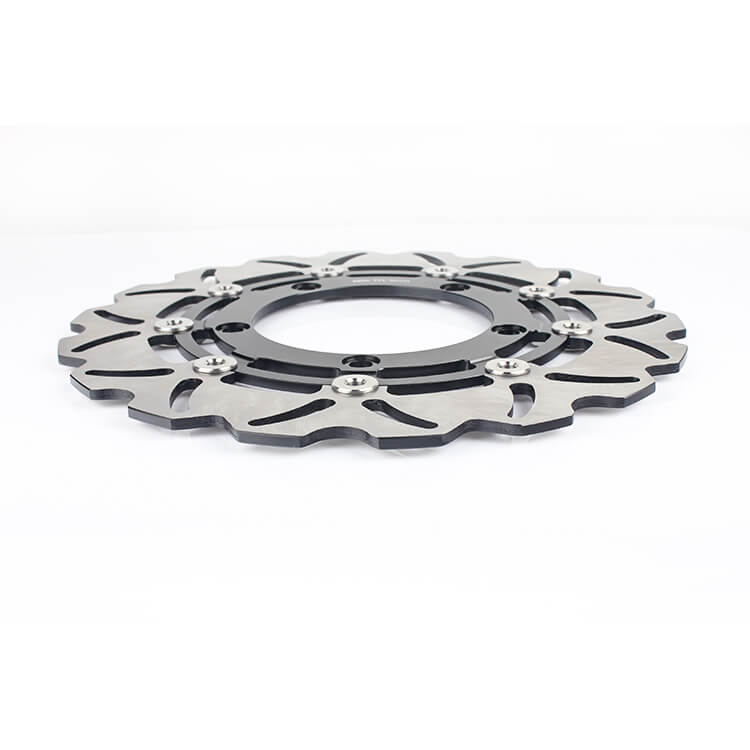

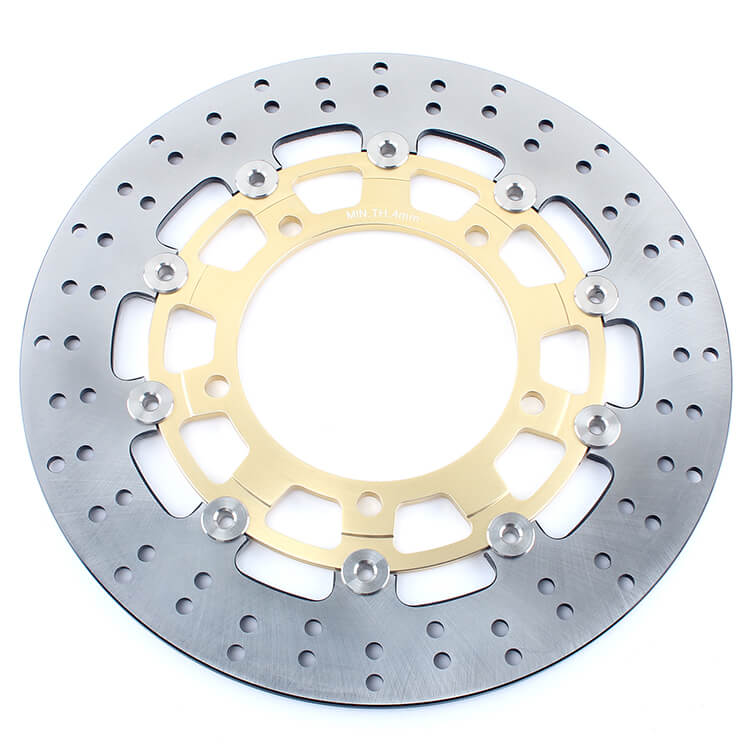

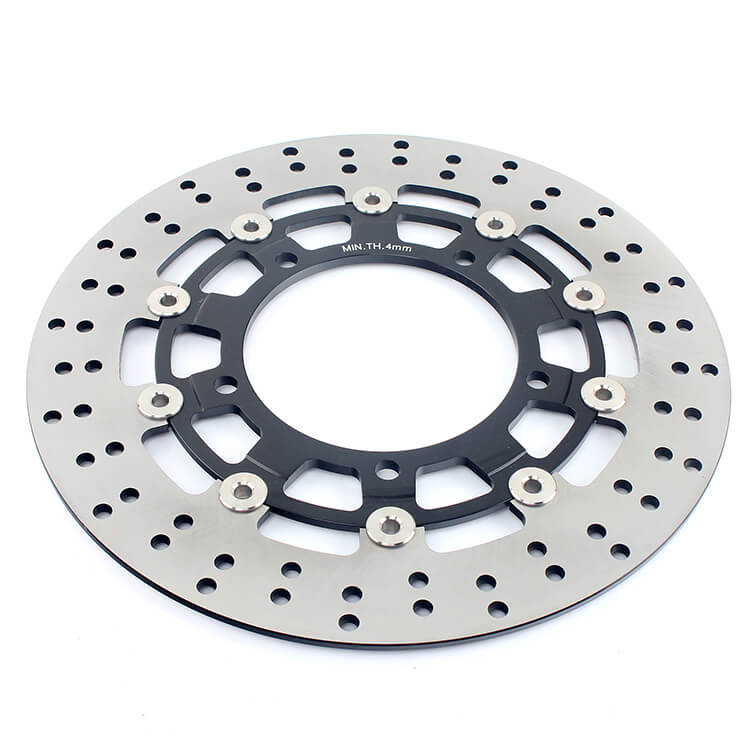

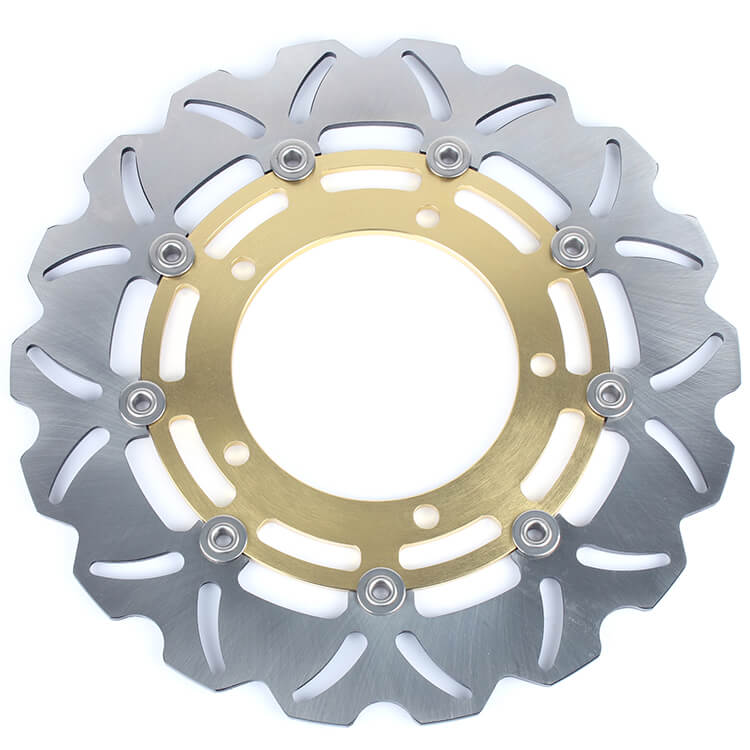

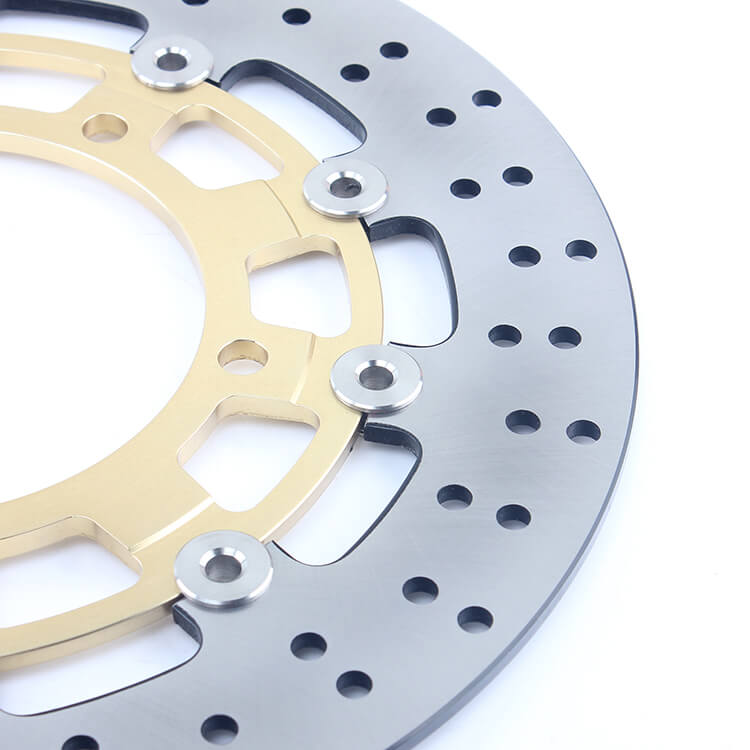

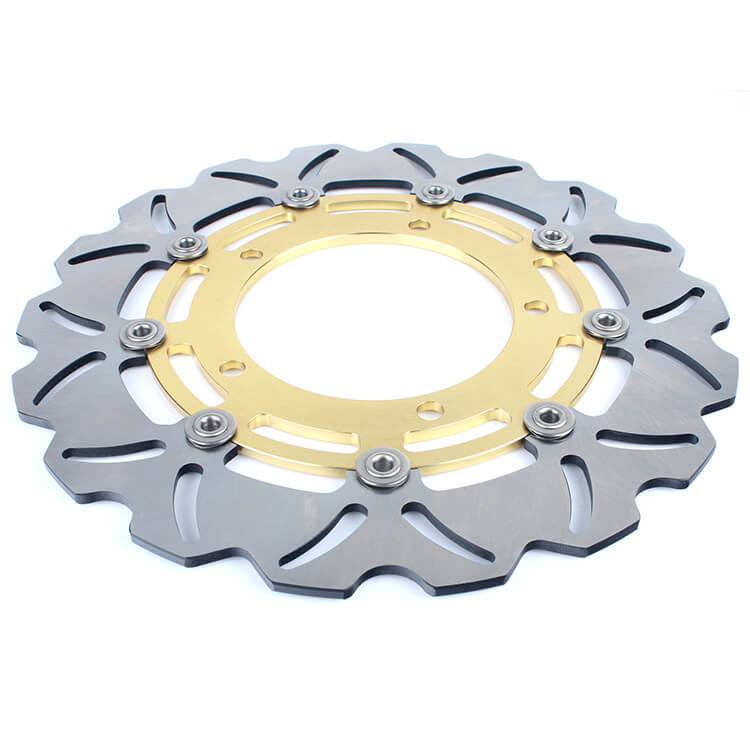

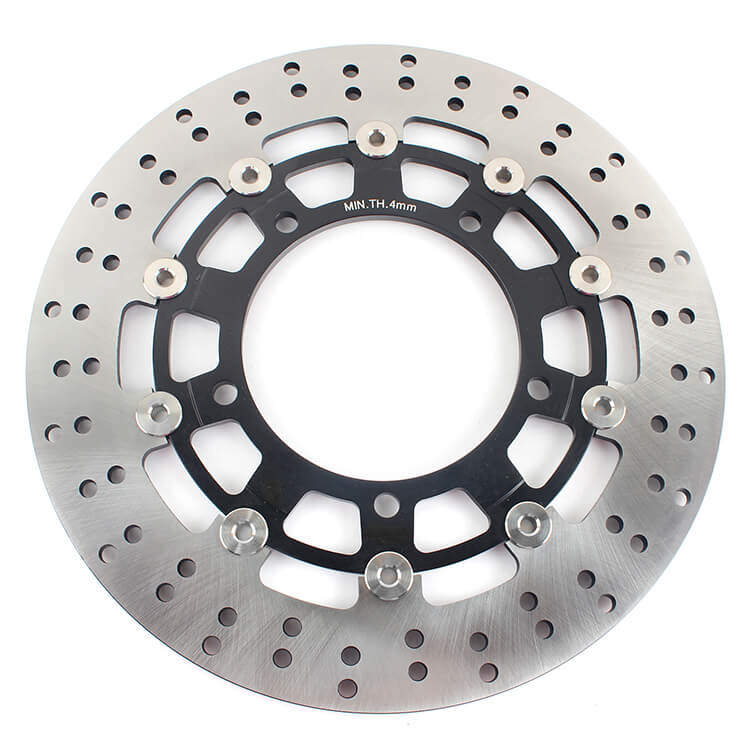

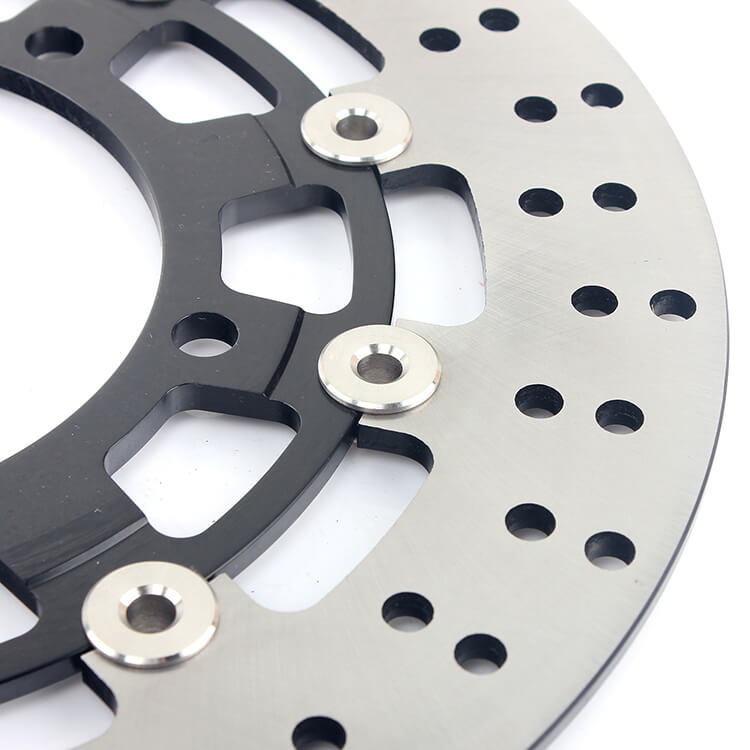

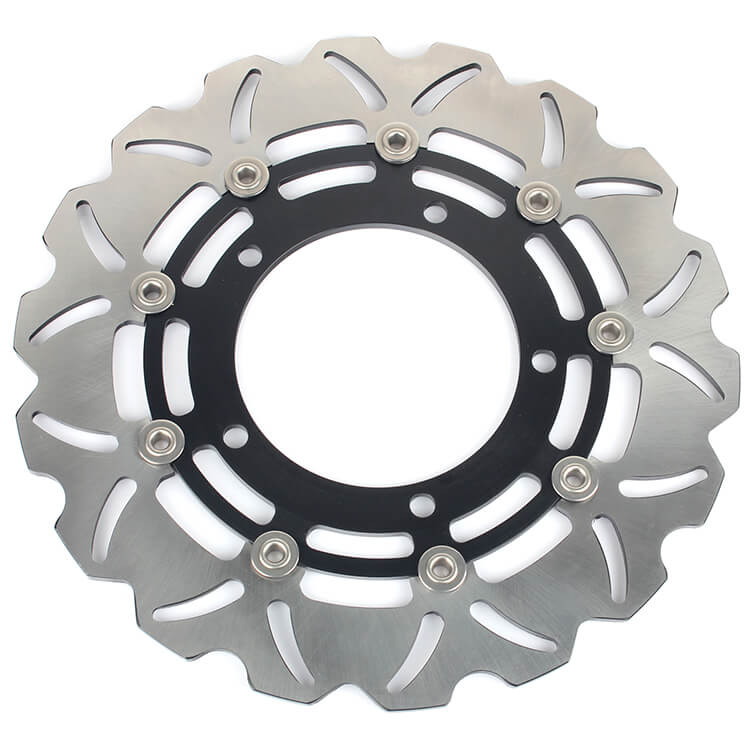

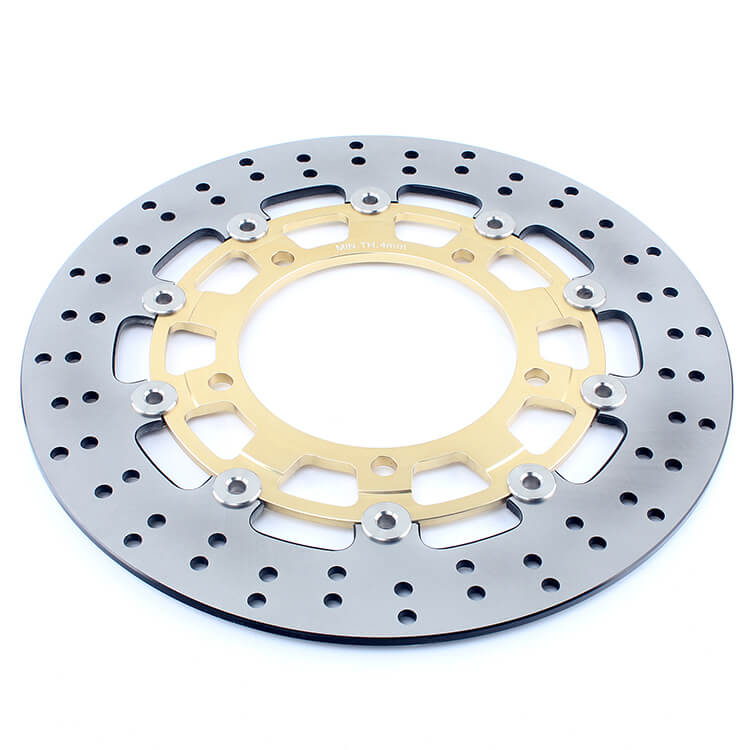

Front brake disc

• Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly. A great combination of improved performance and appeal.
• Stainless steel 420 (2Cr13) and Aluminum alloy 6061, CNC milled and anodized in black or gold color.
• Laser cut, heat treated and parallel double disc ground to assure perfect flatness. Laser cut for perfection and accuracy.
• Surfaces are electro-statically coated to ensure a long term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 310mm
Inner diameter: 121.5mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing:142mm

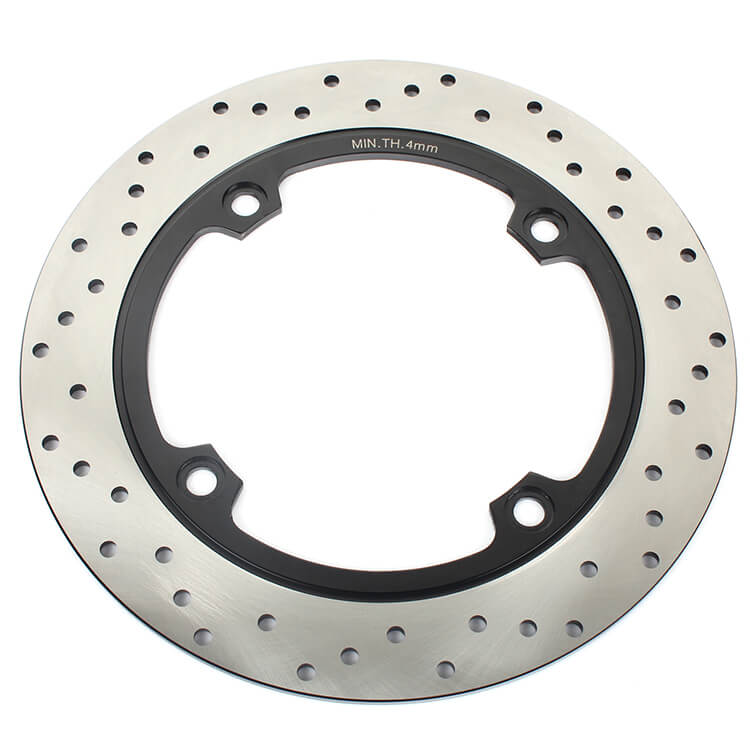

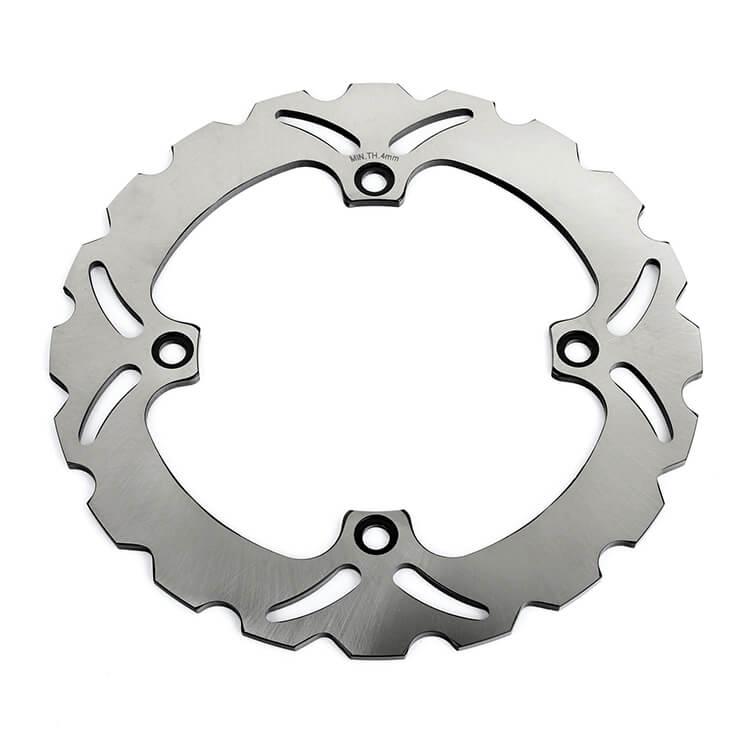

Rear brake disc

• The construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
  2 designs available.
• Light weight design.
  420 2Cr13 stainless steel ensures strong braking power, Heat treated ensures warp resistance.

Outer diameter: 260mm
Inner diameter: 141mm
Thickness: 5mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 162mm

The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
