Front Rear Brake Disc for Kawasaki ZZR400 1990-1992 / ZZR600 1990-1993

Fit for
KAWASAKI ZZ-R400 (ZX400 K1-K3) 1990-1992
KAWASAKI ZZR 600 D (D1-D4 ZX600D/F382) 1990-1993

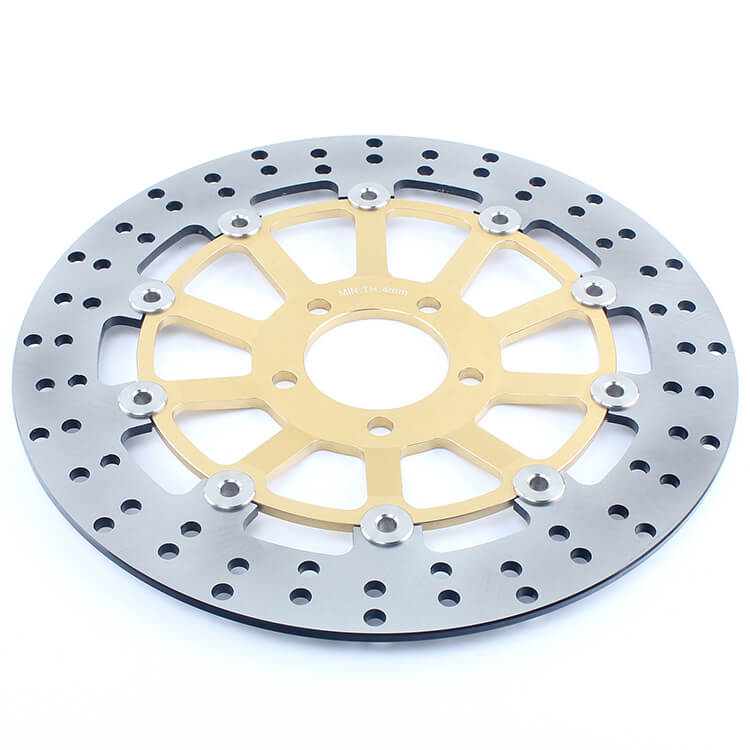

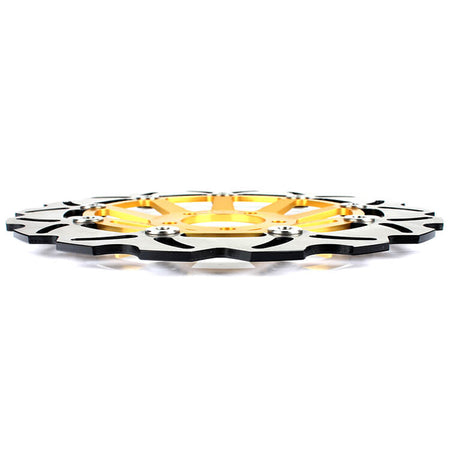

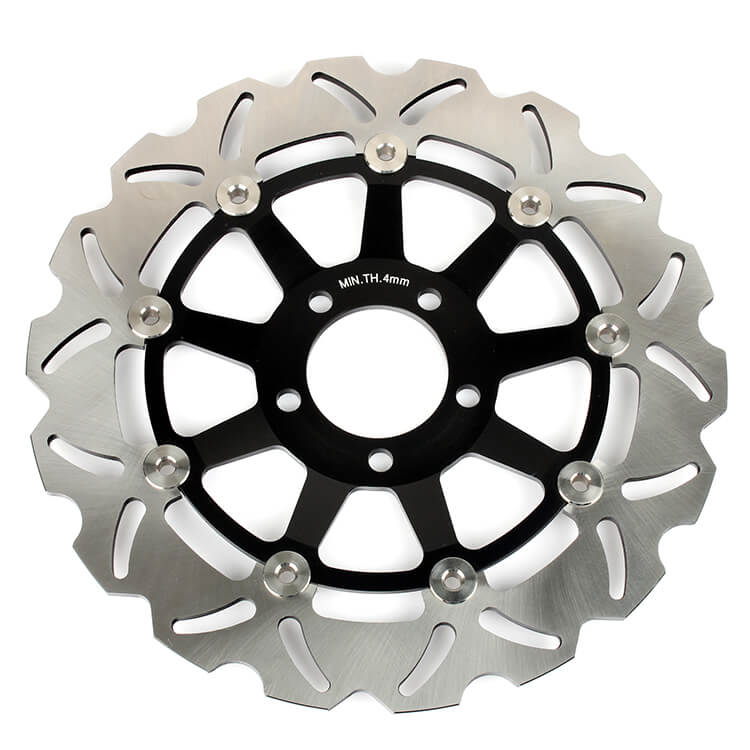

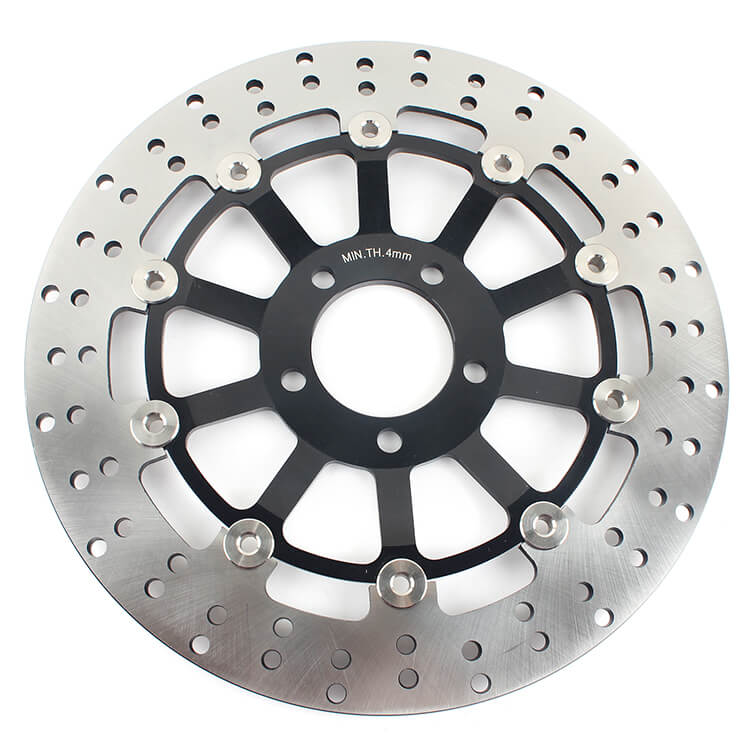

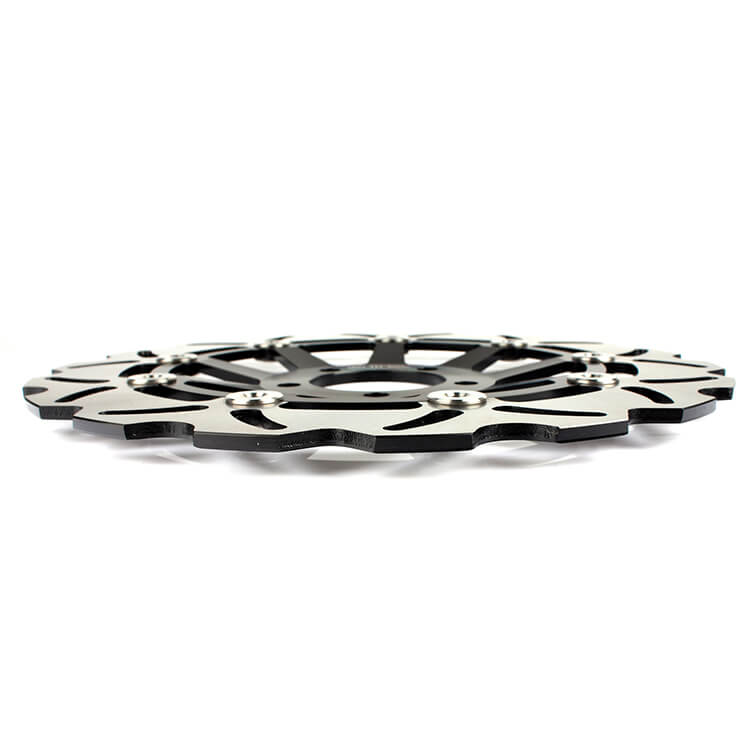

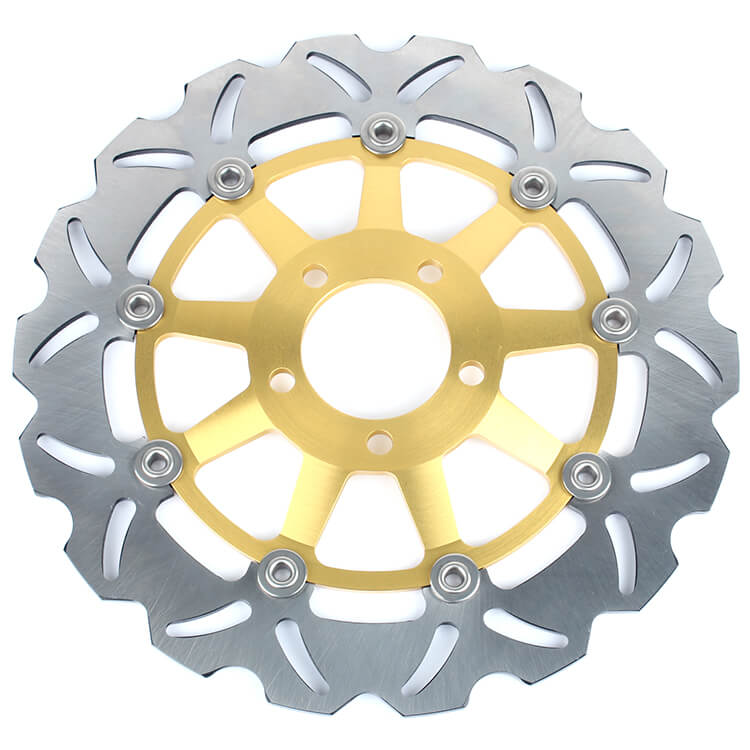

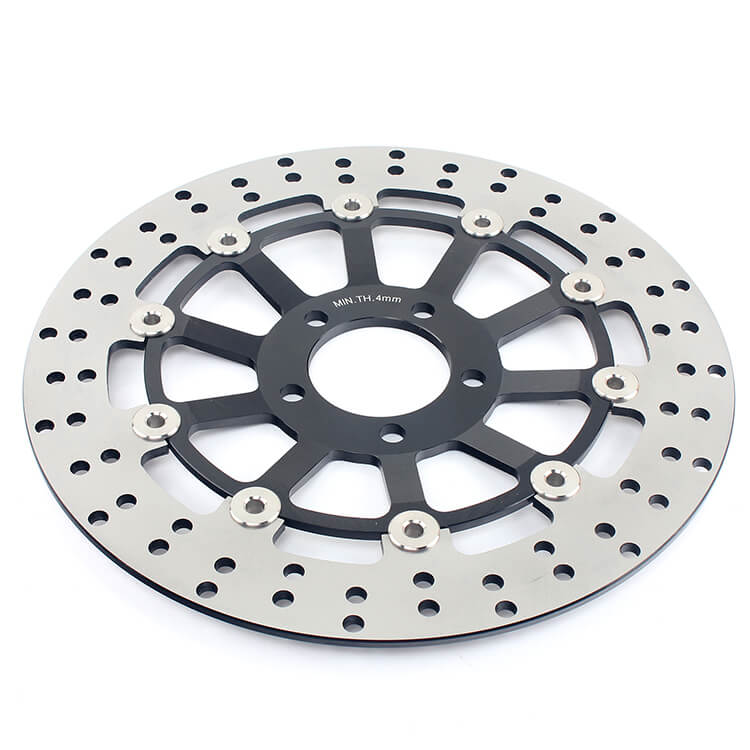

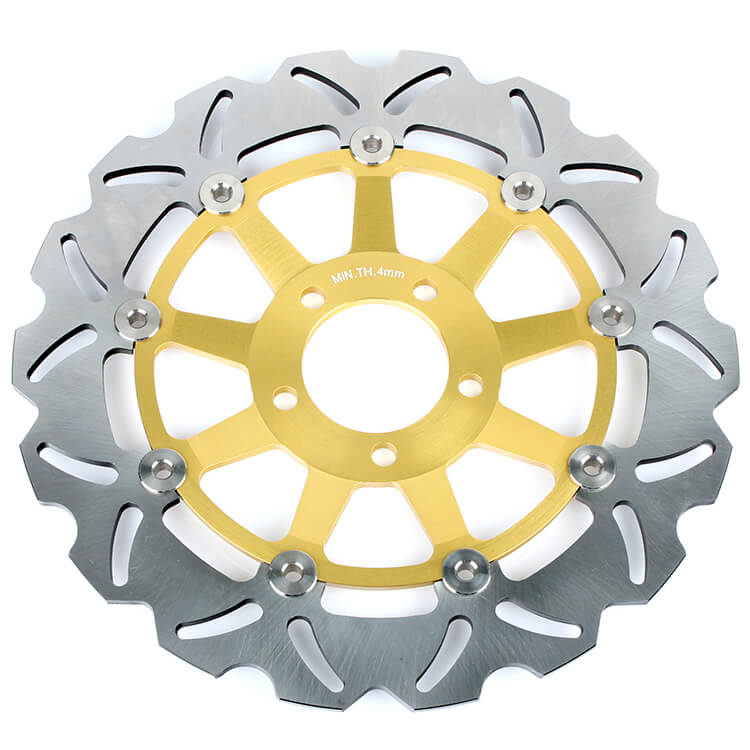

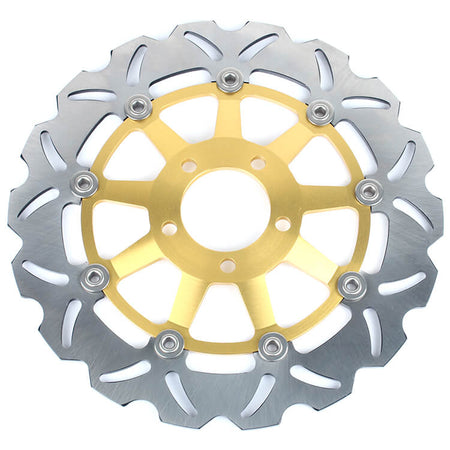

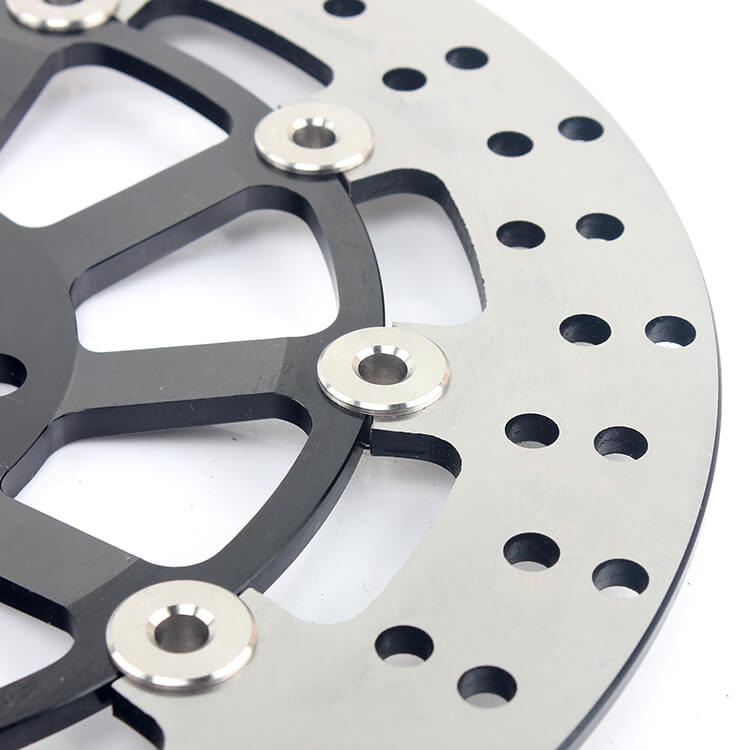

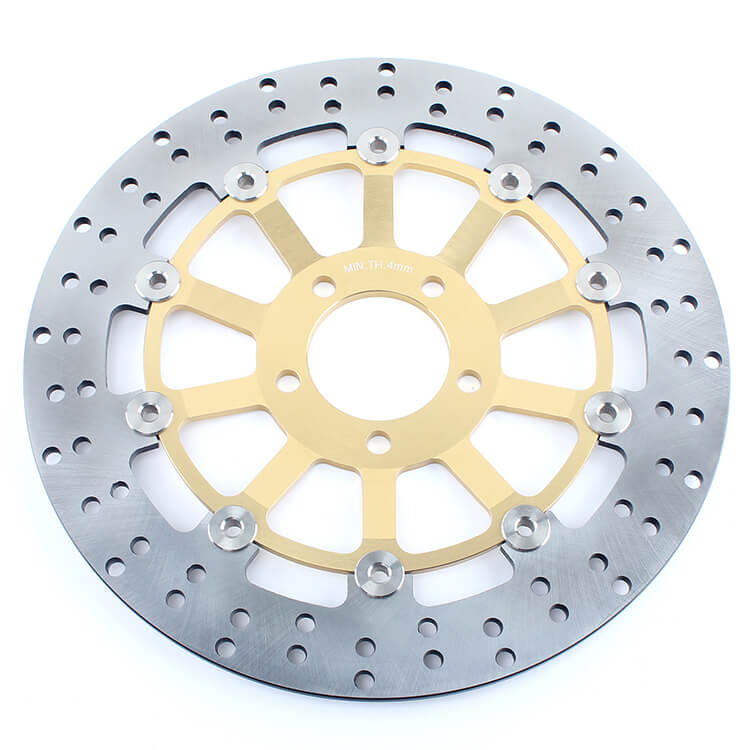

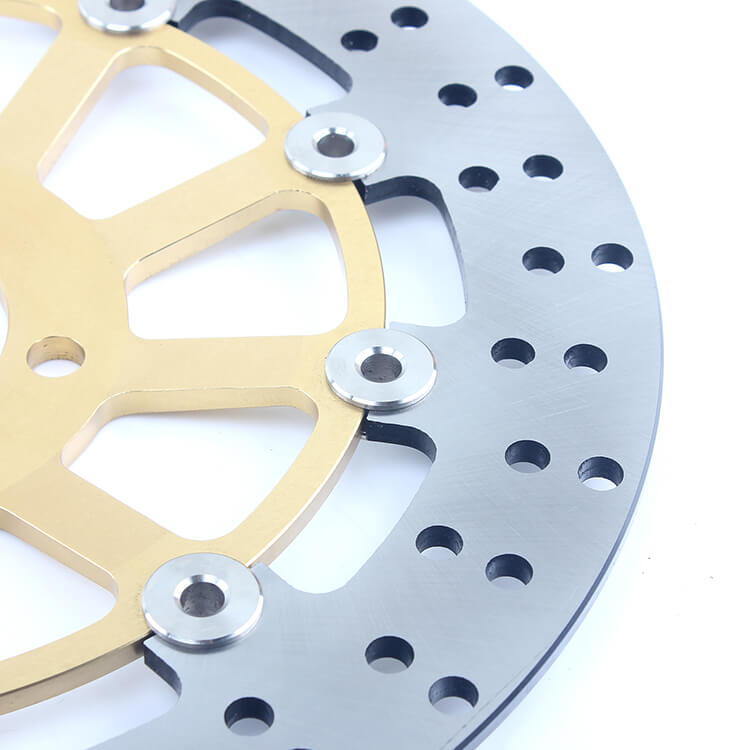

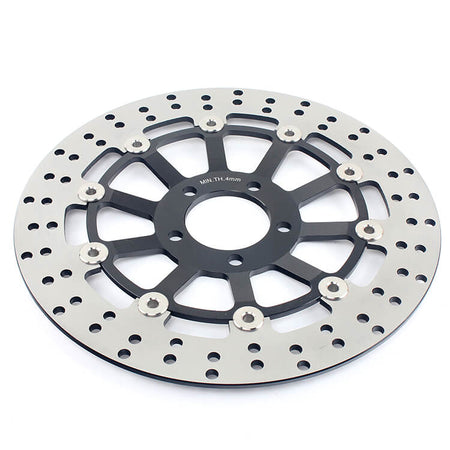

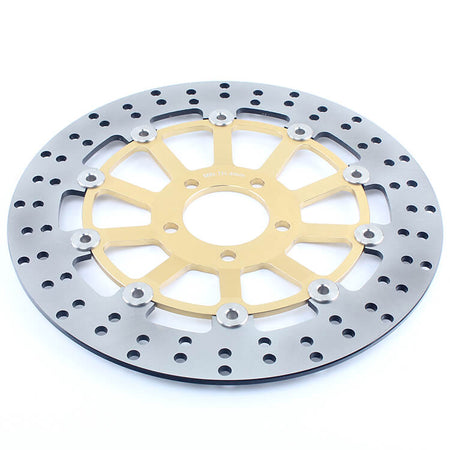

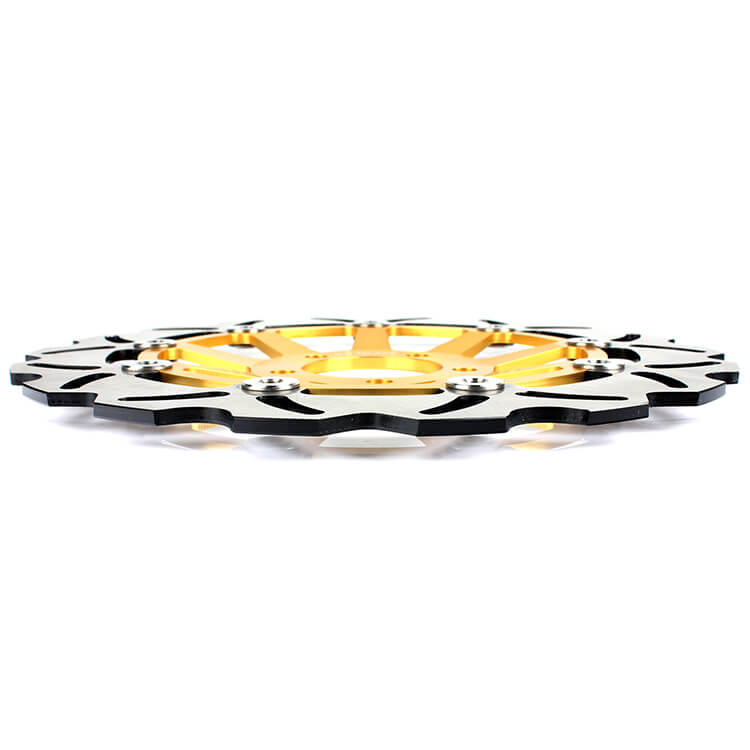

Front brake disc

• 2 shapes available. Aluminum center and sturdy riveted construction. Made of strong 420 (2Cr13) stainless steel & 6061-T6 aluminum, quality materials for more brake power.
• The vented slots can remove water from the rotor quickly with good heat dissipation.
• Optimum drilled holes for weight savings, better cooling efficiency and cleaning effect.
• Surface is electro-stactically coated to ensure the long-term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 300mm
Inner diameter: 61mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.4mm
Hole spacing: 81mm
Offset height: 13.5mm

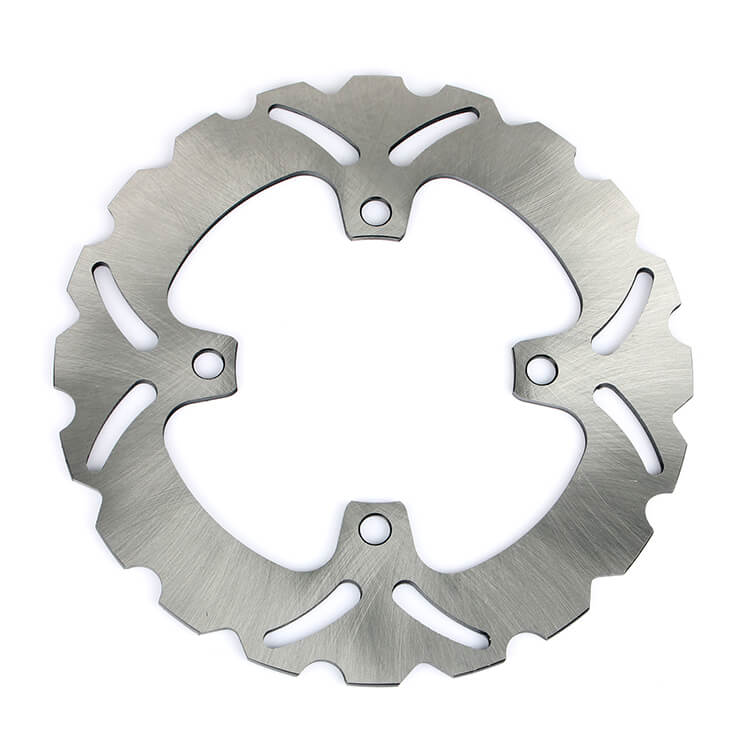

Rear brake disc

• The brake disc is made from heat treated 420 stainless steel with excellent corrosion resistance properties and high temperature (Heat-cycle) durability.
• Slotted design for weight savings, better heat dissipation and cleaning effect, it prevents mud and dirt from interfering with braking performance.
• Passed the highest standards test by certification: ISO 9001-2000

Outer diameter: 230mm
Inner diameter: 100mm
Thickness: 4mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 120mm
