Front Rear Brake Disc For Kawasaki Ninja ZX-6R / Ninja ZX-6R ABS 2013-2019

Fit for Kawasaki ZX-6R Ninja/ABS 2013-2019

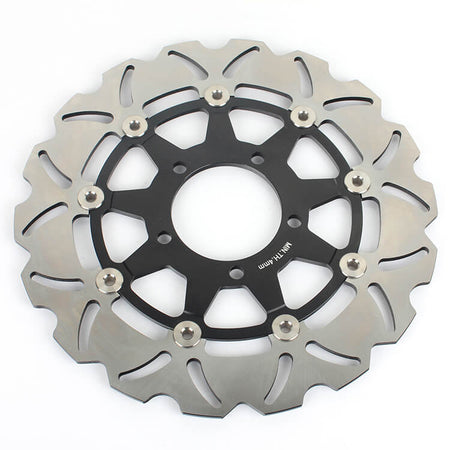

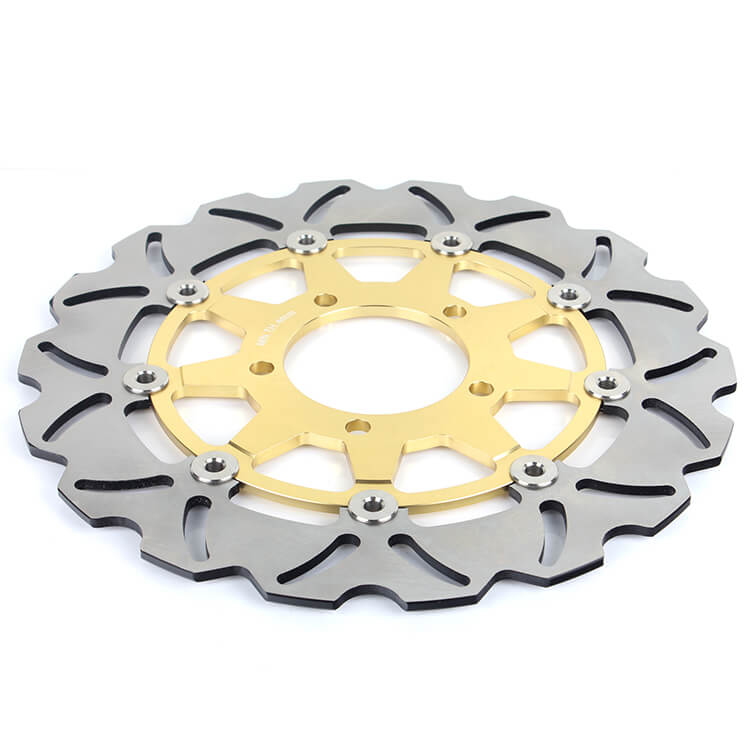

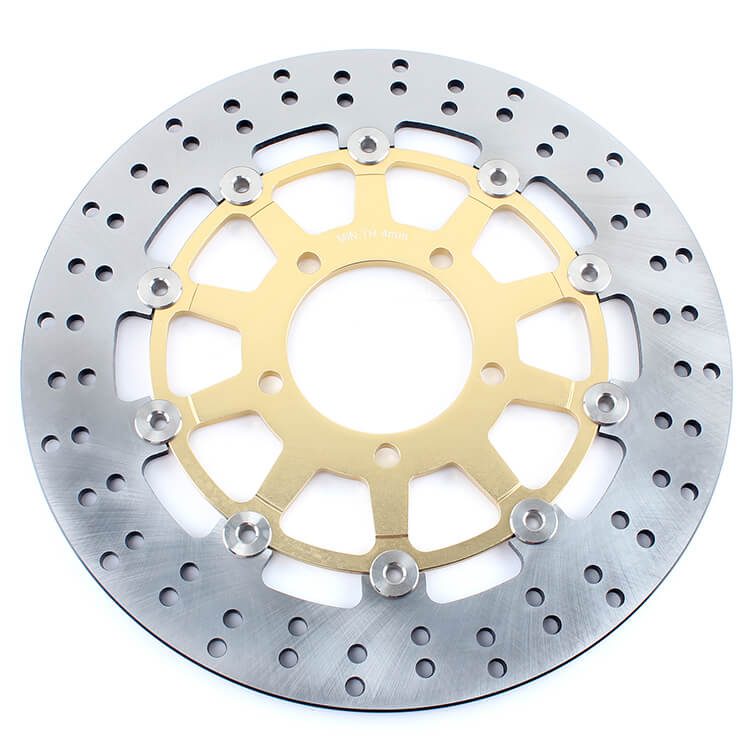

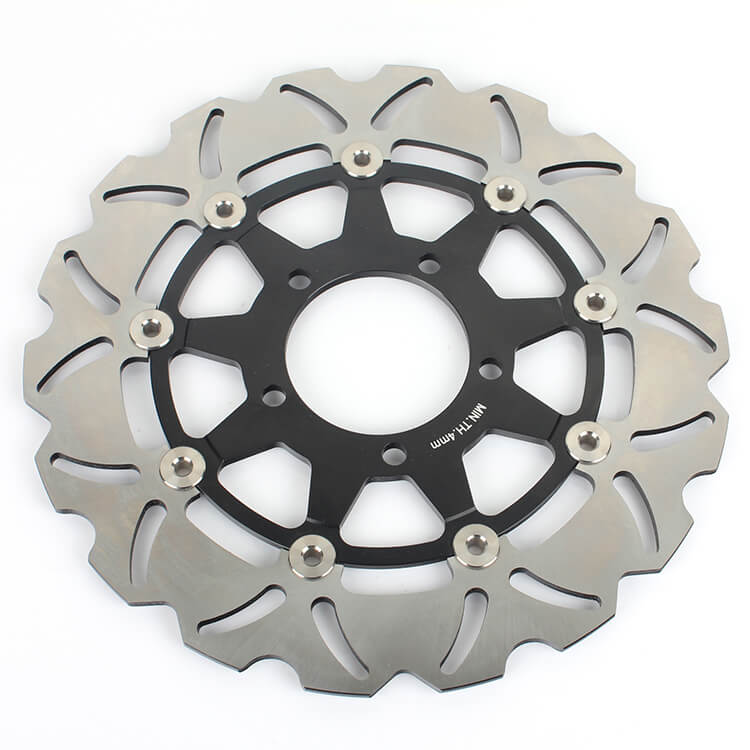

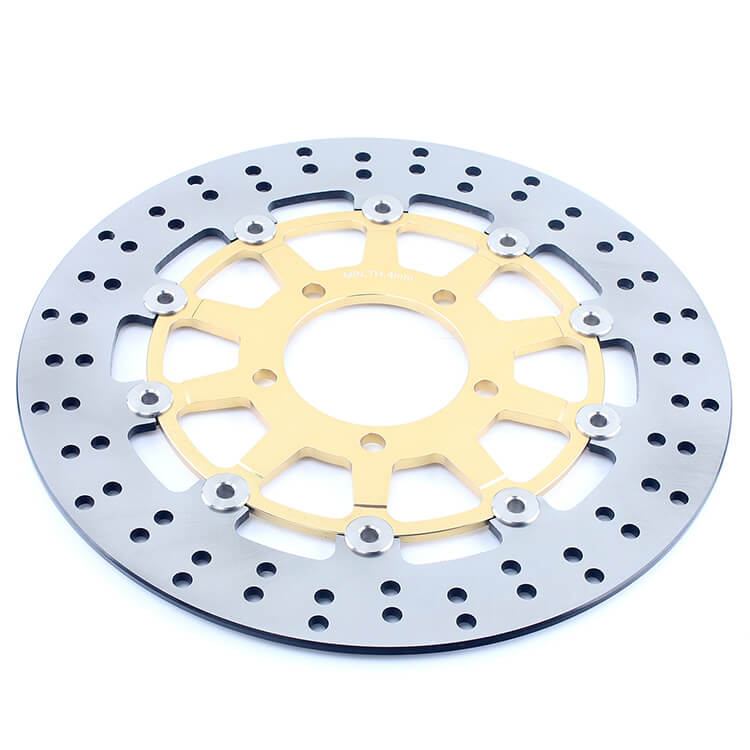

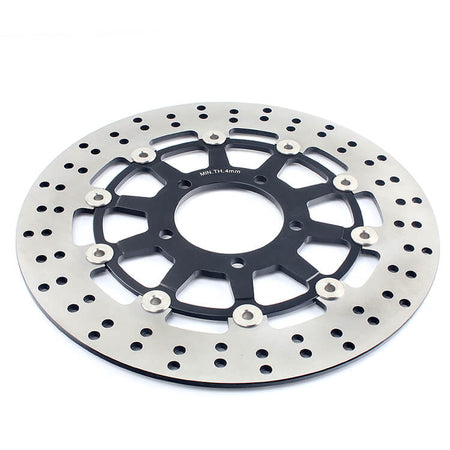

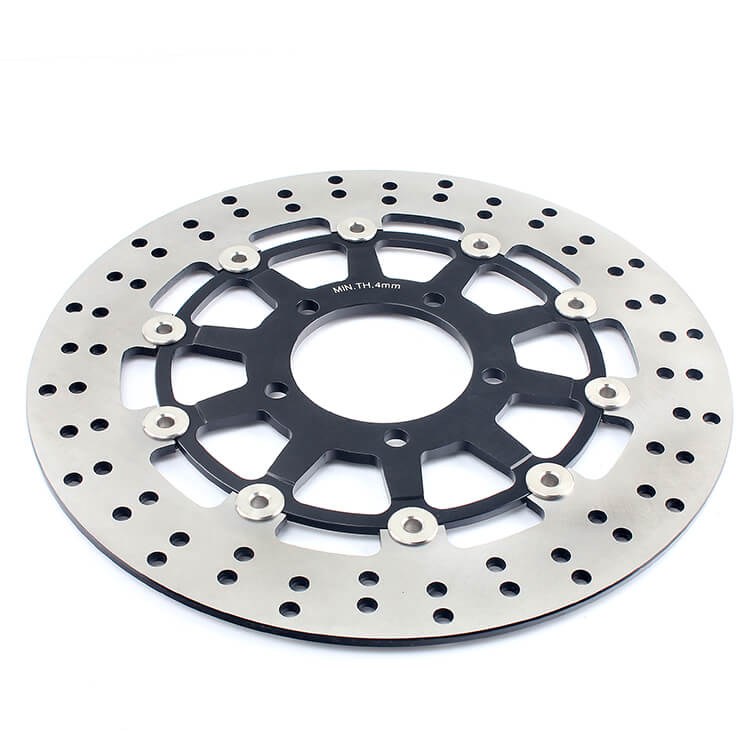

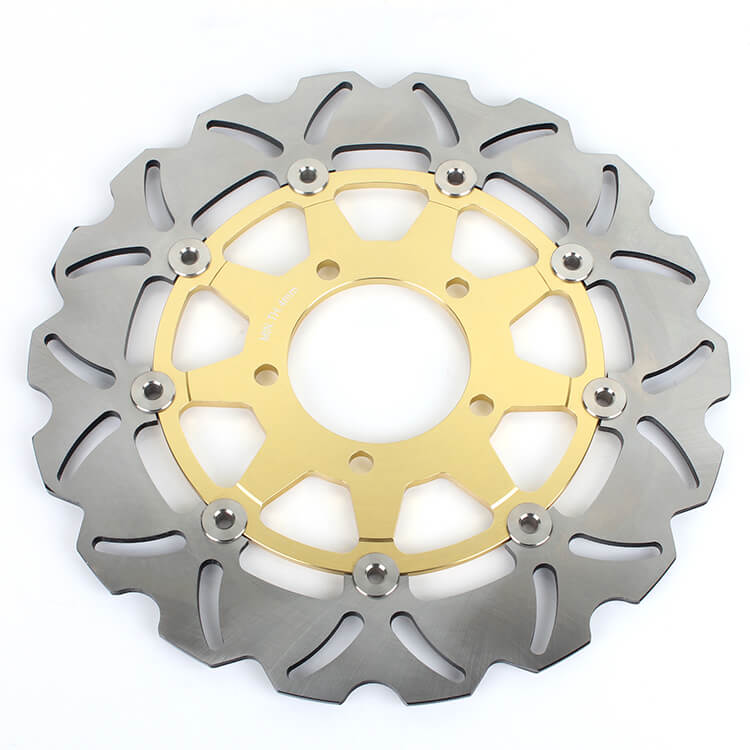

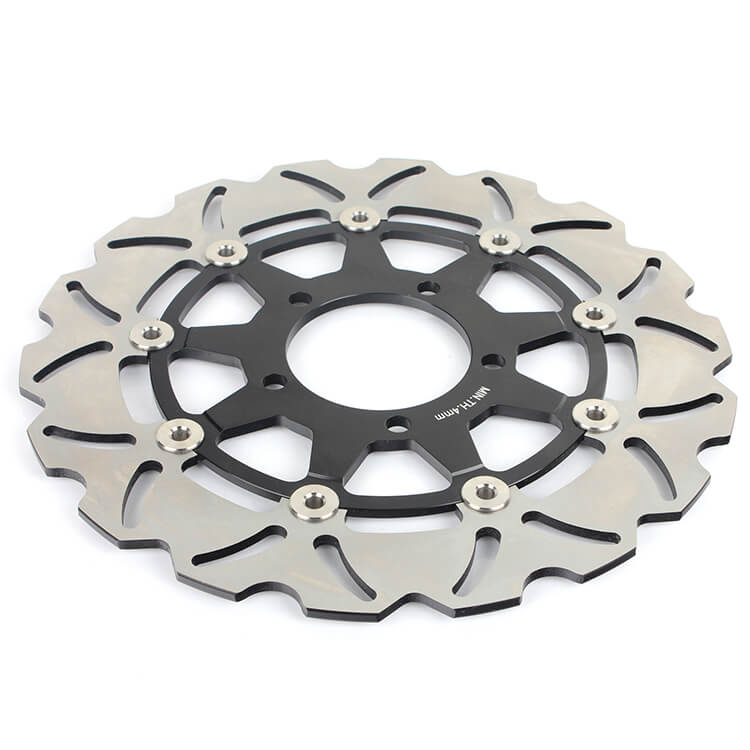

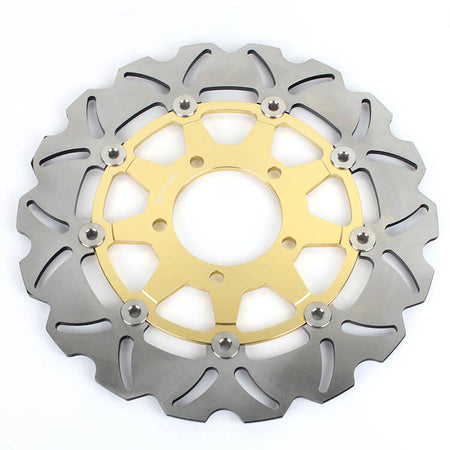

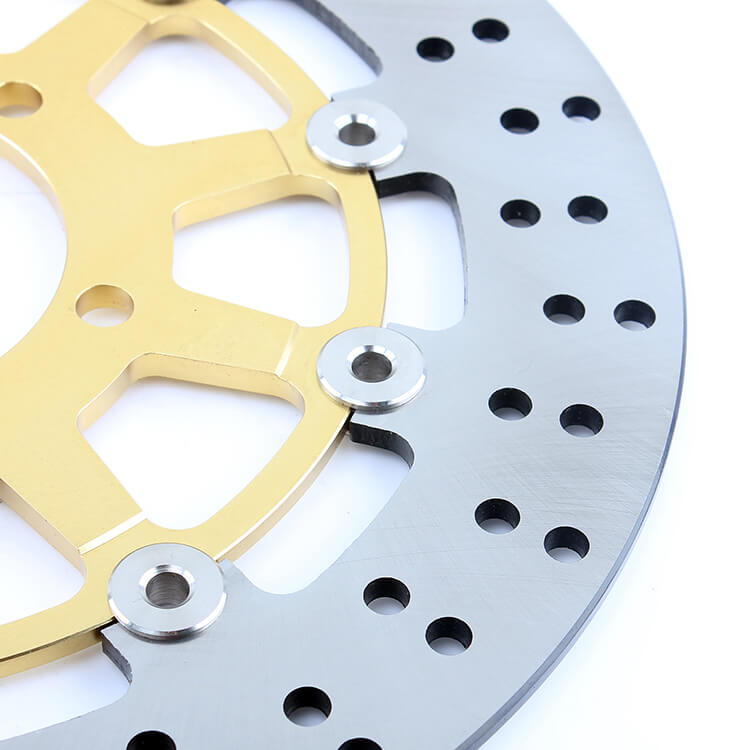

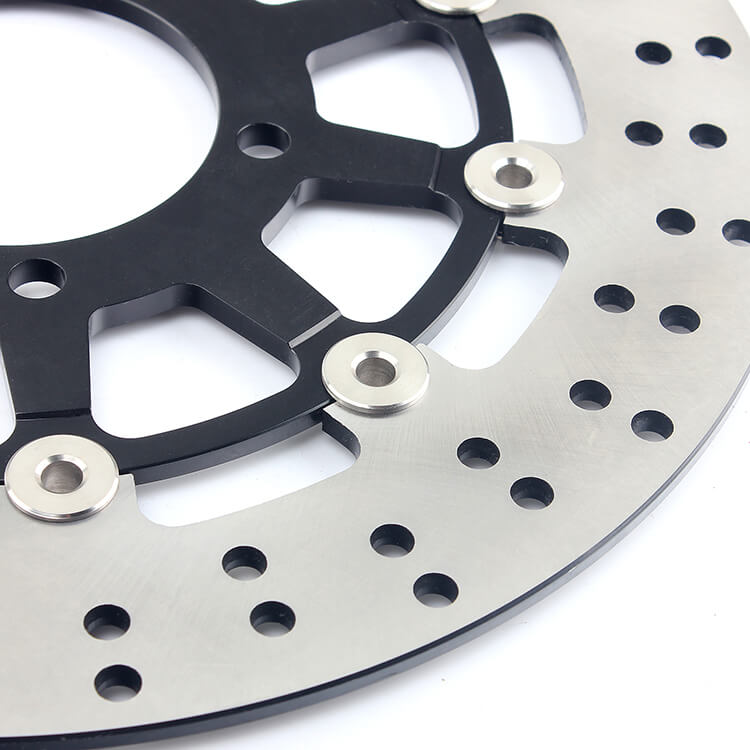

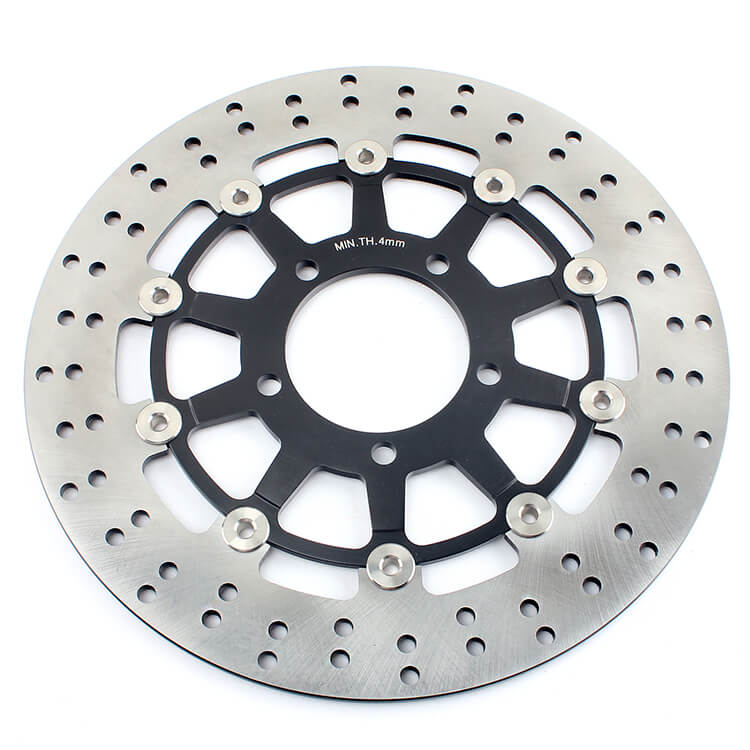

Front brake disc

• Constructed from 420 stainless steel, with CNC 6061-T6 aluminum alloy to ensure strong braking power as well as good look. A great combination of improved performance and appeal.
• Weight saving venting slots & holes design for better water dispersal & heat dissipation. It increases air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly to prevent mud and dirt from interfering with braking performance.
• Surfaces are electro-statically coated to ensure a long term appearance.
• All discs carry the required minimum thickness markings essential for road registration.

Outer diameter: 310mm
Inner diameter: 80.5mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 100mm

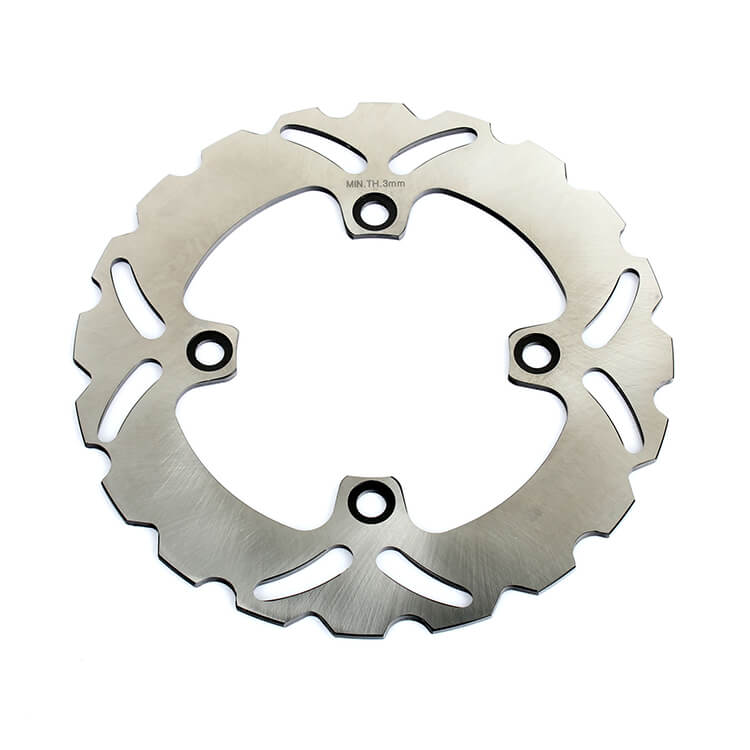

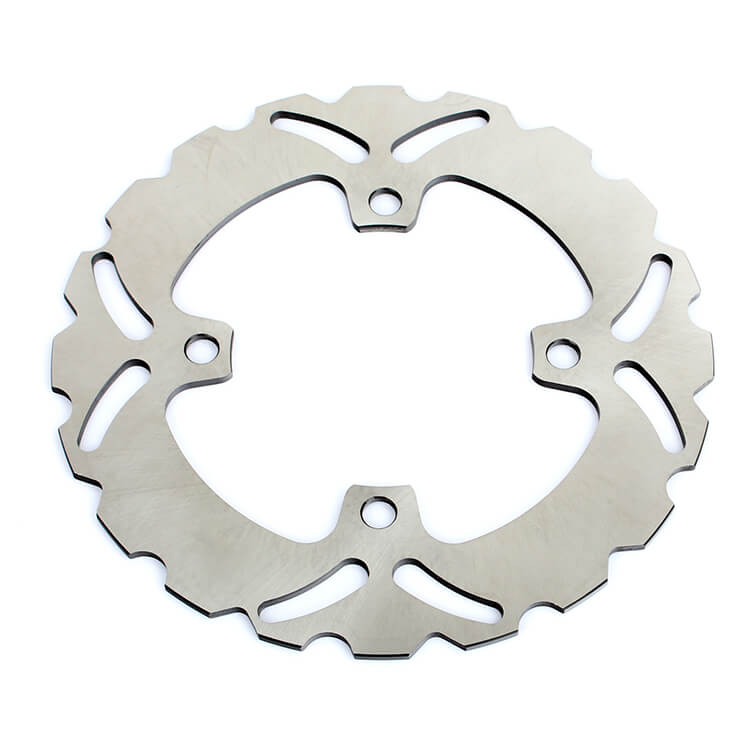

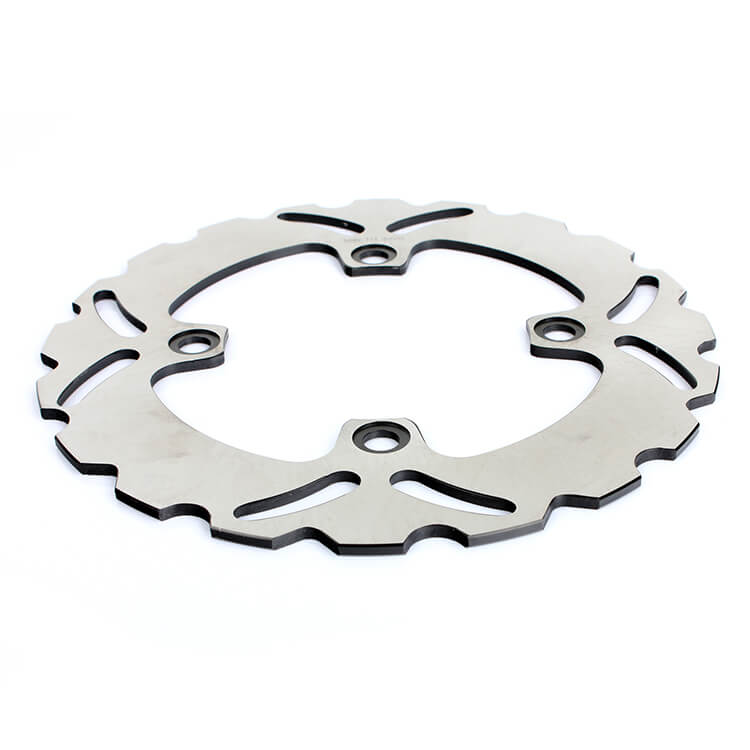

Rear brake disc

• Wave shape construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
• 420 2Cr13 stainless steel offers strong braking power, heat treated ensures warp resistance.
• Light weight design, 30% light wieght than OEM.

Outer diameter: 220mm
Inner diameter: 100mm
Thickness: 4mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 120mm

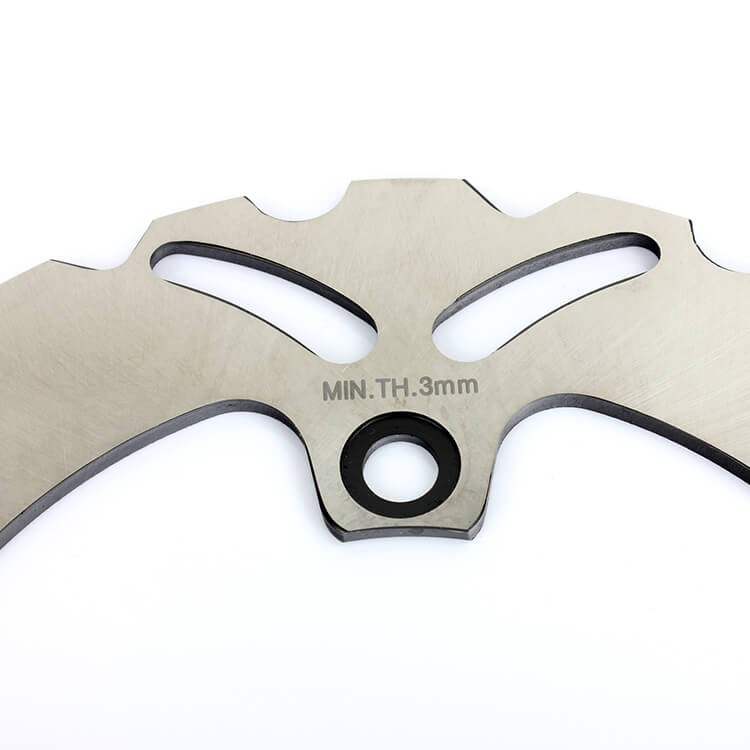

The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
