Front Rear Brake Disc for Kawasaki Ninja ZX-6R 2005-2006 2008-2020 / ER-6N 2006-2016 / Versys 650 2007-2014

Fit for

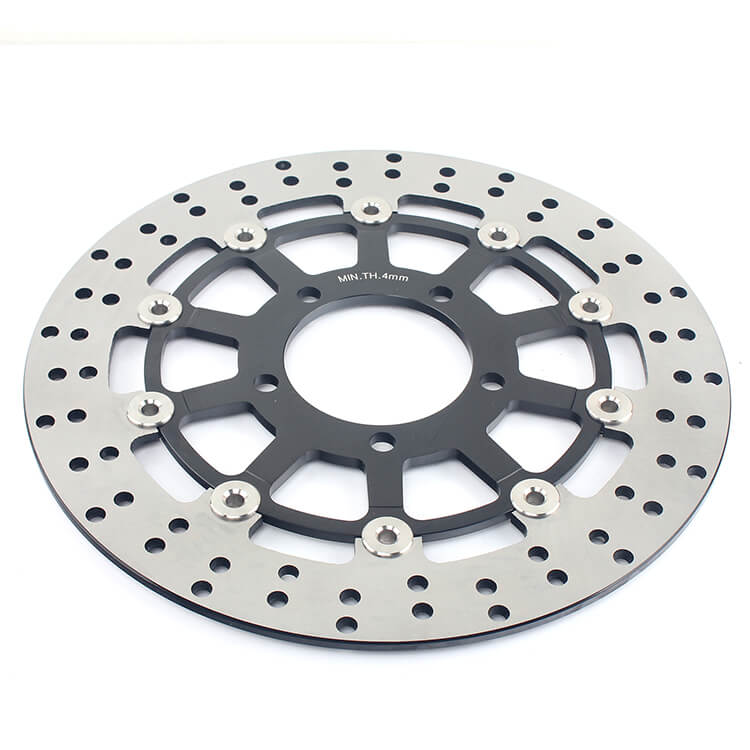

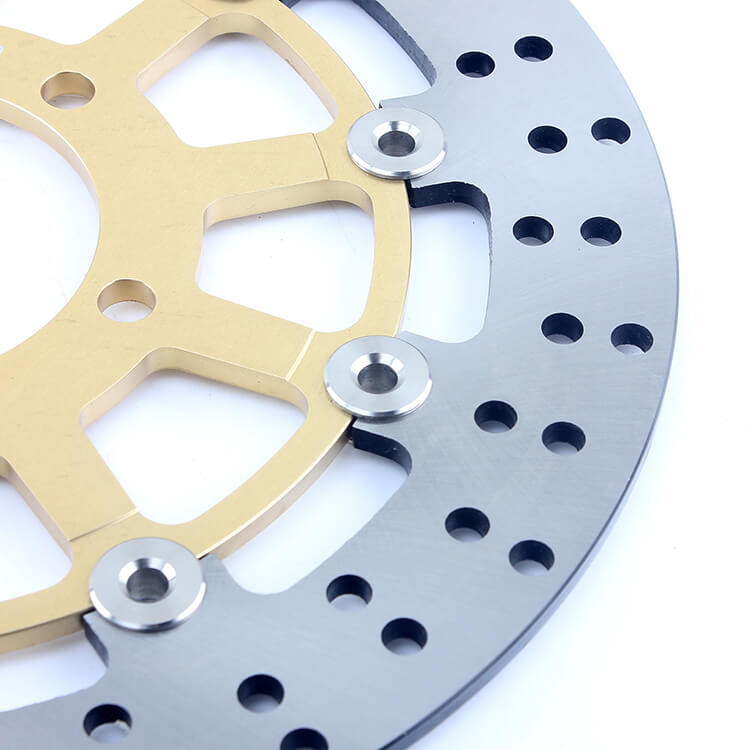

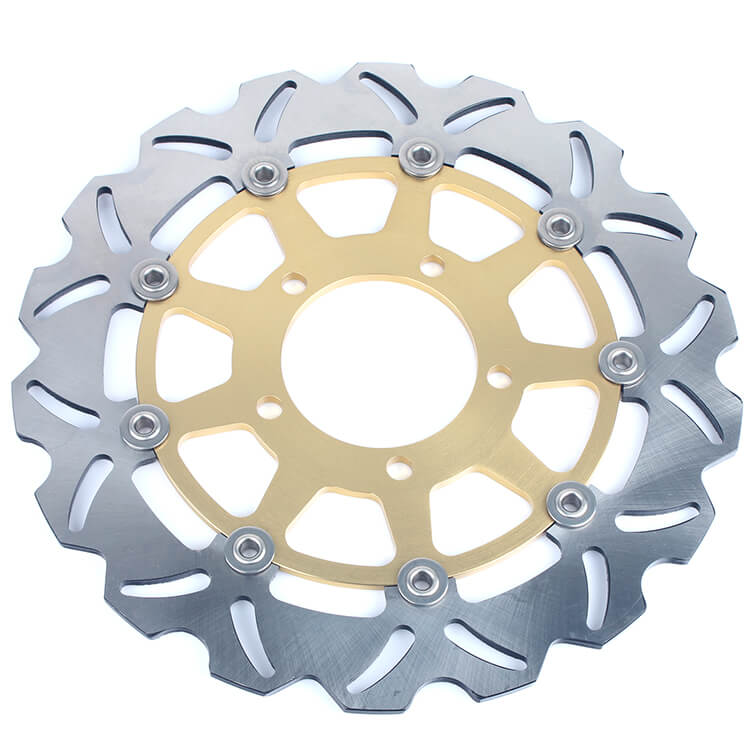

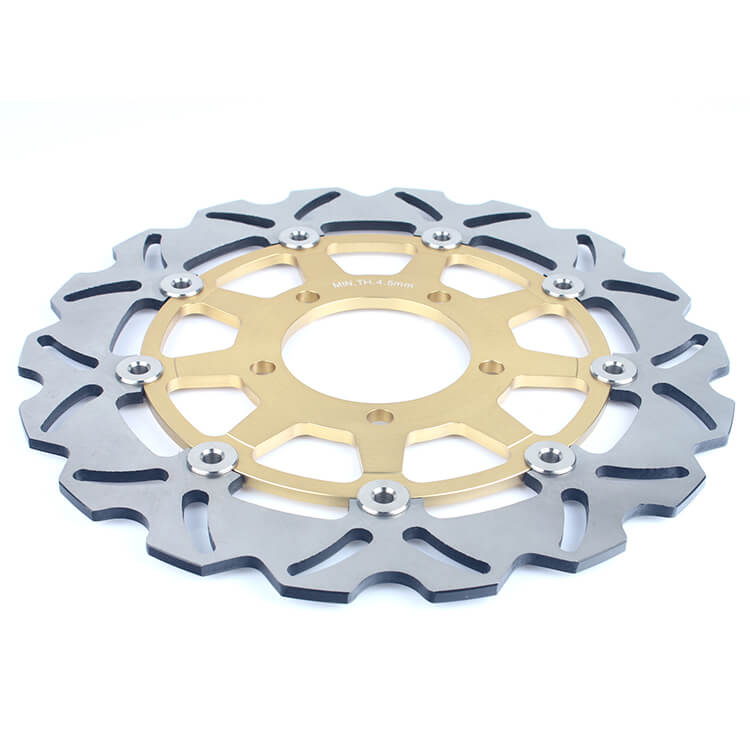

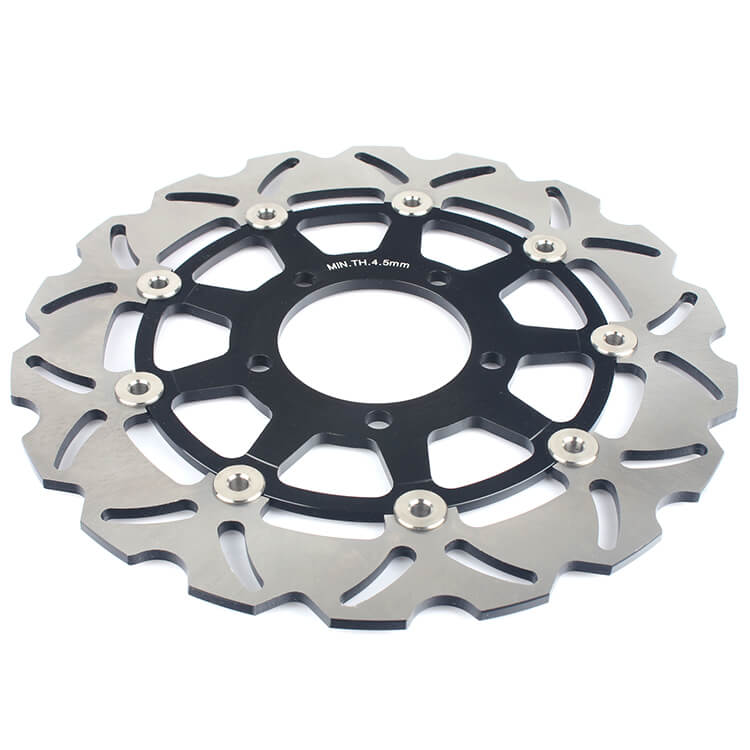

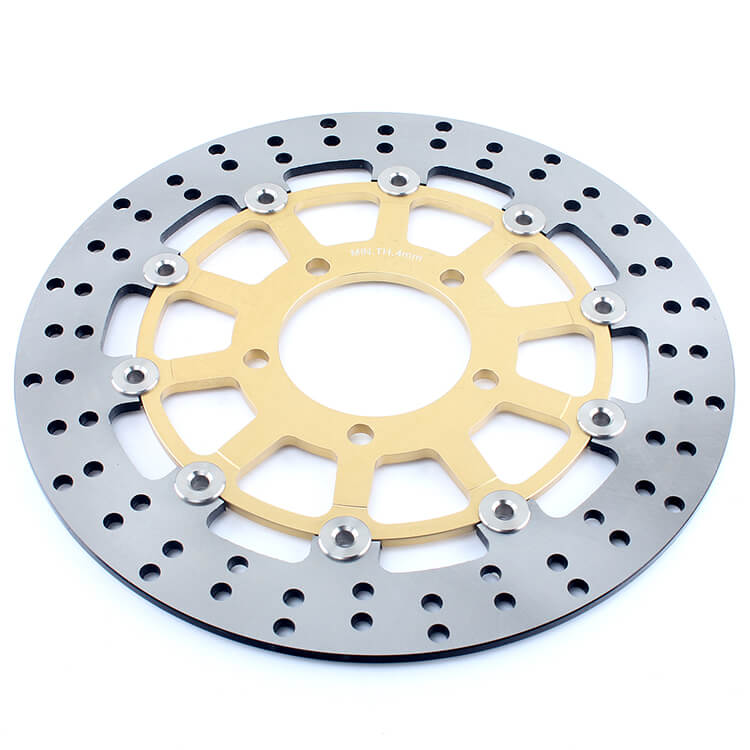

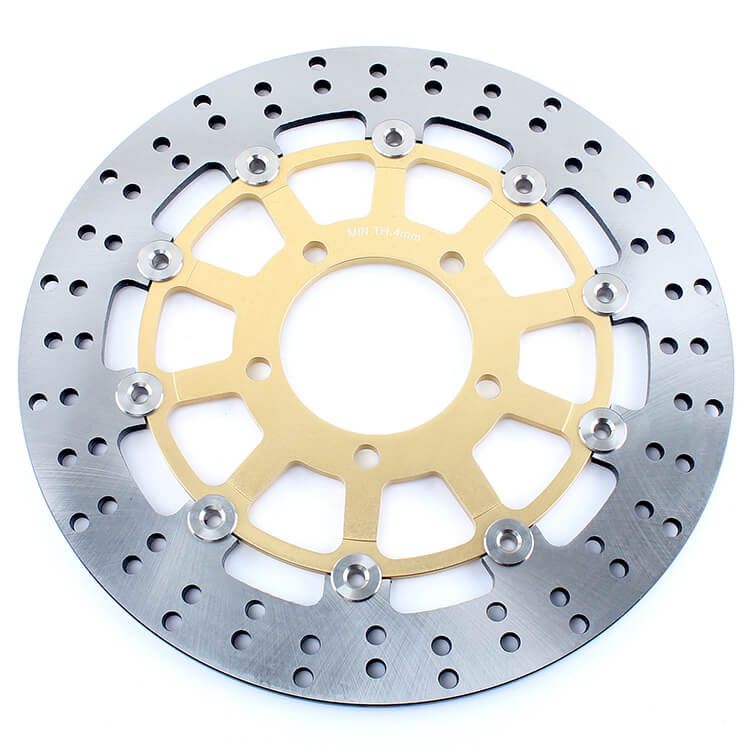

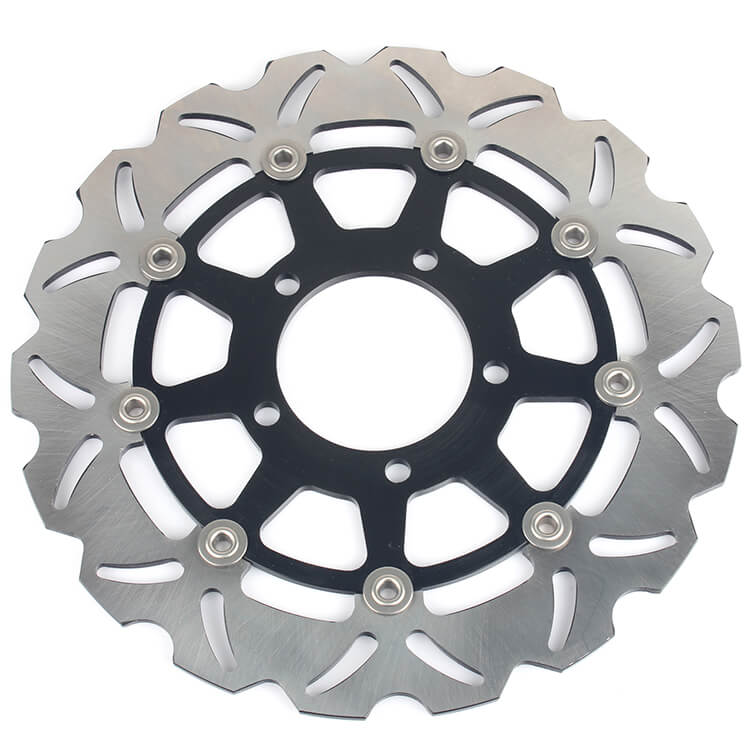

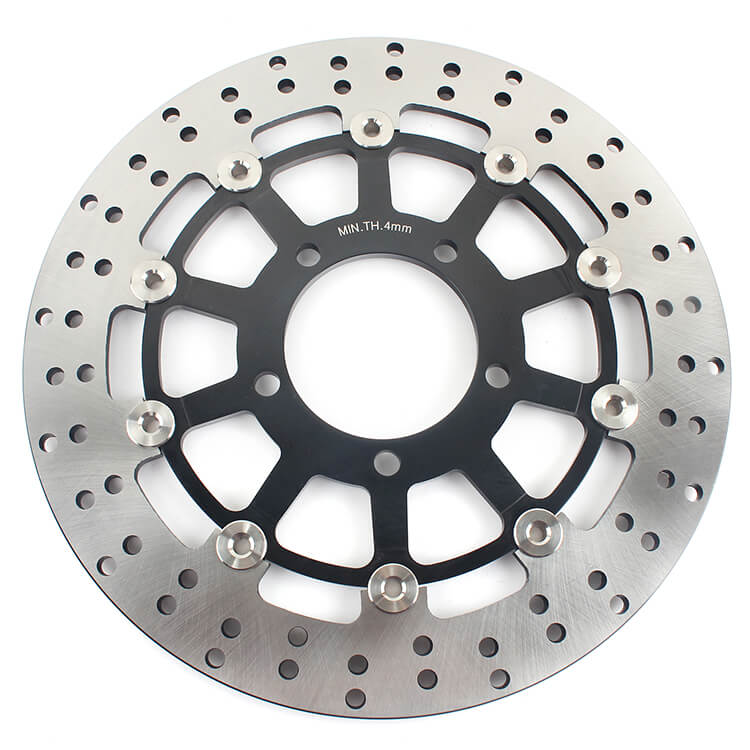

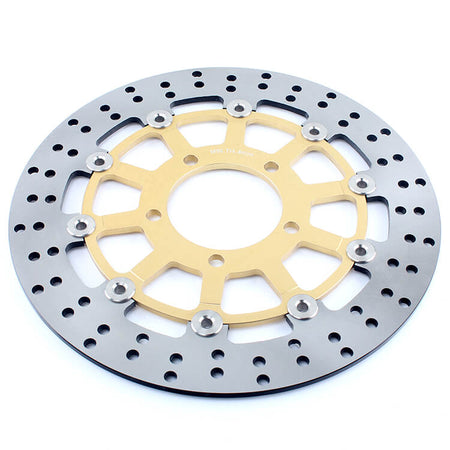

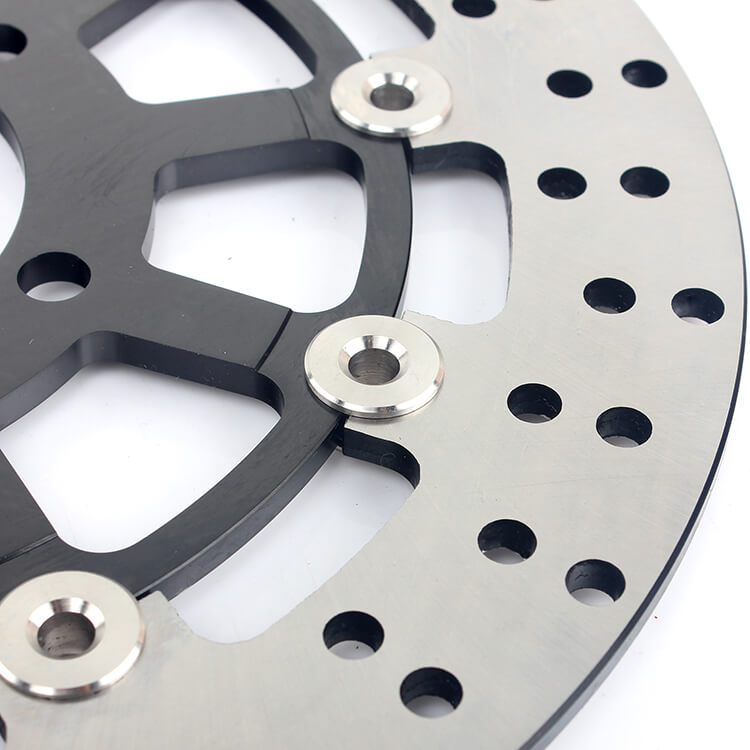

Front brake disc

• 420 (2Cr13) stainless steel outside rotor & anodized 6061-T6 aluminum inside rotor ensure strong braking power as well as good look.
• Boasts up to 10% improvement in friction effect improving brakes even further.
• All fitting dimensions according to originally fitted disc.
• Weight saving venting slots & holes increase air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly to prevent mud and dirt from interfering with braking performance.
• Surfaces are electro-statically coated to ensure a long term appearance
  Better braking,less wear,more driving pleasure.

Outer diameter 300mm
Inner diameter 80.5mm
Thickness 5.5mm
Hole quantity 5
Hole size 10.4mm
Hole spacing 100mm

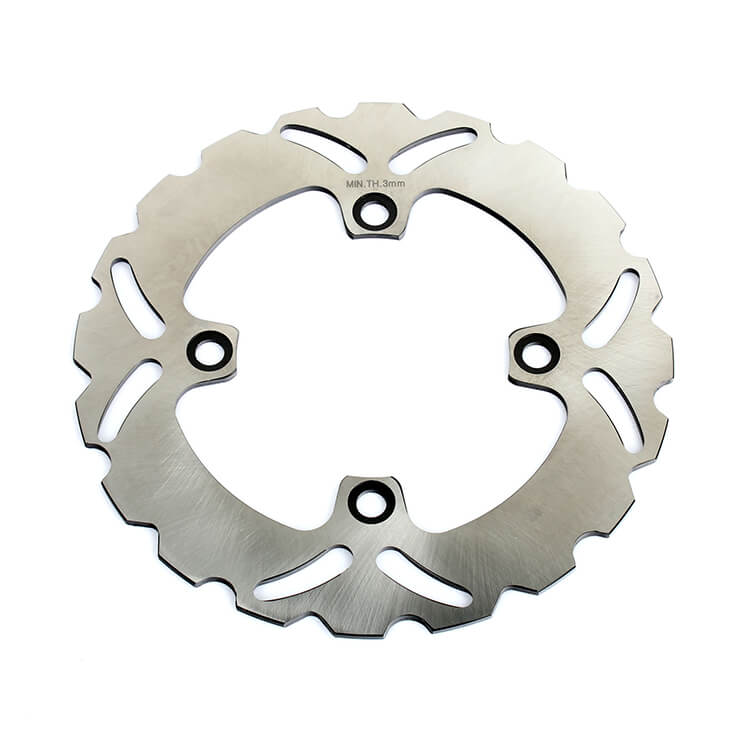

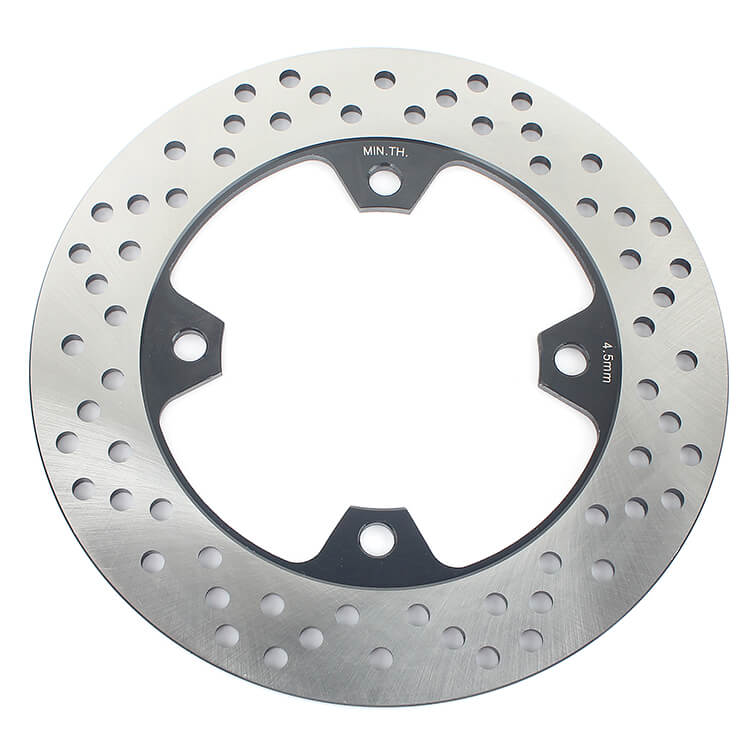

Rear brake disc

• 420 2Cr13 stainless steel ensures strong braking power, Heat treated ensures warp resistance.
• 2 designs available.
• The construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly
• Light weight design, 30% light wieght than OEM

Outer diameter 220mm
Inner diameter 100mm
Thickness 4mm
Hole quantity 4
Hole size 10.4mm
Hole spacing 120mm

The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
