Front Rear Brake Disc for Honda NSR250R 1990-1992 1995-1999

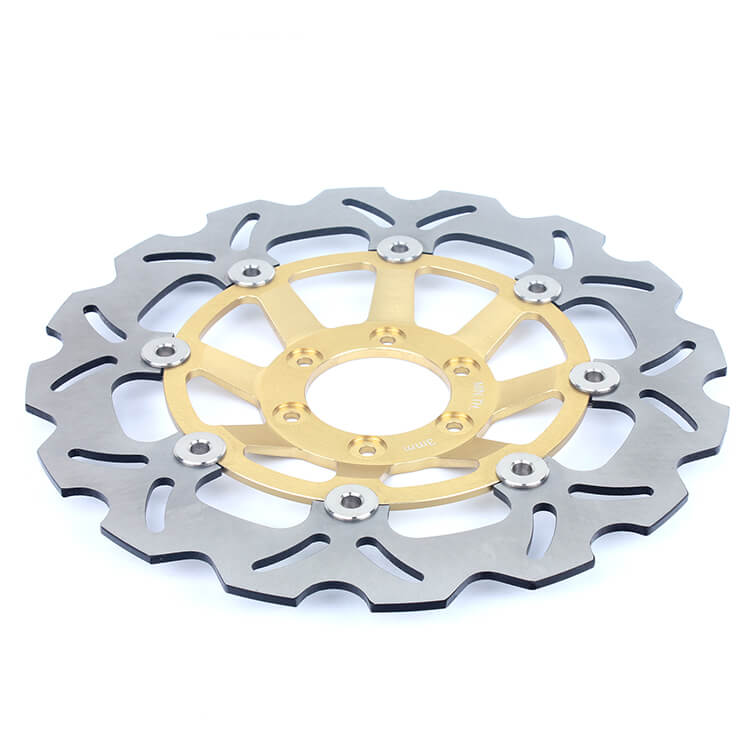

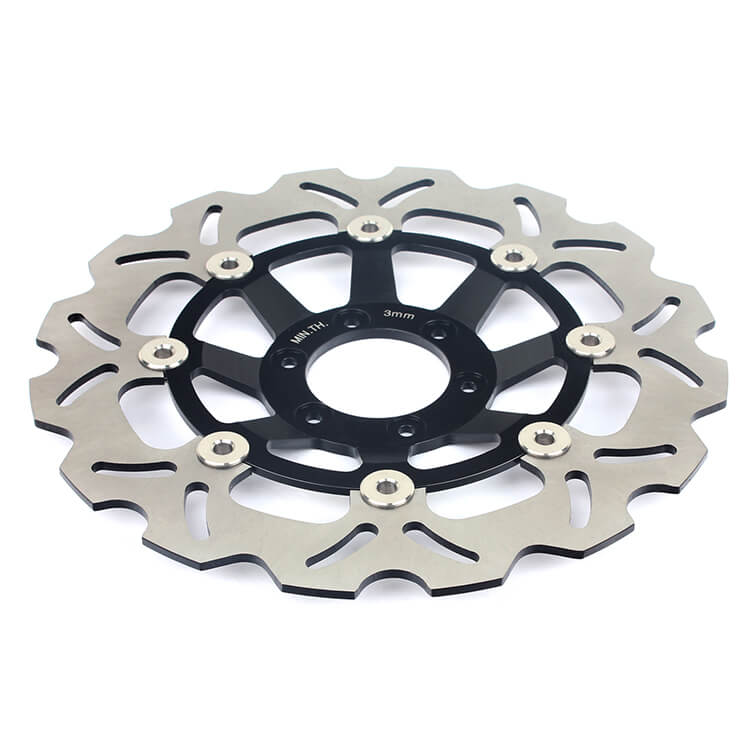

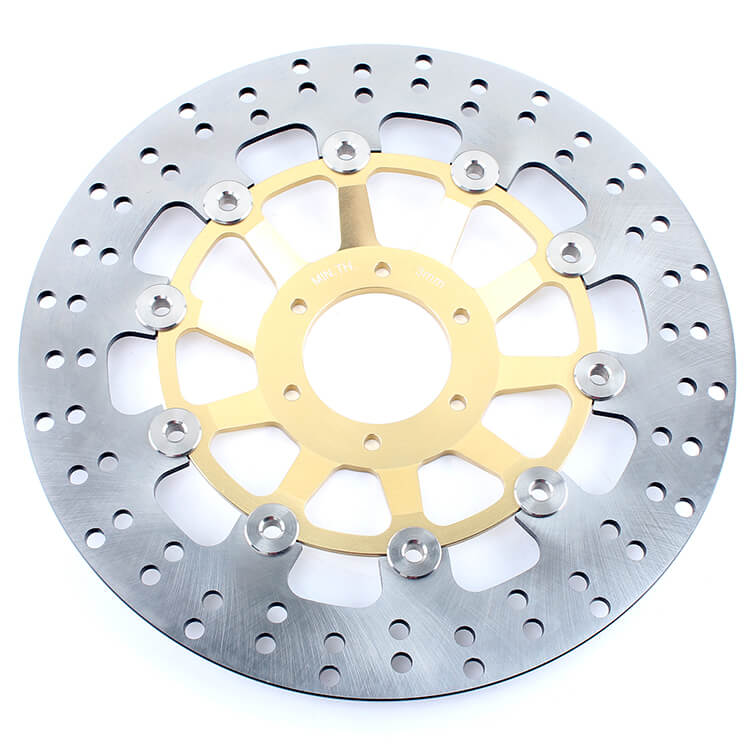

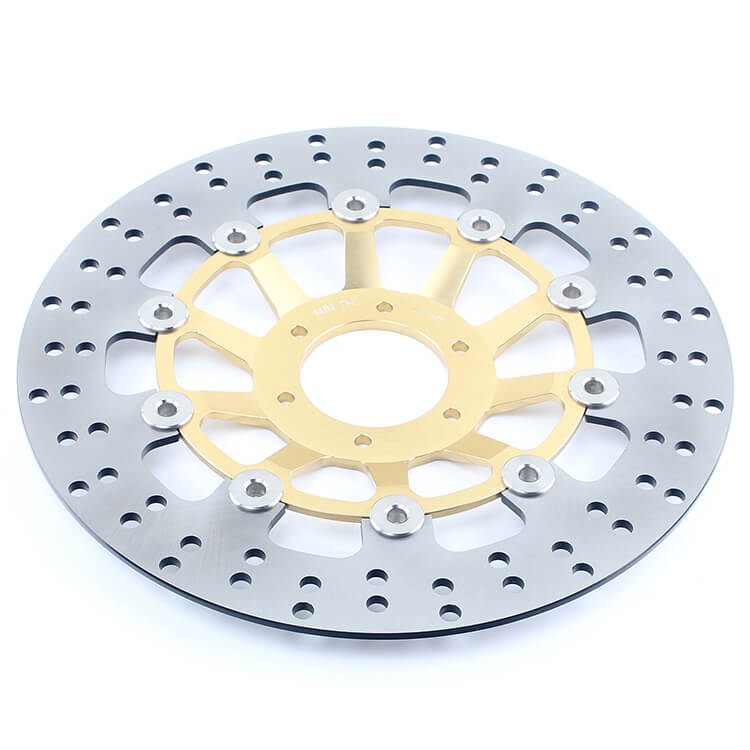

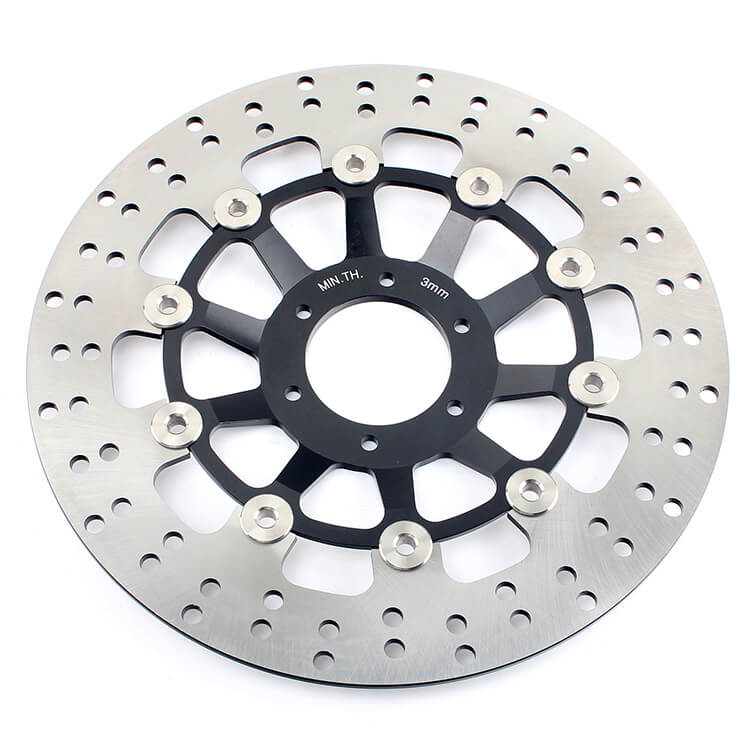

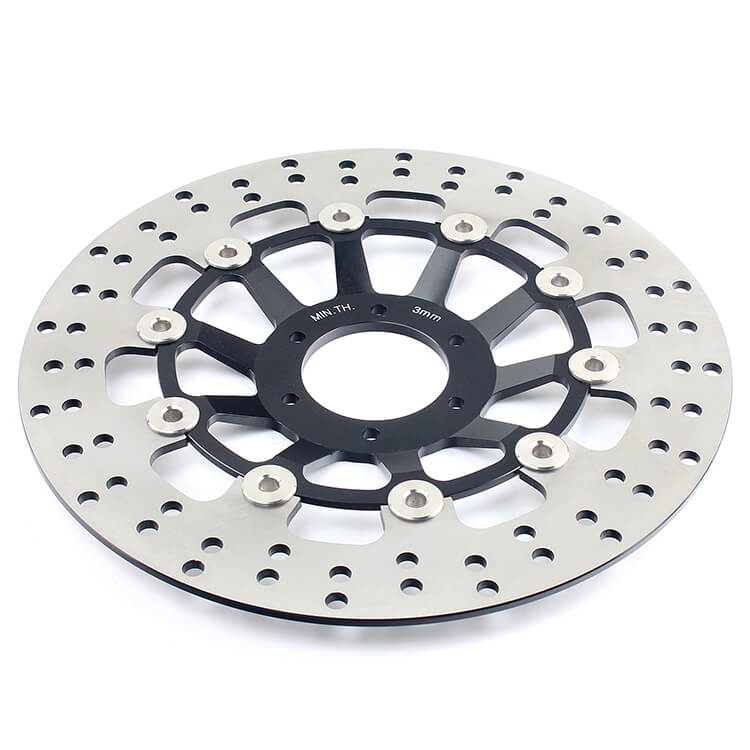

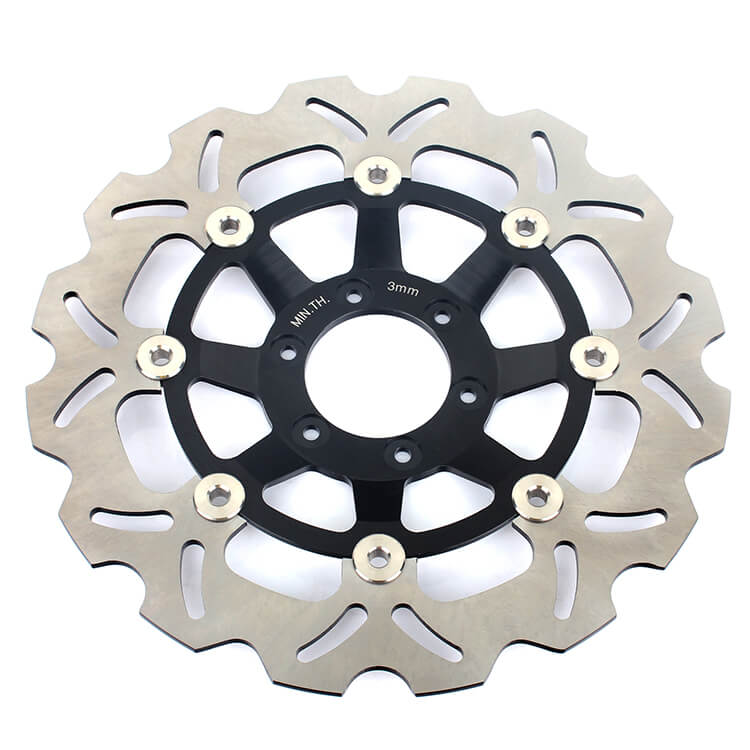

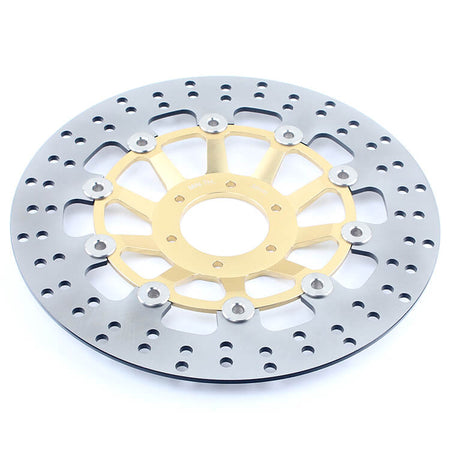

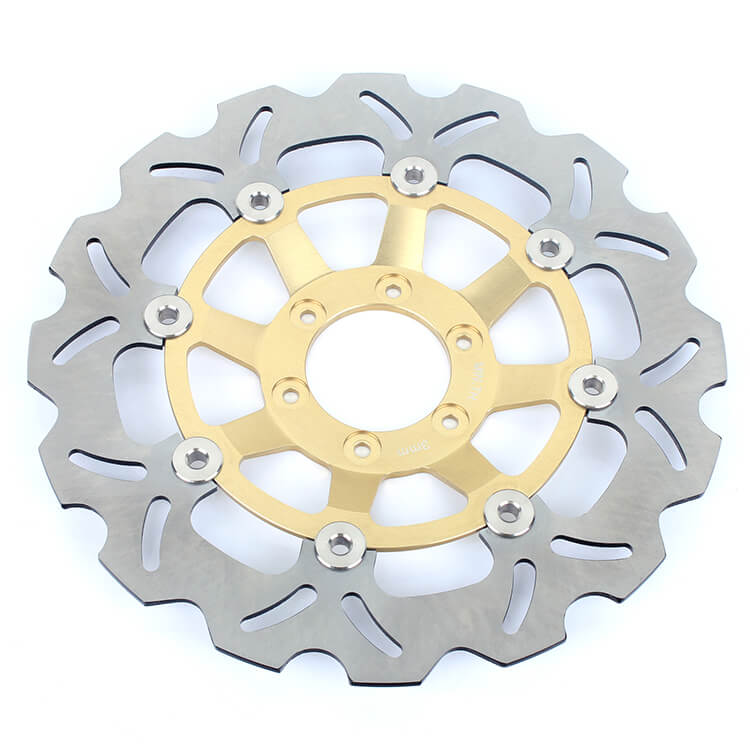

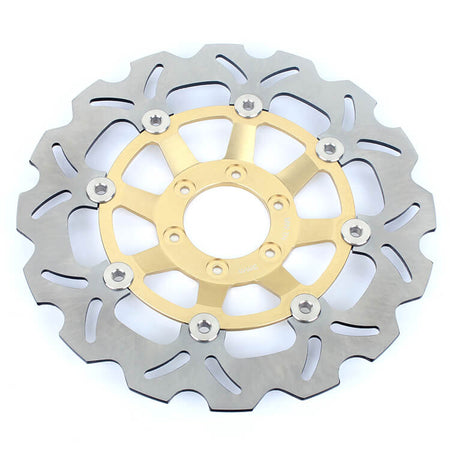

Front brake disc

• Heated treated 420 (2Cr13) stainless steel and 6061 aluminum for high srength & durability, deliver maximum stopping power.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping, and ensuring rotor longevity.
• The slotted rotor ensures water and dirt are dispersed quickly and keeps your brake system clean and run cooler.
• Drilled a lot of round holes on the plate, using of wind flow, increasing the effect of heat dissipation.
• Boasts up to 10% improvement in friction effect improving brakes even further.
• Surfaces are electro-statically coated to ensure a long term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 276mm
Inner diameter: 58mm
Thickness: 4mm
Hole quantity: 6
Hole size: 6mm
Hole spacing: 74mm
Offset height: 17mm

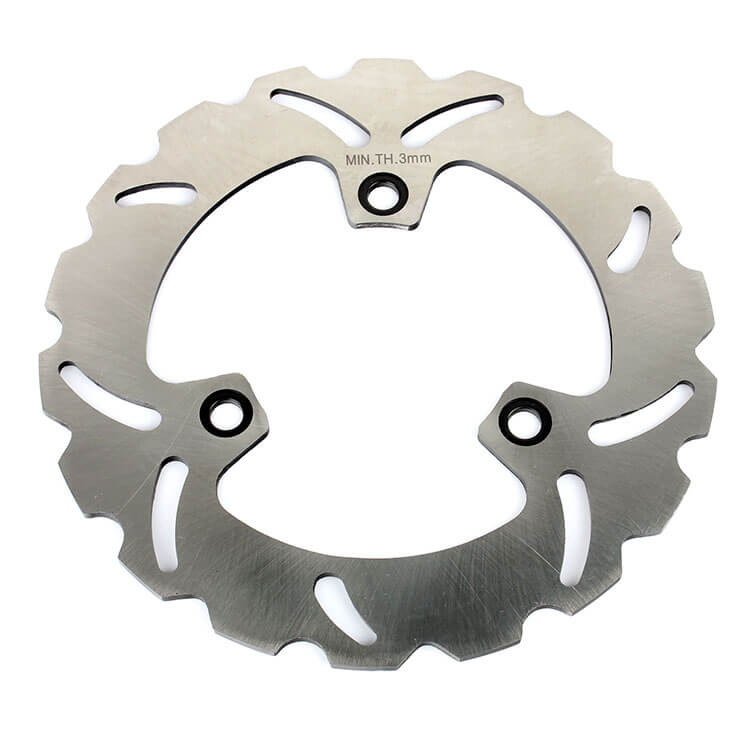

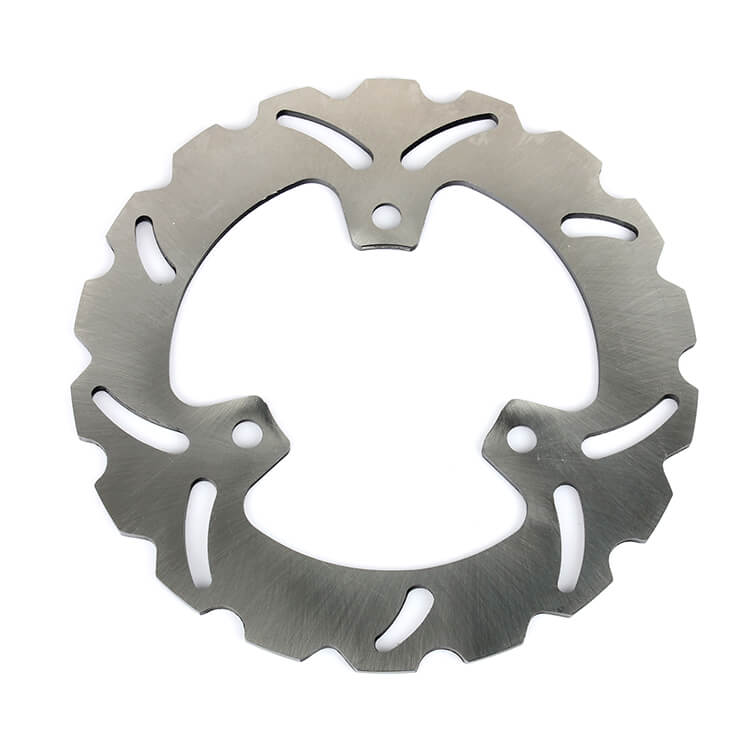

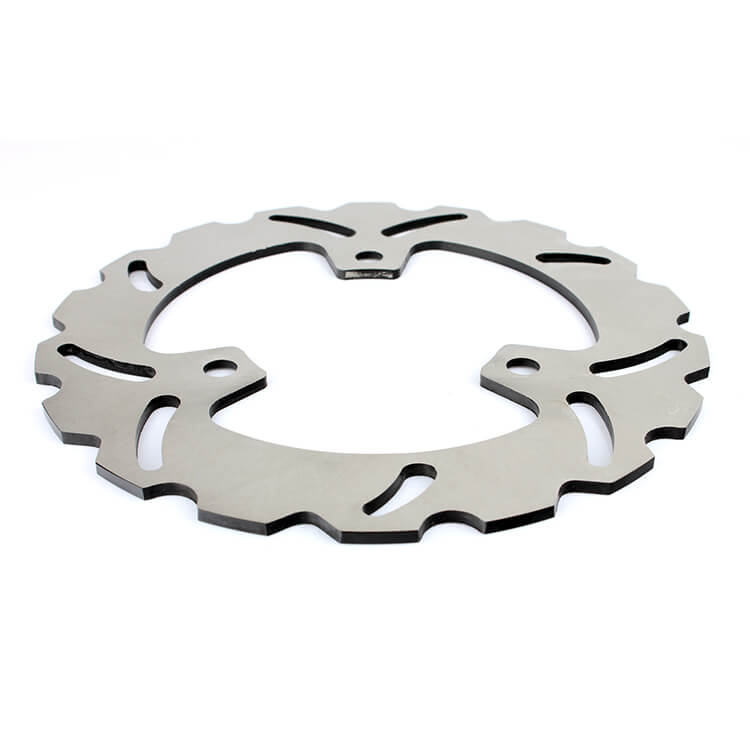

Rear brake disc

• Heat treated 420 (2Cr13) stainless steel with excellent corrosion resistance & warp resistance.
• Slotted design prevents mud and dirt from interfering with braking performance and keeps your brake system clean and run cooler.
• Light weight design, 30% light wieght than OEM.

Outer diameter: 220mm
Inner diameter: 88mm
Thickness: 4mm
Hole quantity: 3
Hole size: 10.4mm
Hole spacing: 110mm

We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding
