Fit for Honda CBR 600 F Sport 2001-2007

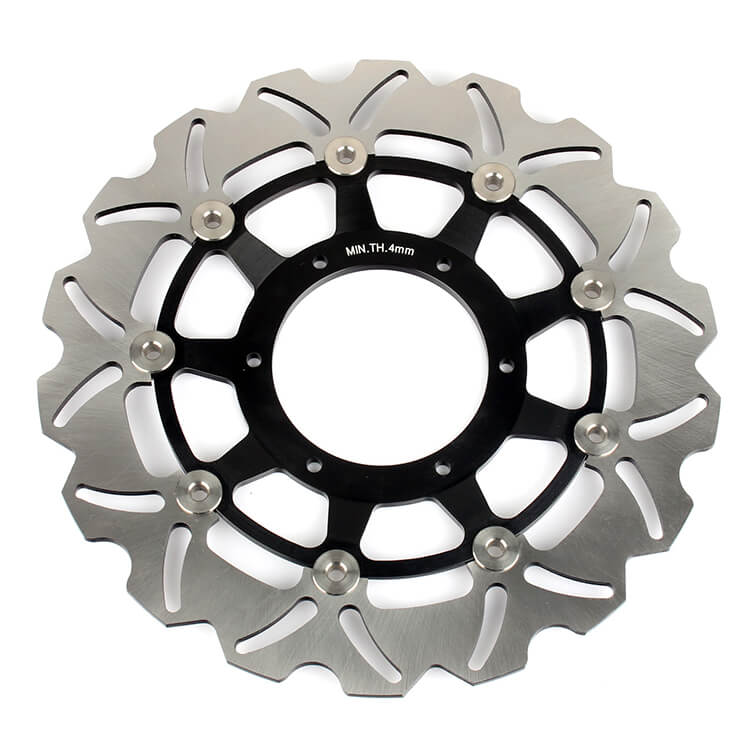

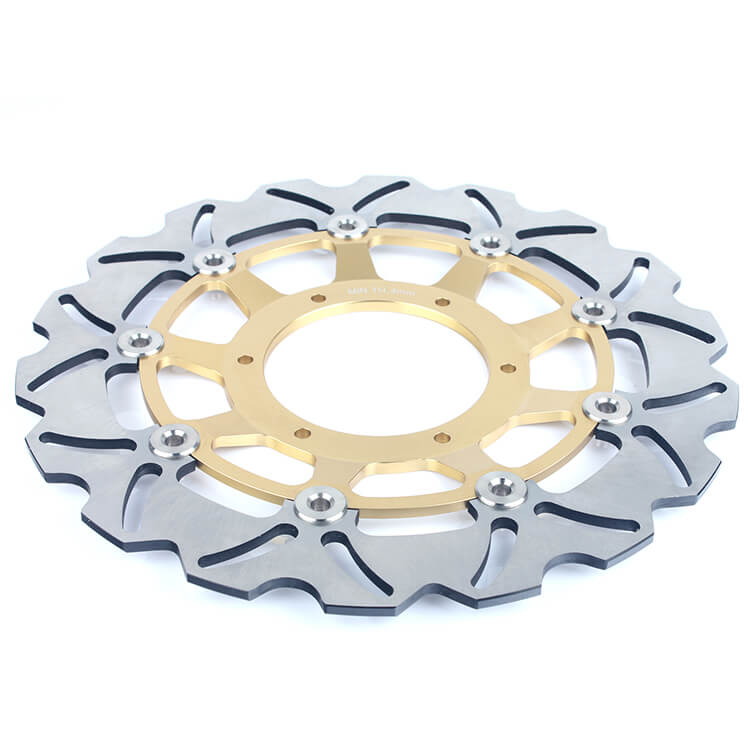

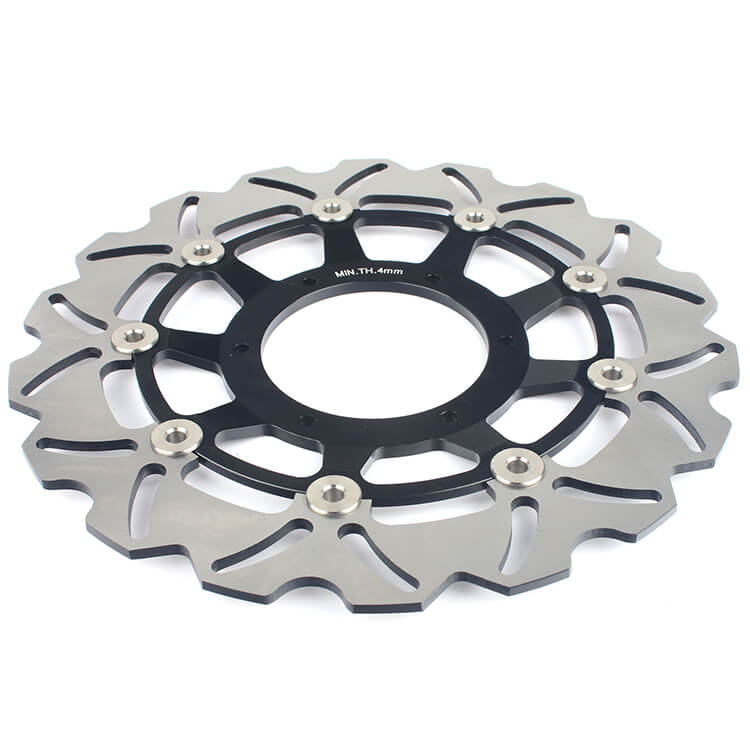

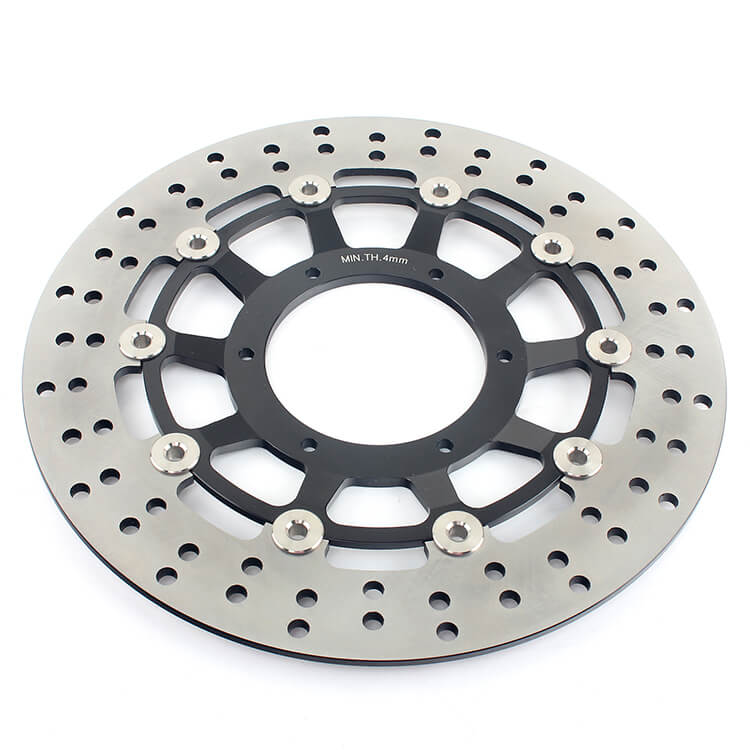

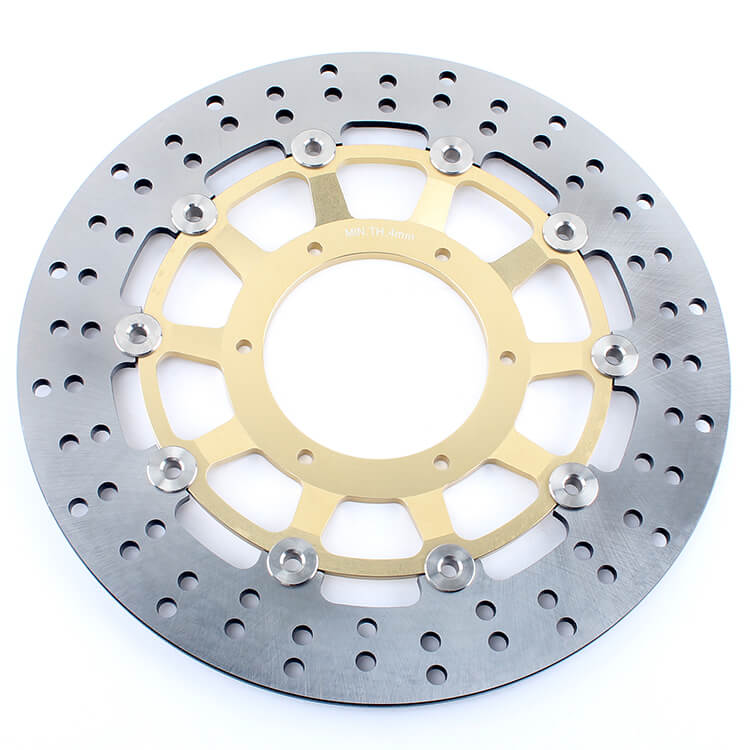

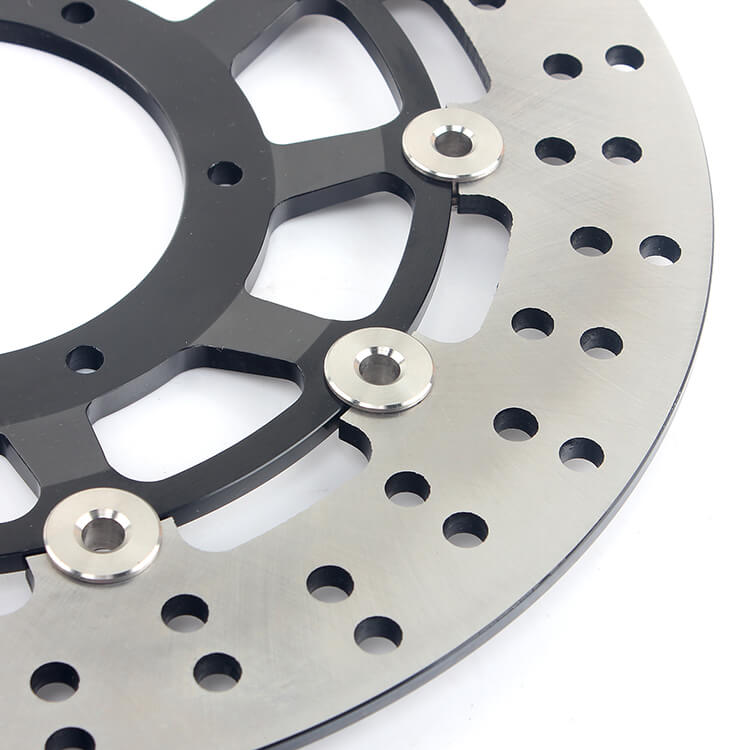

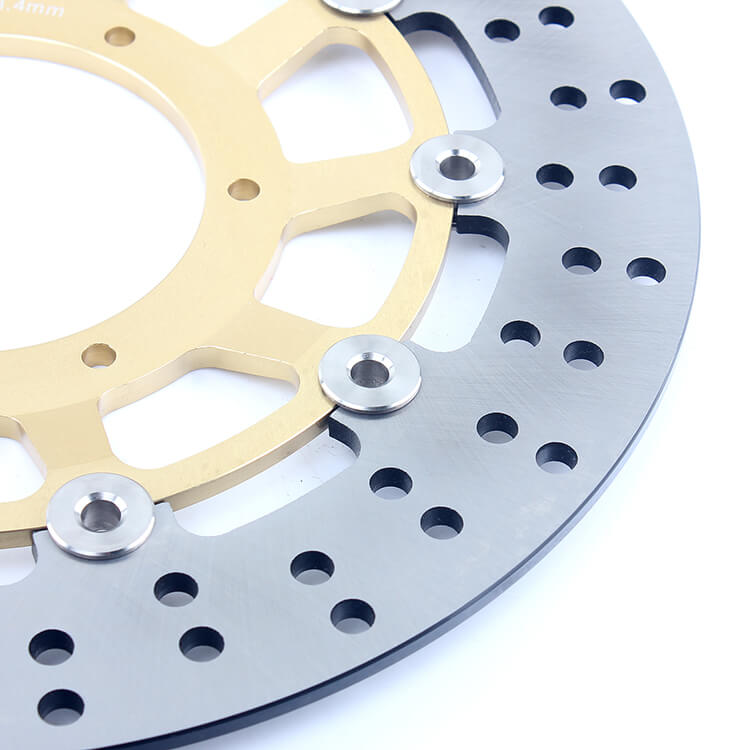

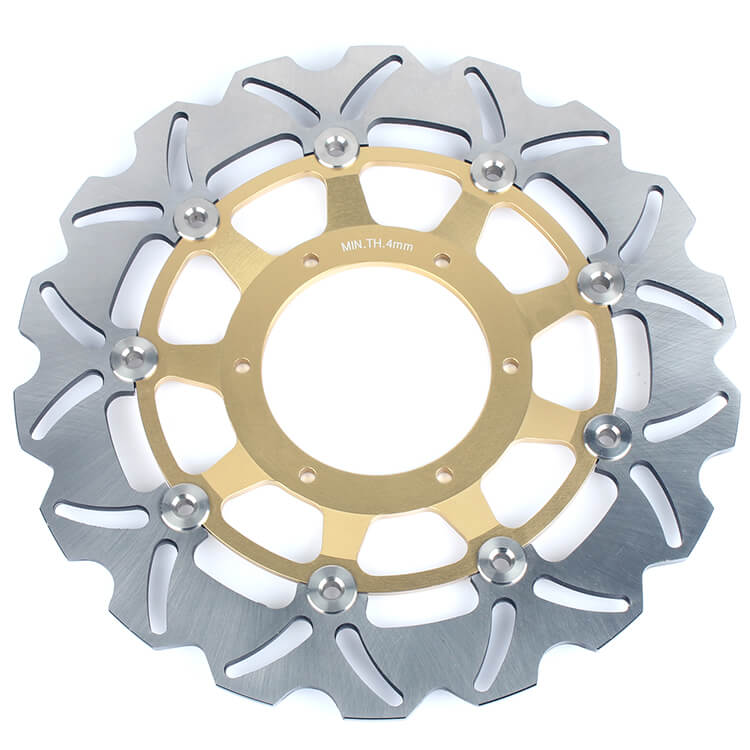

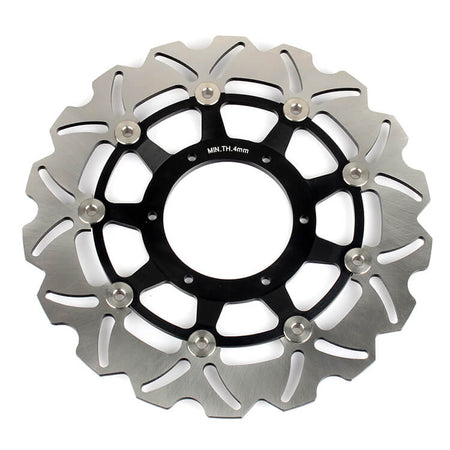

Front brake disc
- Precisely manufactured from high-performance 420 (2Cr13) stainless steel & 6061-T6 aluminum, high quality metal ensures that brake discs offer excellent stopping power.
- The slotted rotor ensures water and dirt are dispersed quickly when braking.
- Drilled a lot of round holes on the plate, using of wind flow, increasing the effect of heat dissipation.
- All fitting dimensions according to originally fitted disc.
- Surfaces are electro-statically coated to ensure a long term appearance
- No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors
Outer diameter: 296mm
Inner diameter: 94mm
Thickness: 5mm
Hole quantity: 6
Hole size: 6.4mm
Hole spacing: 115mm
Offset height: 12.5mm

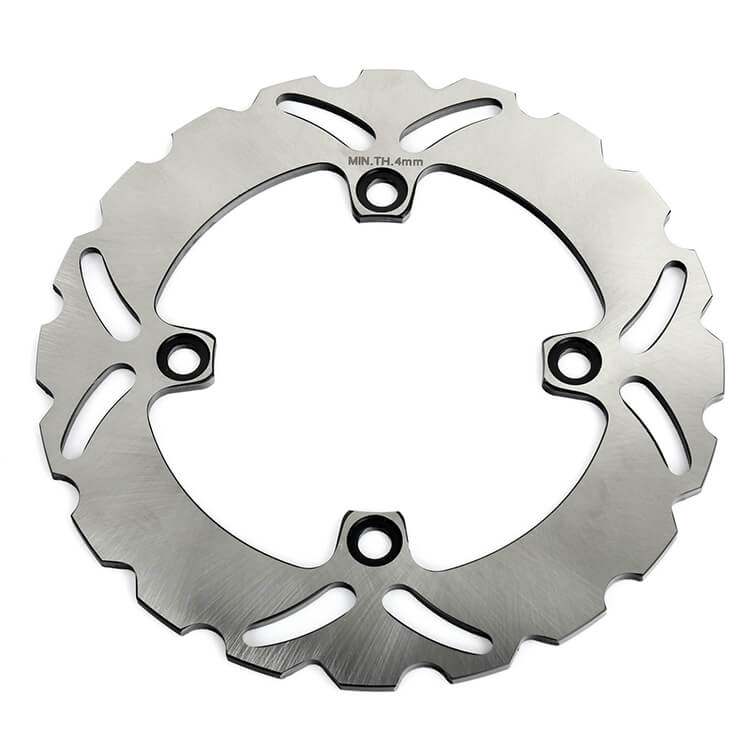

Rear brake disc
- Heat treated 420 2Cr13 stainless steel ensures durable braking power and greatly enhances braking performance.
- Light weight design, 30% light wieght than OEM.
- Slot system to keep your brake system clean and run cooler.
Outer diameter: 220mm
Inner diameter: 105mm
Thickness: 5mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 125mm
We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding
