Front Rear Brake Disc for Honda CBR1100XX Blackbird 1997-1998

Fit for Honda CBR1100 XX-V,W Blackbird SC35 H541 1997-1998

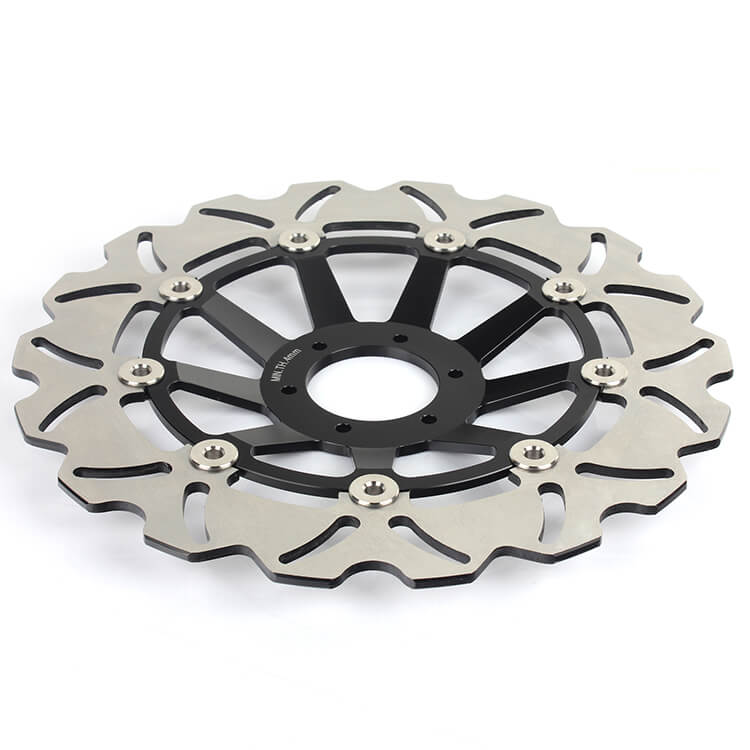

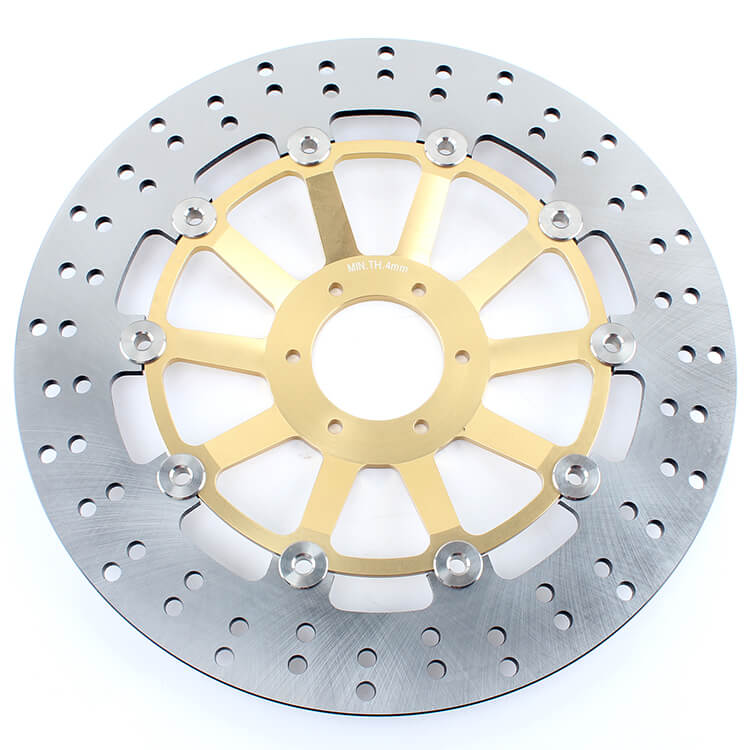

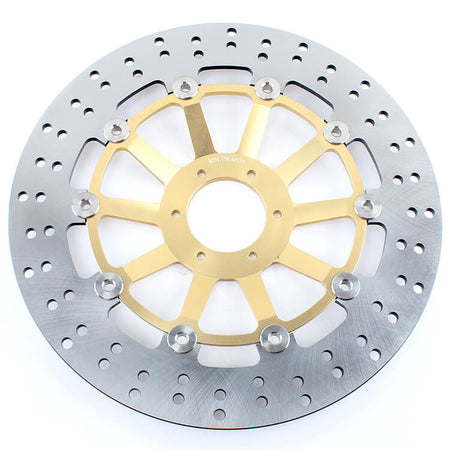

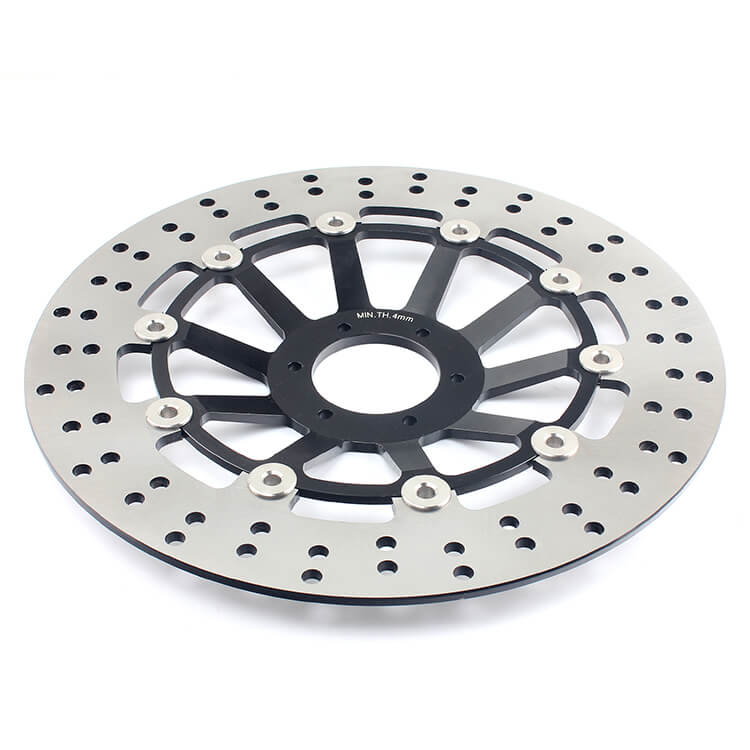

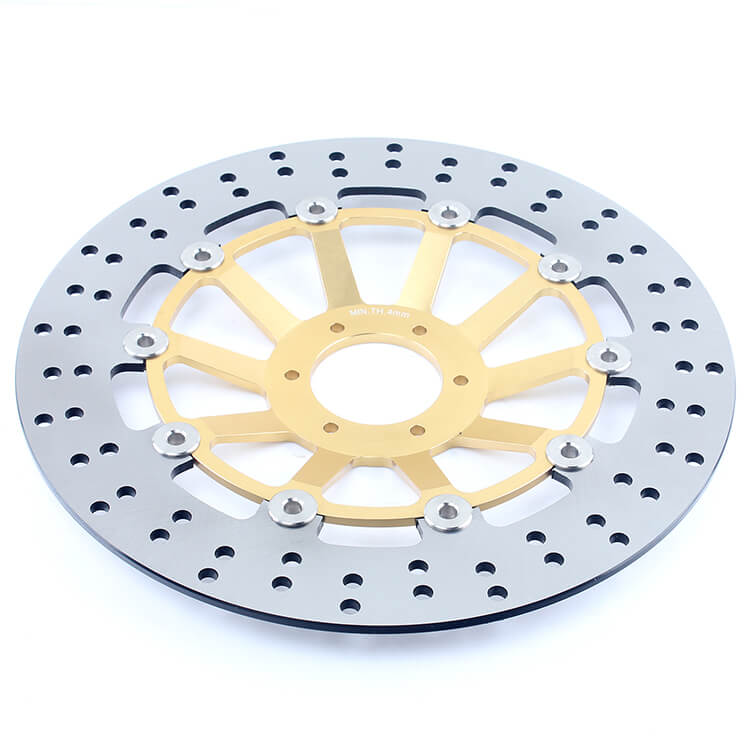

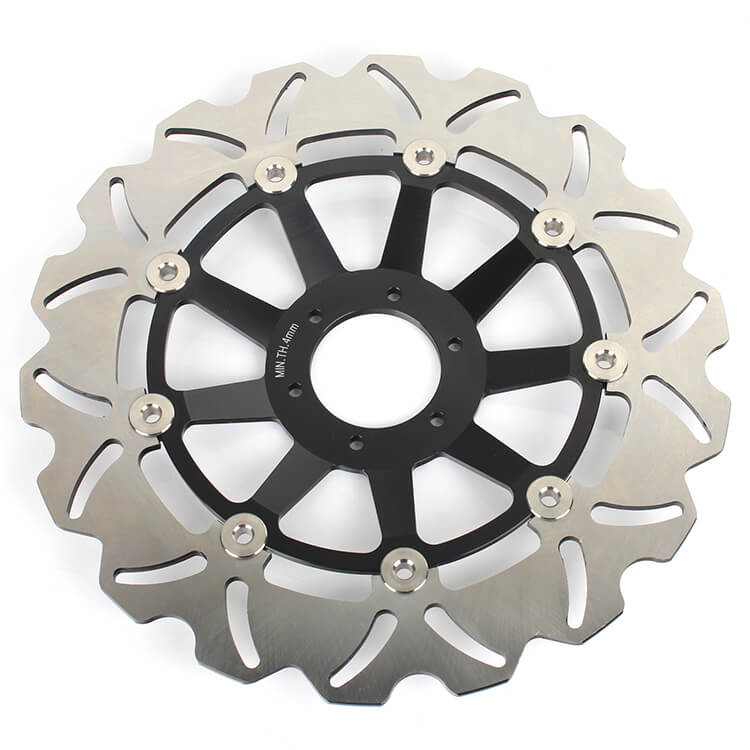

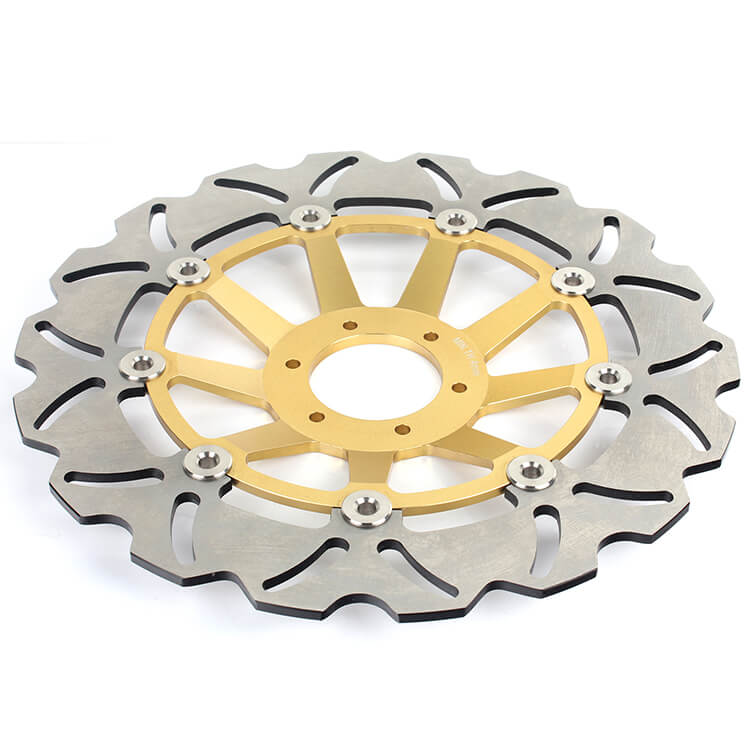

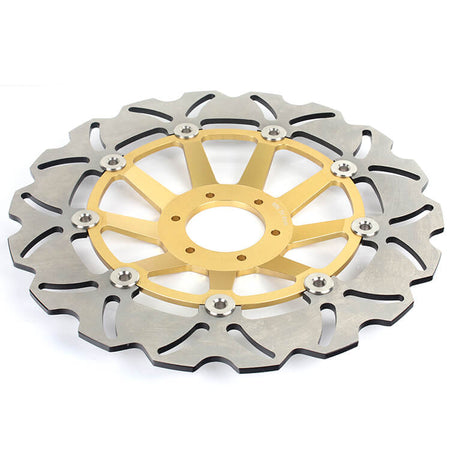

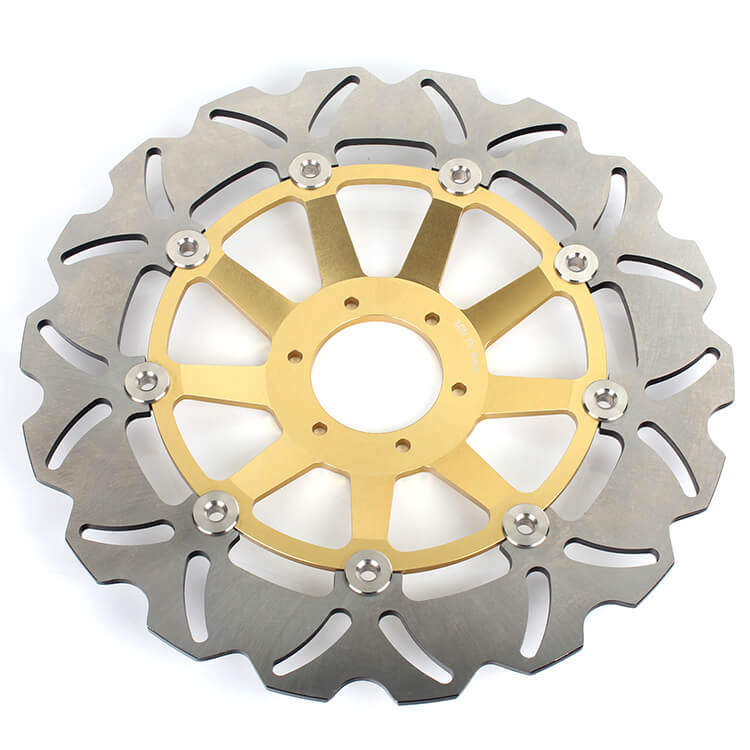

Front brake disc

• Heat treated 420 (2Cr13) stainless steel & anodized 6061-T6 aluminum ensure strong braking power as well as good look. A great combination of improved performance and apperance.
• Venting slots prevent mud and dirt packed to interfer the braking performance.
• Light weight wave design, 30% light wieght than OEM.
• Optimum shaped lightening holes for weight savings, better disc cooling and cleaning effect.
• Surfaces are electro-statically coated to ensure a long term appearance.
• No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 310mm
Inner diameter: 58mm
Thickness: 5mm
Hole quantity: 6
Hole size: 6.5mm
Hole spacing: 74mm
Offset height: 22mm

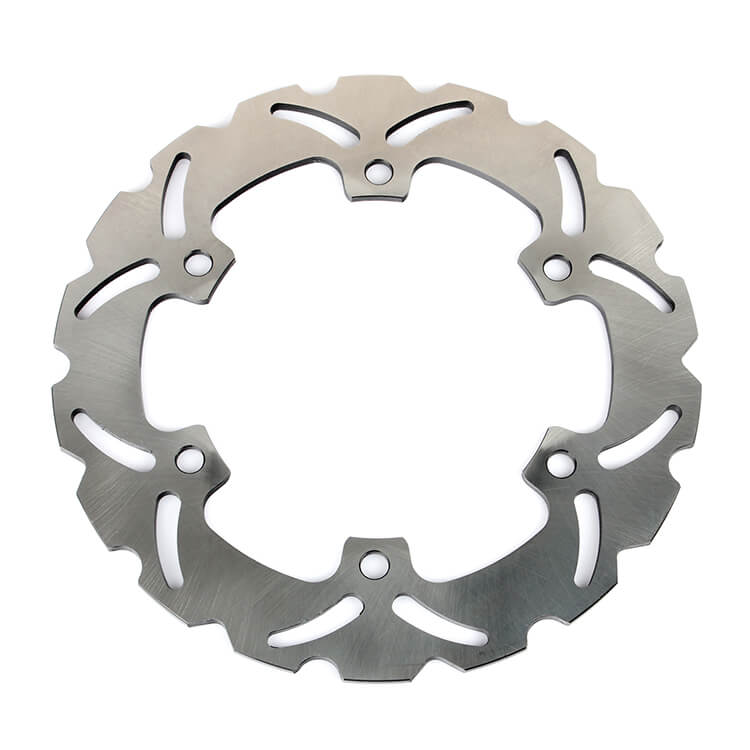

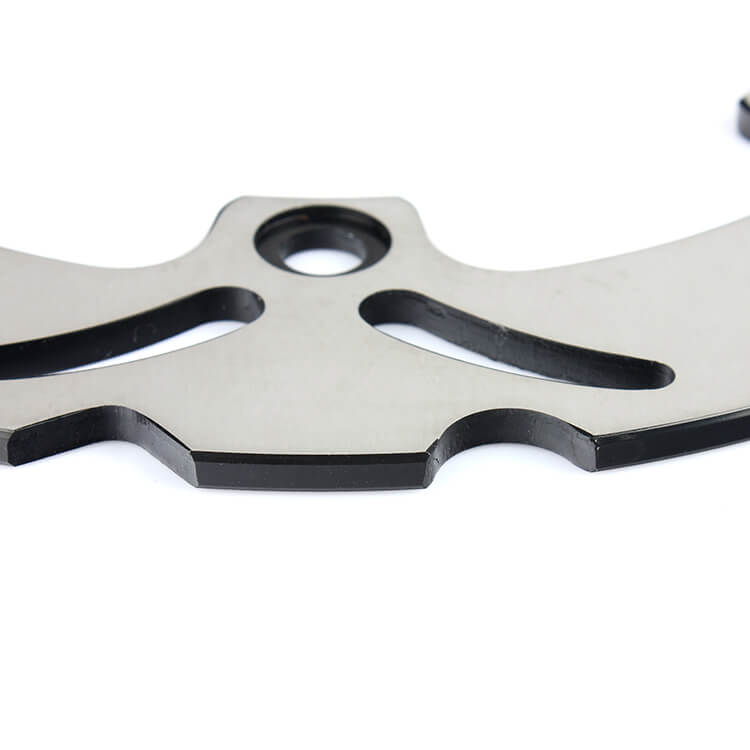

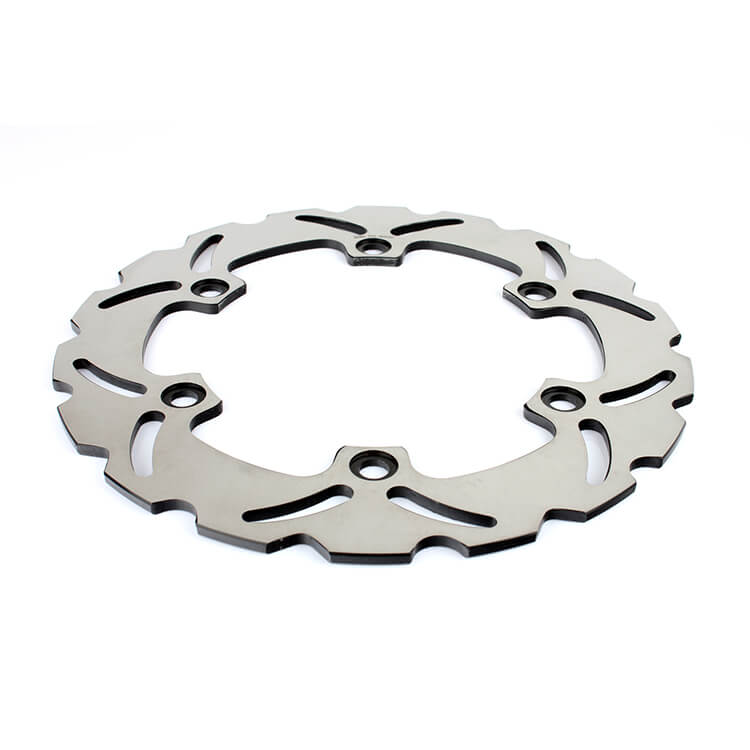

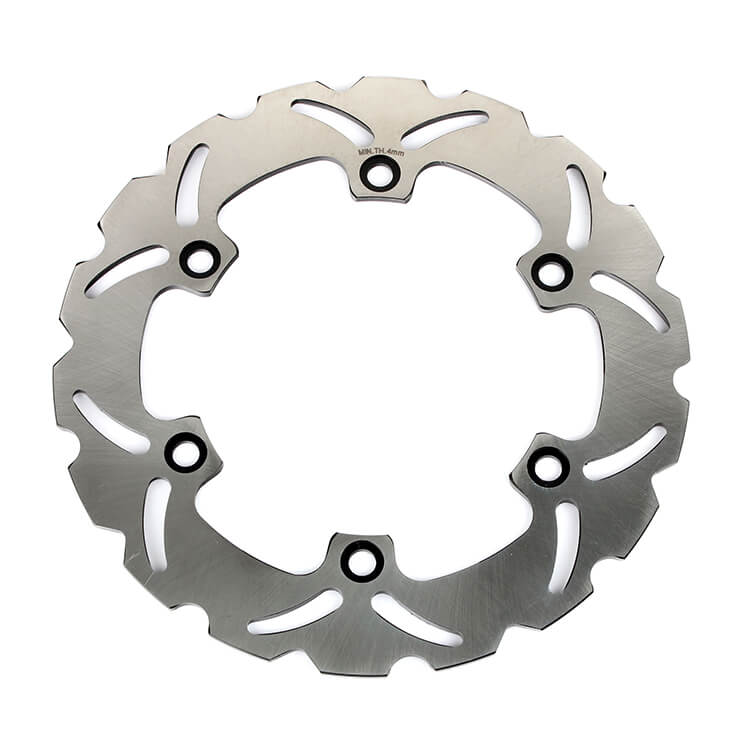

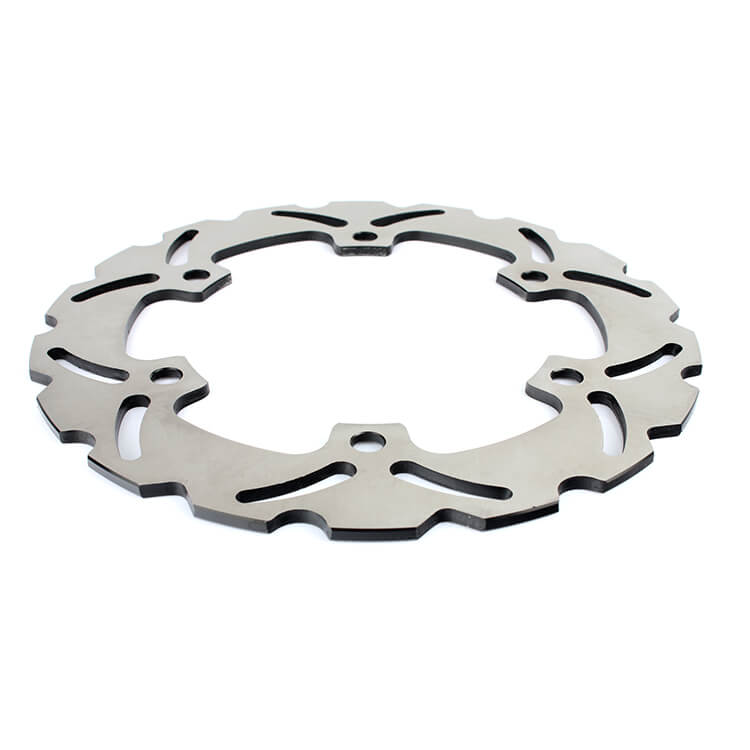

Rear brake disc

• Stainless steel 420 2Cr13 ensures strong braking power, Heat treated ensures warp resistance.
• The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimizing warping, and ensuring rotor longevity.
• The vented slots can remove water and dirt from the rotor in wet riding conditions quickly with good heat dissipation.
• Light weight design, 30% light wieght than OEM.

Outer diameter: 256mm
Inner diameter: 144mm
Thickness: 5mm
Hole quantity: 6
Hole size: 10.4mm
Hole spacing: 166mm

We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding
