Front Rear Brake Disc For Honda CB600F / CB600F ABS 2007-2013

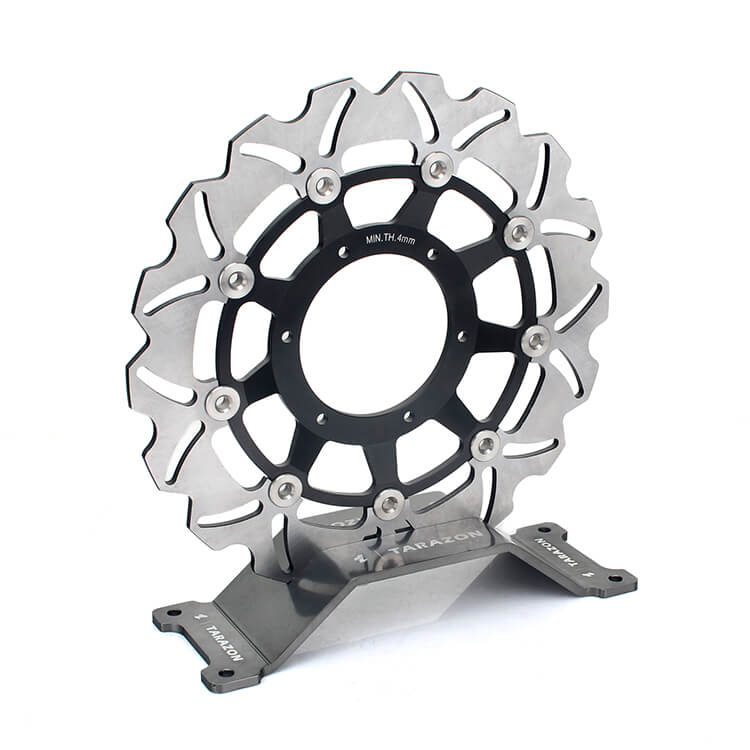

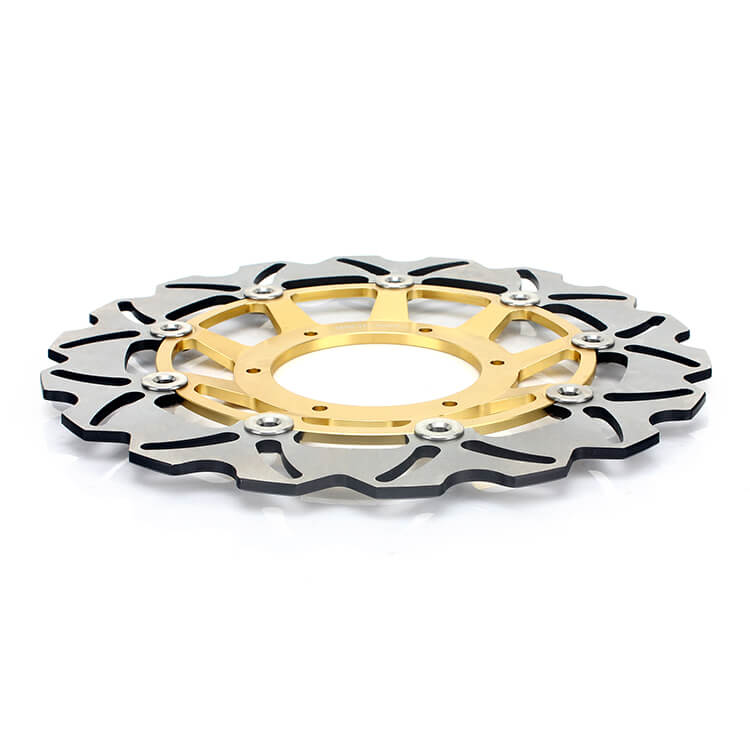

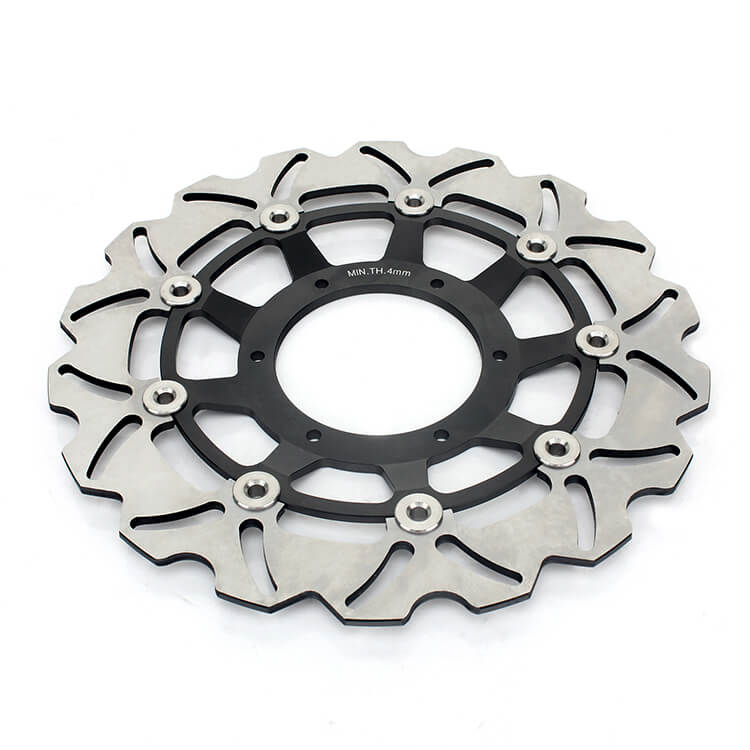

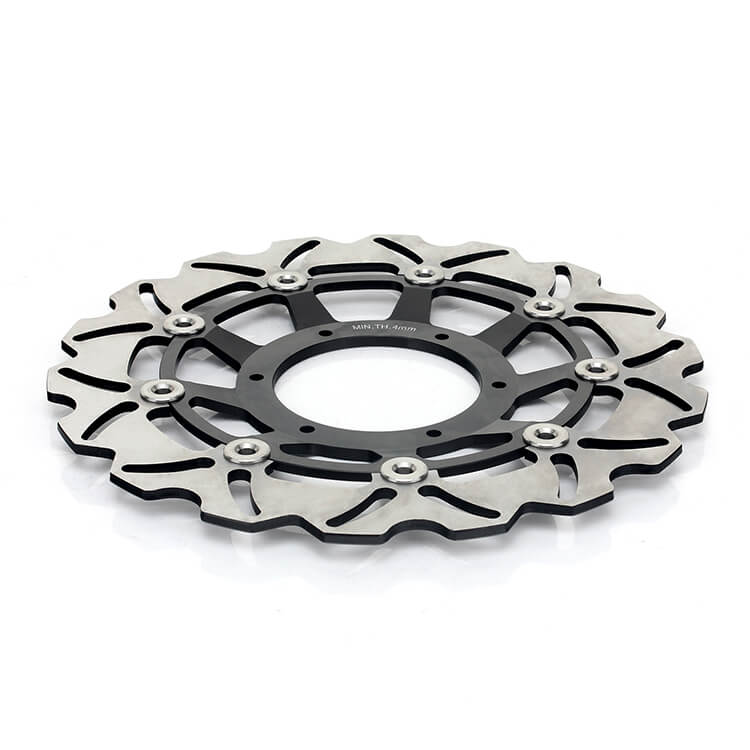

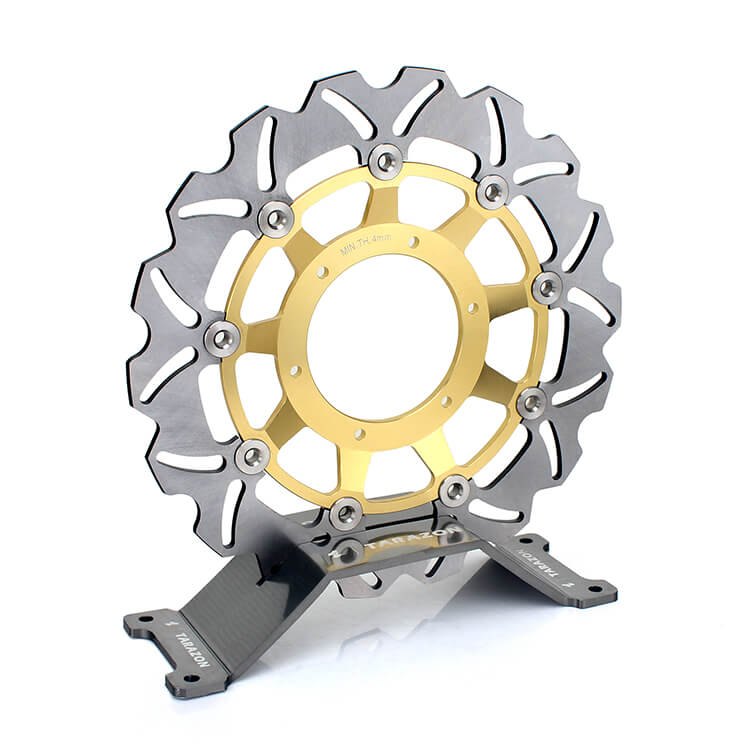

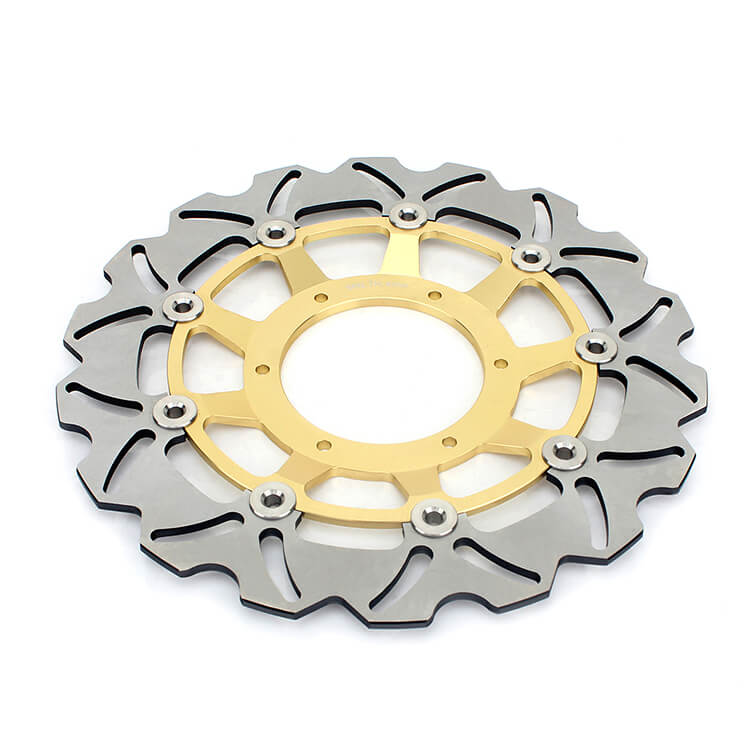

Front brake disc

• The venting slots can remove water and dirt from the rotor quickly and speed up air circulation when braking, keep brake system clean and provide best heat dissipation performance.
• Strong 420 (2Cr13) stainless steel & 6061-T6 aluminum, quality metal ensures excellent stopping power.
• Heat treatment for super hardness and toughness.
• Surfaces are electro-statically coated to ensure a long term appearance.
• All fitting dimensions according to originally fitted disc. No additional spacers or hardware and bolt needed, directly in place of your OEM brake rotors.

Outer diameter: 296mm
Inner diameter: 94mm
Thickness: 5mm
Hole quantity: 6
Hole size: 6.5mm
Hole spacing: 110mm
Offset height: 14.5mm

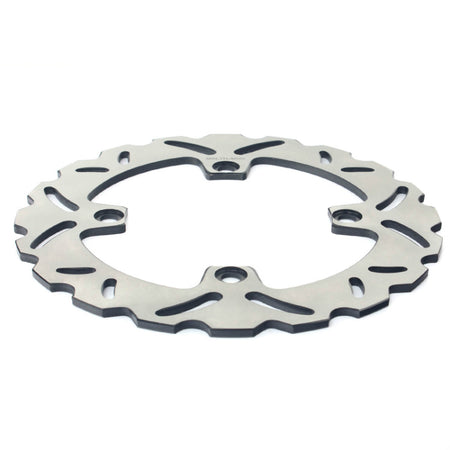

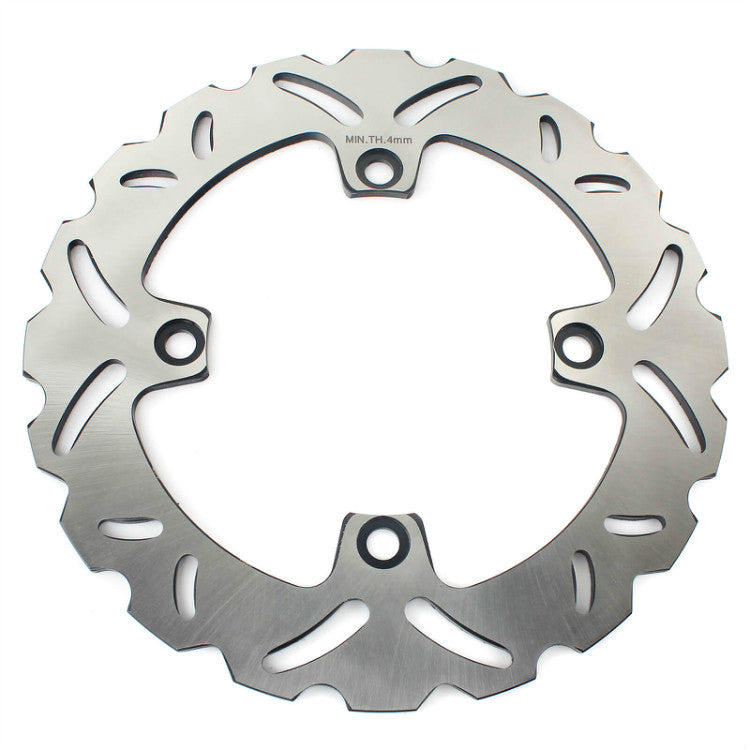

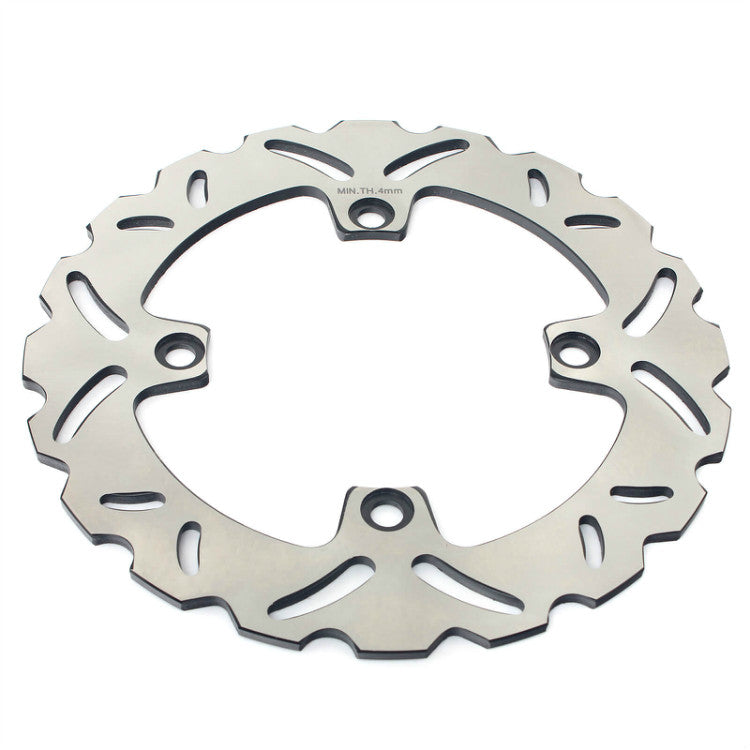

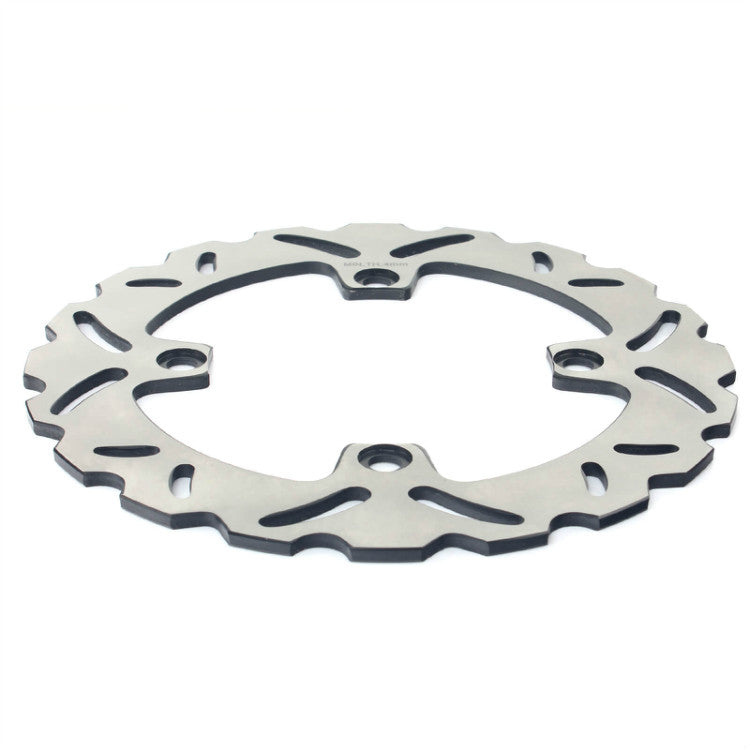

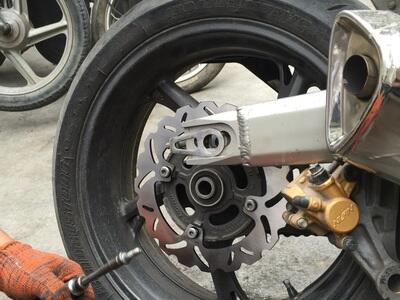

Rear brake disc

• Constructed by 420 2Cr13 stainless steel to offer strong braking power.
• Light weight wave shape disc, 30% light wieght than OEM.
• Slot system keeps your brake system clean and run cooler.
• The grooves on the disc surface create a self ventilating system to make the disc cool down.

Outer diameter: 240mm
Inner diameter: 116.5mm
Thickness: 5mm
Hole quantity: 4
Hole size: 10.5mm
Hole spacing: 135mm

All discs carry the required minimum thickness markings essential for road registration. Please replace your brake disc when it reaches the Minimum Thickness marked on the disc surface to ensure your safety
