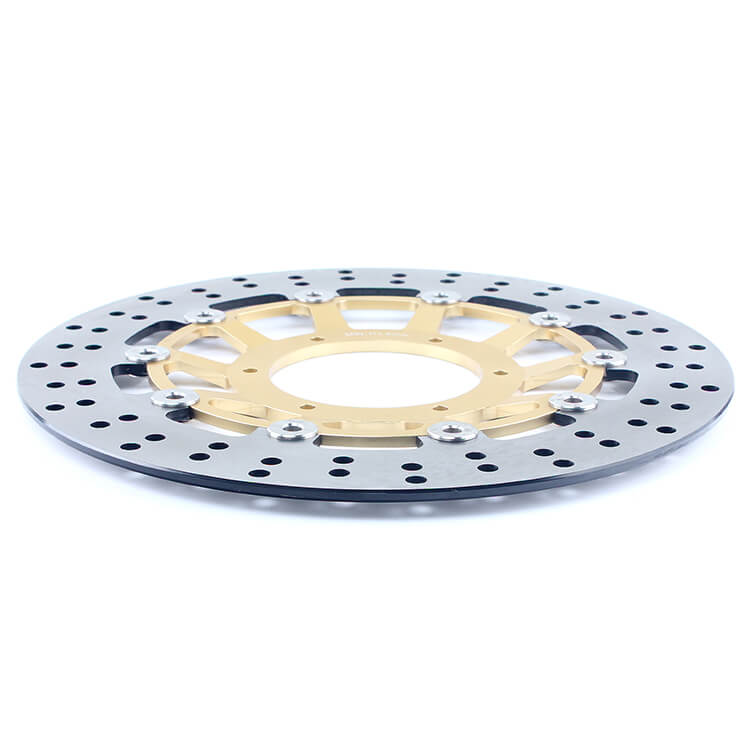

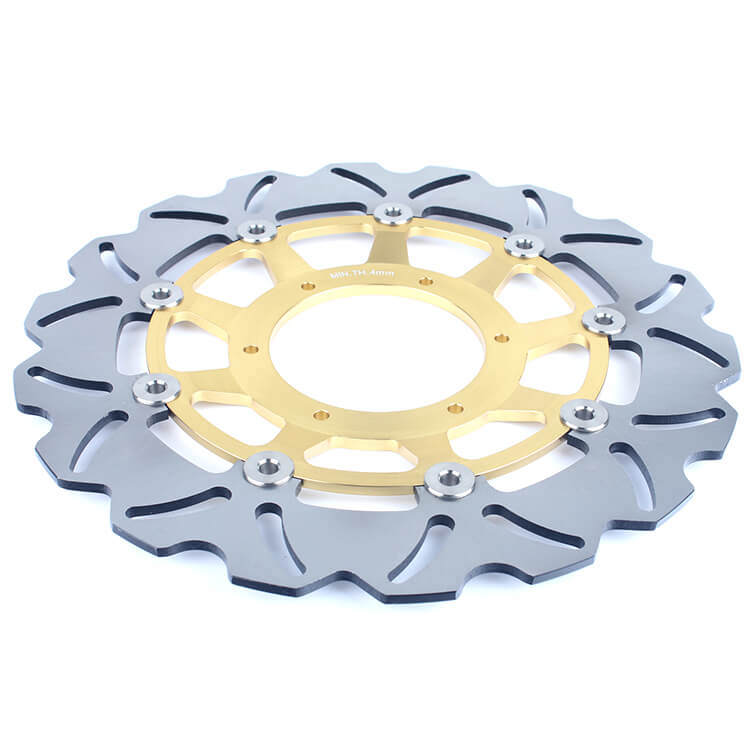

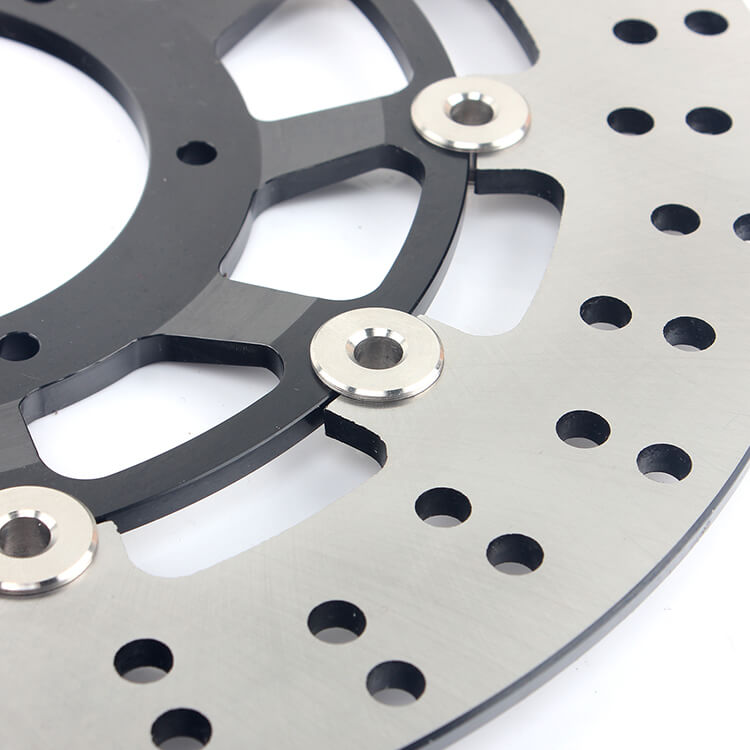

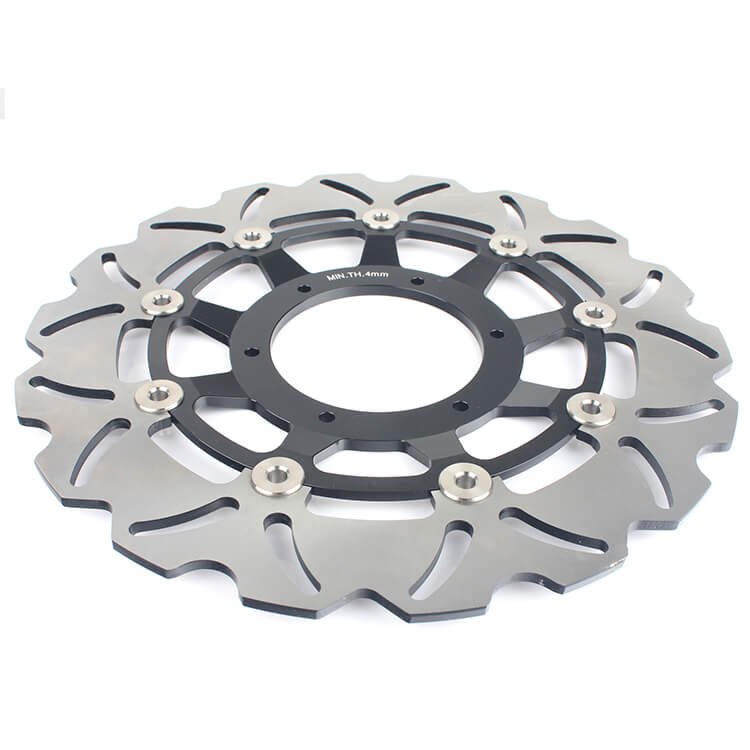

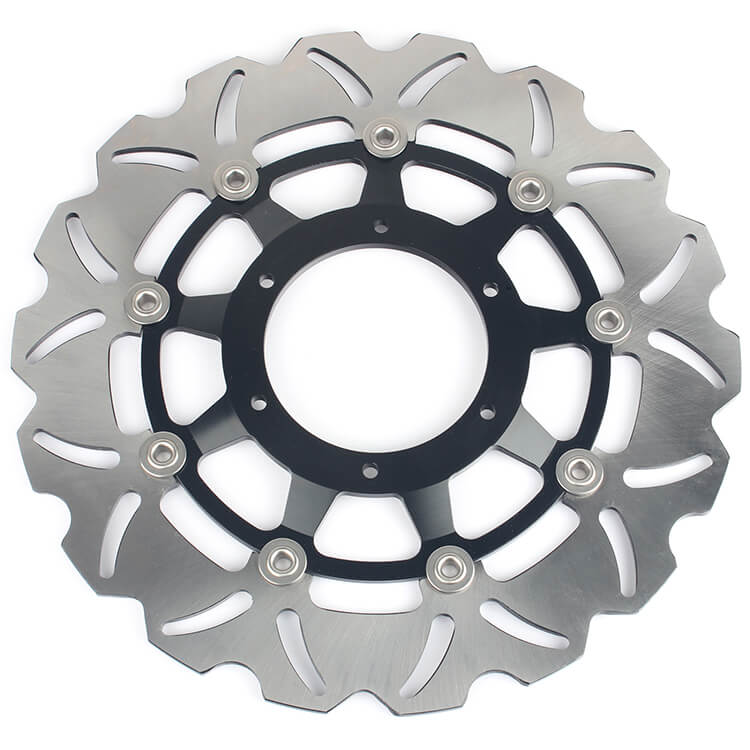

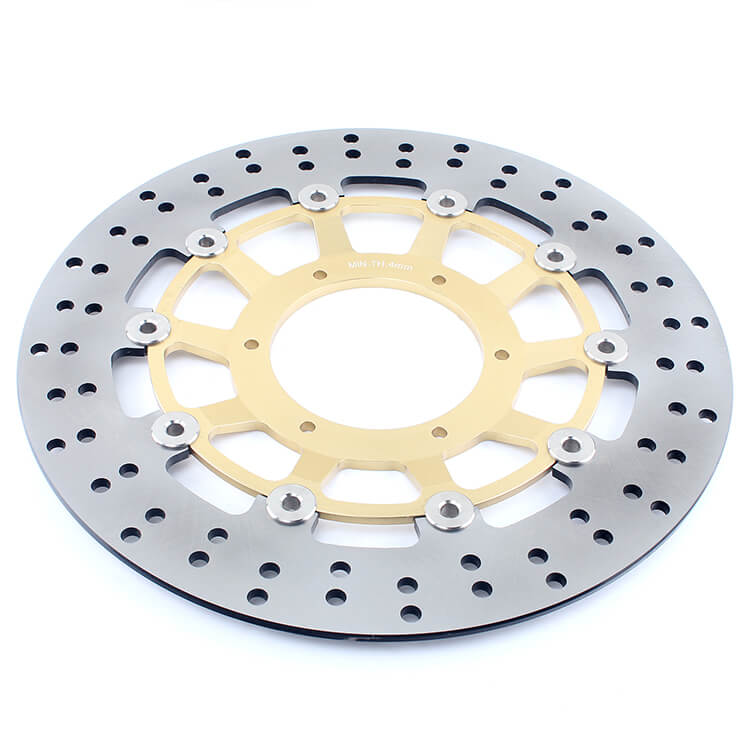

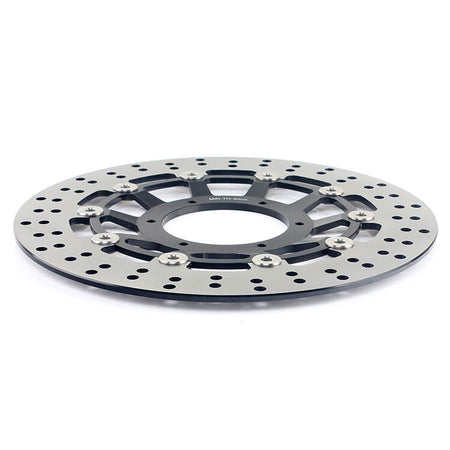

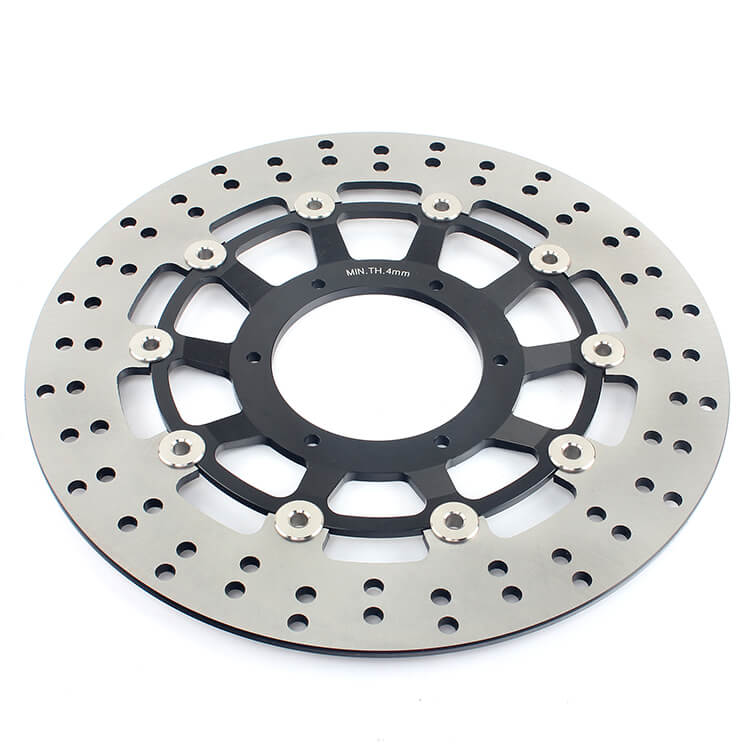

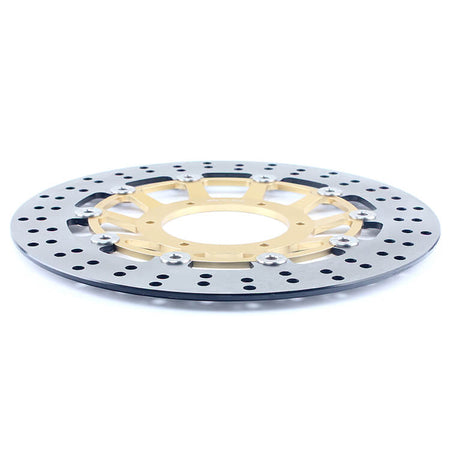

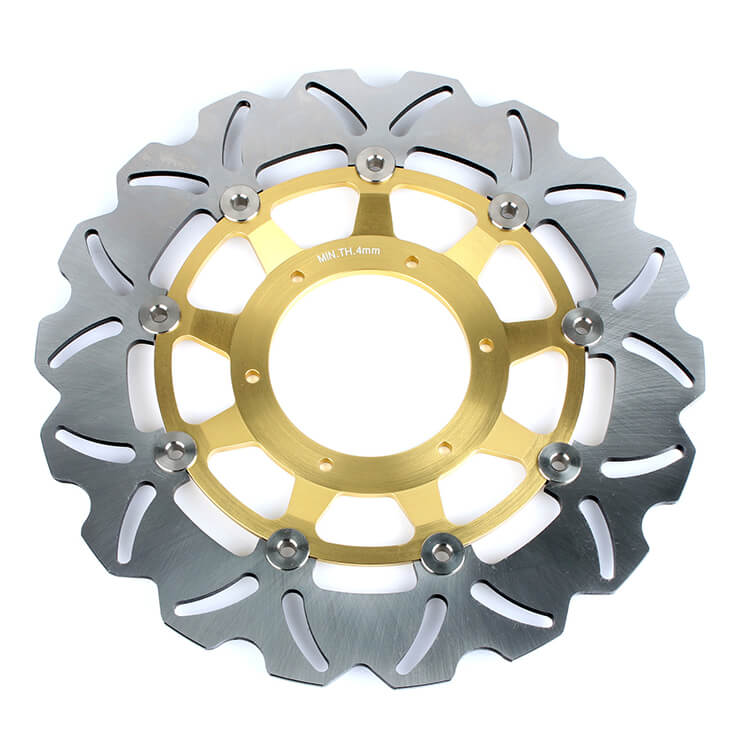

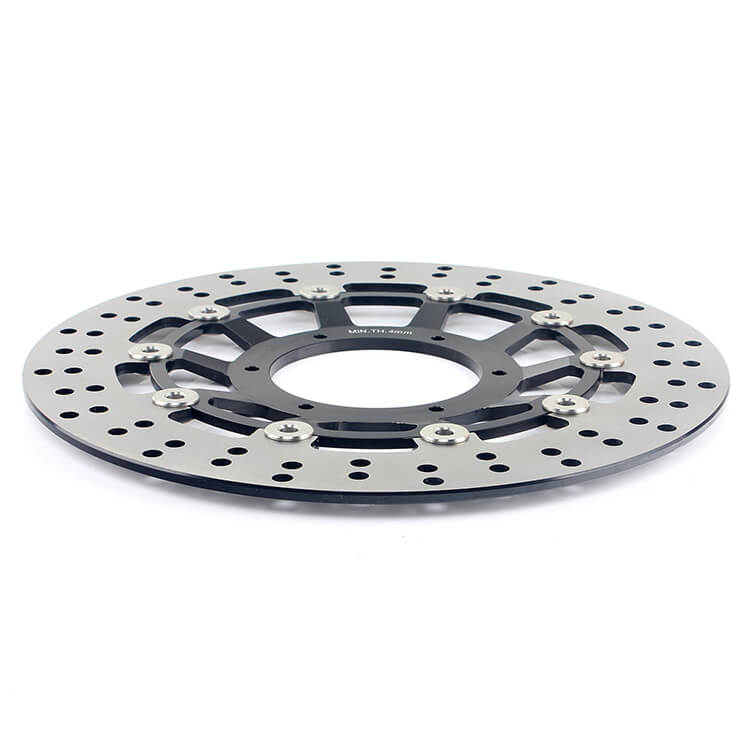

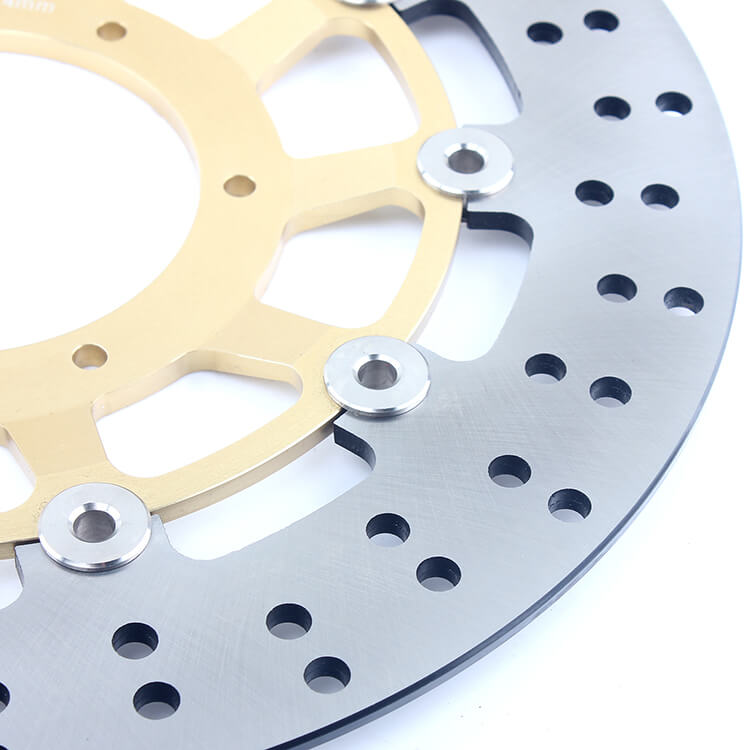

Front brake disc
- Strong 420 (2Cr13) stainless steel & 6061-T6 aluminum. Quality disc with tightest tolerance and precise surface grinding.
- The construction offers great heat dissipation and allows air to circulate through disc to maximize cooling efficiency.
- CNC laser cut slotted design improves rotor cooling for better heat dissipation and water dispersion, the slotted rotor ensures water and dirt are dispersed quickly when braking.
- Drilled a lot of round holes on the plate, using of wind flow, increasing the effect of heat dissipation.
- Replaces original disc with no modification required.
Outer diameter: 310mm
Inner diameter: 94mm
Thickness: 5mm
Hole quantity: 6
Hole size: 6.2mm
Hole spacing: 110mm

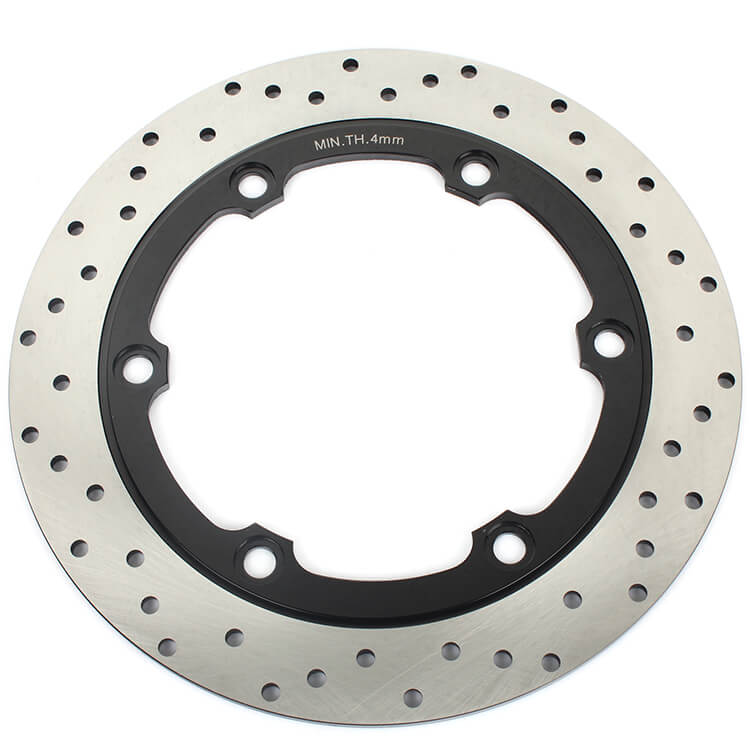

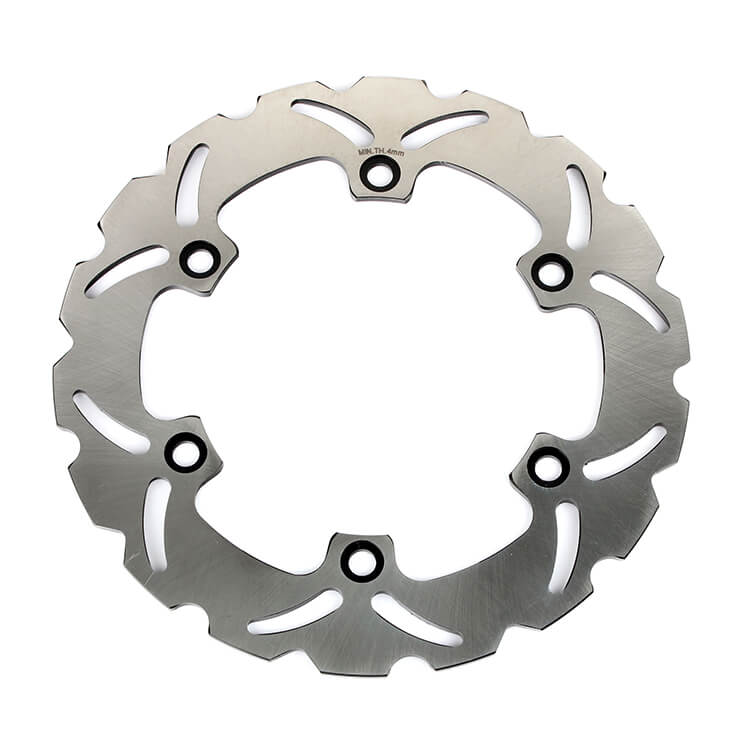

Rear brake disc
- 420 2Cr13 stainless steel ensures strong braking power.
- Slotted rotor shape not only adds the rotor's appearance, but also aids in quick cooling and clean efficiency.
- Venting holes for superior heat dissipation.
- Excellent corrosion resistance.
- Wave shape rotor is 30% light wieght than OEM.
Outer diameter: 256mm
Inner diameter: 144mm
Thickness: 5mm
Hole quantity: 6
Hole size: 10.4mm
Hole spacing: 166mm
Fit for
| HONDA | CB 1300 F F3- SC54 2003-2006 |
| HONDA | CB 1300 SF SuperFour 3,4,5,6 2003-2006 |
| HONDA | CB 1300 S Super Bol-Dor SC54 S5- 2005 - 2014 |
| HONDA | CB 1284 2003-2008 |
