Front Rear Brake Disc for Ducati Hypermotard 1100 Evo 2010-2013 / Hypermotard 1100 Evo Sp 2010-2013

Fit for
Ducati Hypermotard 796 800CC model year 2010-2013
Ducati Hypermotard 1100CC H7 e3*0436 model year 2007-2009
Ducati Hypermotard S 1100CC H7 e3*0436 model year 2007-2009
Ducati Hypermotard EVO 1100CC model year 2010-2013
Ducati Hypermotard EVO SP 1100CC model year 2010-2013

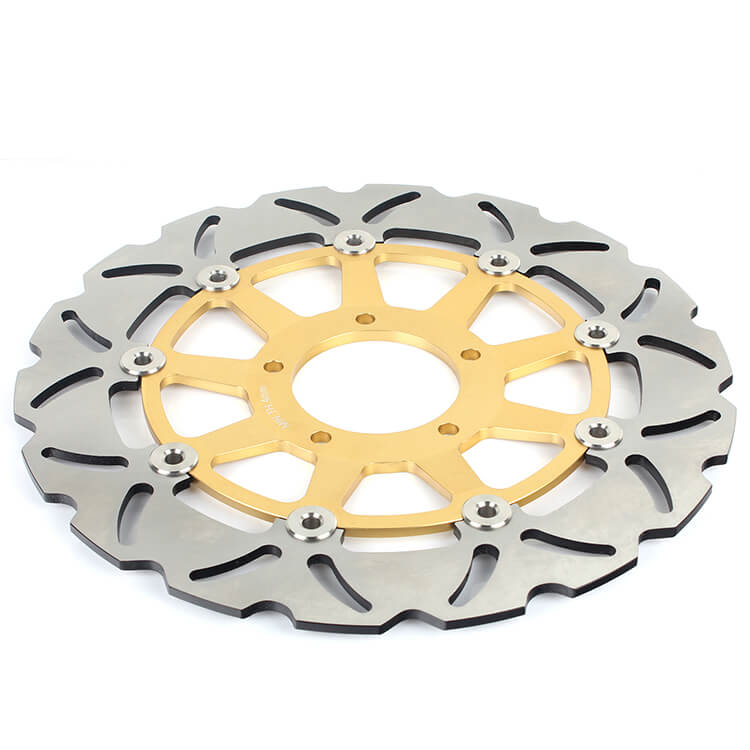

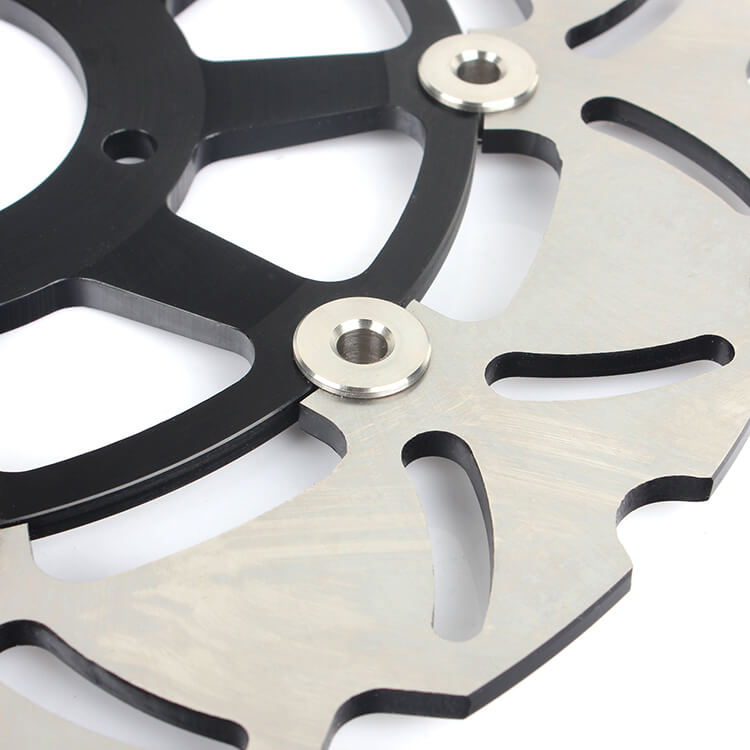

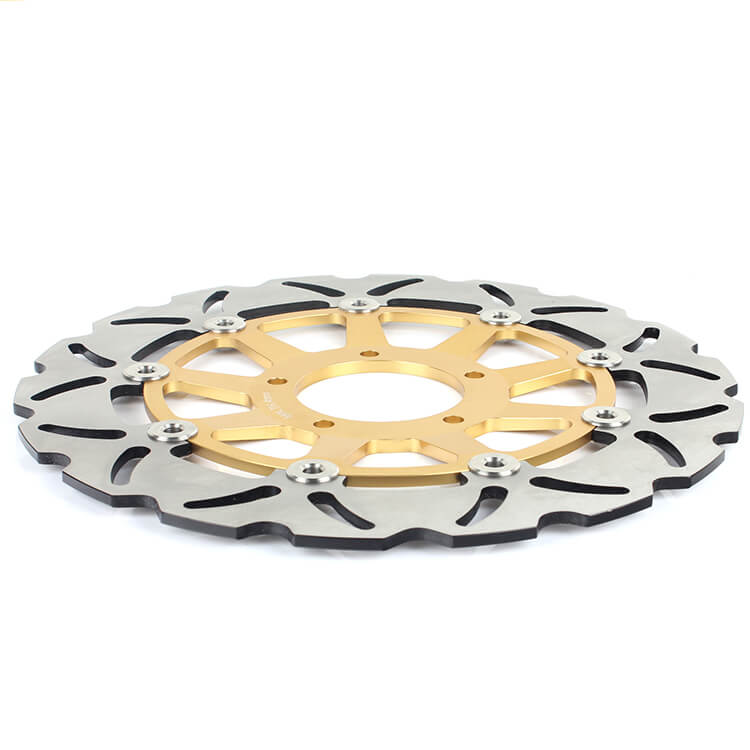

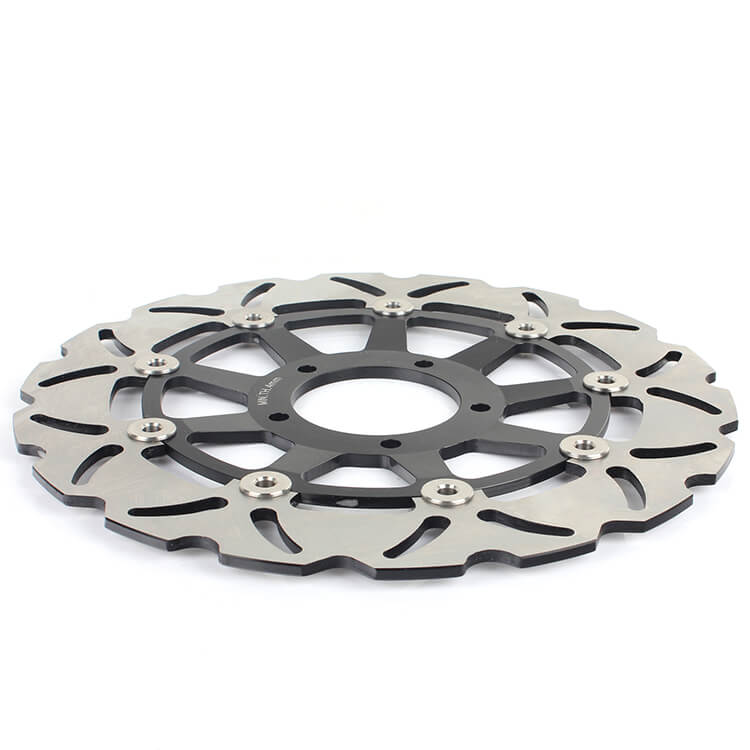

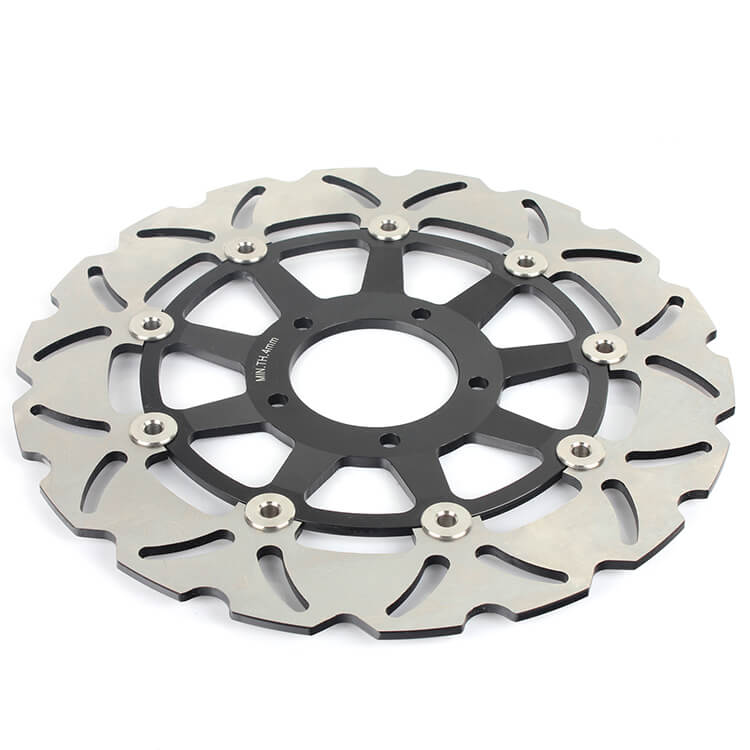

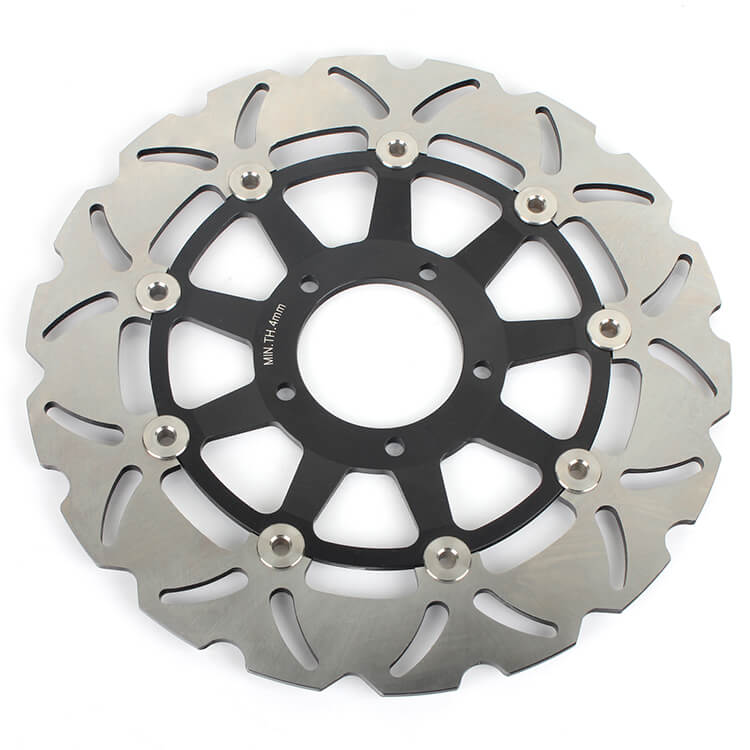

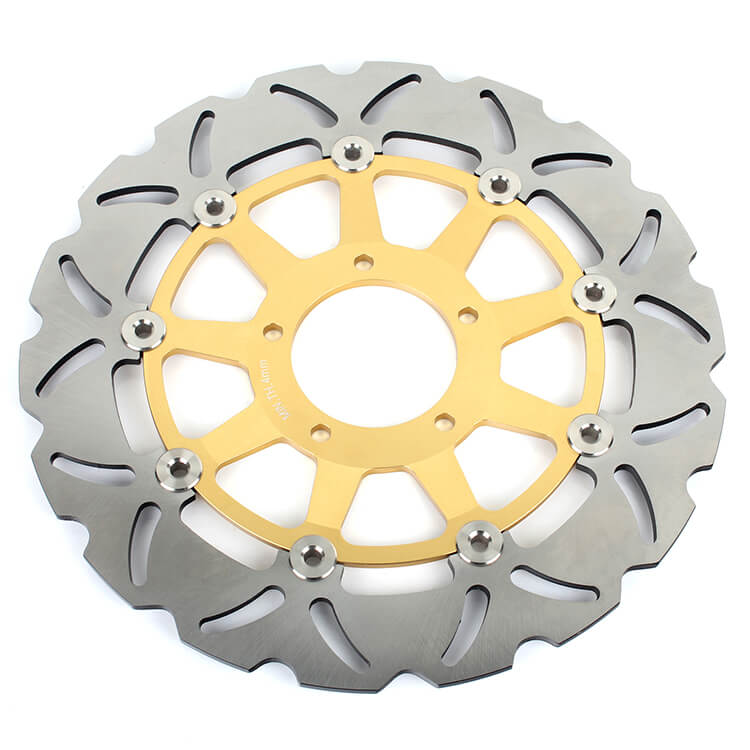

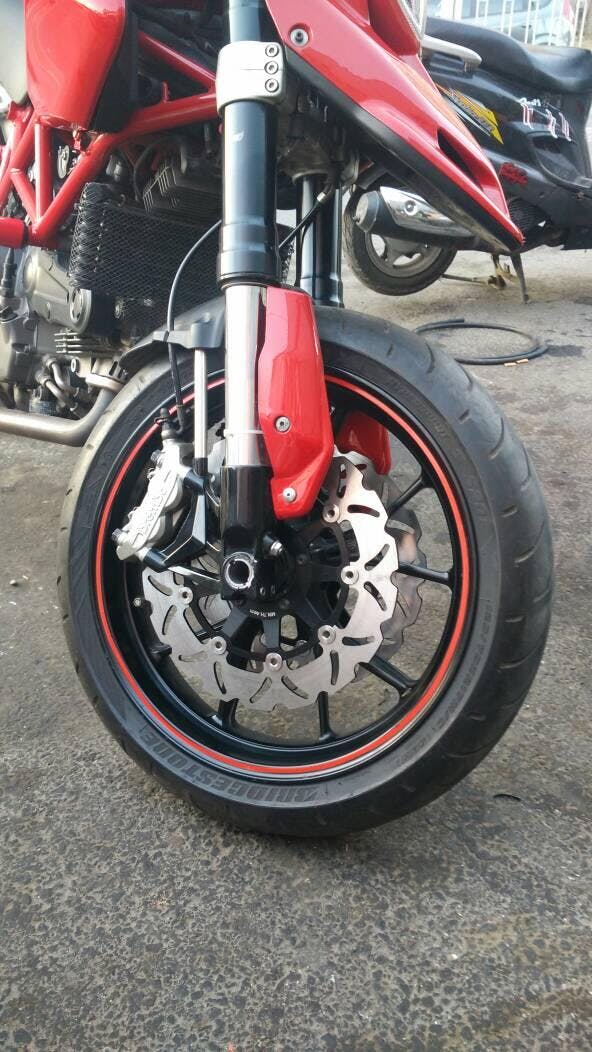

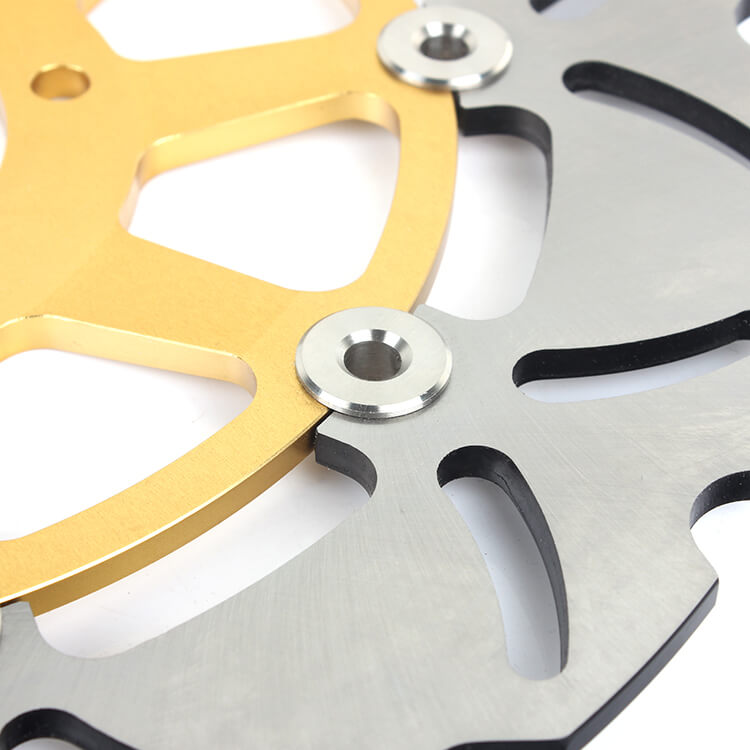

Front floating disc

• This brake disc rotors are constructed from 420 stainless steel & anodized 6061-T6 aluminum.
• Wave shape brake disc for weight saving and increased clean effect. The slotted rotor ensures water and dirt are dispersed quickly when braking.
• The grooves on the disc surface create a self ventilating system to make brake system cool down and also prevent mud and dirt from interfering with braking performance.
• 20% light weigth than OEM.
• Surface is electro-statically coated to ensure a long term appearance.
• Replaces original disc with no modification required.

Outer diameter: 305mm
Inner diameter: 72mm
Thickness: 5mm
Hole quantity: 5
Hole size: 8.5mm
Hole spacing: 90mm
Offset height: 10mm

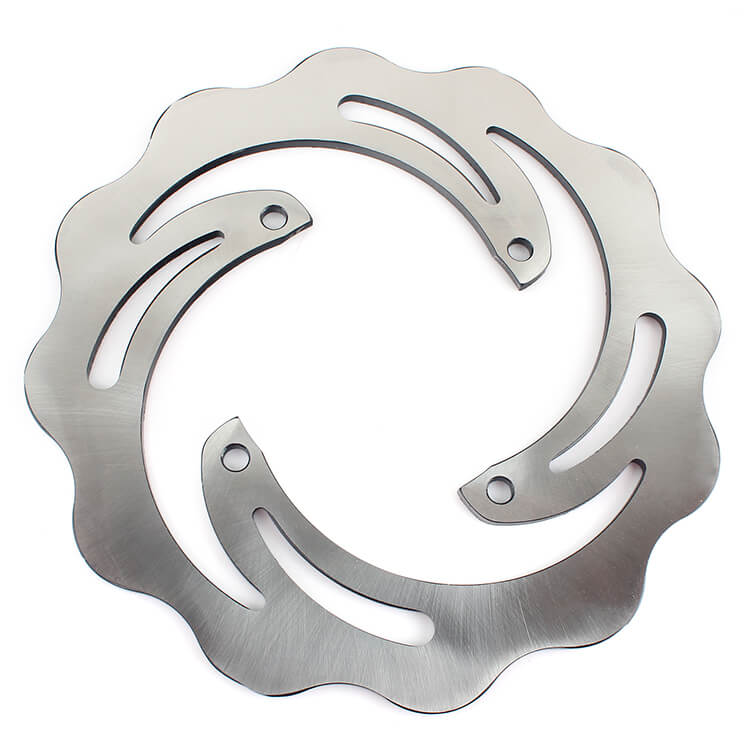

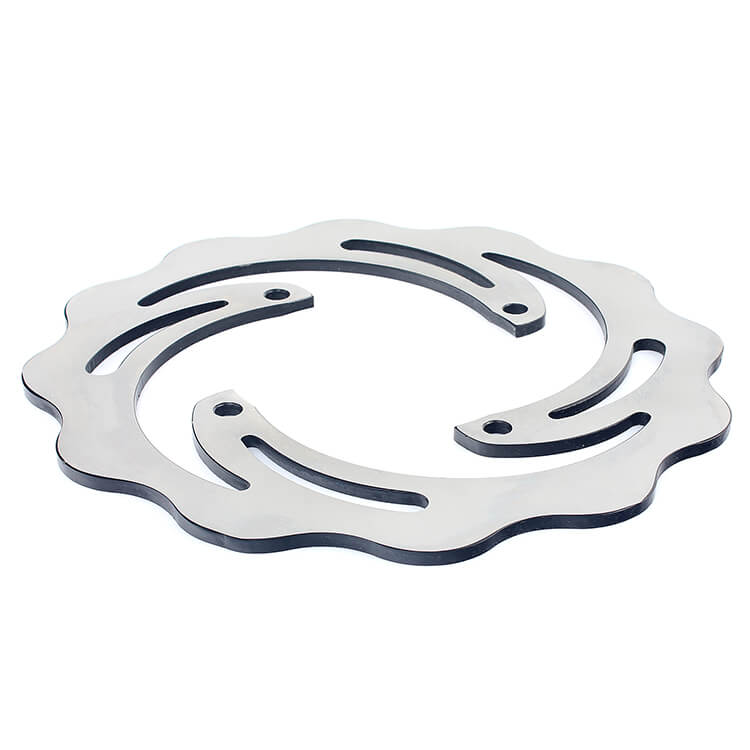

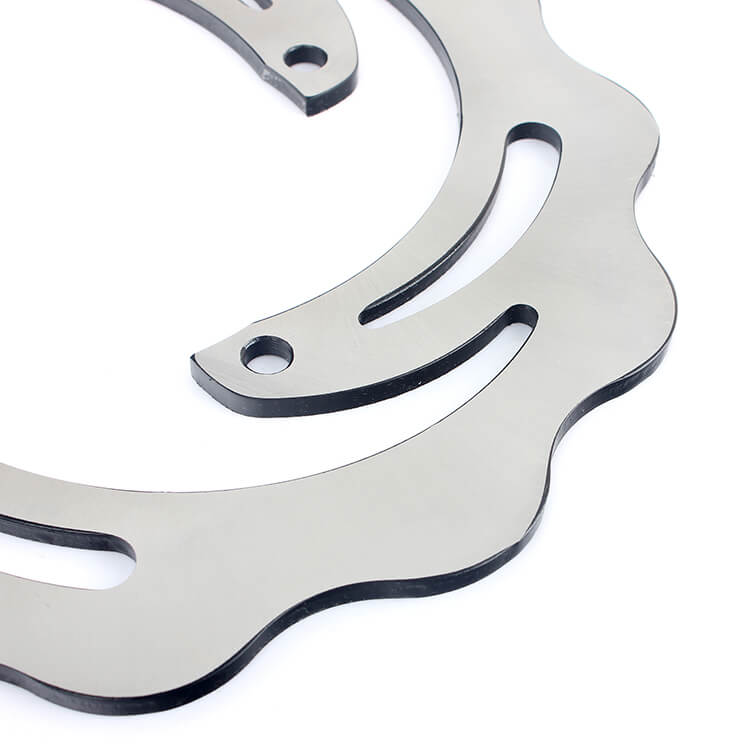

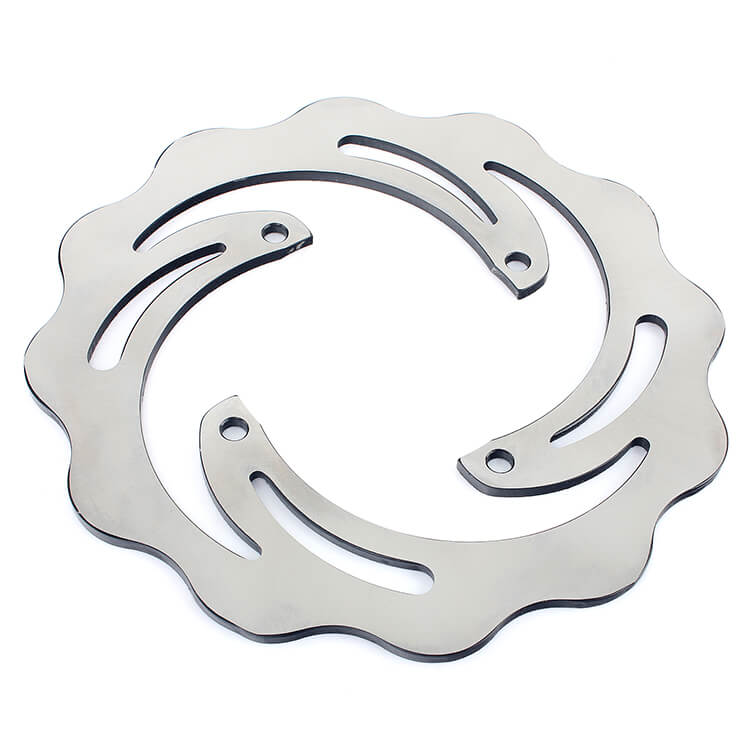

Rear brake disc

• 420 2Cr13 stainless steel ensures strong braking power.
• Heat treatment for super hardness and toughness.
• Light weight wave shape disc, 30% light wieght than OEM.
• Slot system to keep your brake system clean and run cooler.

Outer diameter: 245mm
Inner diameter: 108mm
Thickness: 5mm
Hole quantity: 4
Hole size: 8.5mm
Hole spacing: 125mm

All discs carry the required minimum thickness markings essential for road registration. Please replace your brake disc when it reaches the Minimum Thickness marked on the disc surface to ensure your safety
