Front Rear Brake Disc for Ducati 999 Biposto 2002-2006 / 999 S 999 R 2002-2007 / 999 R Xerox 2006

Fit for
Ducati 749 748CC model year 2002-2007
Ducati 749 R (Rad.cal) (H5/e3/0153) 748CC model year 2004-2007
Ducati 749 S (H5/e3/0153) 748CC model year 2003-2007
Ducati 999 BIPOSTO 998CC model year 2002-2006
Ducati 999 S (H4/e3/0147) 998CC model year 2002-2007
Ducati 999 R (H4/e3/0147) 999CC model year 2002-2007
Ducati 999 R Xerox 2006

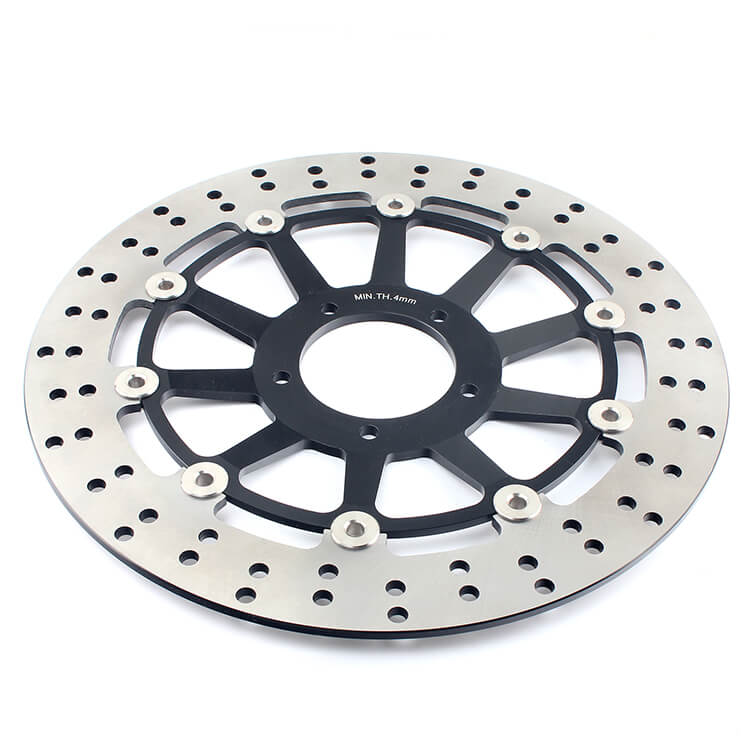

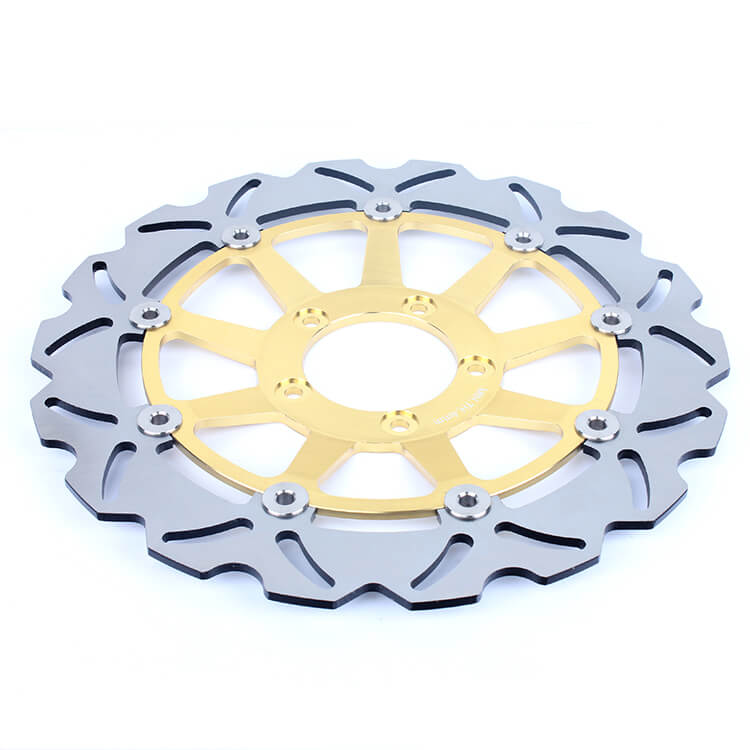

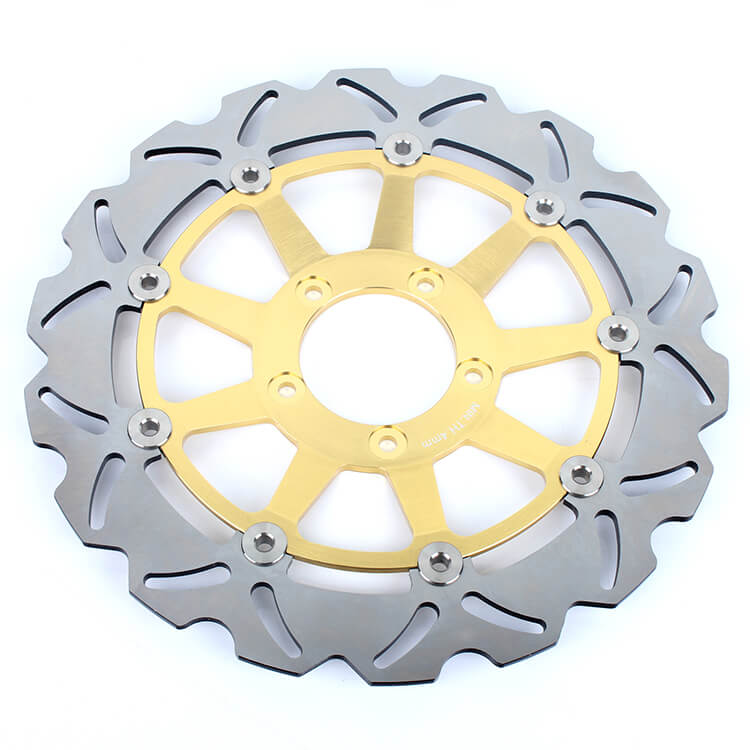

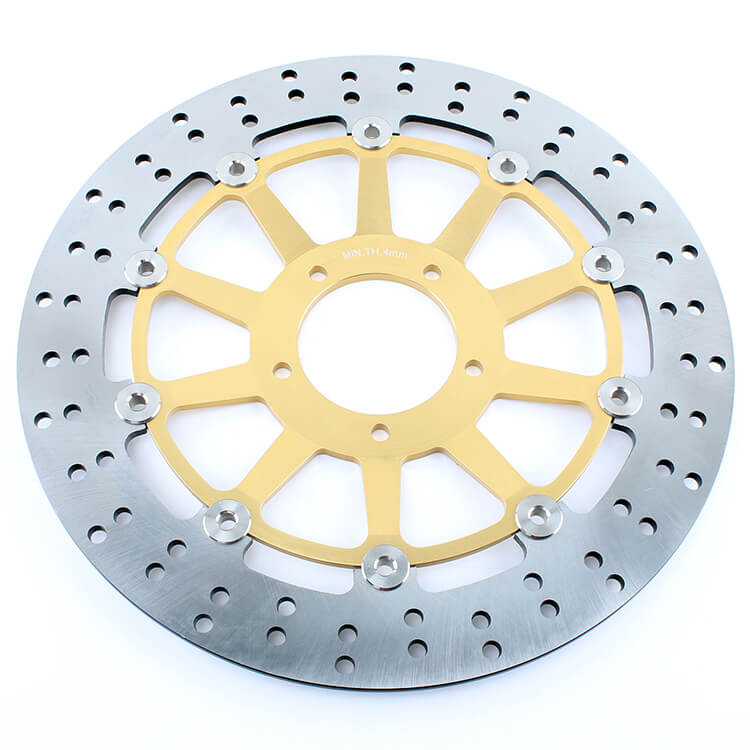

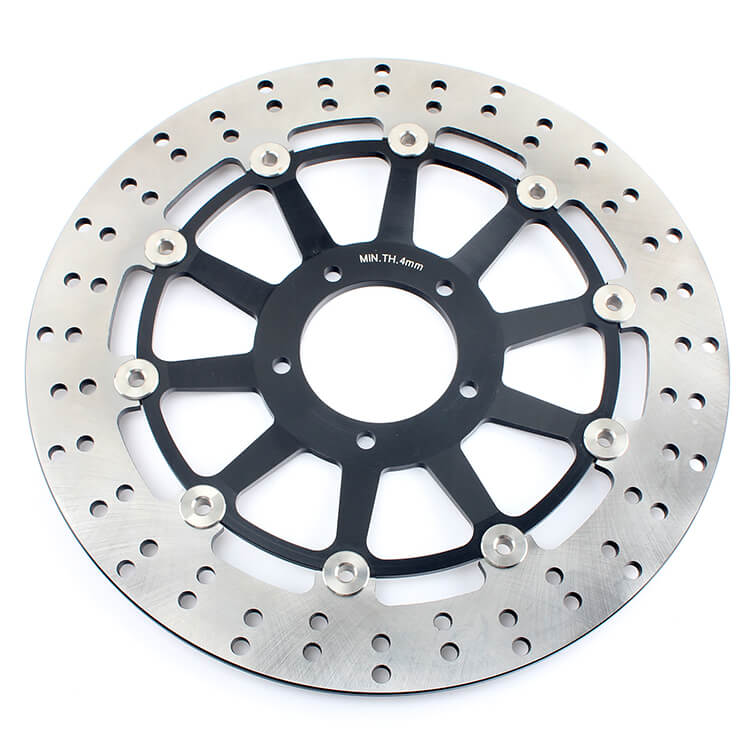

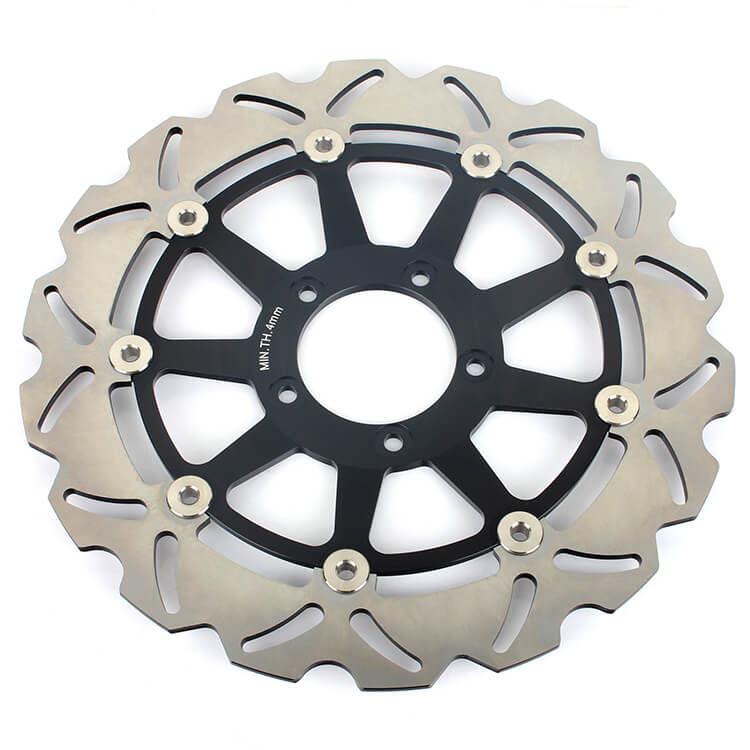

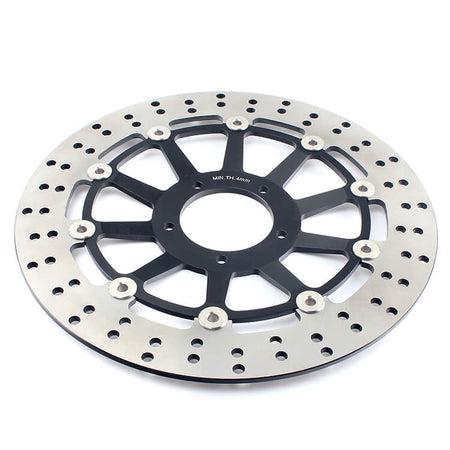

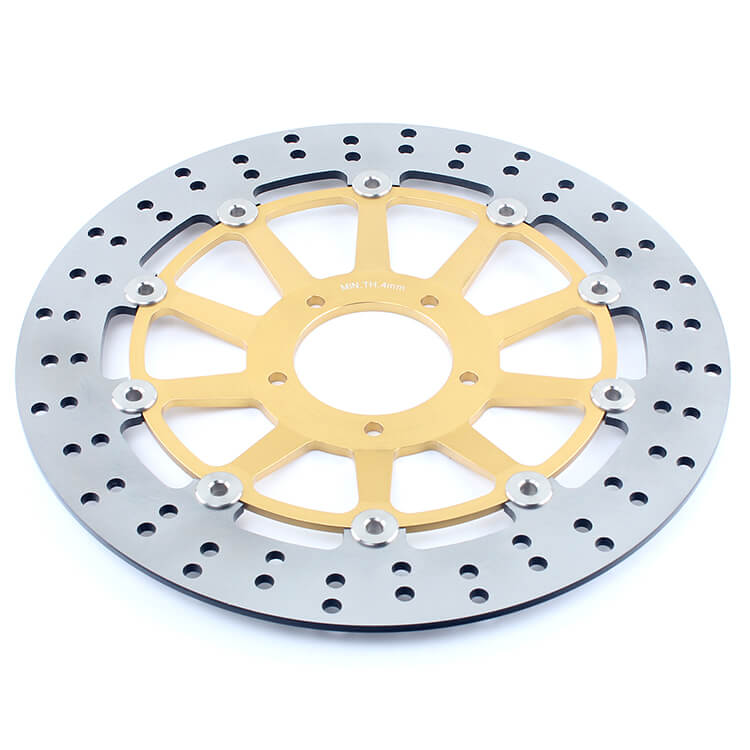

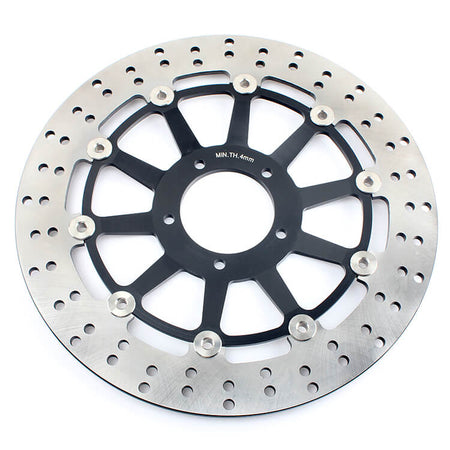

Front brake disc

• Strong heat treated 420 stainless steel brake surface & aluminum 6061 T6 center hub offer maximum brake power & good look.
• Venting holes increase air circulation to improve heat dissipation.
• Venting slot system ensures water & dirt are dispersed quickly to keep your brake system clean, it also speeds up the overall heat dissipation to improve rotor cooling.

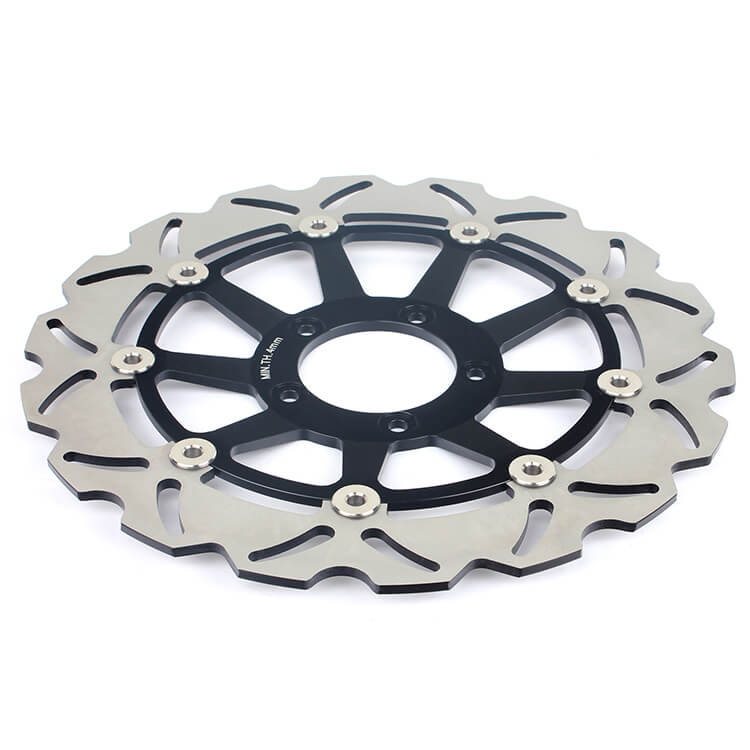

• Wave shape brake disc rotor 20% light weight than OEM.
• Surface is electro-stactically coated to ensure the long-term appearance.
• Directly replace your old rotor without modifaction.

Outer diameter: 320mm
Inner diameter: 72mm
Thickness: 5mm
Hole quantity: 5
Hole size: 8.5mm
Hole spacing: 90mm
Offset height: 15mm

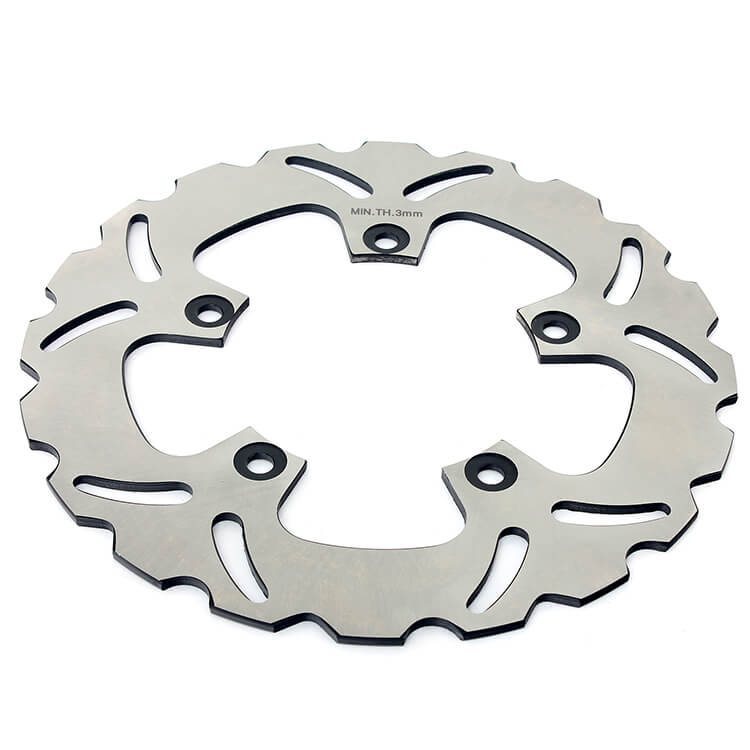

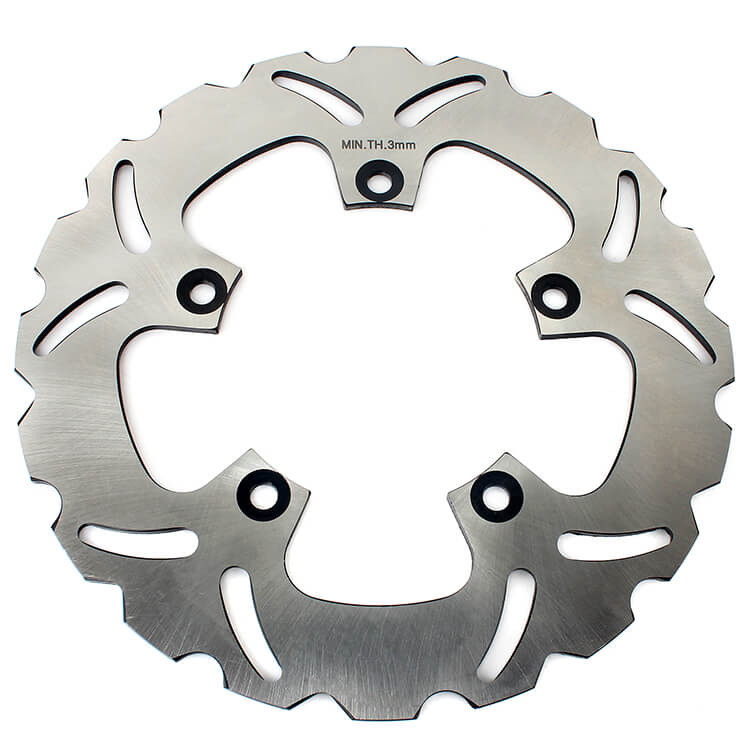

Rear brake disc

• 420 stainless steel delivers maximum stopping power.
• Heat treatment harness HRC 36+-2 ensure brake area not warped.
• The grooves on the disc surface create a self ventilating system allowing the rotor to cool down and also prevent mud and dirt from interfering with braking performance.
• The construction increases air circulation for better heat dissipation & improved cooling.

Outer diameter: 240mm
Inner diameter: 107mm
Thickness: 4mm
Hole quantity: 5
Hole size: 8.5mm
Hole spacing: 125mm

Please replace your rotor when it reaches the Minimum Thickness we marked on the disc surface to ensure your safety
