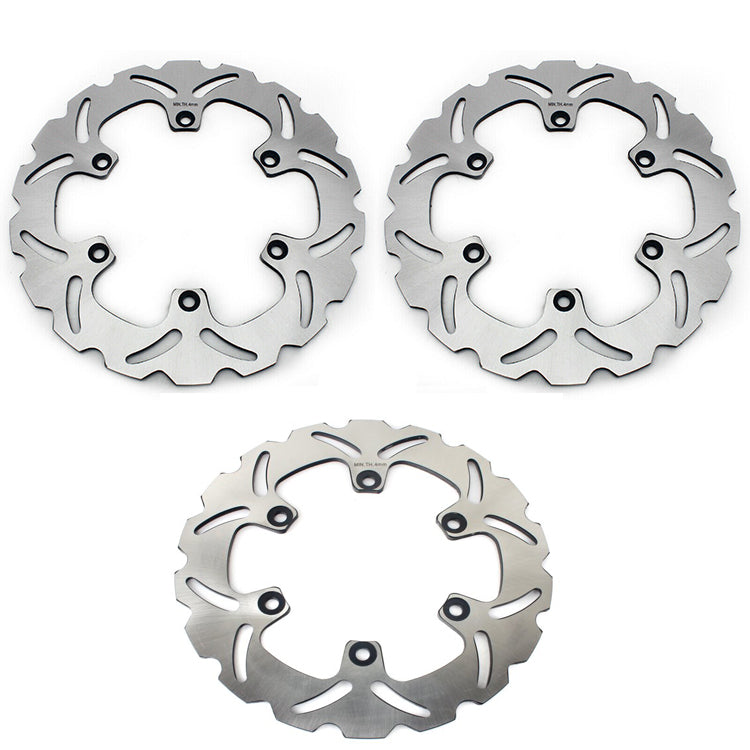

For Yamaha RD500LC 1984-1988 Front Rear Brake Disc Rotors

In stock
7-15 Business Days Delivery
Regular price $110.00
Type

Fit for:
Yamaha RD 1GE D769 500CC model year 1985-1988;
Yamaha RD 500 LC 47X D467 1984-1988.

  • Material: Laser cut 420 stainless steel, heat treated to ensure warp resistance.
  • The slots or grooves on the disc provide an escape route for heat, gas and waste material, preventing it from building up on the contact surfaces.
  • Wave design allows for better heat dissipation and water dispersion, the venting slots are designed to reduce the brake surface temperature and make the dirt and water are dispersed quickly.
  • Directly bolt on, no additional hardware necessary.

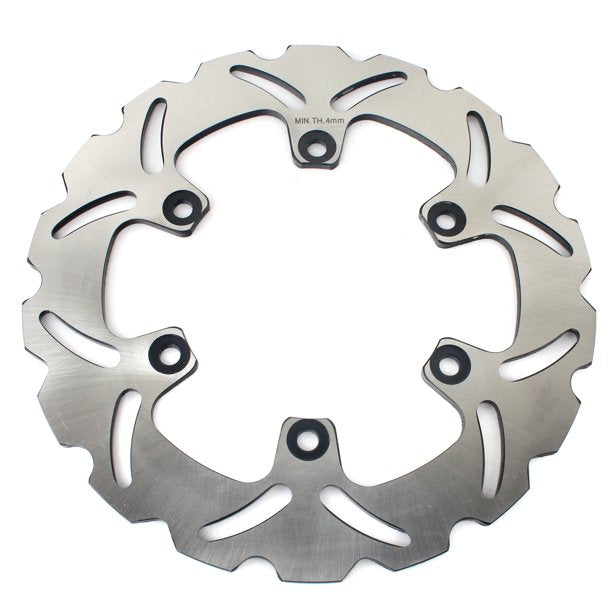

  • We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding.

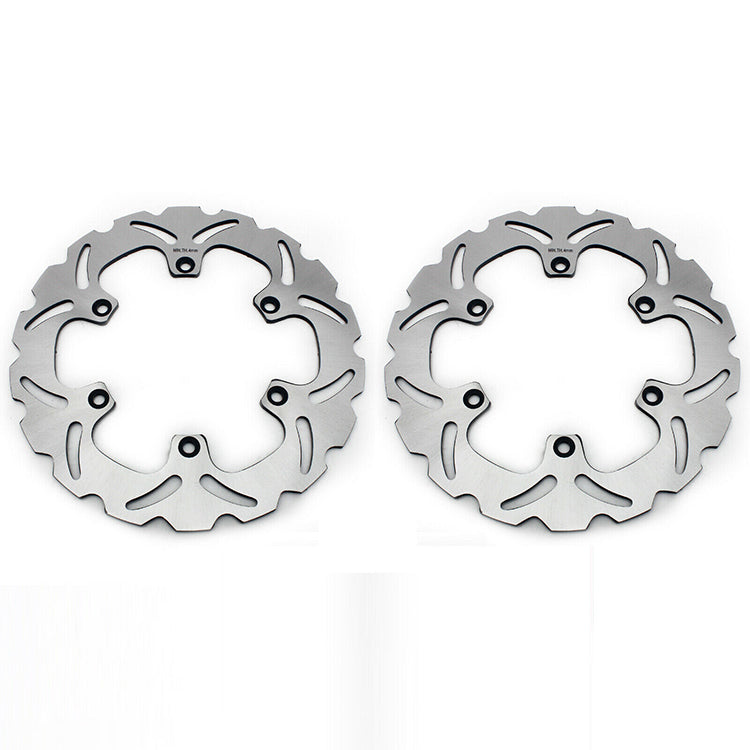

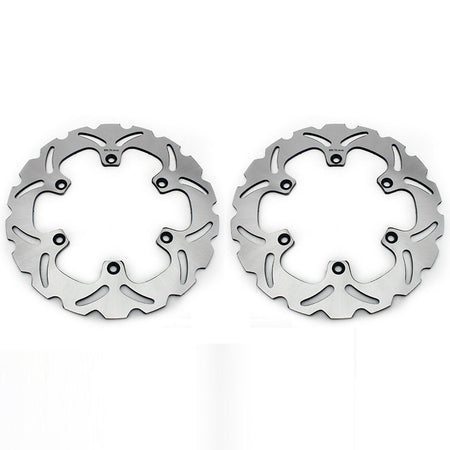

  • Front Brake Disc
    Outer Diameter: 267mm
    Inner Diameter: 132mm
    Thickness : 5mm
    Hole Quantity: 6
    Hole Size : 8.4mm
    Hole Spacing : 150mm
  • Rear Brake Disc
    Outer Diameter: 245mm
    Inner Diameter: 115mm
    Thickness: 5mm
    Hole Quantity: 6
    Hole Size : 8.4mm
    Hole Spacing : 133mm
