Front Rear Brake Disc for Kawasaki Versys 1000 2018-2020

Fit for
Kawasaki 1000cc Versys 1000 ABS (KLZ1000) 2015-2017
Kawasaki 1000cc Versys 1000 ABS (KLZ1000) 2018-and up
Kawasaki 1000cc Versys 1000 Grand Tourer 2018-and up
Kawasaki 1000cc Versys 1000 LT ABS (KLZ1000) 2015-2016
Kawasaki 1000cc Versys 1000 LT non-ABS (KLZ1000) 2015-2016
Kawasaki 1000cc Versys 1000 SE 2019-and up
Kawasaki 1000cc Versys 1000 SE LT+ 2019-and up
Kawasaki 1000cc Versys 1000 Tourer Plus 2018-and up

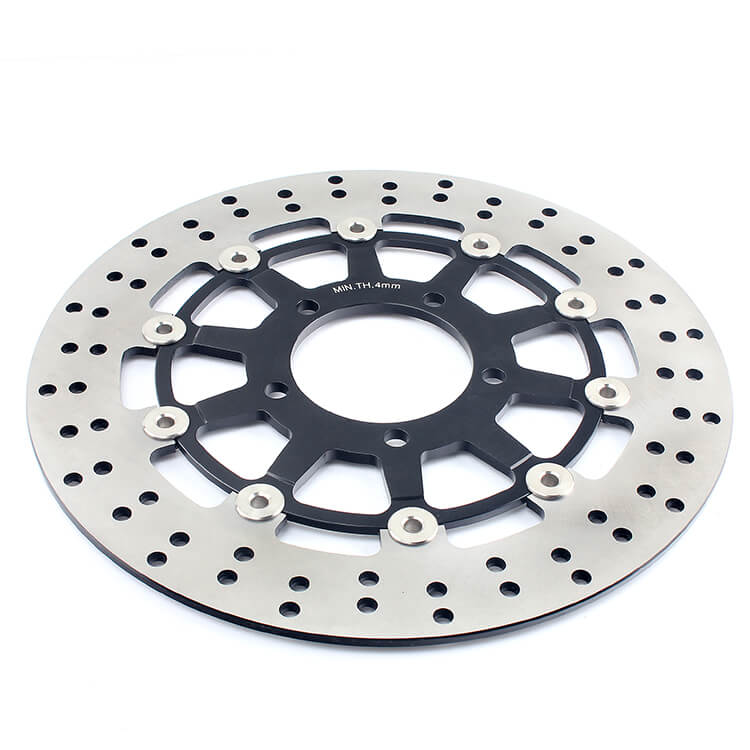

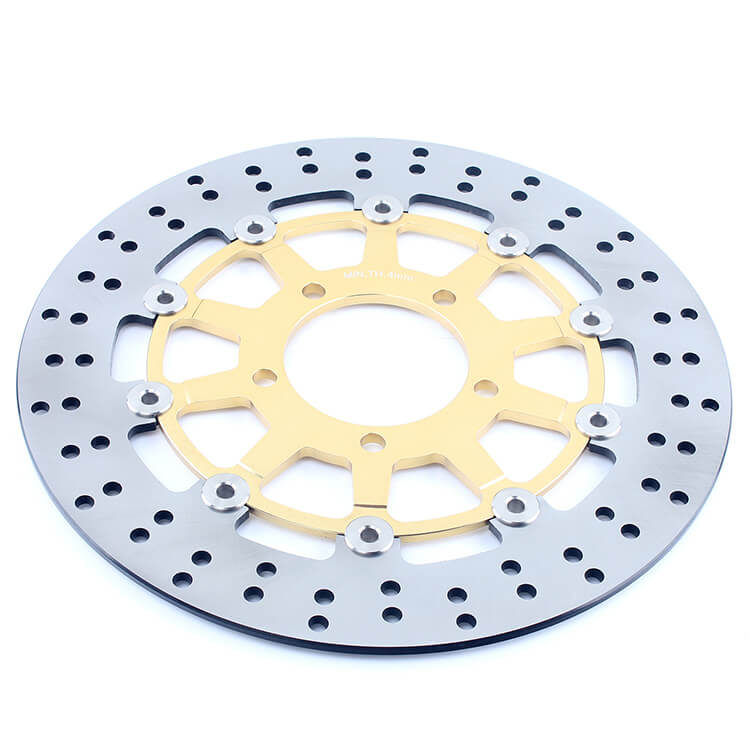

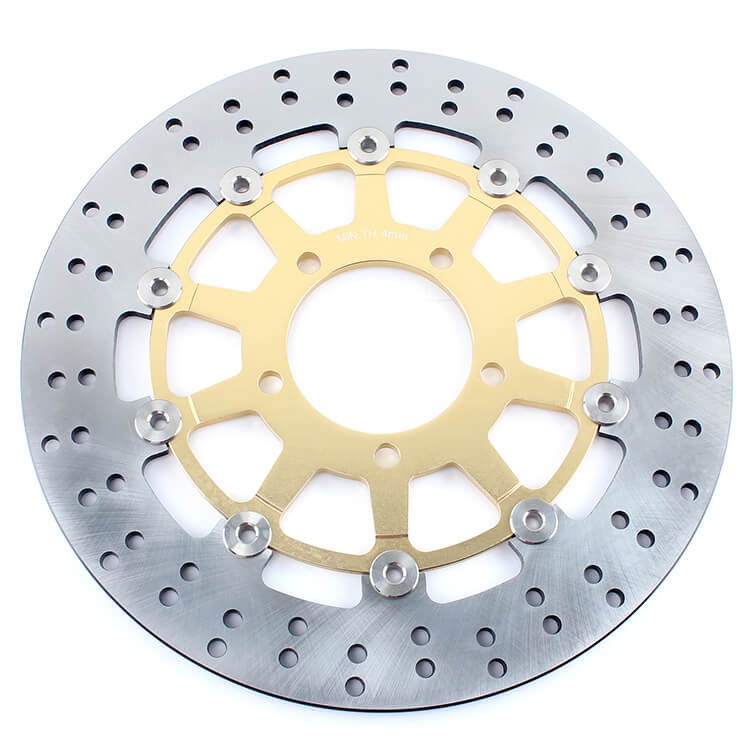

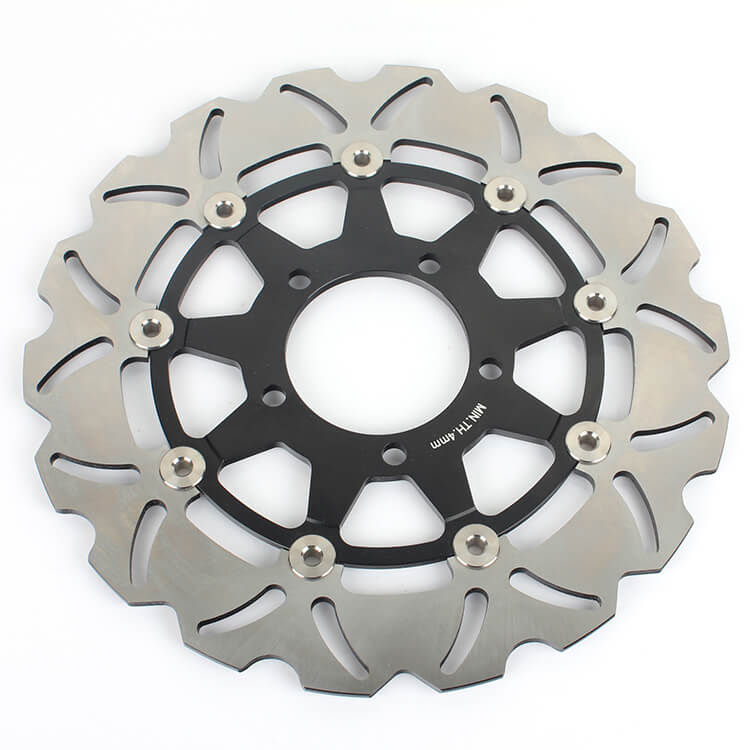

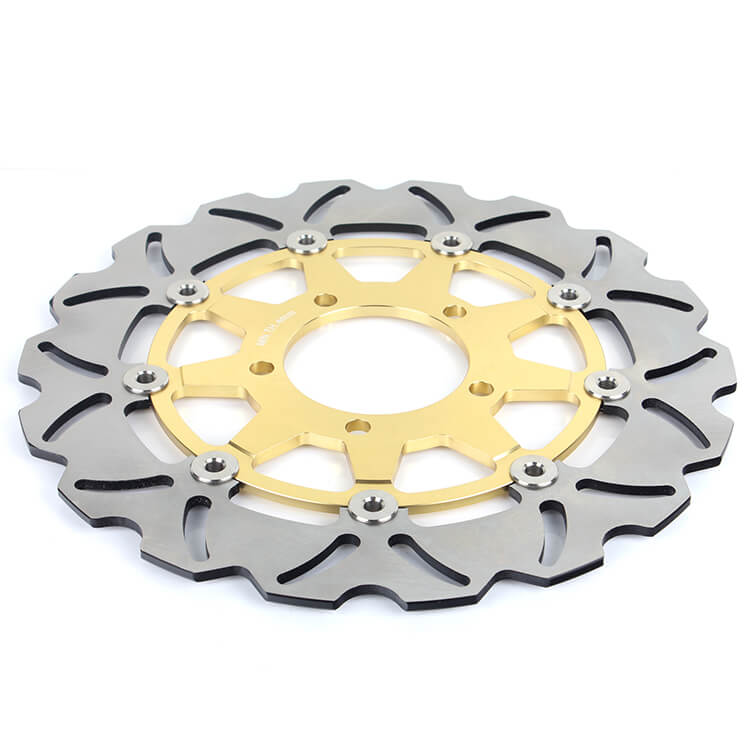

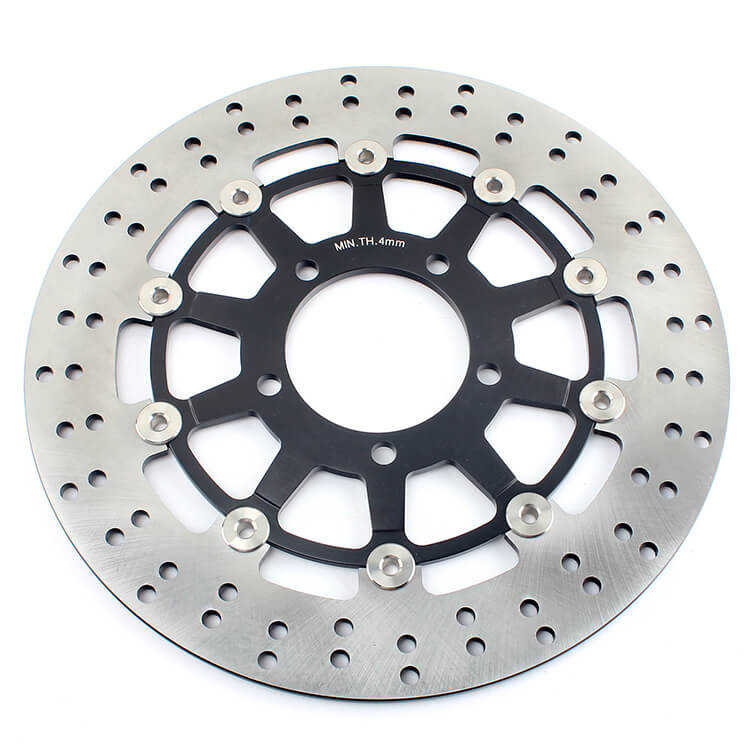

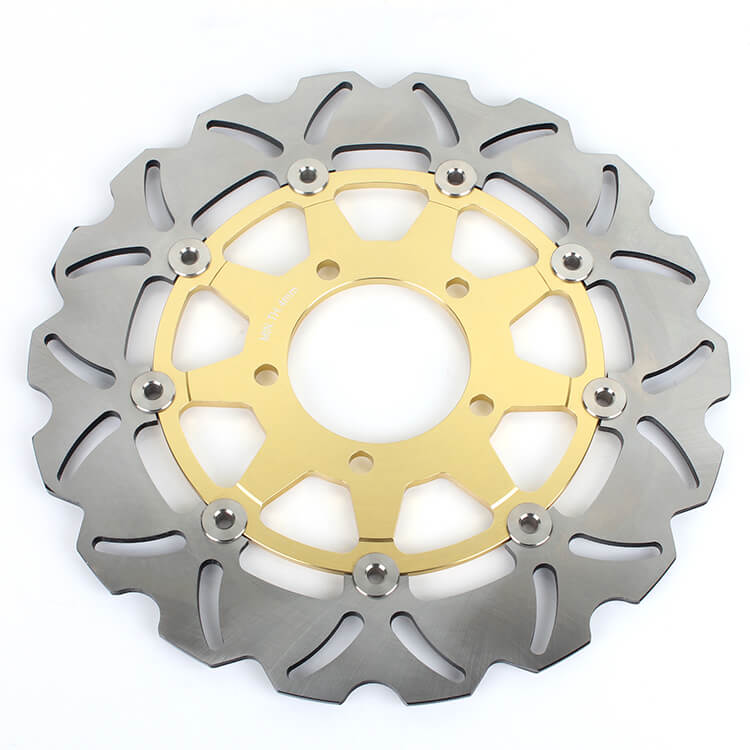

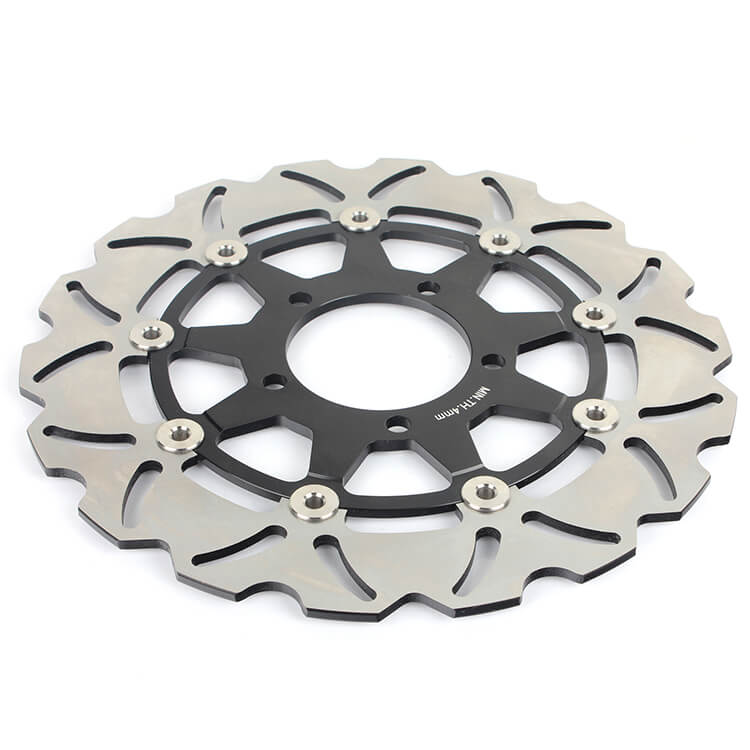

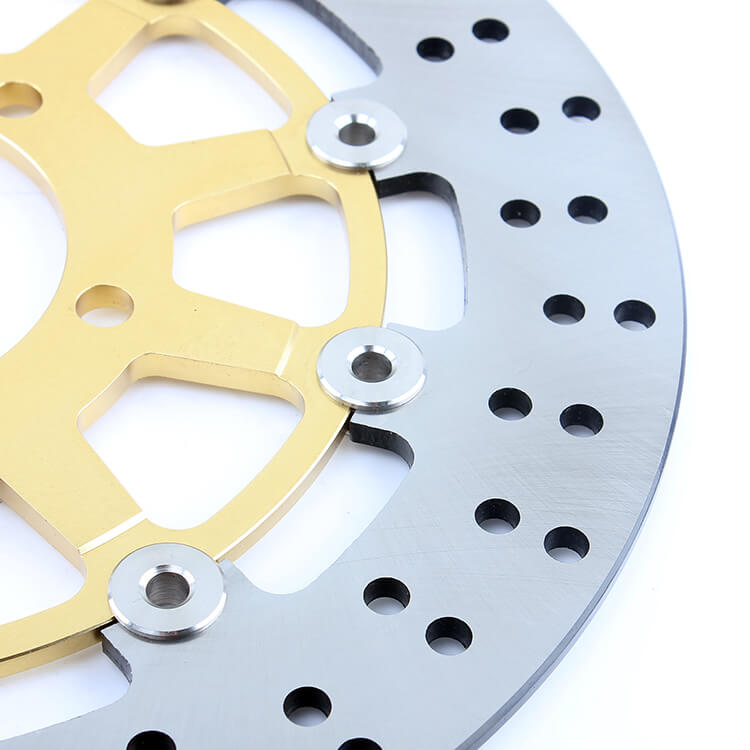

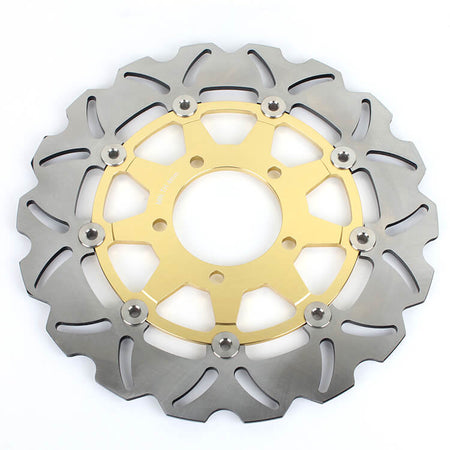

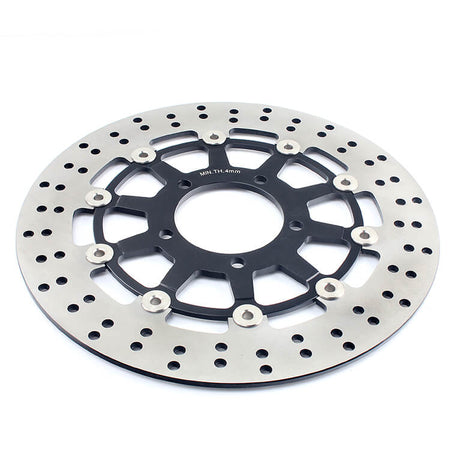

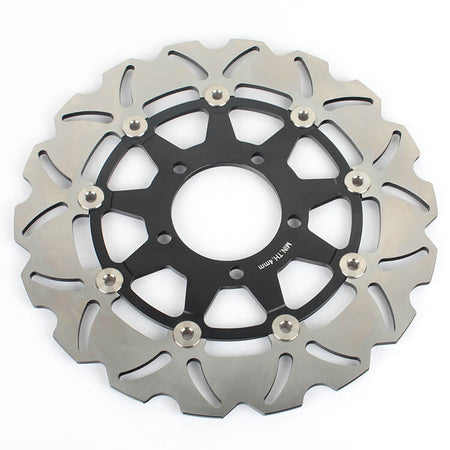

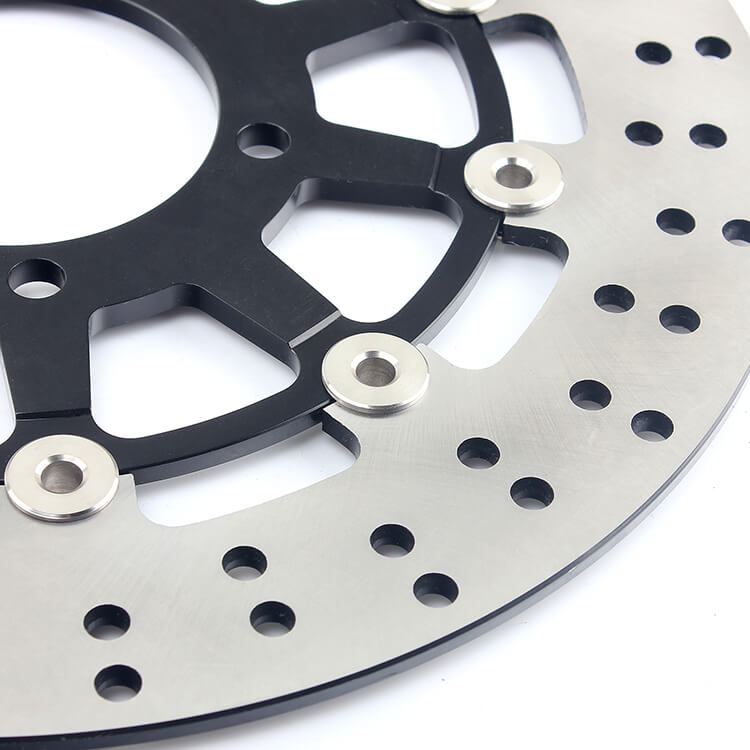

Front brake disc

• Aluminum center and sturdy riveted construction. Made of strong 420 (2Cr13) stainless steel & 6061-T6 aluminum to ensure strong braking power as well as good look.
• All fitting dimensions according to originally fitted disc.
• Weight saving venting slots & holes design for better water dispersal & heat dissipation. It increases air circulation to improve cooling efficiency and keeps water and dirt are dispersed quickly to prevent mud and dirt from interfering with braking performance.
• Surfaces are electro-statically coated to ensure a long term appearance.
• Better braking, less wear, more driving pleasure.
• All discs carry the required minimum thickness markings essential for road registration.

Outer diameter: 310mm
Inner diameter: 80.5mm
Thickness: 5mm
Hole quantity: 5
Hole size: 10.5mm
Hole spacing: 100mm

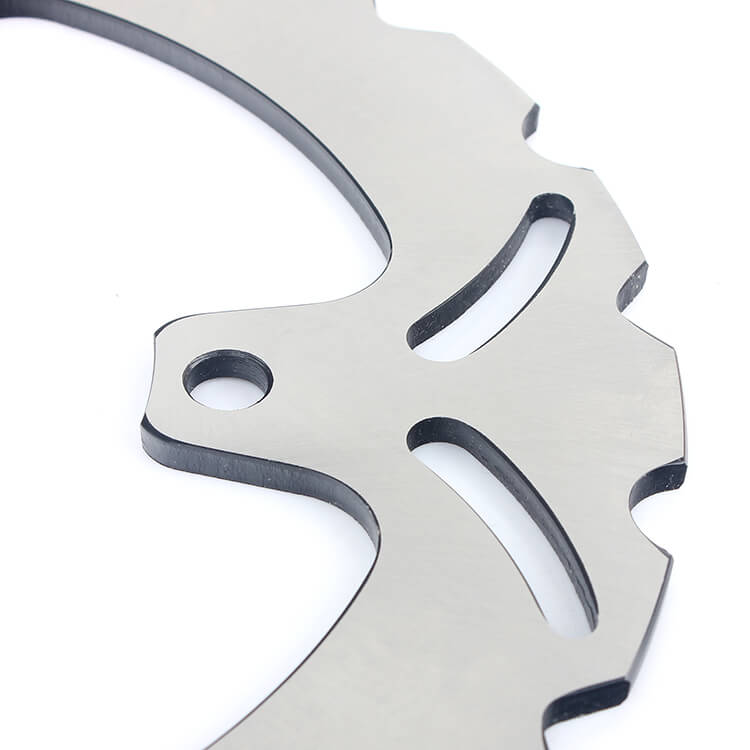

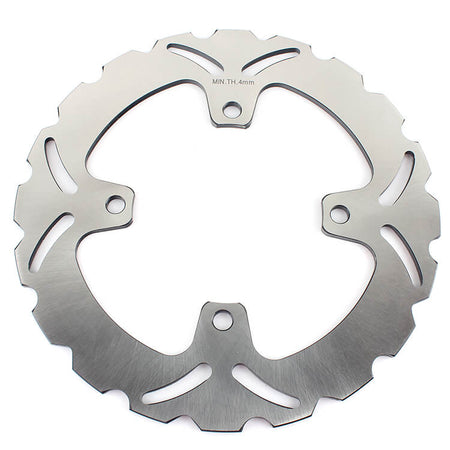

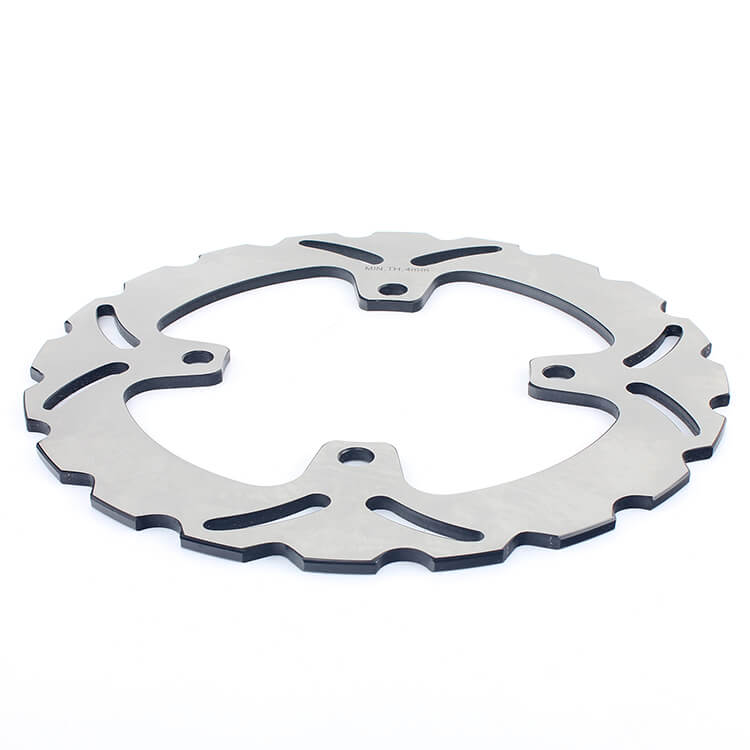

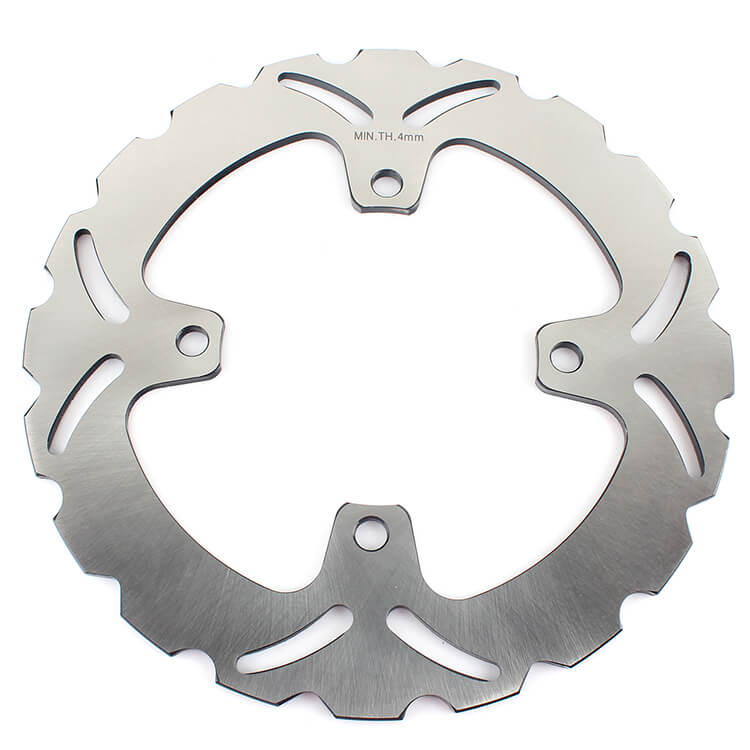

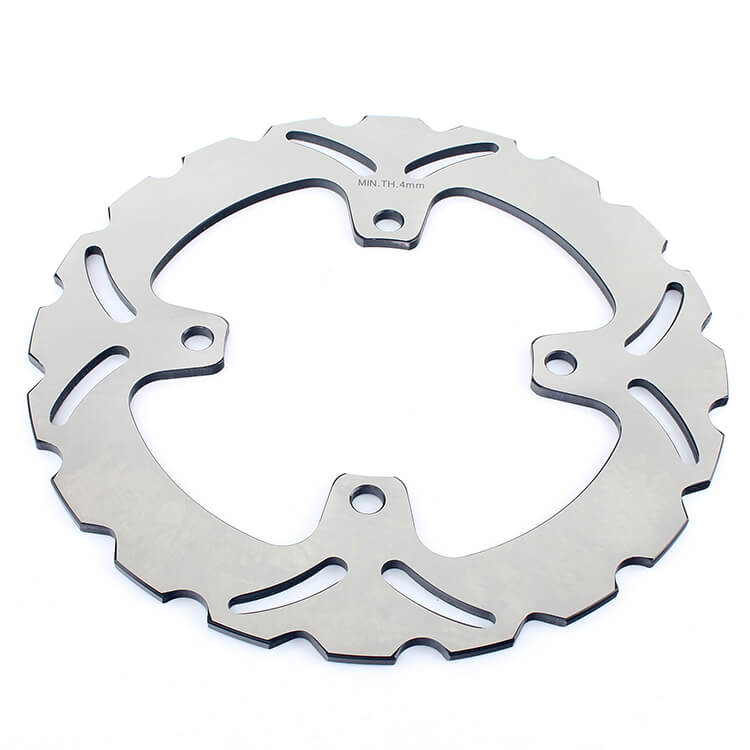

Rear brake disc

• 420 2Cr13 stainless steel offers strong braking power, heat treated ensures warp resistance.
• Wave shape fit the fashion sense of young people. The construction ensures good heat dissipation under heavy braking sessions and keeps water and dirt are dispersed quickly.
• Light weight design, 30% light wieght than OEM.

Outer diameter: 250mm
Inner diameter: 110mm
Thickness: 5mm
Hole quantity: 4
Hole size: 10.4mm
Hole spacing: 130mm

The Min Thickness was marked on the disc surface, please replace the brake disc rotor when the thickness reaches the Minimum Thickness to ensure save ridding
