Fit for:
Yamaha RD 1GE D769 500CC model year 1985-1988;
Yamaha RD 500 LC 47X D467 1984-1988.
- Material: Laser cut 420 stainless steel, heat treated to ensure warp resistance.
- The slots or grooves on the disc provide an escape route for heat, gas and waste material, preventing it from building up on the contact surfaces.
- Wave design allows for better heat dissipation and water dispersion, the venting slots are designed to reduce the brake surface temperature and make the dirt and water are dispersed quickly.
- Directly bolt on, no additional hardware necessary.
- We marked the Min Thickness on the surface ,it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding.

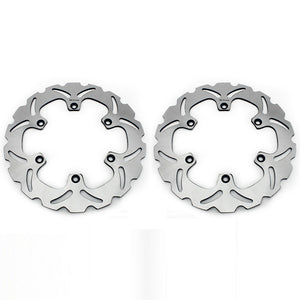

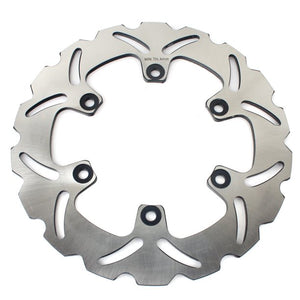

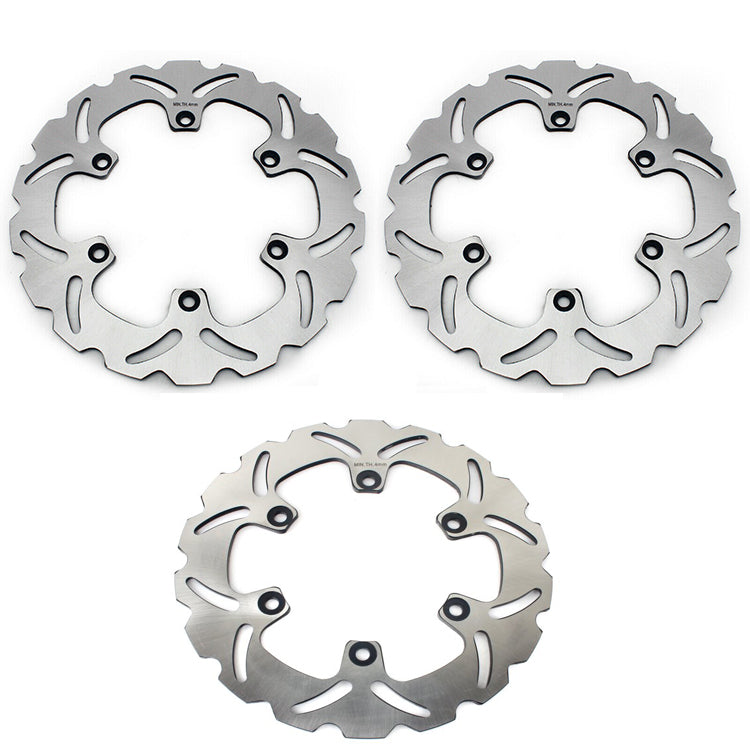

- Front Brake Disc
Outer Diameter: 267mm
Inner Diameter: 132mm
Thickness : 5mm
Hole Quantity: 6
Hole Size : 8.4mm
Hole Spacing : 150mm - Rear Brake Disc
Outer Diameter: 245mm
Inner Diameter: 115mm
Thickness: 5mm
Hole Quantity: 6
Hole Size : 8.4mm
Hole Spacing : 133mm
